Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

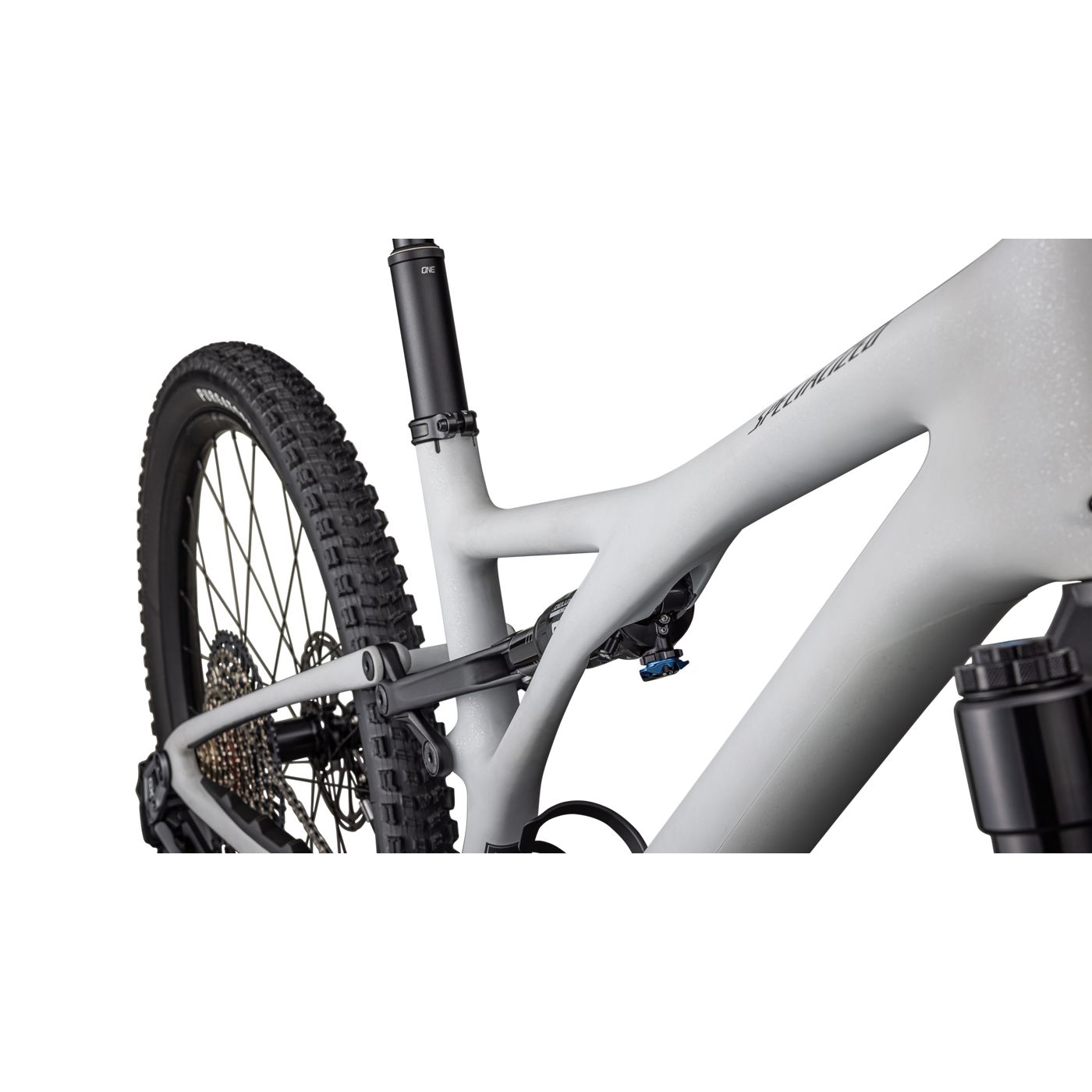

Introducing the Specialized StumpJumper LTD Full Suspension 29" Mountain Bike – the trail-blazing beast that's got your back from peak to valley! Calling it "The Ultimate Trail Bike" is no exaggeration; this two-wheeled wonder is here to rock your world.
Let's start with climbing - a breeze with the StumpJumper's ground-breaking suspension redesign and the feather-light frame, making uphill battles a thing of the past. It practically floats up those inclines!
So, if you're looking for a bike that's not just a ride but a trail-ripping, adventure-packed, party-on-wheels, the Specialized StumpJumper LTD is your perfect match. Prepare to conquer mountains, embrace gravity, and make memories that'll last a lifetime with this trail-blazing masterpiece.
Features:
- THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
- THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
- PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
- RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
- SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Specifications
Rims |
Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready |
Front Hub |
Roval, sealed cartridge bearings, 15x110mm spacing, 28h |
Rear Hub |
Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
Rear Tire |
Purgatory, GRID casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
Spokes |
DT Swiss Competition Race |
Front Tire |
Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3" |
Inner Tubes |
Standard, Presta Valve |
Handlebars |
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp |
Grips |
Deity Lockjaw |
Saddle |
Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Stem |
Alloy Trail Stem, 35mm bar bore |
Cassette |
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
Chain |
SRAM GX Eagle Transmission Flattop Chain |
Crankset |
SRAM GX Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm |
Rear Derailleur |
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
Shift Levers |
SRAM AXS POD Controller |
Bottom Bracket |
SRAM DUB, BSA 73mm Wide, Threaded |
Chainrings |
32T |
Front Brake |
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm |
Rear Brake |
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 180mm |
Fork |
RockShox Pike Ultimate, Charger 3 RC2 Damper w/Buttercups, 15x110mm axle, 44mm offset, 140mm of travel |
Rear Shock |
RockShox Deluxe Ultimate, Rx Trail Tune, 190x45 |
Frame |
FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel |
Seat Binder |
Alloy, 38.6mm |
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 40mm | 40mm | 40mm | 40mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 120mm | 150mm | 150mm | 180mm | 210mm | 210mm |
Stack (Low BB) | 614mm | 613mm | 622mm | 632mm | 641mm | 650mm |
Stack (High BB) | 610mm | 609mm | 618mm | 627mm | 636mm | 646mm |
Reach (Low BB) | 410mm | 430mm | 450mm | 475mm | 500mm | 530mm |
Reach (High BB) | 415mm | 435mm | 455mm | 480mm | 505mm | 535mm |
Headtube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Headtube Angle (Low BB) | 65° | 65° | 65° | 65° | 65° | 65° |
Headtube Angle (High BB) | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
BB Height (Low BB) | 328mm | 333mm | 333mm | 333mm | 333mm | 333mm |
BB Height (High BB) | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
BB Drop (Low BB) | 47mm | 42mm | 42mm | 42mm | 42mm | 42mm |
BB Drop (High BB) | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
Trail (Low BB) | 126mm | 126mm | 126mm | 126mm | 126mm | 126mm |
Trail (High BB) | 123mm | 123mm | 123mm | 123mm | 123mm | 123mm |
Fork Length (full) | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 724mm | 746mm | 770mm | 800mm | 829mm | 863mm |
Chainstay Length | 432mm | 432mm | 432mm | 432mm | 442mm | 442mm |
Wheelbase | 1152mm | 1175mm | 1200mm | 1228mm | 1268mm | 1302mm |
Top-tube Length (horizontal) | 563mm | 583mm | 605mm | 632mm | 660mm | 692mm |
Bike Standover Height | 730mm | 734mm | 744mm | 749mm | 757mm | 757mm |
Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle (Low BB) | 76° | 76° | 76° | 76° | 76° | 76° |
Seat Tube Angle (High BB) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
Max Seatpost Insertion | 220mm | 220mm | 240mm | 260mm | 280mm | 300mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
