Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

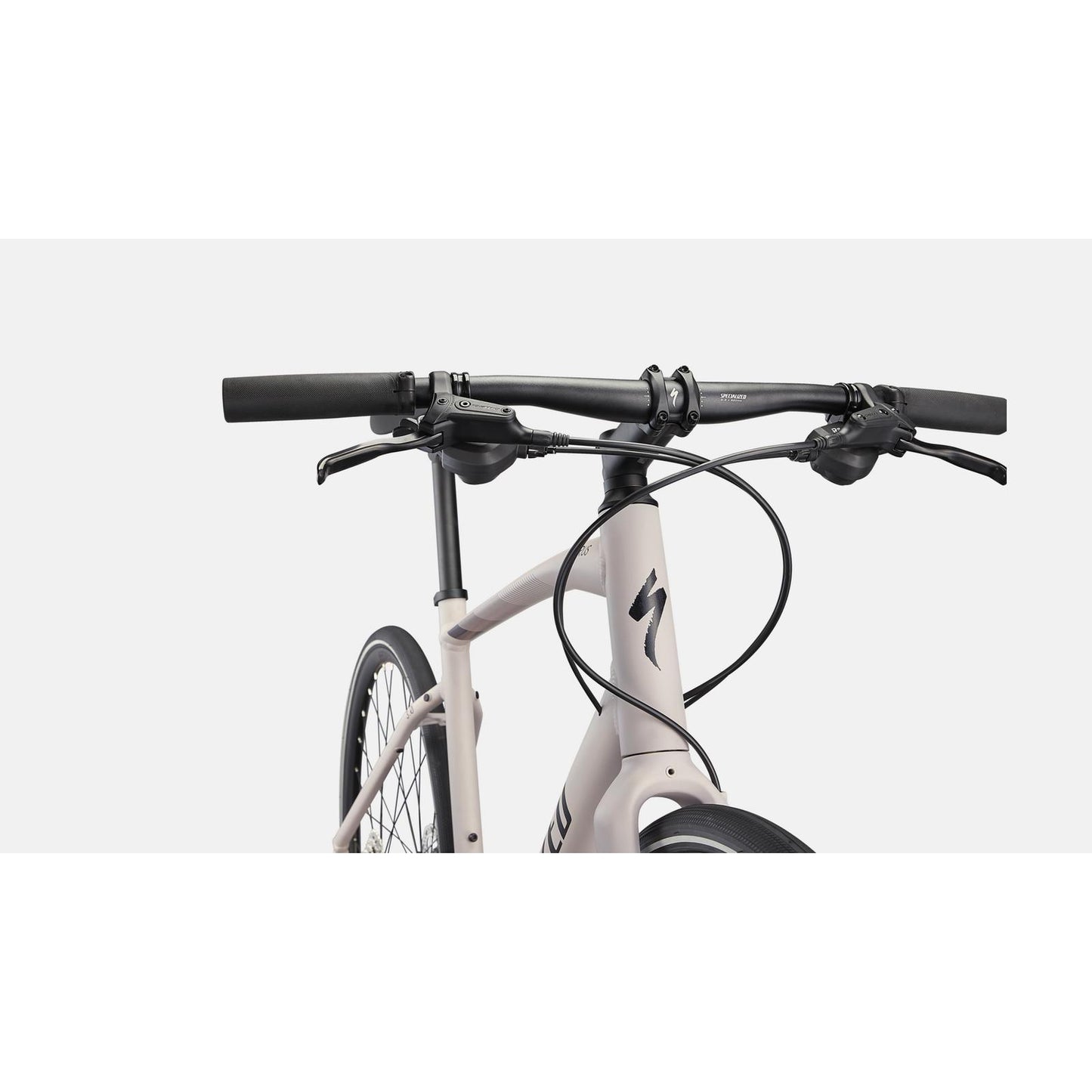

Introducing the Specialized Sirrus 3.0 Fitness Road Bike—a ride that's not just about the destination, but the adventure along the way. In a world where life zooms by, the Sirrus is your trusty sidekick, ready to tackle your whirlwind of plans while keeping your fitness game strong. This isn't just a bike; it's a ticket to wherever you're craving to be. So, as you chase your goals with determination, remember: the Sirrus isn't just a bike. It's your partner in crime, your wind-whispering confidant, and your excuse-buster for not just reaching, but surpassing those finish lines. Get ready to pedal, smile, and conquer with the one and only Specialized Sirrus 3.0!
Features:
- Carbon FACT 9 fork delivers comfort and saves nearly 3 pounds (1.2kg) over Sirrus 2.0 model.
- Wide range 2x9 MicroSHIFT components for intuitive and precise shifting.
- Lightweight 2 piece crank for years of performance.
Specifications
|
Frame |
Specialized A1 Premium Aluminum, Fitness Geometry, butted tubing, internal cable routing, flat-mount disc, quick-release, Plug + Play rack/fender mounts |
|
Handlebars |
Double-butted alloy, 9-degree backsweep, 31.8mm |
|
Stem |
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
|
Tape |
Specialized Body Geometry Contour, lock-on |
|
Saddle |
Bridge Sport, Steel rails, 155/143mm |
|
SeatPost |
Alloy, 12mm offset, 2-bolt clamp, 27.2mm |
|
Seat Binder |
Bolt-type, 31.8mm |
|
Front Brake |
Tektro HD-R280, hydraulic disc, resin pads, flat-mount, 160mm |
|
Rear Brake |
Tektro HD-R280, hydraulic disc, resin pads, flat-mount, 140mm |
|
Shift Levers |
microSHIFT, 9-speed |
|
Front Derailleur |
microSHIFT R9, 9-speed, 31.8mm clamp |
|
Rear Derailleur |
MicroSHIFT RD-R43M, medium cage |
|
Cassette |
MicroSHIFT H092, 9-speed, 11-34t |
|
Crankset |
Forged aluminum arms, 2-piece, 24mm spindle, 46/30T |
|
Chainrings |
46/30T |
|
Bottom Bracket |
Shimano 68mm threaded |
|
Chain |
KMC X9, 9-speed w/ Missing Link™ |
|
Rims |
700C disc brake, double-wall alloy, 22mm depth, 21mm internal width |
|
Front Hub |
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h |
|
Rear Hub |
Alloy, 6-bolt disc, 8-/9-speed freehub, loose ball bearing, quick-release, 32h |
|
Spokes |
Stainless, 14g |
|
Front Tire |
RoadSport Reflect, Wire bead, Blackbelt/Endurant Casing, 700x32c |
|
Rear Tire |
RoadSport Reflect, Wire bead, Blackbelt/Endurant Casing, 700x32c |
|
Inner Tubes |
Presta, 48mm valve |
|
Pedals |
Specialized Body Geometry Fitness, platform, plastic |
|
Fork |
Specialized FACT 9r Carbon, flat-mount disc, quick-release |
Geometry
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm | 175mm | 175mm |
| Stem Length | 70mm | 70mm | 80mm | 90mm | 100mm | 110mm |
| Handlebar Width | 580mm | 580mm | 600mm | 600mm | 620mm | 620mm |
| Seatpost Length | 300mm | 300mm | 350mm | 350mm | 400mm | 400mm |
| Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm |
| Stack | 536mm | 555mm | 562mm | 593mm | 608mm | 632mm |
| Reach | 373mm | 388mm | 393mm | 398mm | 402mm | 414mm |
| Head-Tube Length | 121mm | 139mm | 147mm | 175mm | 191mm | 217mm |
| Head-Tube Angle | 69.5° | 70° | 70° | 71° | 71° | 71° |
| B-B Height | 278mm | 278mm | 278mm | 278mm | 278mm | 278mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | 75mm | 72mm | 72mm | 65mm | 65mm | 65mm |
| Fork Length (full) | 395mm | 395mm | 395mm | 395mm | 395mm | 395mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front-Center | 605mm | 622mm | 630mm | 635mm | 645mm | 665mm |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1036mm | 1053mm | 1061mm | 1066mm | 1075mm | 1096mm |
| Top-Tube Length (horizontal) | 531mm | 552mm | 559mm | 573mm | 582mm | 601mm |
| Bike Stand-Over Height | 692mm | 715mm | 745mm | 775mm | 805mm | 827mm |
| Seat-Tube Length | 360mm | 395mm | 440mm | 470mm | 510mm | 530mm |
| Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
