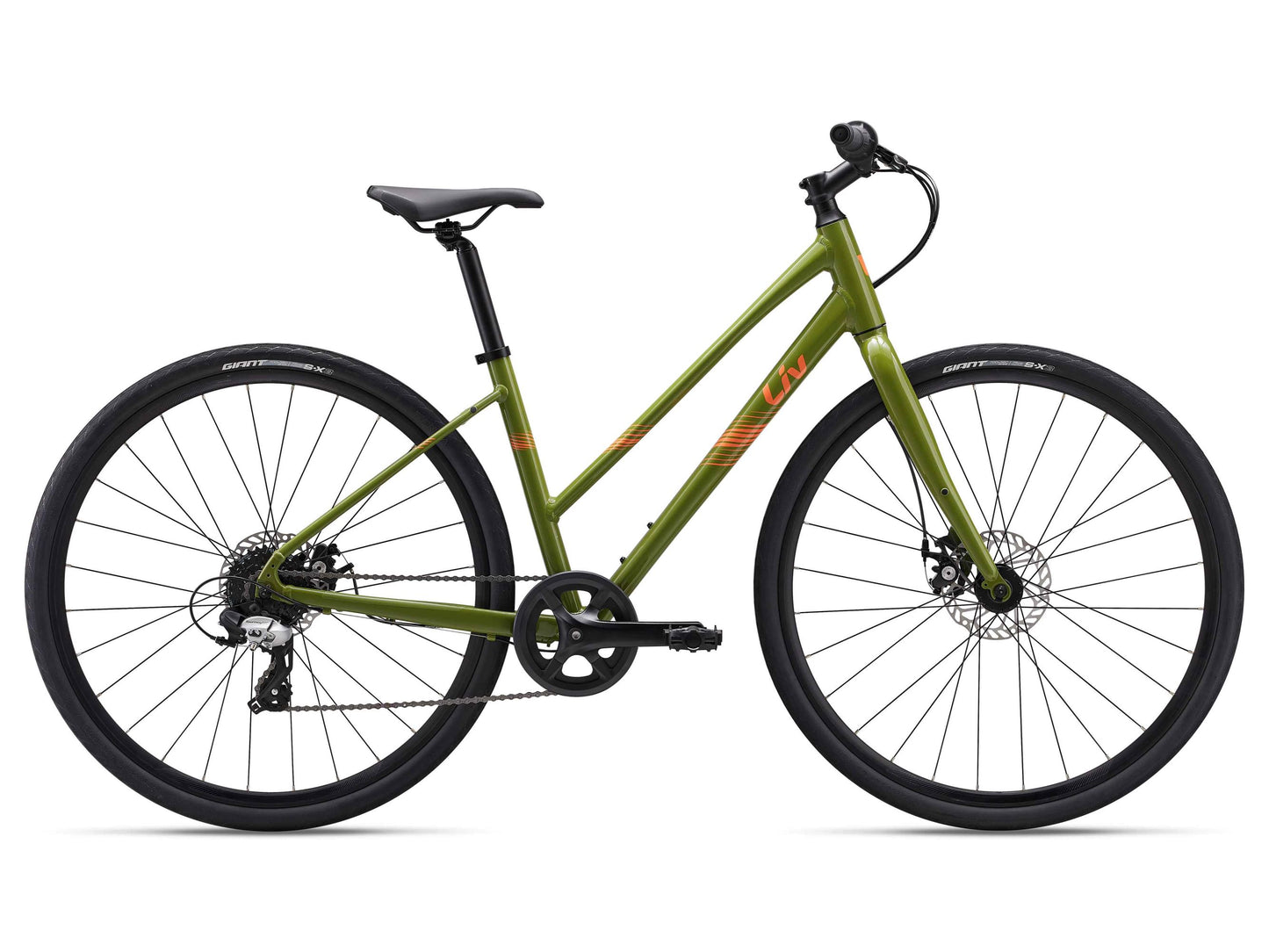

Liv Alight Stagger 4

Name: Alight Stagger 4
Brand: Liv
SKU: GIANT-1002017193
Price: 709.99 USD
Availability: InStock

$709.99

Sale Sold out

Size XS S M L

Quantity

Have questions about buying a bike?
Chat with a specialist ↗

Our Platinum Pro Assembly fee of only $79 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Liv bike comes 90% built, reassembly is quick and easy with our video guides.

In stock

SKU:GIANT-1002017193

View full details

Pedal to work, meet friends for coffee or build up fitness on the bike path. The Alight fits right into a fun, heathy lifestyle.

Casual Comfort

An upright riding position and flat handlebars make commuting or a casual spin comfortable without compromising efficiency.

Fun Fitness

The lightweight, balanced geometry of the ALUXX-grade aluminum frame provides an energizing combination of speed and stability.

Stylish Versatility

Equipped with integrated mounts for racks, fenders or panniers, this bike blends urban style and road bike agility.

Sizes: XS, S, M, L

Colors: Dried Matcha

Frame: ALUXX-grade aluminum, stagger, disc

Fork: High-tensile steel, disc

Shock: N/A

Handlebar: Giant Sport flat, 25.4mm, 20mm riser — XS: 600mm, S: 600mm, M: 640mm, L: 640mm

Grips: VLG-311-5

Stem: Giant Sport, 25.4mm — XS: 75mm, S: 75mm, M: 90mm, L: 90mm

Seatpost: Giant D-Fuse, alloy, 30.9mm — XS: 300mm, S: 300mm, M: 300mm, L: 350mm

Saddle: Liv Sport Saddle

Pedals: Platform

Shifters: Shimano Tourney, 1x8

Front Derailleur: N/A

Rear Derailleur: Shimano Tourney

Brakes: Tektro TKB-172 mechanical [F]160mm, [R]160mm

Brake Levers: Tektro mechanical

Cassette: Shimano CS-HG200-8, 12x32

Chain: KMC Z8.3

Crankset: Forged alloy, 40t — XS: 165mm, S: 165mm, M: 170mm, L: 170mm

Bottom Bracket: Threaded

Rims: Giant GX Disc wheelset

Hubs: Giant alloy, QR

Spokes: Stainless

Tires: Giant S-X3, 700x38c

Extras: 42mm or 40c max tire size, fender, rack, handlebar water bottle carrier, reflective stickers

Max Tire Clearance: 42mm

ALUXX Aluminum Technology

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

More Info

	XS	S	M	L
A Seat Tube Length (inch)	14.6	16.5	18.1	19.7
B Seat Tube Angle	73.5°	73.5°	73.0°	73.0°
C Top Tube Length (inch)	21.5	22	22.6	23.2
D Head Tube Length (inch)	5.7	6.3	7.1	7.9
E Head Tube Angle	70.0°	70.5°	71.0°	71.0°
F Fork Rake (inch)	2	2	2	2
G Trail (inch)	3	2.8	2.7	2.7
H Wheelbase (inch)	40.7	41.2	41.2	41.6
I Chain Stay Length (inch)	17.5	17.5	17.5	17.5
J Bottom Bracket Drop (inch)	2.4	2.4	2.4	2.4
K Stack (inch)	22.4	23	23.9	24.6
L Reach (inch)	14.1	14.4	14.4	14.5
M Stand Over Height (inch)	26.9	28.3	29.5	30.7
N Handlebar Width (inch)	23.6	23.6	25.2	25.2
O Stem Length (inch)	3.1	3.1	3.5	3.9
P Crank Length (inch)	6.5	6.5	6.7	6.7
Q Wheel Size	700C	700C	700C	700C
