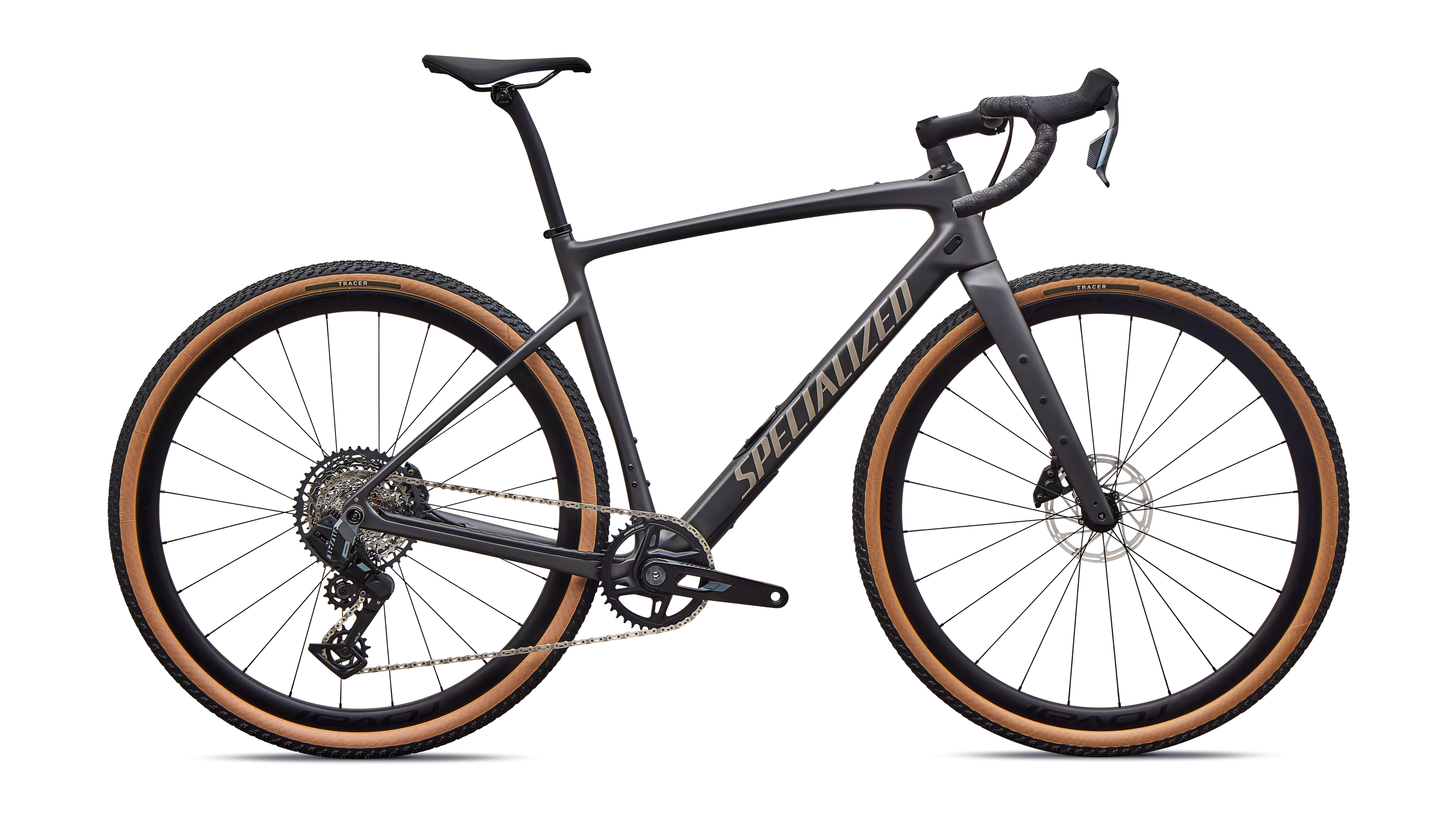

Diverge 4 Expert SRAM Rival XPLR
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Diverge 4

The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

  • Use: Gravel Adventure/Race
  • Frameset: FACT 9r Carbon
  • Suspension: Future Shock 3.2
  • Drivetrain/Wheels: New SRAM Rival AXS XPLR / Roval Terra C
  • Storage: SWAT 4.0
  • Weight: Diverge Expert: 8.90kg

Specialized

Diverge 4 Expert SRAM Rival XPLR

$6,000.00

Size Guide

Height (Cm) Size
5'1"-5'4" 49
5'4"-5'6" 52
5'6"-5'9" 54
5'9"-6'0" 56
6'0"-6'3" 58
6'3"-6'6" 61

Need help finding the perfect bike? Text or call Kathleen. 858-943-4229, Monday-Friday 8AM-5PM PST

Shop Specialized Road Bikes
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 95426-3652

Diverge 4

The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

  • Use: Gravel Adventure/Race
  • Frameset: FACT 9r Carbon
  • Suspension: Future Shock 3.2
  • Drivetrain/Wheels: New SRAM Rival AXS XPLR / Roval Terra C
  • Storage: SWAT 4.0
  • Weight: Diverge Expert: 8.90kg
SPECIFICATIONS

Frameset

  • Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

  • Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc

Brakes

  • Front Brake: SRAM Rival E1, hydraulic disc
  • Rear Brake: SRAM Rival E1, hydraulic disc

Drivetrain

  • Rear Derailleur: SRAM Rival AXS E1 XPLR, 13-speed
  • Shift Levers: SRAM Rival AXS E1
  • Cassette: SRAM Rival E1 XPLR 10-46t, 13-speed
  • Crankset: SRAM Rival E1 XPLR, DUB Wide, 40t
  • Chain: SRAM Rival E1
  • Bottom Bracket: SRAM DUB BSA 68 Wide

Wheels & Tires

  • Front Wheel: Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
  • Rear Wheel: Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
  • Front Tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
  • Rear Tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
  • Inner Tubes: Presta, 700x32-50mm

Cockpit

  • Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
  • Stem: Future Stem, Pro
  • Tape: Supacaz Super Sticky Kush
  • Saddle: Body Geometry Power Expert
  • SeatPost: Roval Terra Carbon Seat Post, 20mm Offset
  • Seat Binder: Specialized Alloy, 30.8mm

Accessories

  • SWAT: SWAT 4.0 internal downtube storage

Product Details

  • Product ID: 293758
  • Weight (Size 56): 8.9 kg (19 lb, 9.9 oz)
GEOMETRY
49 52 54 56 58 61
Crank Length 165 170 172.5 172.5 175 175
Handlebar Width 380 400 420 420 440 440
Stem Length 60 70 80 90 100 100
Saddle Width 155 155 143 143 143 143
Seatpost Length 330 330 380 380 380 380
Stack 563 578 592 610 634 659
Reach 365 374 387 400 412 425
Head Tube Length 90 104 116 135 161 187
Head Tube Angle 70 70.5 71 71 71 71
BB Drop 85 85 85 85 85 85
Trail 72 68 65 65 65 65
Fork Length, Full 391 391 391 391 391 391
Fork Rake/Offset 55 55 55 55 55 55
Front Center 604 613 626 645 665 686
Chainstay Length 430 430 430 430 430 430
Wheelbase 1019 1031 1041 1060 1081 1102
Top Tube Length, Horizontal 521 537 556 575 593 613
Bike Standover Height 700 725 754 779 805 832
Seat Tube Length 400 430 470 500 530 560
Seat Tube Angle 74.5 74 74 74 74 74
FEATURES

Key Technologies

Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info
future-shock.png__PID:5402f913-9442-44e0-9cba-15351334512a

Future Shock

The Future Shock features up to 20mm of travel, and it's positioned above the head tube in order to move in a vertical path. So when the front wheel encounters rough terrain, the bike moves up towards your hands and preserves your forward momentum without slowing you down.
More Info
fact-10-carbon-bikes.png__PID:dd2bc090-6360-4998-9db4-69a982a96392

FACT Carbon Fiber

Short for Functional Advanced Composite Technology, is a comprehensive engineering process that guides the development of frames and components, all the way from initial sketches to finished products.
More Info

See the Diverge 4 Expert SRAM Rival XPLR in Action
