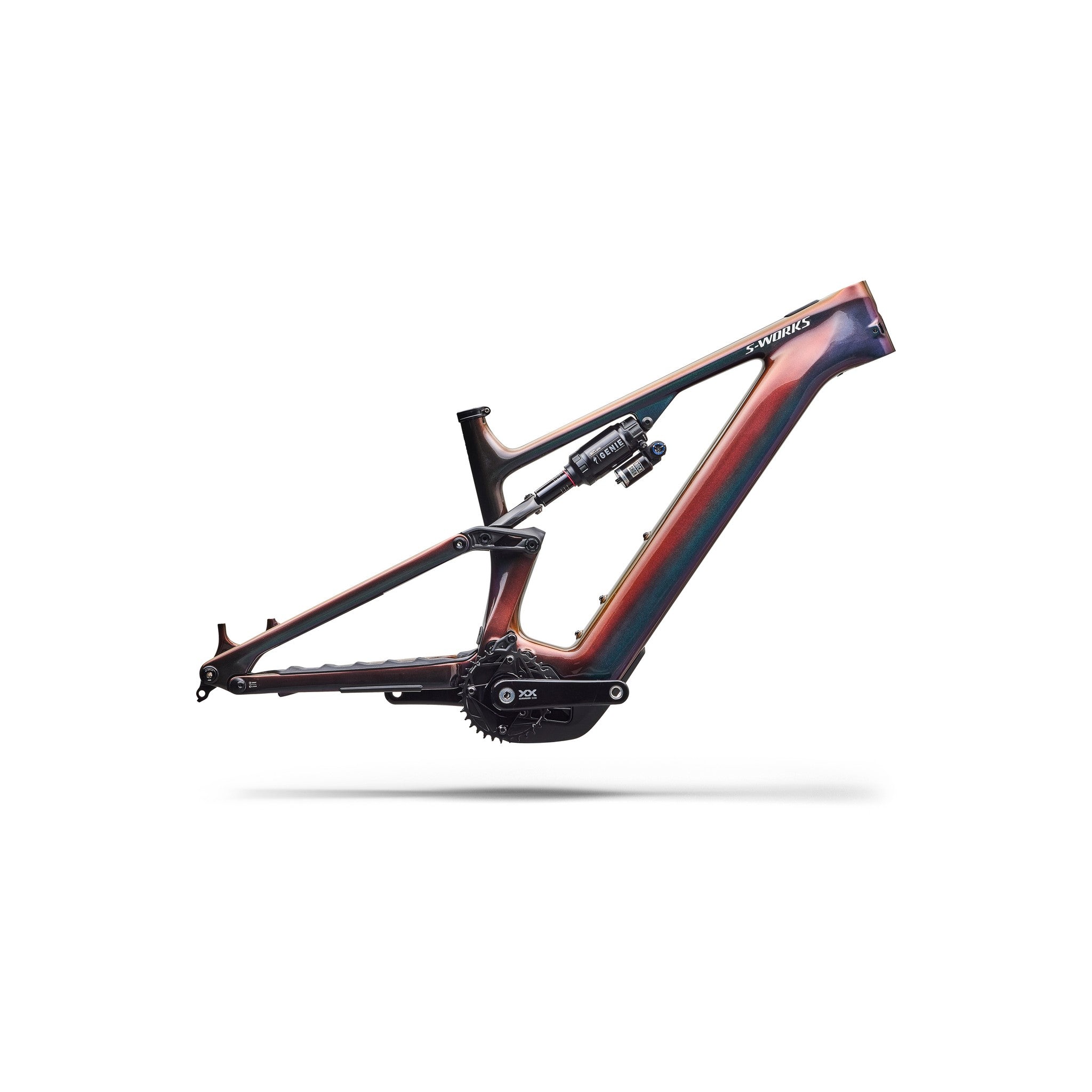

S-Works Turbo Levo 4 Frameset
Thumbnail
Thumbnail
Thumbnail

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

FEATURES

  • Use - Full Power E-MTB Trail
  • E-System - S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/ optional Range Extender
  • Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT E-MTB Storage
  • Suspension - 150mm RockShox Super Deluxe Ultimate shock w/ GENIE

Specialized

S-Works Turbo Levo 4 Frameset

$5,999.99
Free Shipping
on this Specialized bike!
*Discount applies automatically at checkout.

Size Guide

S0 / XXS  S1 / XS S2 / S S3 / M S4 / L S5 / XL S6 / XXL
4'9" - 5'2" 4'11" - 5'3" 5'2" - 5'8" 5'5" - 5'11" 5'8" - 6'2" 5'10" - 6'4" 6'2" - 6'8"

Size Down for More Maneuverability, Size Up for More Stability



Out of stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 75227-0002

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

FEATURES

  • Use - Full Power E-MTB Trail
  • E-System - S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/ optional Range Extender
  • Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT E-MTB Storage
  • Suspension - 150mm RockShox Super Deluxe Ultimate shock w/ GENIE
SPECIFICATIONS

E-bike

  • Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power
  • Battery: 900Wh Battery
  • Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
  • UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Frameset

  • Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
  • Seat Binder: Alloy, 38.6mm

Suspension

  • Rear Shock: All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm

Drivetrain

  • Crankset: SRAM XX Carbon crank, 160mm, ISIS interface
  • Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Accessories

  • SWAT: SWAT Internal downtube storage

Product Details

  • Product ID: 221338
  • Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
    For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
  • Weight Size: S4
  • Weight: 12.54 kg (27 lb, 10.3 oz)
GEOMETRY
S2 S3 S4 S5 S6
Crank Length 160 160 160 160 160
Handlebar Width - - - - -
Stem Length - - - - -
Saddle Width - - - - -
Seatpost Length - - - - -
Stack 618 626 638 652 667
Reach 435 455 480 505 535
Headtube Length 95 103 117 132 149
Headtube Angle 64.5 64.5 64.5 64.5 64.5
BB Height 350 350 350 350 350
BB Drop 29.5 29.5 29.5 29.5 29.5
Trail 132 132 132 132 132
Fork Length (full) 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44
Front Center 765 789 820 851 888
Chainstay Length 435 435 435 435 435
Wheelbase 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 578 599 627 655 689
Bike Standover Height 753 754 753 758 761
Seat Tube Length 390 405 425 445 465
Seat Tube Angle 77 77 77 77 77
Saddle Height for Effective ST Angle 690 735 780 825 870
Max Seatpost Insertion 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80
FEATURES

Key Technologies

fact-10-carbon-bikes.png__PID:dd2bc090-6360-4998-9db4-69a982a96392

FACT Carbon Fiber

Short for Functional Advanced Composite Technology, is a comprehensive engineering process that guides the development of frames and components, all the way from initial sketches to finished products.
More Info
genie-hero.png__PID:a2ecb2ee-823a-4da7-b97b-19154fb7f689

GENIE

Discover the revolutionary GENIE shock technology by Specialized - and how this patent-pending, 2-stage air-spring shock technology delivers the best of both worlds: a coil-like liner spring rate mid-stroke and the progressive end-stroke of an air shock.
More Info
