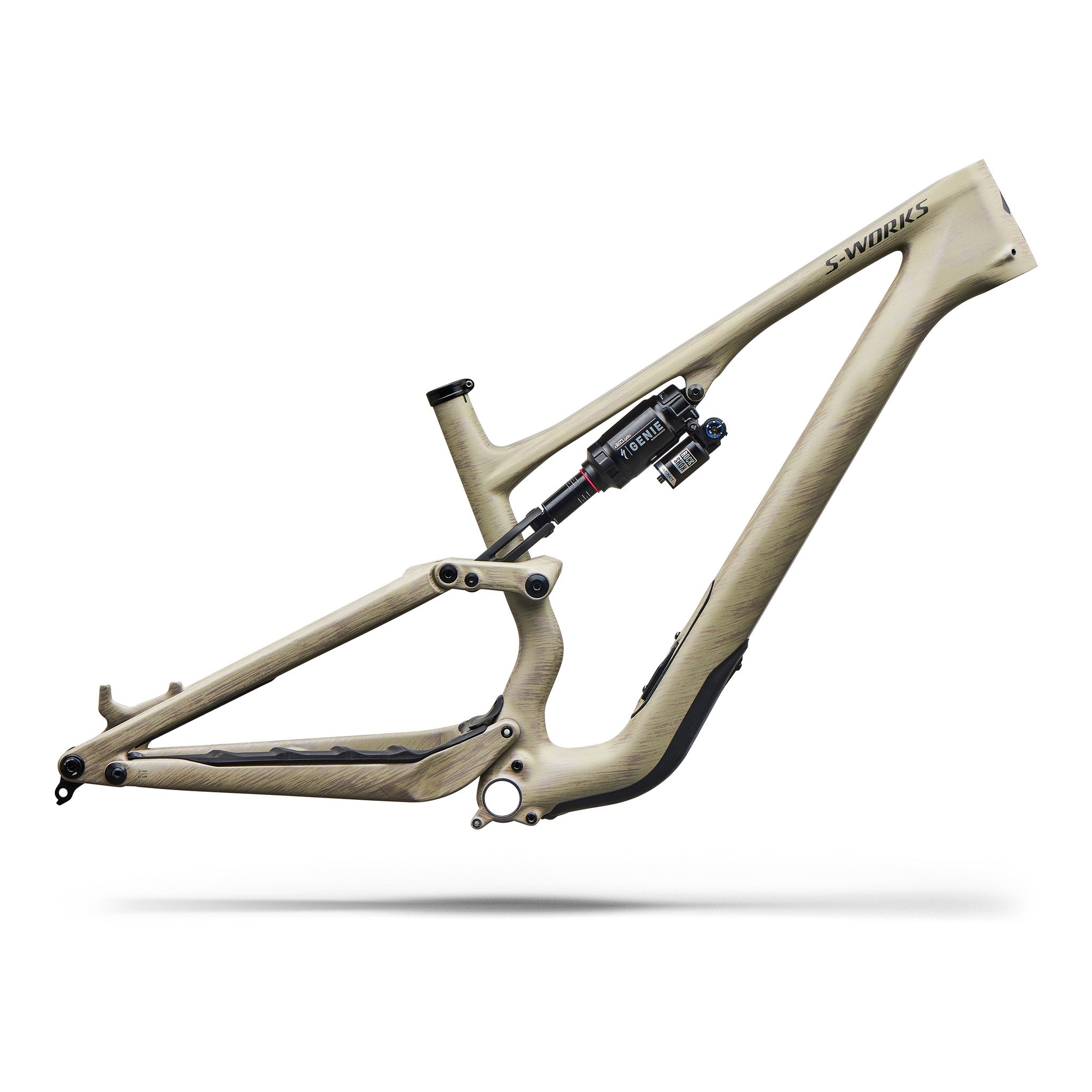

S-Works Stumpjumper 15 EVO Frameset
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

FEATURES

  • Use - Trail
  • Frame - FACT 11m carbon w/ carbon link, SWAT Door integration, adjustable Trail Geometry
  • Suspension - RockShox Super Deluxe Ultimate w/ GENIE
  • Weight - 2.9 kg (6 lb, 6.3 oz)

Specialized

S-Works Stumpjumper 15 EVO Frameset

$3,599.99
Free Shipping
on this Specialized bike!
*Discount applies automatically at checkout.

Size Guide

S0 / XXS  S1 / XS S2 / S S3 / M S4 / L S5 / XL S6 / XXL
4'9" - 5'2" 4'11" - 5'3" 5'2" - 5'8" 5'5" - 5'11" 5'8" - 6'2" 5'10" - 6'4" 6'2" - 6'8"

Size Down for More Maneuverability, Size Up for More Stability



Out of stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 73327-0001

Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

FEATURES

  • Use - Trail
  • Frame - FACT 11m carbon w/ carbon link, SWAT Door integration, adjustable Trail Geometry
  • Suspension - RockShox Super Deluxe Ultimate w/ GENIE
  • Weight - 2.9 kg (6 lb, 6.3 oz)
SPECIFICATIONS

Frameset

  • Frame: FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
  • Seat Binder: Alloy, 38.6mm

Suspension

  • Rear Shock: All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm

Accessories

  • SWAT: SWAT 4.0 internal downtube storage

Product Details

  • Product ID: 263536
  • Weight Size: S4
  • Weight: 2.99 kg (6 lb, 9.5 oz)
GEOMETRY
S1 S2 S3 S4 S5 S6
Stack 611 621 630 644 658 671
Reach 400 420 445 470 495 525
Headtube Length 95 100 110 125 140 155
Headtube Angle 64 64 64 64 64 64
BB Height 337 340 340 340 340 340
BB Drop 38 35 35 35 35 35
Trail 134 134 133 134 134 134
Fork Length (full) 561 573 573 573 573 573
Fork Rake/Offset 44 44 44 44 44 44
Front Center 724 755 785 816 848 884
Chainstay Length 430 432 435 435 445 445
Wheelbase 1153 1186 1217 1249 1290 1327
Top-tube Length (horizontal) 542 574 596 625 649 678
Bike Standover Height 745 745 745 751 738 751
Seat Tube Length 385 385 405 425 445 465
Seat Tube Angle 77.7 76.5 76.5 76 76 76
Saddle Height for Effective ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 245 245 255 255 285 285
Min Seatpost Insertion 80 80 80 80 80 80
FEATURES

Key Technologies

fact-10-carbon-bikes.png__PID:dd2bc090-6360-4998-9db4-69a982a96392

FACT Carbon Fiber

Short for Functional Advanced Composite Technology, is a comprehensive engineering process that guides the development of frames and components, all the way from initial sketches to finished products.
More Info
Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info
