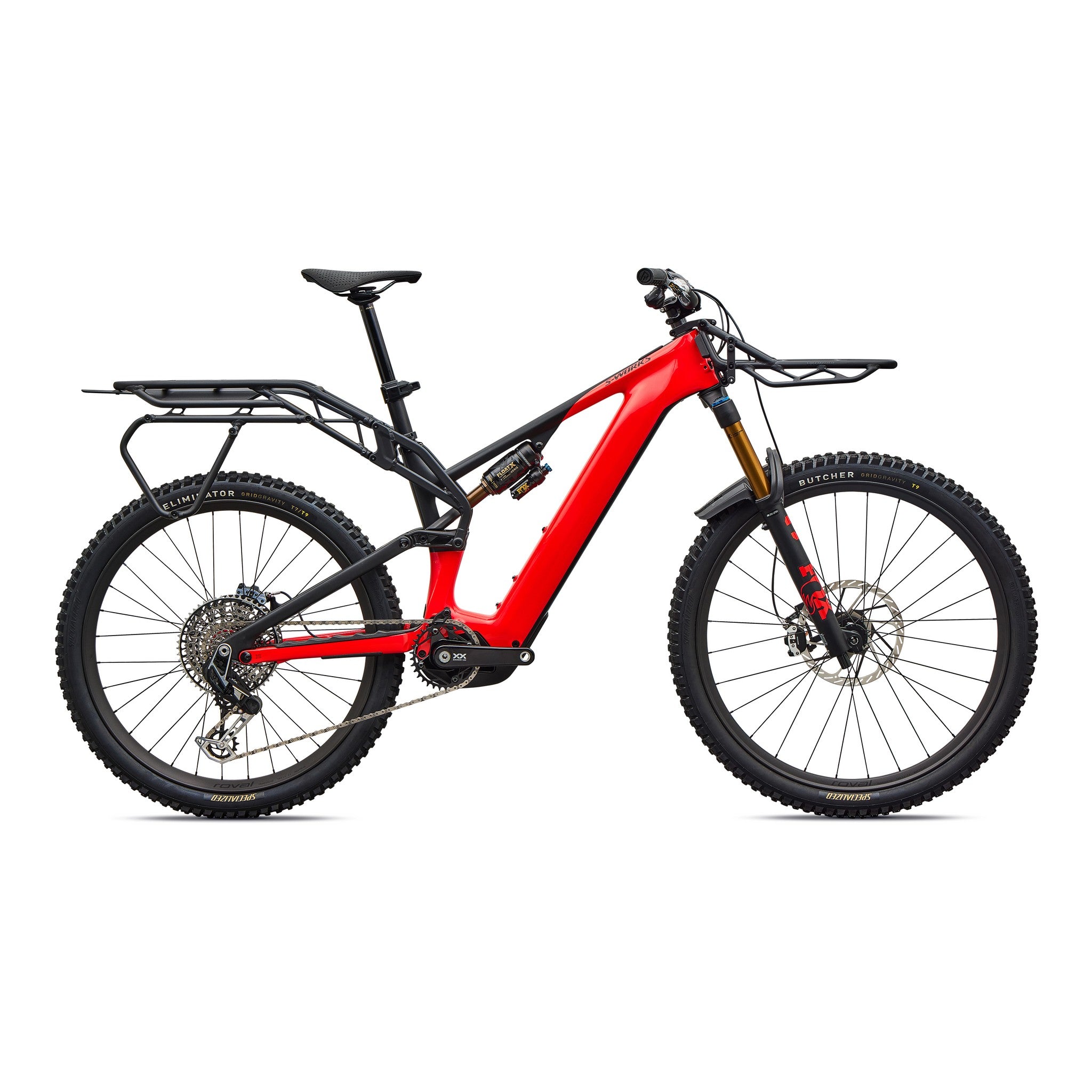

S-Works Levo 4 X
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Levo 4 X is more than a new bike. It’s the birth of Electric Overland. Built on the award-winning SuperNatural power, control, and range of Levo 4, it adds high-performance carrying capacity so you can rip singletrack, cross town, cross continents, and turn every ride into an adventure. It’s your full-bore, ride-anywhere freedom machine.

FEATURES

  • Use - Electric Overland
  • E-System - S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
  • Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
  • Suspension - Front: 160mm FOX 38 FACTORY GRIP X2
Rear: 150mm GENIE
  • FOX FLOAT X Factory
  • Drivetrain - SRAM XX Eagle T-Type AXS
  • Carrying Capacity - Front and Rear High-Performance Racks

Specialized

S-Works Levo 4 X

$11,999.99

Size Guide

S0 / XXS  S1 / XS S2 / S S3 / M S4 / L S5 / XL S6 / XXL
4'9" - 5'2" 4'11" - 5'3" 5'2" - 5'8" 5'5" - 5'11" 5'8" - 6'2" 5'10" - 6'4" 6'2" - 6'8"

Size Down for More Maneuverability, Size Up for More Stability



Low stock (3 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 95226-0802

Levo 4 X is more than a new bike. It’s the birth of Electric Overland. Built on the award-winning SuperNatural power, control, and range of Levo 4, it adds high-performance carrying capacity so you can rip singletrack, cross town, cross continents, and turn every ride into an adventure. It’s your full-bore, ride-anywhere freedom machine.

FEATURES

  • Use - Electric Overland
  • E-System - S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
  • Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
  • Suspension - Front: 160mm FOX 38 FACTORY GRIP X2
Rear: 150mm GENIE
  • FOX FLOAT X Factory
  • Drivetrain - SRAM XX Eagle T-Type AXS
  • Carrying Capacity - Front and Rear High-Performance Racks
SPECIFICATIONS

E-Bike System

  • Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power
  • Battery: 840Wh battery
  • UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
  • Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Frameset & Suspension

  • Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
  • Seat Binder: Alloy, 38.6mm
  • Rear Shock: Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
  • Fork: FOX Factory 38, GRIP X2 damper, high/low speed compression adjust, high/low speed rebound adjust, 15x110mm axle, 44mm offset, 160mm travel

Brakes & Drivetrain

  • Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
  • Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
  • Shift Levers: SRAM AXS Pod Ultimate with Discrete Clamp
  • Rear Derailleur: SRAM XX Eagle Transmission Derailleur
  • Cassette: SRAM XX Transmission, XS 1297, 10-52t
  • Chain: SRAM XX, T-Type
  • Crankset: SRAM XX Carbon crank, 160mm, ISIS interface
  • Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

  • Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15 x 110mm, 28h
  • Front Tire: Butcher, GRID Gravity, T9, TLR, 29x2.4"
  • Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12 x 148mm, 32h
  • Rear Tire: Eliminator, GRID Gravity casing, Gripton T7/T9 compound, 27.5X2.4"
  • Inner Tubes: Standard, Presta Valve

Cockpit

  • Stem: Industry 9 A35 Mountain stem, 35mm clamp, 40mm length
  • Handlebars: RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
  • Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
  • Saddle: Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
  • SeatPost: RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm

Accessories & Product Details

  • SWAT Storage: Internal downtube storage
  • Product ID: 292994
  • Weight: 27.25 kg (60 lb, 1.2 oz) for Size S4
  • Compliance Certification: Certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS
GEOMETRY
S2 S3 S4 S5 S6
Crank Length 160mm 160mm 160mm 160mm 160mm
Handlebar Width 800mm 800mm 800mm 800mm 800mm
Stem Length 40mm 40mm 40mm 40mm 40mm
Saddle Width 155mm 143mm 143mm 143mm 143mm
Seatpost Length 125mm 175mm 200mm 200mm 200mm
Stack 618mm 626mm 638mm 652mm 667mm
Reach 435mm 455mm 480mm 505mm 535mm
Headtube Length 95mm 103mm 117mm 132mm 149mm
Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
BB Height 350mm 350mm 350mm 350mm 350mm
BB Drop 29.5mm 29.5mm 29.5mm 29.5mm 29.5mm
Trail 132mm 132mm 132mm 132mm 132mm
Fork Length (full) 577mm 577mm 577mm 577mm 577mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Center 765mm 789mm 820mm 851mm 888mm
Chainstay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1200mm 1223mm 1254mm 1286mm 1323mm
Top-tube Length (horizontal) 578mm 599mm 627mm 655mm 689mm
Bike Standover Height 753mm 754mm 753mm 758mm 761mm
Seat Tube Length 390mm 405mm 425mm 445mm 465mm
Seat Tube Angle 77° 77° 77° 77° 77°
Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
Max Seatpost Insertion 274mm 289mm 313mm 337mm 357mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm
FEATURES

Key Technologies

Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
