Adventure approved & tuned for long-distance racing.

The S-Works Diverge 4 is made for full-gas weekend rides and off-grid epics. With internal cable routing, Future Shock 3.3 suspension, massive tire clearance, and the biggest internal storage in gravel, the best gravel adventure bike in the world just got better. Chase adventure on the smoothest, most confident gravel bike ever.

FEATURES

  • Use - Gravel Adventure
  • Frameset - FACT 12r Carbon
  • Suspension - Future Shock 3.3
  • Drivetrain / Wheels - SRAM RED XPLR / Roval Terra CLX III
  • Storage - SWAT 4.0
  • Weight - 8.2 kg

Specialized

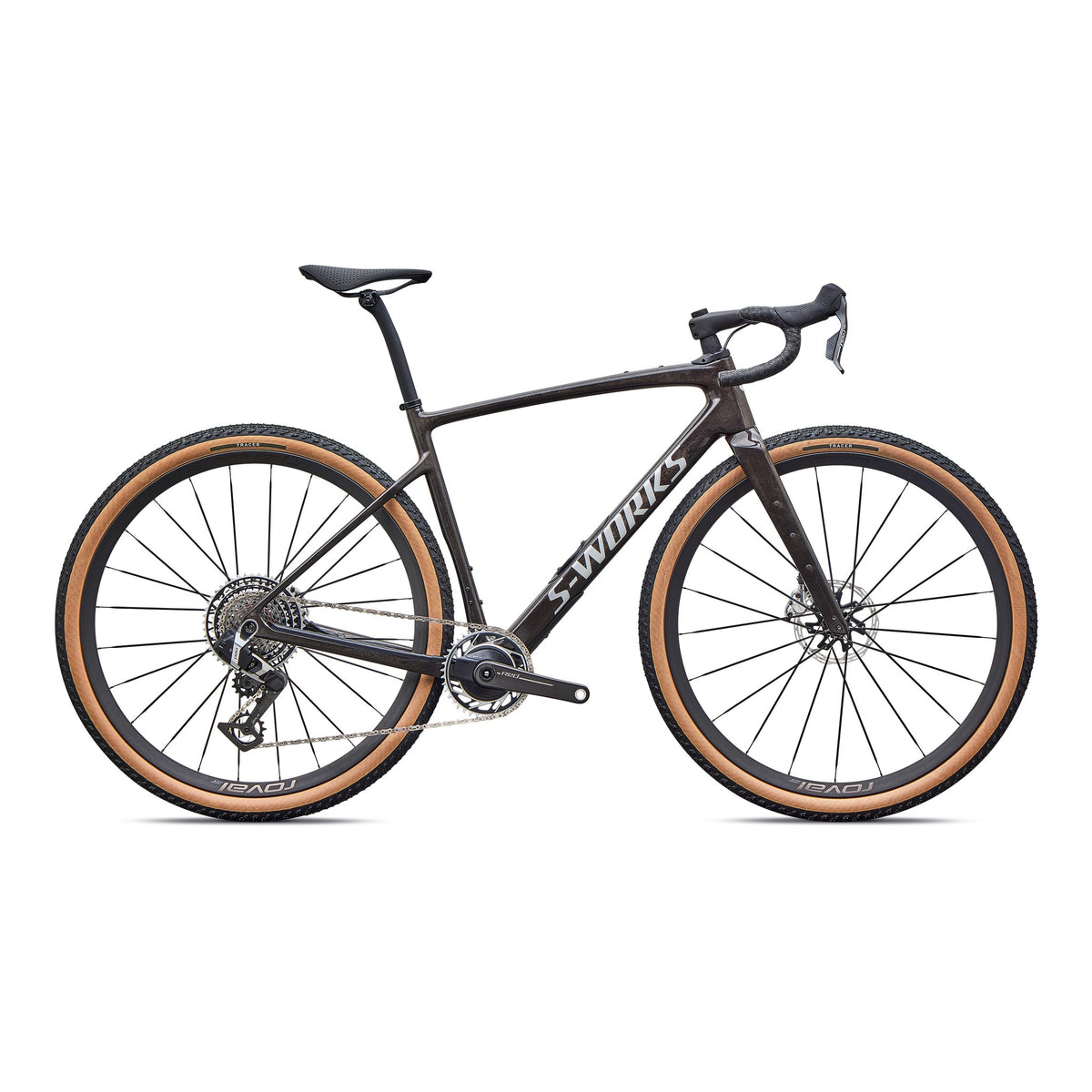

S-Works Diverge 4 - SRAM RED XPLR

$12,499.99

Size Guide

Height (Cm) Size
5'1"-5'4" 49
5'4"-5'6" 52
5'6"-5'9" 54
5'9"-6'0" 56
6'0"-6'3" 58
6'3"-6'6" 61

Need help finding the perfect bike? Text or call Kathleen. 858-943-4229, Monday-Friday 8AM-5PM PST

Shop Specialized Road Bikes
Low stock (4 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 95427-0056

Adventure approved & tuned for long-distance racing.

The S-Works Diverge 4 is made for full-gas weekend rides and off-grid epics. With internal cable routing, Future Shock 3.3 suspension, massive tire clearance, and the biggest internal storage in gravel, the best gravel adventure bike in the world just got better. Chase adventure on the smoothest, most confident gravel bike ever.

FEATURES

  • Use - Gravel Adventure
  • Frameset - FACT 12r Carbon
  • Suspension - Future Shock 3.3
  • Drivetrain / Wheels - SRAM RED XPLR / Roval Terra CLX III
  • Storage - SWAT 4.0
  • Weight - 8.2 kg
SPECIFICATIONS

Frameset & Suspension

  • Frame: Specialized Diverge FACT 12r carbon, SWAT™ Door integration, Future Shock suspension with integrated cable routing, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • Fork: Future Shock 3.3 w/ Smooth Boot, FACT 12r Carbon 12x100mm, thru-axle, flat-mount disc

Brakes

  • Front Brake: SRAM RED E1, hydraulic disc
  • Rear Brake: SRAM RED E1, hydraulic disc

Drivetrain

  • Bottom Bracket: Ceramic Speed BB Alpha, BSA DUB
  • Shift Levers: SRAM RED AXS E1, hydraulic disc
  • Rear Derailleur: SRAM RED AXS XPLR E1, 13-speed
  • Chain: SRAM RED E1
  • Crankset: SRAM RED E1 XPLR, DUB Wide, 40t, Quarq Power Meter
  • Cassette: SRAM RED XPLR E1, 13-speed, 10-46t

Wheels & Tires

  • Inner Tubes: 700x32-50mm, 40mm Presta valve
  • Front Tire: Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready
  • Rear Tire: Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready
  • Front Wheel: Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)
  • Rear Wheel: Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)

Cockpit

  • Handlebars: Roval Terra Cockpit, Integrated Bar/Stem
  • SeatPost: Roval Terra Carbon Seat Post, 20mm Offset
  • Saddle: S-Works Power with Mirror
  • Seat Binder: Specialized Alloy, 30.8mm
  • Tape: Supacaz Super Sticky Kush

Accessories & Product Details

  • SWAT Storage: SWAT 4.1 internal downtube storage
  • Product ID: 298775
  • Weight (Size 56): 8.2 kg (18 lb, 1.2 oz)
Please Note: Product images are for illustrative purposes only. Manufacturers occasionaly make updates to components, specifications, and finishes, meaning the actual bike you receive may vary slightly from the photos. However, any substituted parts will always be of like or better quality. If you have any questions about specific components, please don't hesitate to reach out to our team so we can get you the most up-to-date info on our current stock.
GEOMETRY
49 52 54 56 58 61
Crank Length 165 170 172.5 172.5 175 175
Handlebar Width 380 380 400 420 420 420
Stem Length 75 90 90 90 90 90
Saddle Width 155 155 143 143 143 143
Seatpost Length 330 330 380 380 380 380
Stack 563 578 592 610 634 659
Reach 365 374 387 400 412 425
Head Tube Length 90 104 116 135 161 187
Head Tube Angle 70 70.5 71 71 71 71
BB Drop 85 85 85 85 85 85
Trail 72 68 65 65 65 65
Fork Length, Full 391 391 391 391 391 391
Fork Rake/Offset 55 55 55 55 55 55
Front Center 604 613 626 645 665 686
Chainstay Length 430 430 430 430 430 430
Wheelbase 1019 1031 1041 1060 1081 1102
Top Tube Length, Horizontal 521 537 556 575 593 613
Bike Standover Height 700 725 754 779 805 832
Seat Tube Length 400 430 470 500 530 560
Seat Tube Angle 74.5 74 74 74 74 74
FEATURES

Key Technologies

fact-10-carbon-bikes.png__PID:dd2bc090-6360-4998-9db4-69a982a96392

FACT Carbon Fiber

Short for Functional Advanced Composite Technology, is a comprehensive engineering process that guides the development of frames and components, all the way from initial sketches to finished products.
More Info
Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info
future-shock.png__PID:5402f913-9442-44e0-9cba-15351334512a

Future Shock

The Future Shock features up to 20mm of travel, and it's positioned above the head tube in order to move in a vertical path. So when the front wheel encounters rough terrain, the bike moves up towards your hands and preserves your forward momentum without slowing you down.
More Info
