The Rove AL is versatile, comfortable, and ready for errands, school, or dirt road adventures.

Rove AL is an affordable drop bar bike that doesn’t cut corners. With updated geometry that mirrors Kona's high-end gravel line. Same trusted frame, smarter fit, same entry level price range.

Kona

Rove AL

$999.00

Size Guide

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: B37RVABLSHIN48

The Rove AL is versatile, comfortable, and ready for errands, school, or dirt road adventures.

Rove AL is an affordable drop bar bike that doesn’t cut corners. With updated geometry that mirrors Kona's high-end gravel line. Same trusted frame, smarter fit, same entry level price range.

SPECIFICATIONS

Frameset

  • Frame Material: Kona 6061 Aluminum Butted.
  • Fork: Kona 6061 Aluminum Disc.
  • Sizes: 48, 50, 52, 54, 56, 58.

Drivetrain & Brakes

  • Rear Derailleur: Shimano ESSA RDU2000.
  • Shifters: Shimano ESSA U2000.
  • Cassette: Shimano ESSA HG300, 11–45t (8-speed).

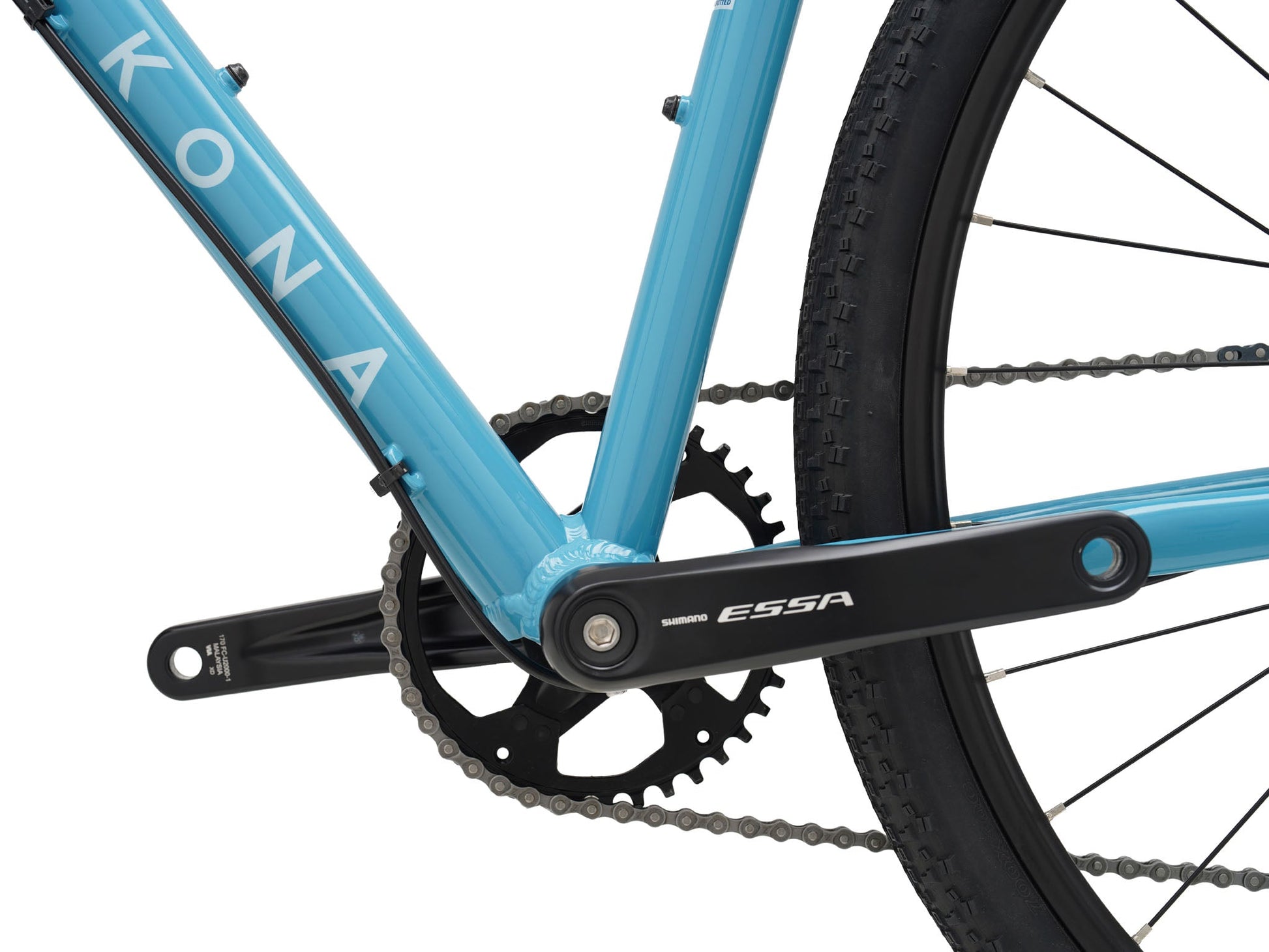

  • Crankset: Shimano ESSA 2000, 40t (Length: 170mm for 48–56; 175mm for 58).
  • Bottom Bracket: Shimano BSA 68mm.
  • Brake Calipers: Tektro Mira CX (Mechanical Disc).
  • Rotors: Tektro 160mm, 6-bolt (Front & Rear).
  • Chain: KMC Z8.3.

Wheels & Tires

  • Rims: WTB SX19.
  • Front Hub: Joytech 9x100mm.
  • Rear Hub: Joytech 10x135mm.
  • Tires: Maxxis Rambler, 700x40mm (Front & Rear).
  • Spokes: Stainless 2mm, Black.

Cockpit & Finishing

  • Handlebar: Kona Gravel Dropbar (Width: 42cm–48cm depending on size).
  • Stem: Kona 31.8mm, 6-degree rise (Length: 60mm–80mm depending on size).
  • Seatpost: Kona w/ Offset, 27.2mm.
  • Saddle: Kona Gravel.
  • Grips: Kona Cork Tape.
  • Headset: Feimin ZS44/ZS44.

Product Details

  • Paint Color: Gloss Blue Smoke w/ Celestial Blue & Pastel Decals.
  • Seat Clamp: Kona Clamp 31.8mm.

Note: This setup is optimized for simplicity and durability, making it a great choice for commuters or those just starting to explore light trails and gravel roads. Pedals are not included.

GEOMETRY
  Size 48 50 52 54 56 58
1 ST Length 480 500 520 540 560 580
2 TT Length 522 537 552 568 584 601
3 Reach 380 385 390 395 400 405
4 Stack 528 547 566 584 601 620
5 Standover 745 765 786 805 825 843
6 HT Angle 69.5 69.5 70 70 70 70
7 HT Length 90 110 130 150 170 190
8 ST Angle 75 74.5 74 73.5 73 72.5
9 CS Length 435 435 435 435 435 435
10 BB Drop 74 74 72 72 70 70
11 BB Height 281 281 283 283 285 285
12 Wheelbase 1032 1044 1052 1064 1076 1091
13 Front Center 608 620 627 639 650 662
14 Fork Length 410 410 410 410 410 410
15 Fork Offset 50 50 50 50 50 50

See the Rove AL in Action
