| Size | Height Range |
| X-Small | 5'2"-5'7" |
| Small | 5'5"-5'9" |
| Medium | 5'7"-5'11" |
| Medium/Large | 5'10"-6'2" |
| Large | 6'0"-6'4" |
| X-Large | 6'2"-6'6" |
NEW ARRIVAL
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Giant

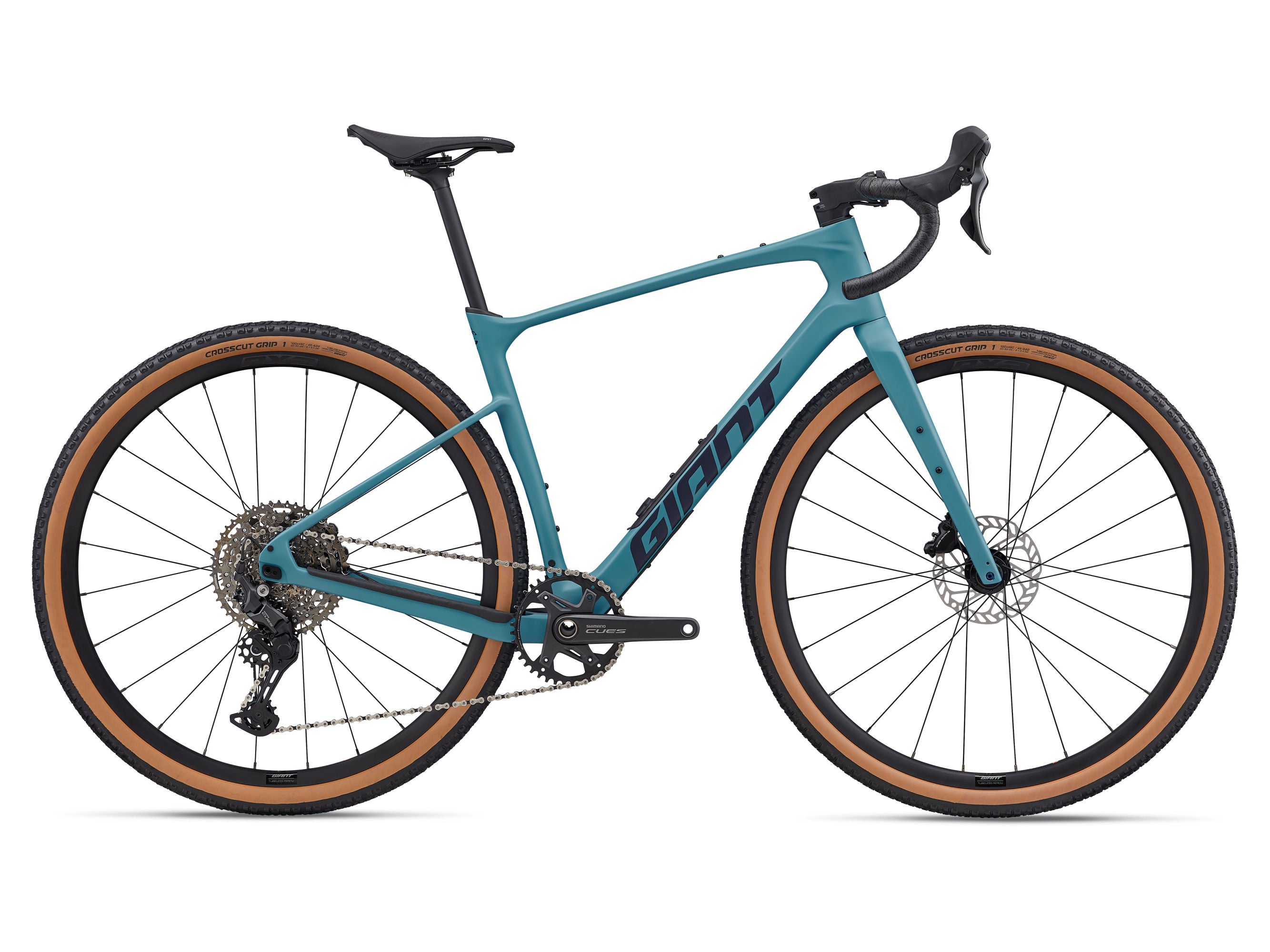

Revolt Advanced 3
$2,349.99
Out of stock
SKU: 1080022123
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
SPECIFICATIONS
GEOMETRY
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| B Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (inch) | 21.3 | 21.7 | 22 | 22.6 | 23 | 23.6 |
| D Head Tube Length (inch) | 4.9 | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| E Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 3.2 | 2.8 | 3 | 2.7 | 2.8 | 2.6 | 2.7 | 2.6 | 2.7 | 2.6 | 2.7 |
| H Wheelbase (inch) | 40.3 | 40.7 | 40.2 | 40.6 | 40.4 | 40.8 | 40.6 | 41 | 41 | 41.4 | 41.6 | 42 |
| I Chain Stay Length (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K Stack (inch) | 21.9 | 22.4 | 23.1 | 23.7 | 24.3 | 24.8 |
| L Reach (inch) | 15 | 15 | 15.2 | 15.4 | 15.6 | 16 |
| M Stand Over Height (inch) | 28.5 | 28.8 | 29.1 | 29.4 | 29.8 | 30.1 | 30.5 | 30.7 | 31.1 | 31.4 | 31.8 | 32 |
| N Handlebar Width (inch) | 16.5 | 16.5 | 17.3 | 17.3 | 18.1 | 18.1 |
| O Stem Length (inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| P Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
FEATURES
Key Technologies
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
More Info
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info
