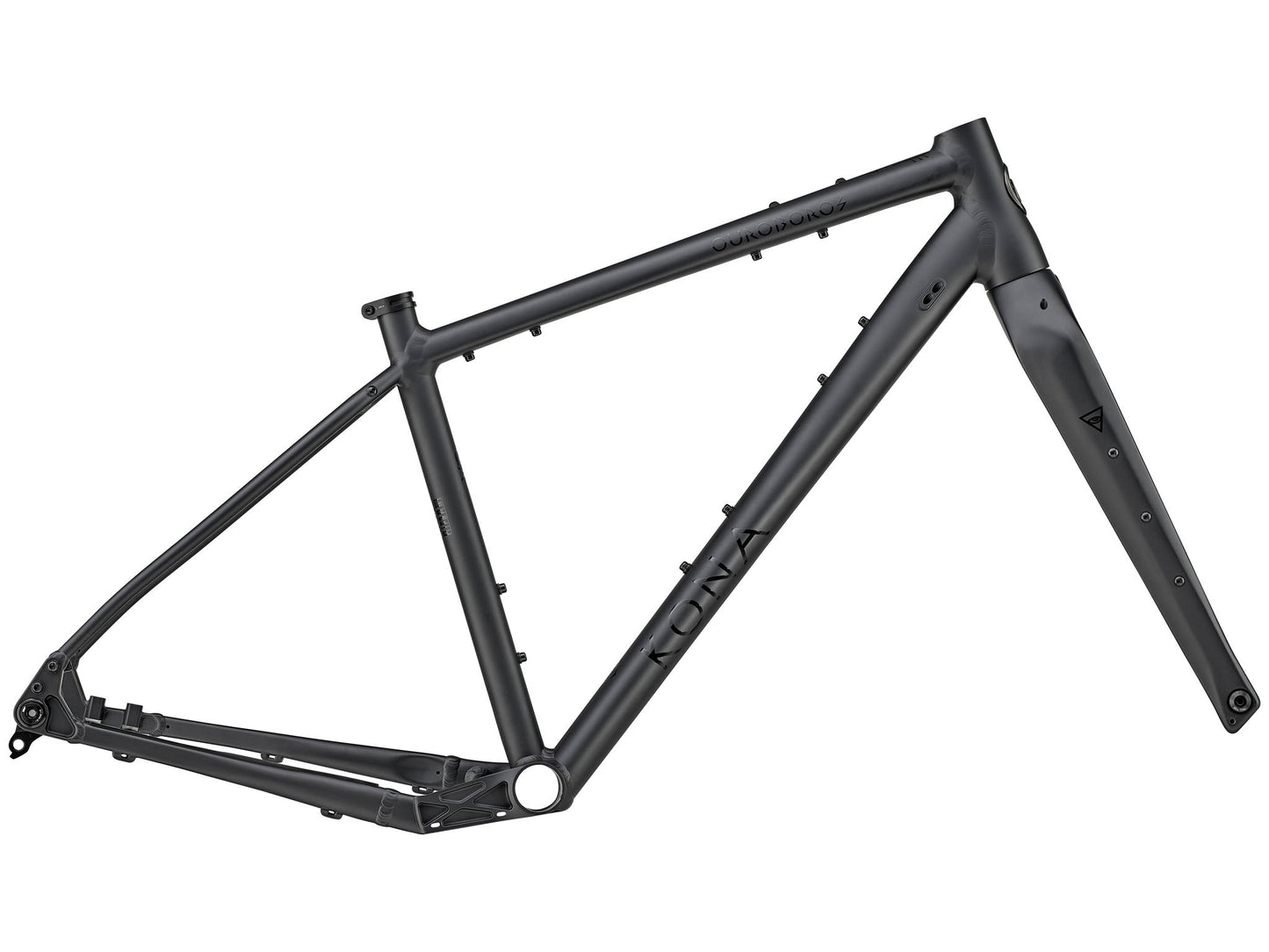

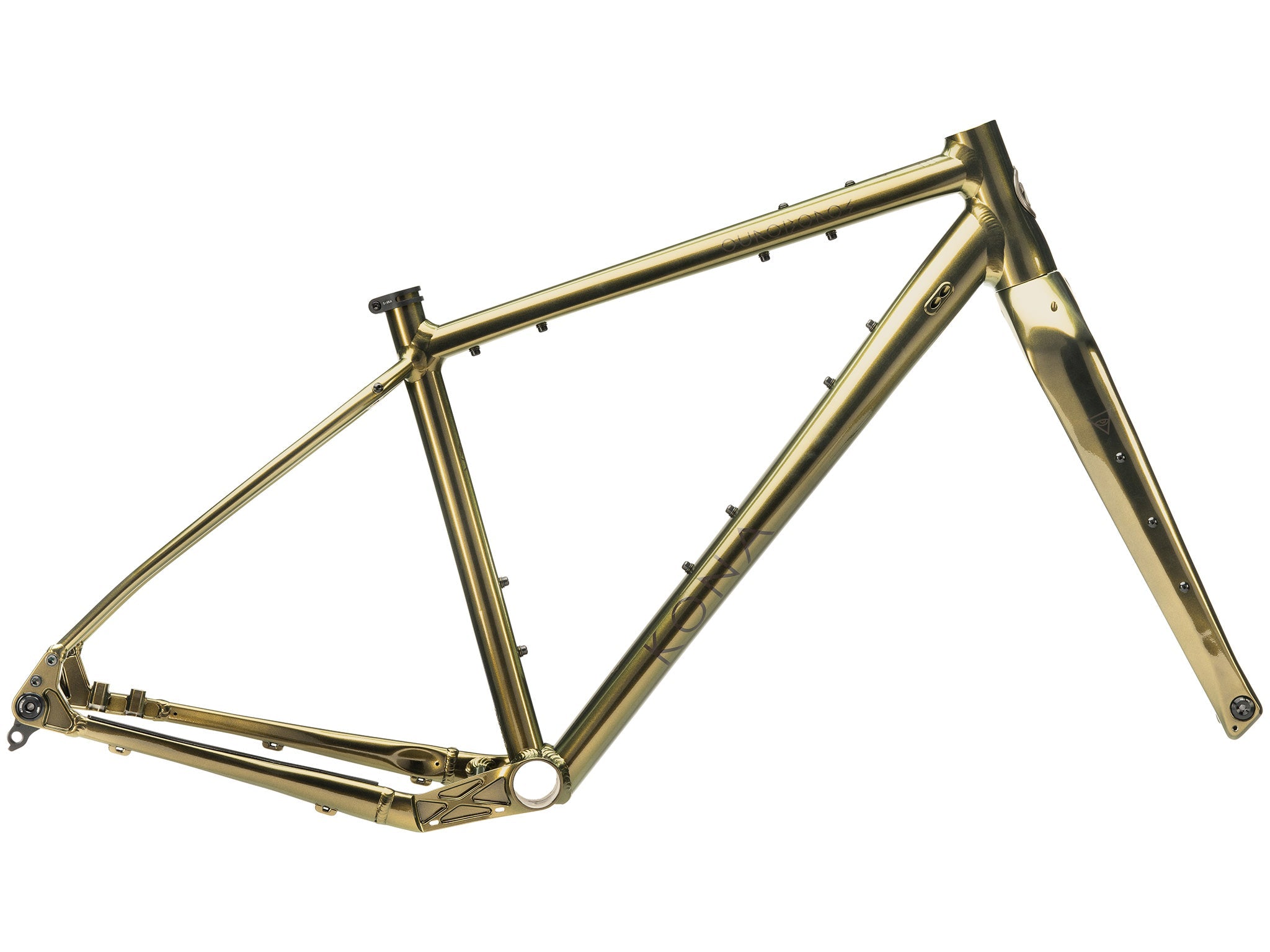

Ouroboros Frame
Thumbnail
Thumbnail

The aluminum Ouroboros is impressively capable. Designed with the intention to stay off the grid and escape into the wilderness – worry free. We took the best parts of our award-winning gravel bikes, and the enchanting characteristics of our iconic mountain bikes, and delivered a drop bar bike that doesn’t rip by accident. Shred on, dear traveler, and let nothing hold you back.

Kona

Ouroboros Frame

$1,150.00
Instant Rebate
Your Price: $1,100.00
$50 OFF the Ouroboros Frame!
*Discount applies automatically at checkout.

Size Guide

No size chart available for this product.

Low stock (5 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: F37ORBKFA48

The aluminum Ouroboros is impressively capable. Designed with the intention to stay off the grid and escape into the wilderness – worry free. We took the best parts of our award-winning gravel bikes, and the enchanting characteristics of our iconic mountain bikes, and delivered a drop bar bike that doesn’t rip by accident. Shred on, dear traveler, and let nothing hold you back.

GEOMETRY
  Size 48 50 52 54 56 58
1 ST Length 410 410 455 455 500 535
2 TT Length 530 545 559 578 593 613
3 Reach 380 385 390 395 400 405
4 Stack 560 575 590 610 630 660
5 Standover 713 719 754 764 800 834
6 HT Angle 69.5 69.5 69.5 69.5 69.5 69.5
7 HT Length 116 132 148 172 193 225
8 ST Angle 75 74.5 74 73.5 73 72.5
9 CS Length 445 445 445 445 445 445
10 BB Drop 75 75 75 72 72 72
11 BB Height 290 290 290 293 293 293
12 Wheelbase 1059 1069 1080 1094 1107 1123
13 Front Center 625 635 646 659 671 687
14 Fork Length 420 420 420 420 420 420
15 Fork Offset 55 55 55 55 55 55
