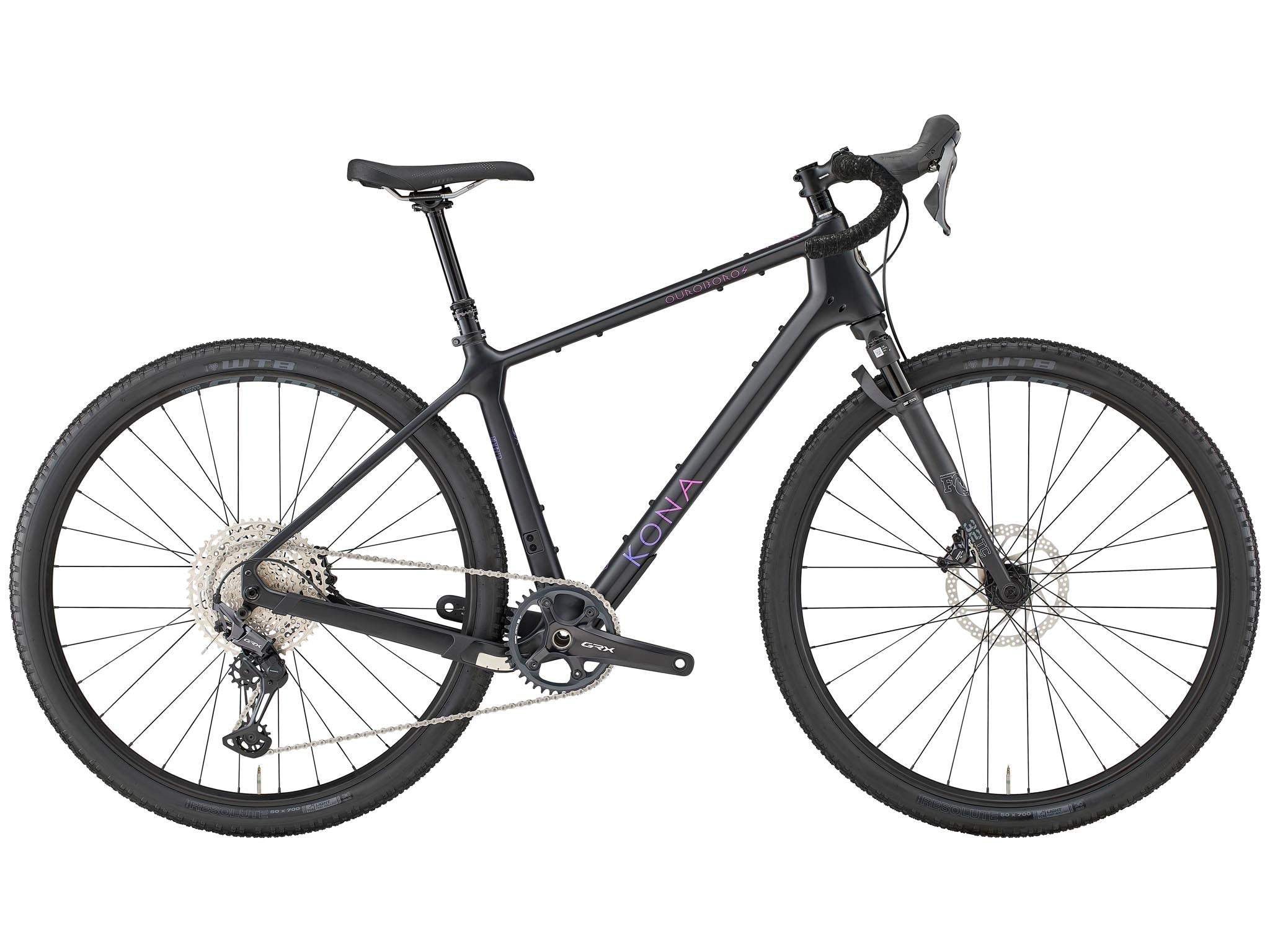

Ouroboros CR
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Whether you’re a gravel-loving mountain biker or a mountain-bike-loving gravel biker, the Ouroboros Carbon is the lure to catch the attention of both.

Kona made sure each coin spent is met with corresponding value in shred performance. The Ouroboros Carbon is meant for big things, so we put big things on it – like fat tires, large rotors, a mountain standard dropper post width, and a low, yet wide gear range. Hop on and let the journey unfold.

Kona

Ouroboros CR

$3,799.00

Size Guide

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
Out of stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: B36ORCBKSHHK48

Whether you’re a gravel-loving mountain biker or a mountain-bike-loving gravel biker, the Ouroboros Carbon is the lure to catch the attention of both.

Kona made sure each coin spent is met with corresponding value in shred performance. The Ouroboros Carbon is meant for big things, so we put big things on it – like fat tires, large rotors, a mountain standard dropper post width, and a low, yet wide gear range. Hop on and let the journey unfold.

SPECIFICATIONS

Frame & Suspension

  • Frame Material: Kona Carbon
  • Sizes: 48, 50, 52, 54, 56, 58
  • Fork: Fox AX32 GRIP Damper (40mm Travel / Tapered / 12x100mm)
  • Rear Shock: n/a

Drivetrain

  • Rear Derailleur: Shimano RDRX822
  • Shifters: Shimano GRX 820
  • Crankset: Shimano GRX 820 (40t)Length: 48-52: 170mm | 52-54: 172.5mm | 56-58: 175mm
  • Cassette: Shimano Deore M6100 (10-51t / 12spd)
  • Chain: Shimano Deore M6100
  • Bottom Bracket: Shimano PF86.5
  • Chainguide / Front Derailleur: n/a

Brakes & Control

  • Brake Calipers: Shimano GRX 820
  • Brake Levers: Shimano GRX 820
  • Front Rotor: Shimano RT56 180mm (6-bolt)
  • Rear Rotor: Shimano RT56 180mm (6-bolt)

Cockpit & Seating

  • Handlebar: Kona Gravel Dropbar (31.8mm)Width: 48: 440mm | 50: 460mm | 52-54: 480mm | 56: 500mm | 58: 520mm
  • Stem: Kona 31.8mm (Rise 6º)Length: 48-52: 50mm | 54-58: 60mm
  • Seatpost: TranzX Dropper +RAD (31.6mm / 125mm Travel)
  • Saddle: WTB Volt Medium
  • Headset: FSA Orbit No.57 ZS44/ZS56
  • Grips: Kona Cork Tape
  • Seat Clamp: Kona Clamp 34.9mm

Wheels & Tires

  • Rims: WTB KOM Team i27 TCS 29"
  • Front Hub: Formula 12x100mm
  • Rear Hub: Formula 12x142mm MS
  • Spokes: Stainless 2.0mm Black
  • Front Tire: WTB Resolute TCS Light (700x50mm)
  • Rear Tire: WTB Resolute TCS Light (700x50mm)

Finish & Extras

  • Paint Color: Matte Carbon w/ Gloss Orchid Fade Decals
  • Pedals: n/a
GEOMETRY

GEOMETRY

  Size 48 50 52 54 56 58
1 ST Length 410 410 455 455 500 535
2 TT Length 532 547 559 578 595 616
3 Reach 372 377 382 386 391 396
4 Stack 566 581 598 616 636 666
5 Standover 725 730 769 777 814 848
6 HT Angle 68.7 68.7 68.7 68.7 68.7 68.7
7 HT Length 116 132 148 172 193 225
8 ST Angle 74.2 73.7 73.2 72.7 72.2 71.7
9 CS Length 445 445 445 445 445 445
10 BB Drop 69 69 69 66 66 66
11 BB Height 296 296 296 299 299 299
12 Wheelbase 1060 1071 1082 1096 1108 1124
13 Front Center 624 635 646 659 671 687
14 Fork Length 435 435 435 435 435 435
15 Fork Offset 51 51 51 51 51 51
