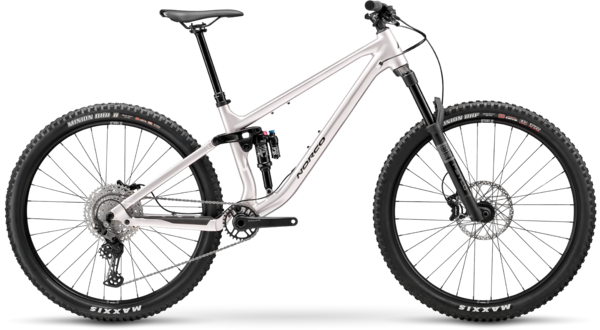

White and black full-suspension mountain bike with front suspension fork
Mountain bike handlebars with suspension fork and head tube
Front suspension fork and knobby tire on a white full-suspension bike
Rear drivetrain, crank, and chain on a white full-suspension mountain bike

Get everything out of the trail that you put into it.

The Fluid FS A2's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.

Details

Intuitive precision handling.
Top-tier design and features over-deliver as skills evolve.
Sophisticated suspension components for full-platform performance and tunability.
Long-travel droppers and generous standover get you through the rough stuff.
Refined design and expanded size range.
Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
No Other Way Limited Lifetime Warranty.

Norco

Fluid FS A2

$2,999.00

Size Guide

In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 0650215905

Get everything out of the trail that you put into it.

The Fluid FS A2's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.

Details

Intuitive precision handling.
Top-tier design and features over-deliver as skills evolve.
Sophisticated suspension components for full-platform performance and tunability.
Long-travel droppers and generous standover get you through the rough stuff.
Refined design and expanded size range.
Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
No Other Way Limited Lifetime Warranty.

SPECIFICATIONS

Frameset

  • Frame: Fluid FS 6061 Alloy Frame 130mm
  • Fork: Rock Shox Psylo Gold 140mm, 29"
  • Rear Shock: Fox Float X Performance Elite, 2 Pos Lever/LSC/LSR/LV EVOL

Drivetrain

  • Rear Shifter: Shimano Deore SL-M6100-R 12spd
  • Rear Derailleur: Shimano Deore RD-M6100 12spd
  • Crankset: Praxis G2 Cadet M24 30T
  • Bottom Bracket: Praxis M24 BSA Threaded
  • Cassette: Shimano Deore CS-M6100-12 10/51T 12spd
  • Chain: Shimano Deore CN-M6100 12spd

Brakes

  • Front Brake: TRP Slate EVO, Metallic Pads
  • Front Brake Rotor: TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt
  • Rear Brake: TRP Slate EVO, Metallic Pads
  • Rear Brake Rotor: TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt
  • Brake Levers: TRP Slate EVO

Components

  • Handlebar: Norco 6061 DB Alloy, 800mm, 25mm
  • Stem: Norco 6061 Alloy 40mm/35mm
  • Seatpost: TranzX YSI34 Post 34.9mm
  • Headset: Zero Stack Sealed Cartridge Bearings - Tapered
  • Saddle: SDG Bel Air V3
  • Grips: WTB Wavelength Grip
  • Pedals: VP Nylon Flat Pedal
  • Seatpost Clamp: Norco Alloy Nutted Clamp

Wheels

  • Front Hub: Bear Pawls BMB-013 110x15 32H
  • Rear Hub: Bear Pawls BMB-004 148x12, 6 Bolt
  • Rims: WTB ST 29", 32H
  • Front Tire: Continental Kryptotal Trail 29" x 2.4"
  • Rear Tire: Continental Xynotal Trail 29" x 2.4"
  • Spokes/Nipples: Stainless Steel 14g - Black
Please Note: Product images are for illustrative purposes only. Manufacturers occasionaly make updates to components, specifications, and finishes, meaning the actual bike you receive may vary slightly from the photos. However, any substituted parts will always be of like or better quality. If you have any questions about specific components, please don't hesitate to reach out to our team so we can get you the most up-to-date info on our current stock.
GEOMETRY
S M L XL XXL
Wheel Size 29" 29" 29" 29" 29"
Travel (mm front/mm rear)
140/130
Reach 420 450 480 510 540
Stack 617 626 635 644 653
HTA Head Tube Angle
65
OS Fork Offset
44
ST Seat Tube Length 360 390 410 460 510
STA Effective Seat Tube Angle 76 76.3 76.7 77 77.3
RC Rear Centre Length 425 430 435 440 445
BB Bottom Bracket Drop
30
BBH Bottom Bracket Height
348
HTT Horizontal Top Tube 574 602 630 659 687
WB Wheelbase 1166 1205 1245 1284 1323
SOH Standover 678 690 699 736 767
HT Head Tube Length 110 120 130 140 150
Trail
128
Recommended Seatpost Drop 150 170
200
Maximum Post Insertion 250 270
300
Stem Length
40
Crank Length
175
Tire Size
2.4" – 2.6"
Water Bottle Compatible
1 x 750 mL
 1 x 750 mL and 1 x 620 mL

See the Fluid FS A2 in Action
