More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Moterra 1 balances brute strength with trail-savvy finesse. Featuring a lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. Shimano XT Di2 electronic shifting, Magura Gustav Elite brakes, and robust Reserve 30|HD AL wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
  • Reserve 30|HD AL Wheelset - 30mm inner width, 370 hubs with durable Ratchet LN internals - Light, rugged & warrantied for life
  • High-end Shimano XT Di2 electronic shifting with e*thirteen Helix Core cranks
  • Powerful, controllable stopping from Magura’s Gustav Elite 4-piston stoppers with 203mm rotors

Cannondale

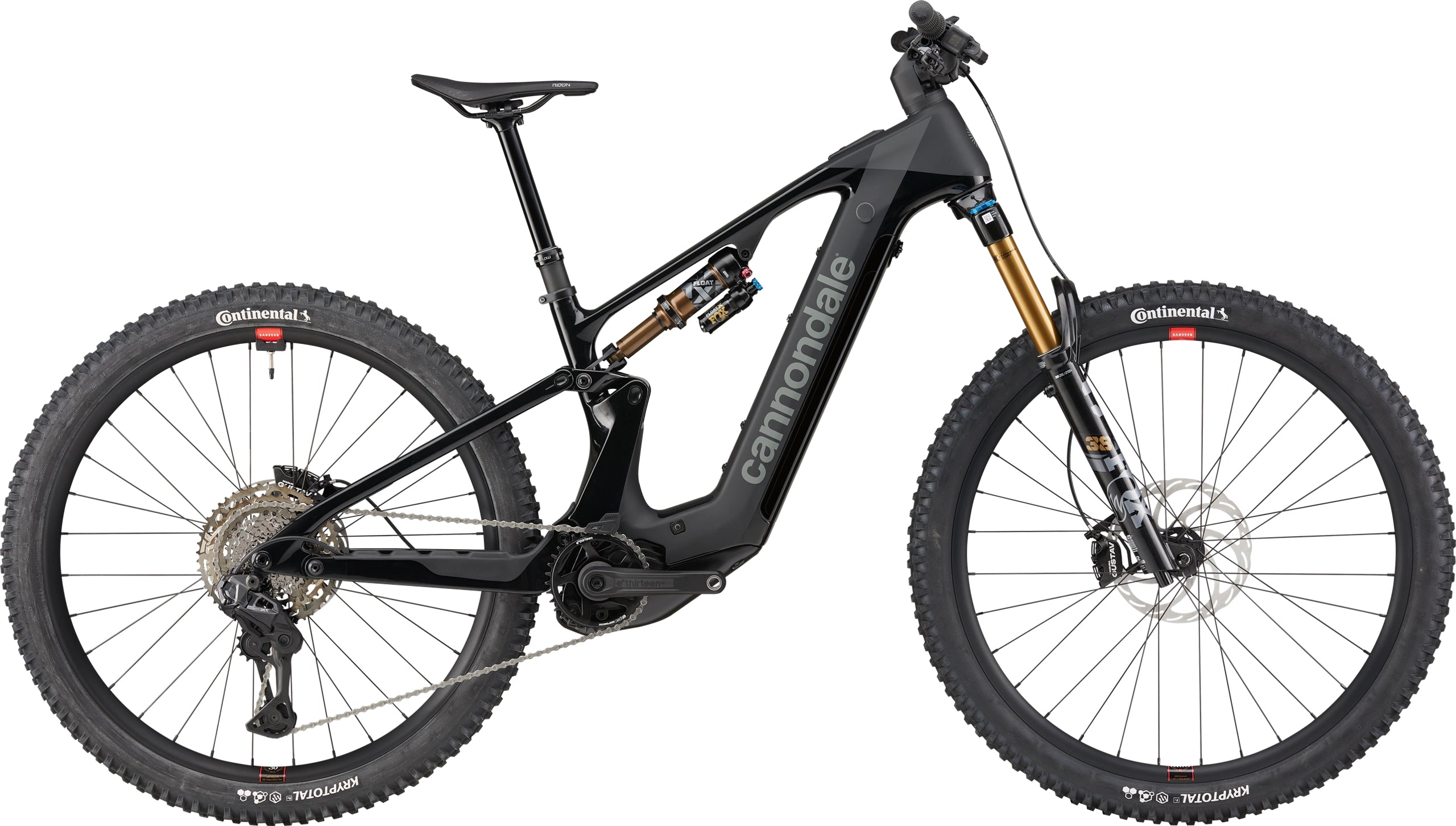

Moterra 1

$10,499.00

Size Guide

No size chart available for this product.

Out of stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: C6502GU10SM

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Moterra 1 balances brute strength with trail-savvy finesse. Featuring a lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. Shimano XT Di2 electronic shifting, Magura Gustav Elite brakes, and robust Reserve 30|HD AL wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
  • Reserve 30|HD AL Wheelset - 30mm inner width, 370 hubs with durable Ratchet LN internals - Light, rugged & warrantied for life
  • High-end Shimano XT Di2 electronic shifting with e*thirteen Helix Core cranks
  • Powerful, controllable stopping from Magura’s Gustav Elite 4-piston stoppers with 203mm rotors
SPECIFICATIONS

E-System

  • Motor: Bosch Performance Line CX
  • Battery: Bosch PowerTube, 800Wh
  • Display: Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote
  • Charger: Bosch 4A

Frameset & Suspension

  • Frame: Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
  • Fork: Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
  • Rear Shock: Fox Float X Factory, Kashima, 2-Pos adj, EVOL LV, 230x62.5mm
  • Headset: Acros ICR, 1.5" to 1.8", sealed bearings

Drivetrain

  • Rear Derailleur: Shimano XT Di2 M8260, 11-speed (E-System powered)
  • Shifters: Shimano XT Di2 M8250, wireless, 11-speed
  • Crankset: ethirteen espec Helix Core, 55mm chainline, 160mm, 34T
  • Cassette: Shimano CUES LG700, LinkGlide, 11-50t, 11-speed
  • Chain: Shimano LG500, LinkGlide, 11-speed

Brakes

  • Brakes: Magura Gustav Elite 4-piston hydraulic disc
  • Brake Levers: Magura Gustav Elite hydraulic disc
  • Rotors: Magura MDR-S 203mm Front / 203mm Rear, 2.5mm thick

Wheels & Tires

  • Rims: Reserve 30|HD AL, 30mm inner width, tubeless ready
  • Front Hub: DT Swiss 370, 15x110mm thru-axle, 6-bolt
  • Rear Hub: DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
  • Spokes: Sapim Race
  • Wheel Size: 29"
  • Front Tire: Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
  • Rear Tire: Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Cockpit & Components

  • Handlebar: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
  • Stem: Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
  • Grips: Cannondale TaperRidge
  • Seatpost: Cannondale DownLow Dropper, internal routing, 34.9mm (Travel: 150mm S, 170mm M, 200mm L, 230mm XL)
  • Saddle: Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail

Platform Details & Extras

  • Platform: Moterra Neo
  • Model Name: Moterra 1
  • Model Code: C6502GU
  • Extras: Fillmore Tubeless Valves, Bosch PowerMore range extender compatible

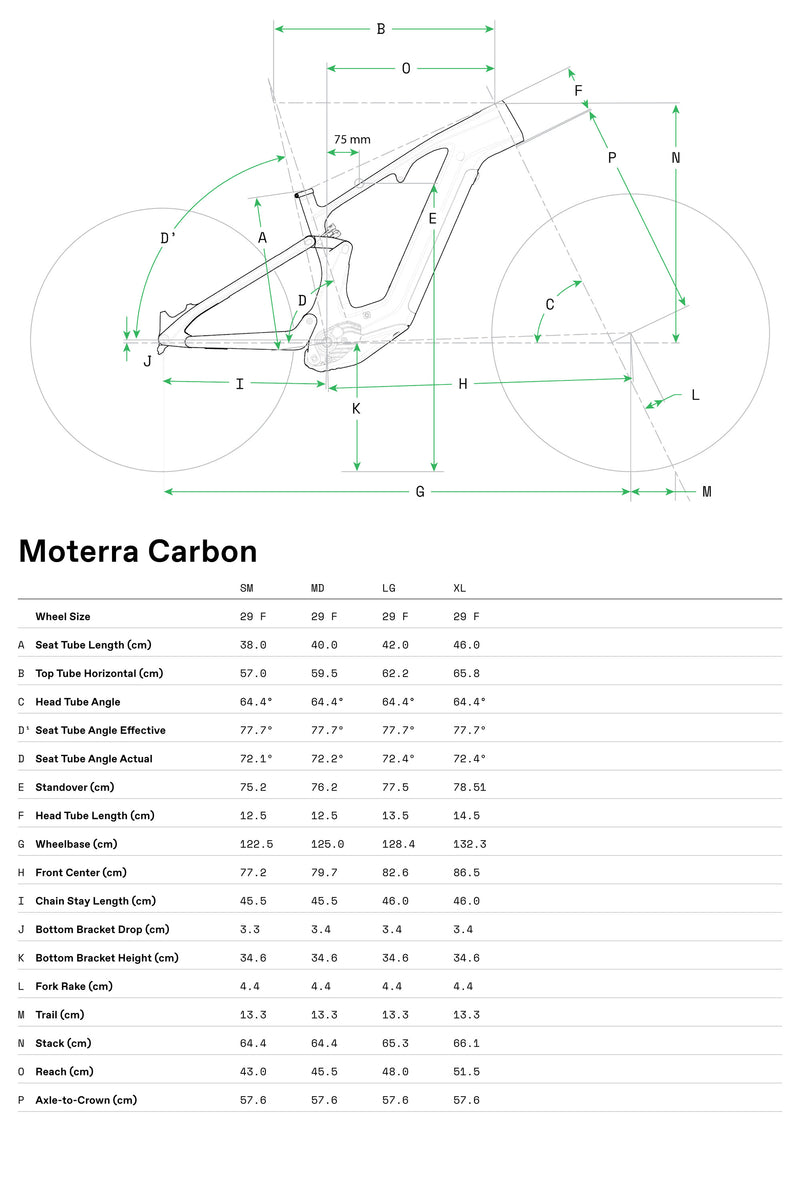

GEOMETRY
