The Mahuna strikes that perfect balance of mountain bike and all-around fun rig. Its 29” wheels easily roll over obstacles and provide a smooth, predictable ride. The fork features 100mm of supple travel and together with the 29” wheels, helps keep bumps in check. You have complete control over stopping with powerful hydraulic disc brakes. An 11-speed drivetrain makes quick work of tough hills ensuring the Mahuna is as fun going up as it is going down.

Kona

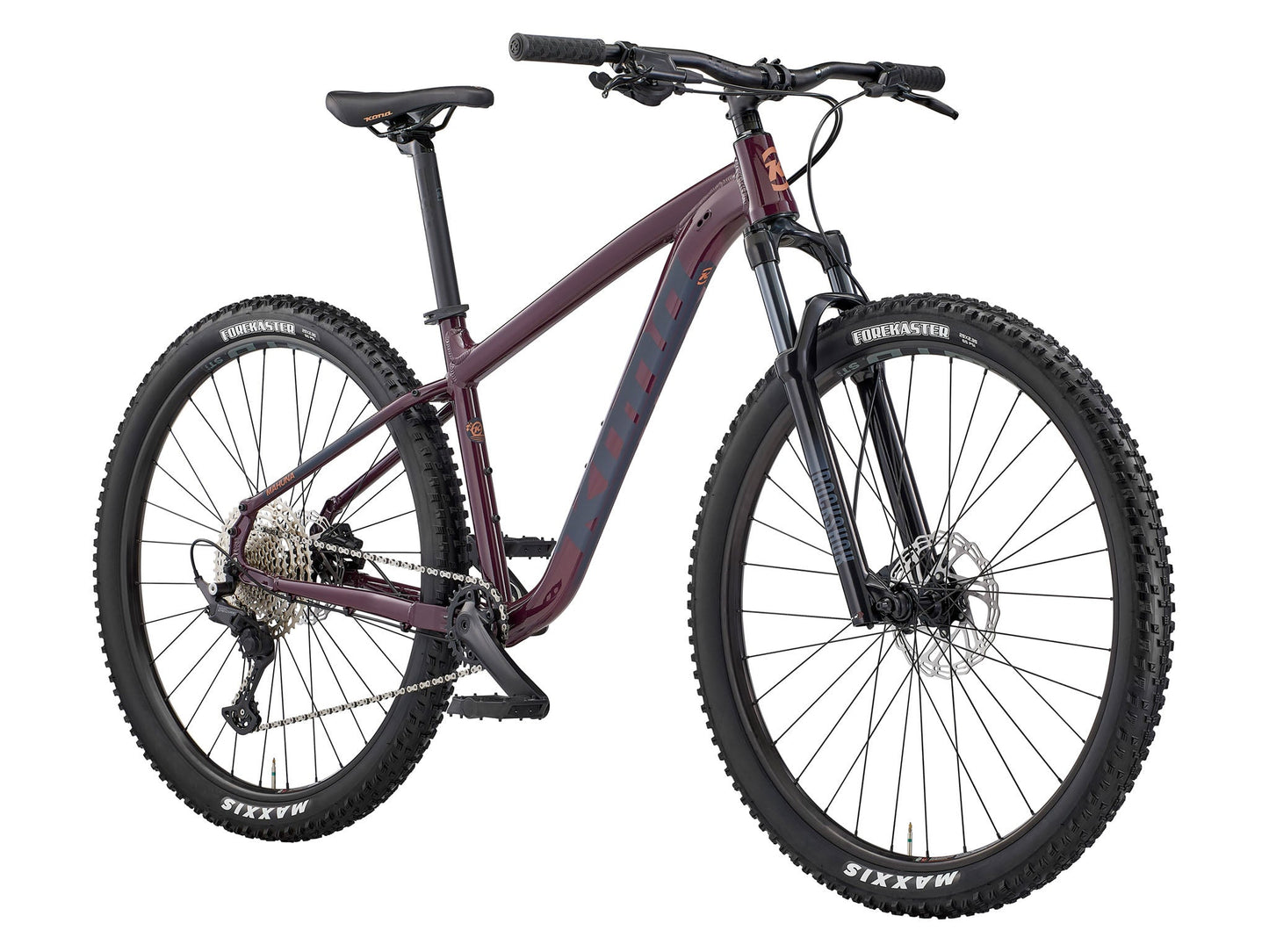

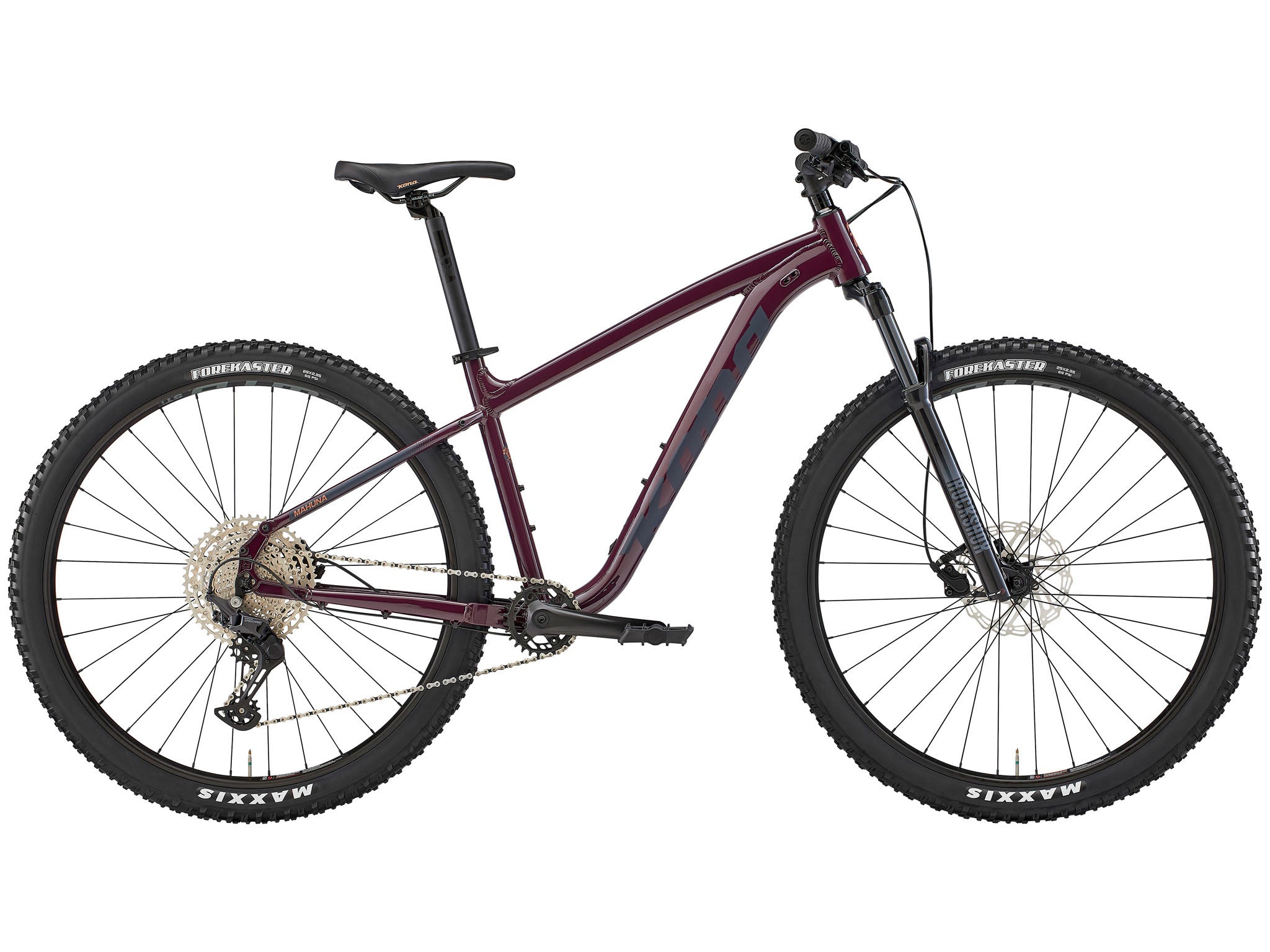

Mahuna

$899.00

Size Guide

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: B36MH06

The Mahuna strikes that perfect balance of mountain bike and all-around fun rig. Its 29” wheels easily roll over obstacles and provide a smooth, predictable ride. The fork features 100mm of supple travel and together with the 29” wheels, helps keep bumps in check. You have complete control over stopping with powerful hydraulic disc brakes. An 11-speed drivetrain makes quick work of tough hills ensuring the Mahuna is as fun going up as it is going down.

SPECIFICATIONS

Frameset & Suspension

  • Frame Material: Kona 6061 Aluminum Butted

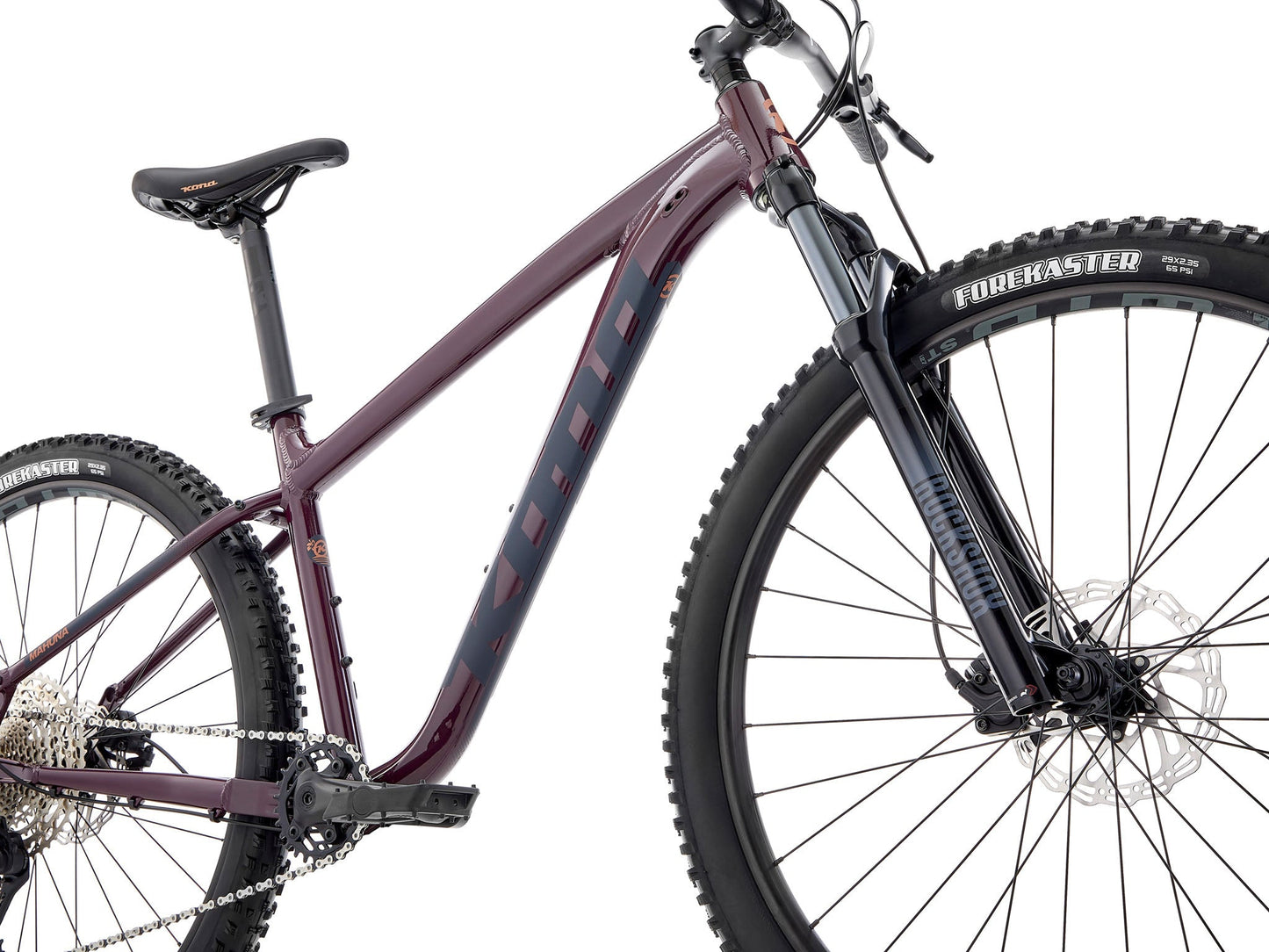

  • Fork: RockShox Judy Silver TK Solo Air, 100mm travel
  • Sizes: S, M, L, XL
  • Paint Color: Gloss Plum w/ Matte Ink & Metallic Bronze Decals

Drivetrain

  • Rear Derailleur: Shimano Deore (11-speed)
  • Shifters: Shimano Deore
  • Crankarms: Prowheel 11spd
  • Chainrings: 28t
  • Bottom Bracket: Feimin or FSA BB7420 73mm
  • Cassette: Shimano Deore or Sunrace 11-51t (11-speed)
  • Chain: KMC X11

Brakes

  • Brake Calipers: Alhonga HT472 or Shimano MT201 Hydraulic
  • Brake Levers: Alhonga HT472 or Shimano MT201 Hydraulic
  • Front Brake Rotor: Alhonga or Shimano RT10 180mm (Centerlock)

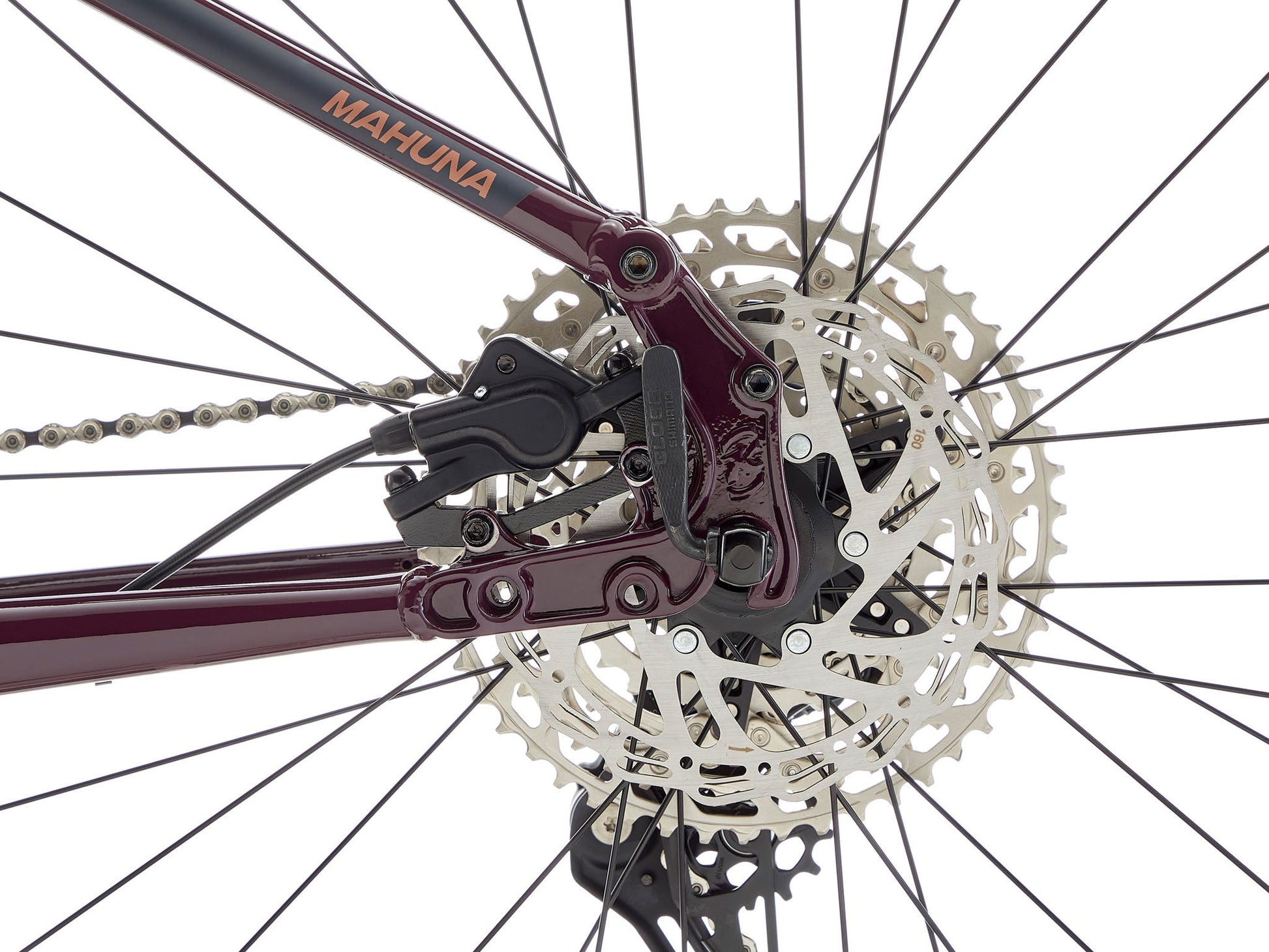

  • Rear Brake Rotor: Alhonga or Shimano RT10 160mm (Centerlock)

Wheels & Tires

  • Rims: WTB ST i27 TCS 2.0
  • Front Hub: Formula 100x9mm (Centerlock)
  • Rear Hub: Shimano 135x10mm (Centerlock)
  • Spokes: Stainless Black 14g
  • Front Tire: Maxxis Forekaster 29x2.35"
  • Rear Tire: Maxxis Forekaster 29x2.35"

Cockpit & Components

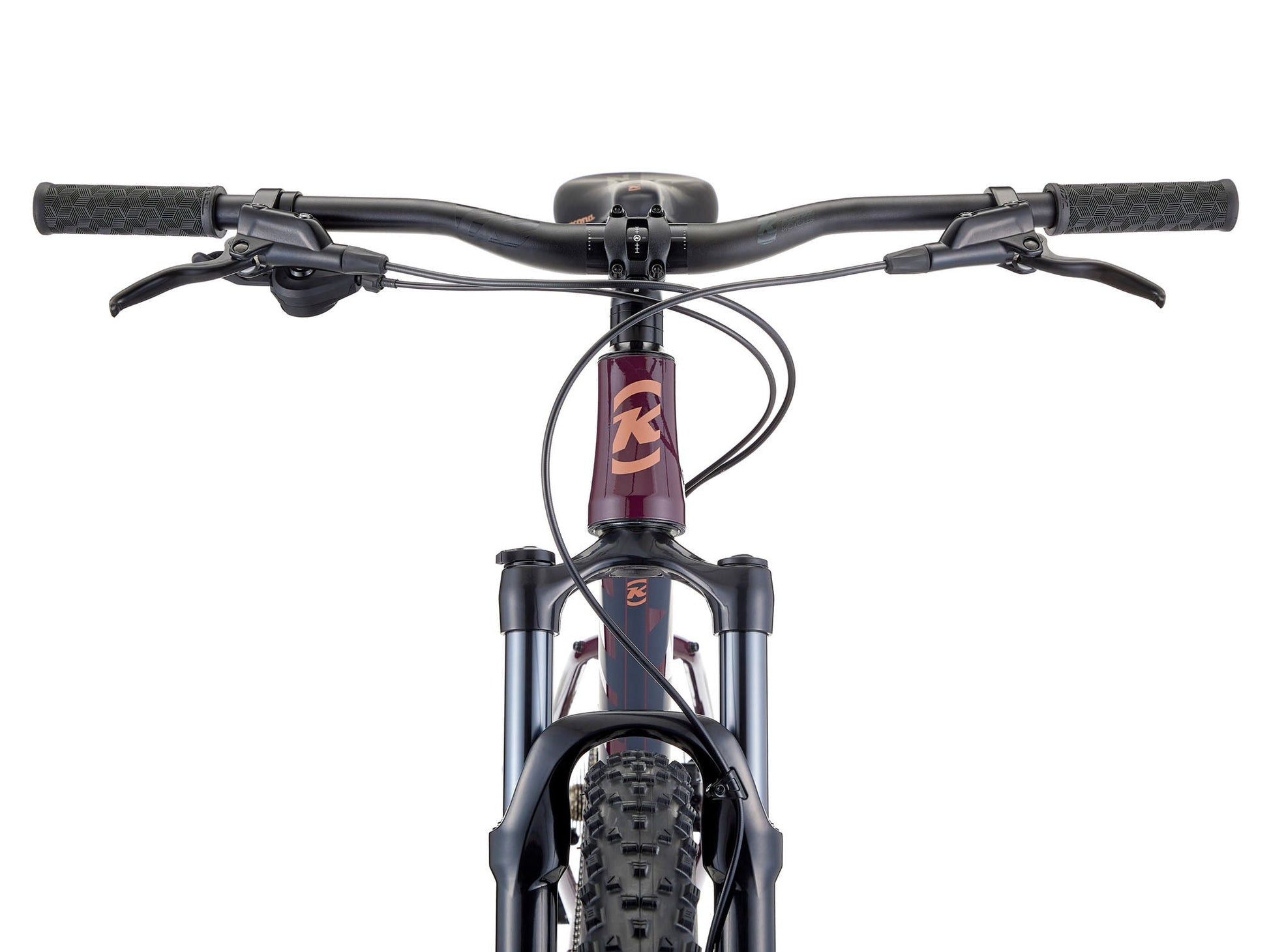

  • Handlebar: Kona XC/BC Riser
  • Stem: Kona XC
  • Grips: Kona Key Grip Slip-on

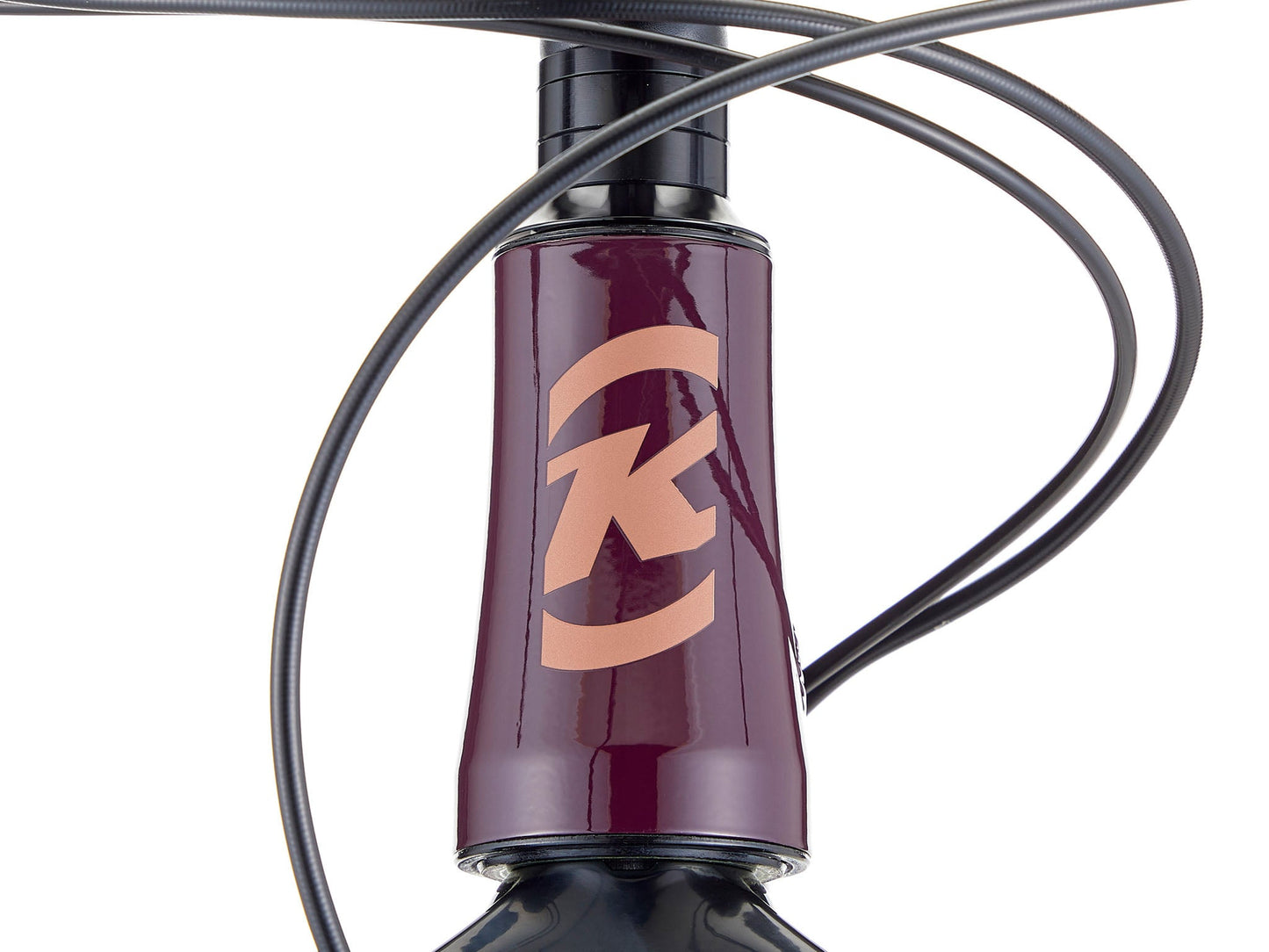

  • Headset: Feimen HP-H868B or FSA No.57B-1
  • Seatpost: Kona Thumb 31.6mm
  • Seat Clamp: Kona QR
  • Saddle: Kona XC
  • Pedals: Kona JS2
GEOMETRY

GEOMETRY

  Size S M L XL
1 ST Length 370 420 470 530
2 TT Length 576 604 631 669
3 Reach 415 440 465 500
4 Stack 602 611 620 629
5 Standover 727 733 738 760
6 HT Angle 68.0 68.0 68.0 68.0
7 HT Length 95 105 115 125
8 ST Angle 75.0 75.0 75.0 75.0
9 CS Length 450 450 450 450
10 BB Drop 60 60 60 60
11 BB Height 315 315 315 315
12 Wheelbase 1135 1164 1195 1231
13 Front Center 691 720 749 787
14 Fork Length 506 506 506 506
15 Fork Offset 51 51 51 51
