Surly Lowside Frameset - 26" Steel

Name: Lowside Frameset - 26" Steel
Brand: Surly
SKU: 04-002071
Price: 899.0 USD
Availability: InStock

$899.00

~~$899.00~~ $899.00

Sale Sold out

Shipping calculated at checkout.

Size XS S M L XL

Quantity

Have questions about buying a bike?
Chat with a specialist ↗

Our Platinum Pro Assembly fee of only $79 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Surly bike comes 90% built, reassembly is quick and easy with our video guides.

Low stock: 1 left

SKU:04-002071

View full details

Your BMX Bike All Grown Up

Lowside is like the grownup version of the bike you rode when you were a kid and still had hopes and dreams and some semblance of ambition. It’s just as happy riding singletrack as it is parked outside your favorite drinking establishment.

Lowside is a single speed mountain bike. Singlespeeding has been a part of Surly’s DNA since day one when we launched the 1x1 Rat Ride. After a lot of Homie Fall Fests and more feats of strength than we can recall, we decided to discontinue it a couple years back. Lowside picks up right where the 1x1 left off.

“Some have dubbed the Lowside the ultimate pub cruiser.”

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Spec'd in alternating years with 26 x 3” or 27.5 x 2.8” tires, the Lowside remains capable of running either option

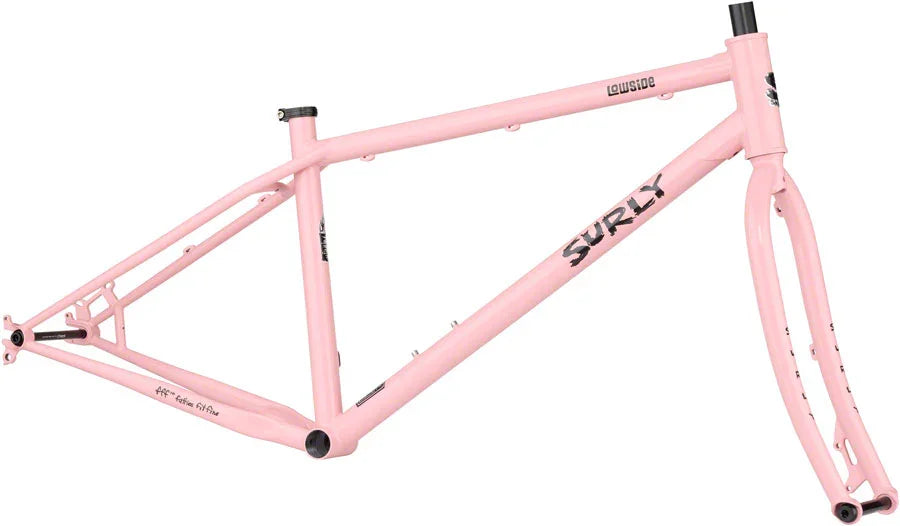

Frameset

Frame: Surly Lowside, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color: New Pig Smell

Fork: Surly Lowside, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Seatpost Clamp: Surly Stainless 33.1mm clamp

No technical specifications available.

Frame measurements (mm)	XS	SM	MD	LG	XL
A. Effective Top Tube	570	590	610	630	650
B. Stand Over	700	729	762	792	823
C. Reach	415	429	445	461	477
D. Stack	542	560	574	589	603
E. Total Seat Tube Length	316	366	416	466	516
F. Headtube Length	110	125	140	155	170
G. Headtube Angle	70	70	70	70	70
H. Seat Tube Angle	74	74	74	74	74
I. BB Drop	55	55	55	55	55
J. BB Height	-	-	-	-	-
K. Chainstay Length	425	425	425	425	425
L. Fork Length Axle to Crown	420	420	420	420	420
M. Fork Offset	47	47	47	47	47
N. Wheelbase	1068	1089	1110	1131	1152

Component measurements (mm)
Crank Arm Length	170	170	175	175	175
Handlebar Width	820	820	820	820	820
Stem Length	48	48	48	48	48
