| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Gravel all day, pavement whenever you want.
Somewhere between the stable but often sluggish beast of burden world of touring and the highly strung, tightly focused realm of road performance, there exists a need for a drop bar bike that can grind out mile after mile of washboard gravel and still snap to attention when you stomp on the pedals. It needs to be fast, with geometry relaxed and composed enough to eat all that gravel without a twitch, but still sharp enough to carve turns on pavement with authority. Build it out of carbon fiber, so it’s super light, but plenty strong as well. Festoon it with bosses for lots of water bottles and bento mounts, but don’t go crazy. Lots of tire clearance, just in case. Sharp, but smooth. Fast, but comfortable.
Kona

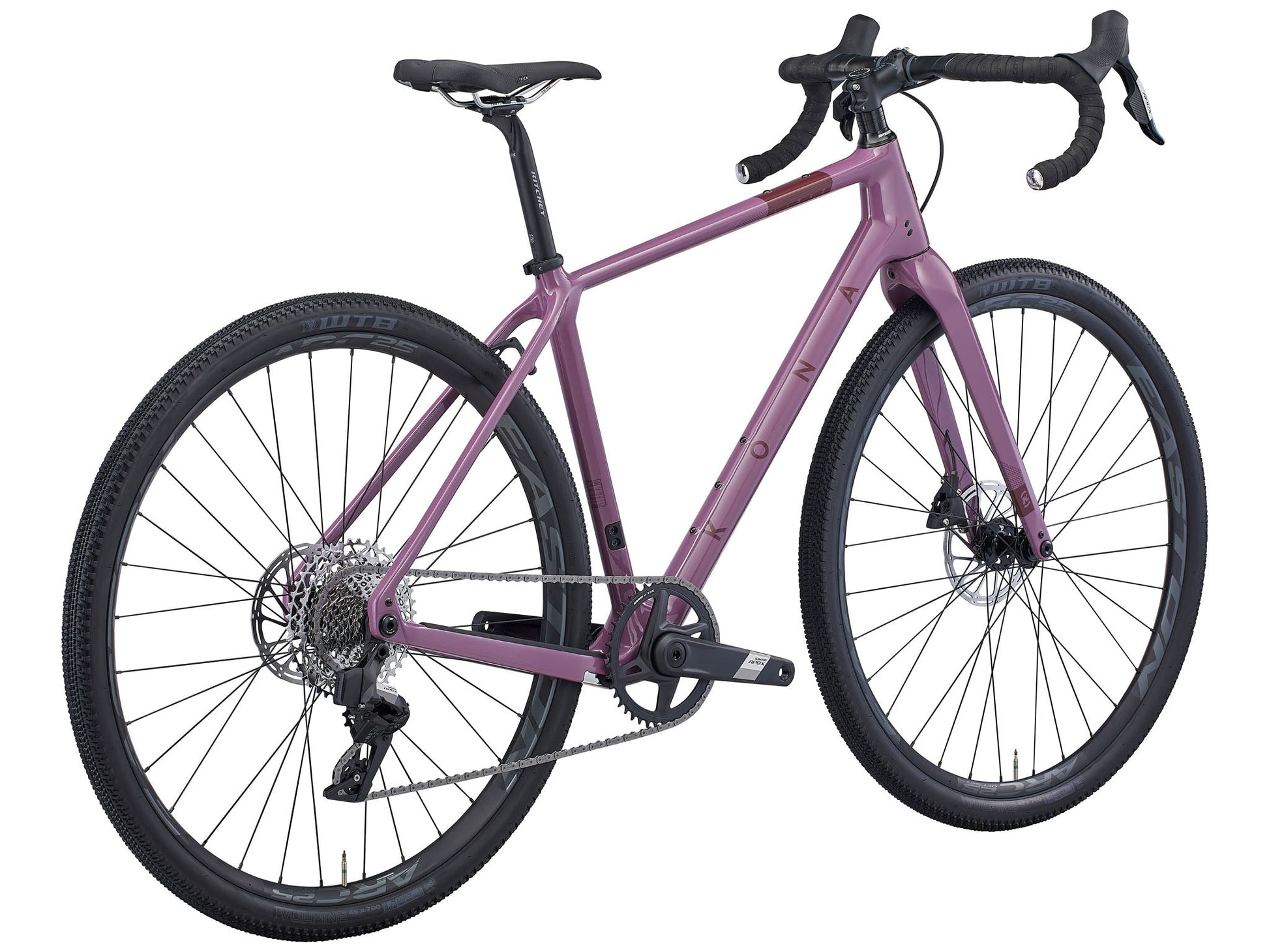

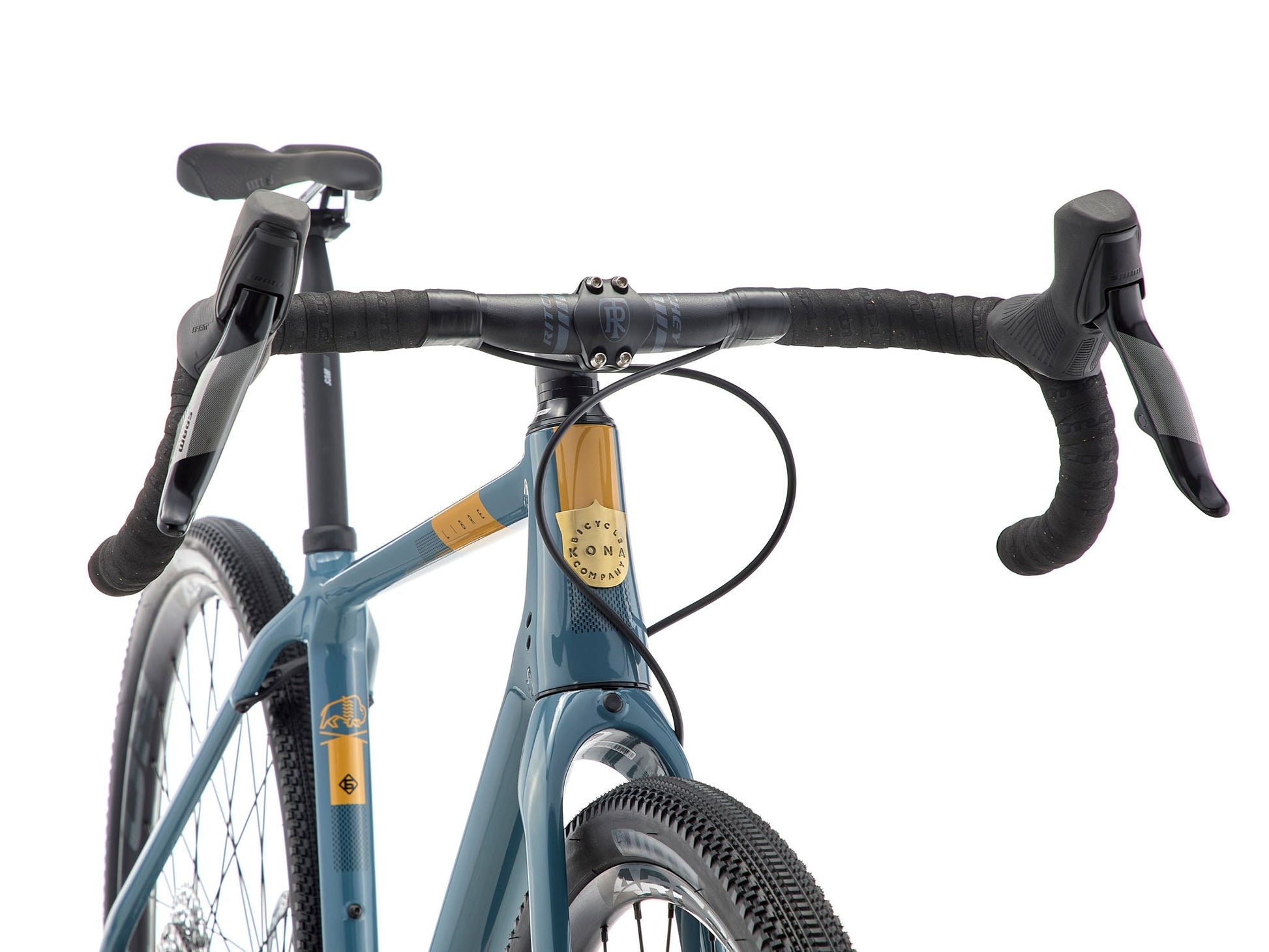

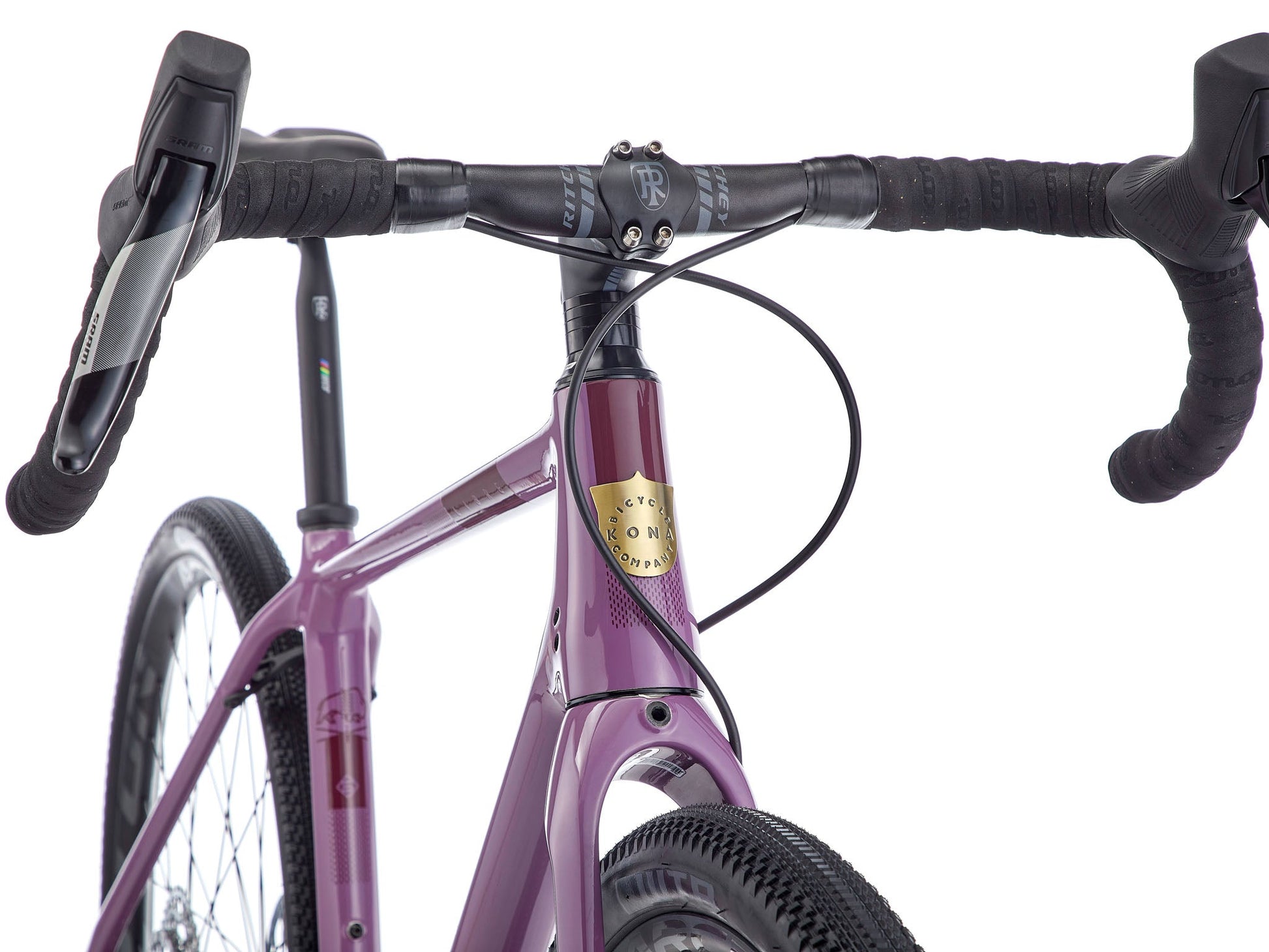

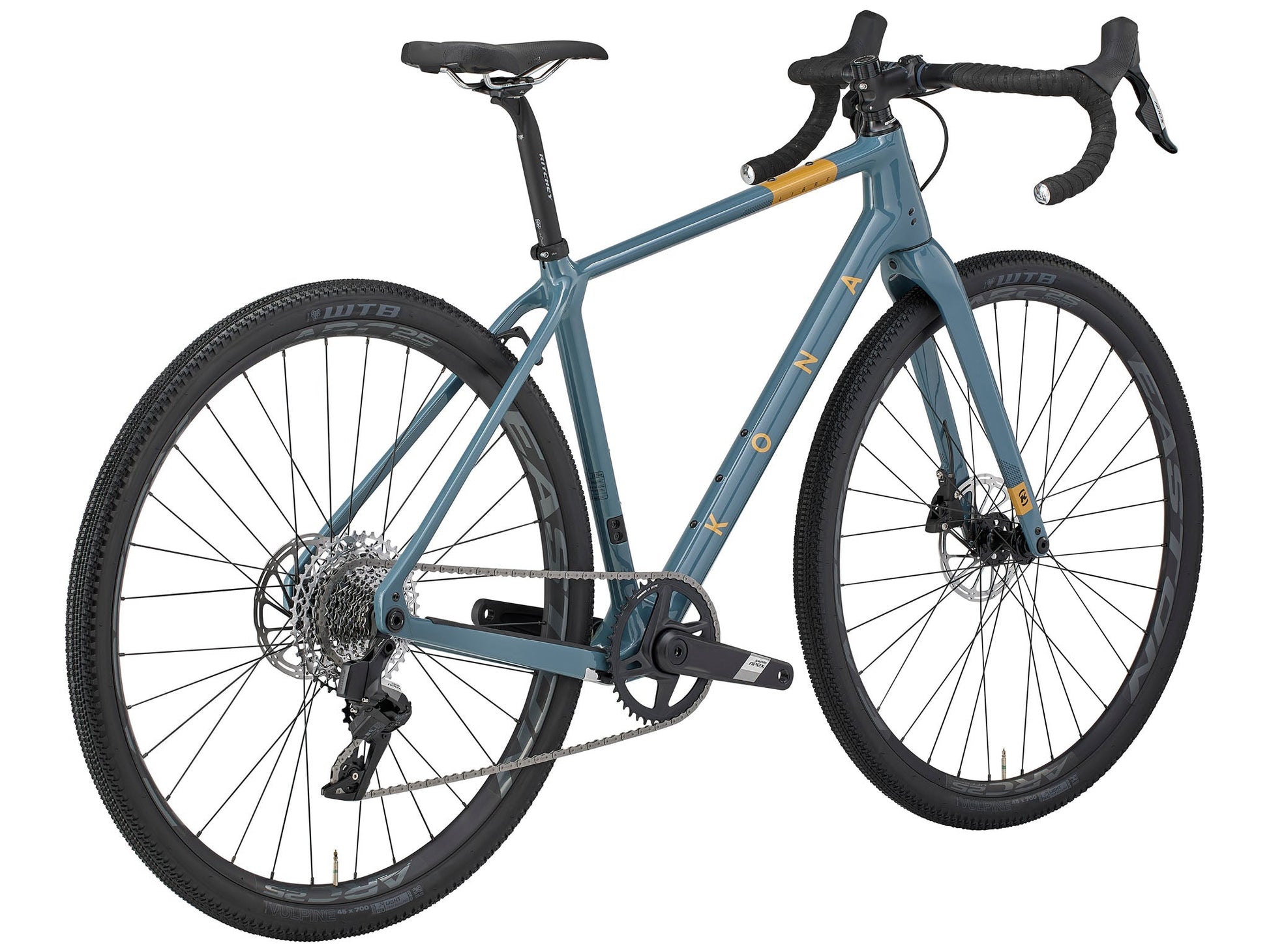

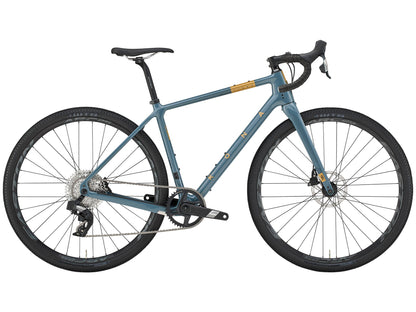

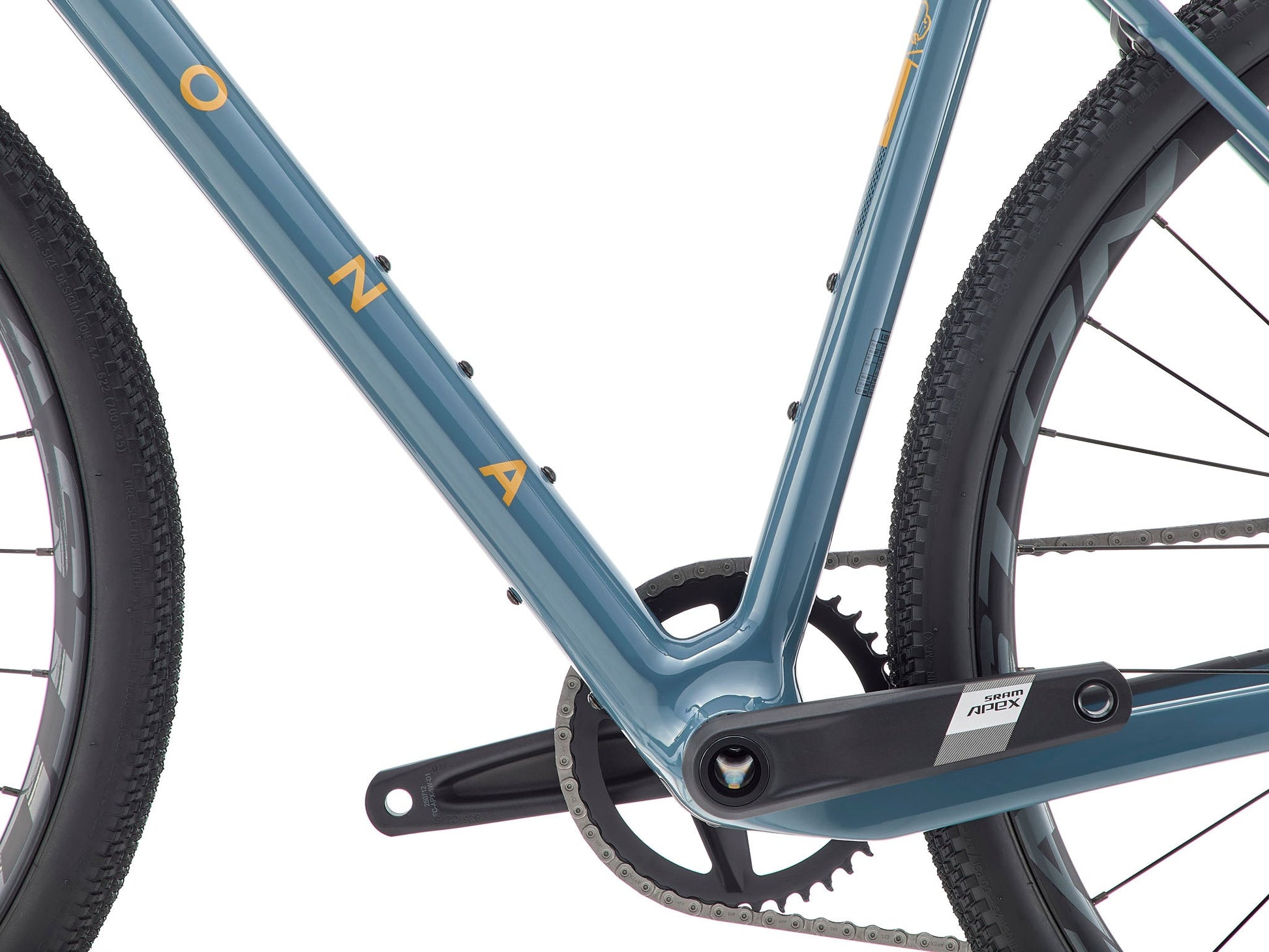

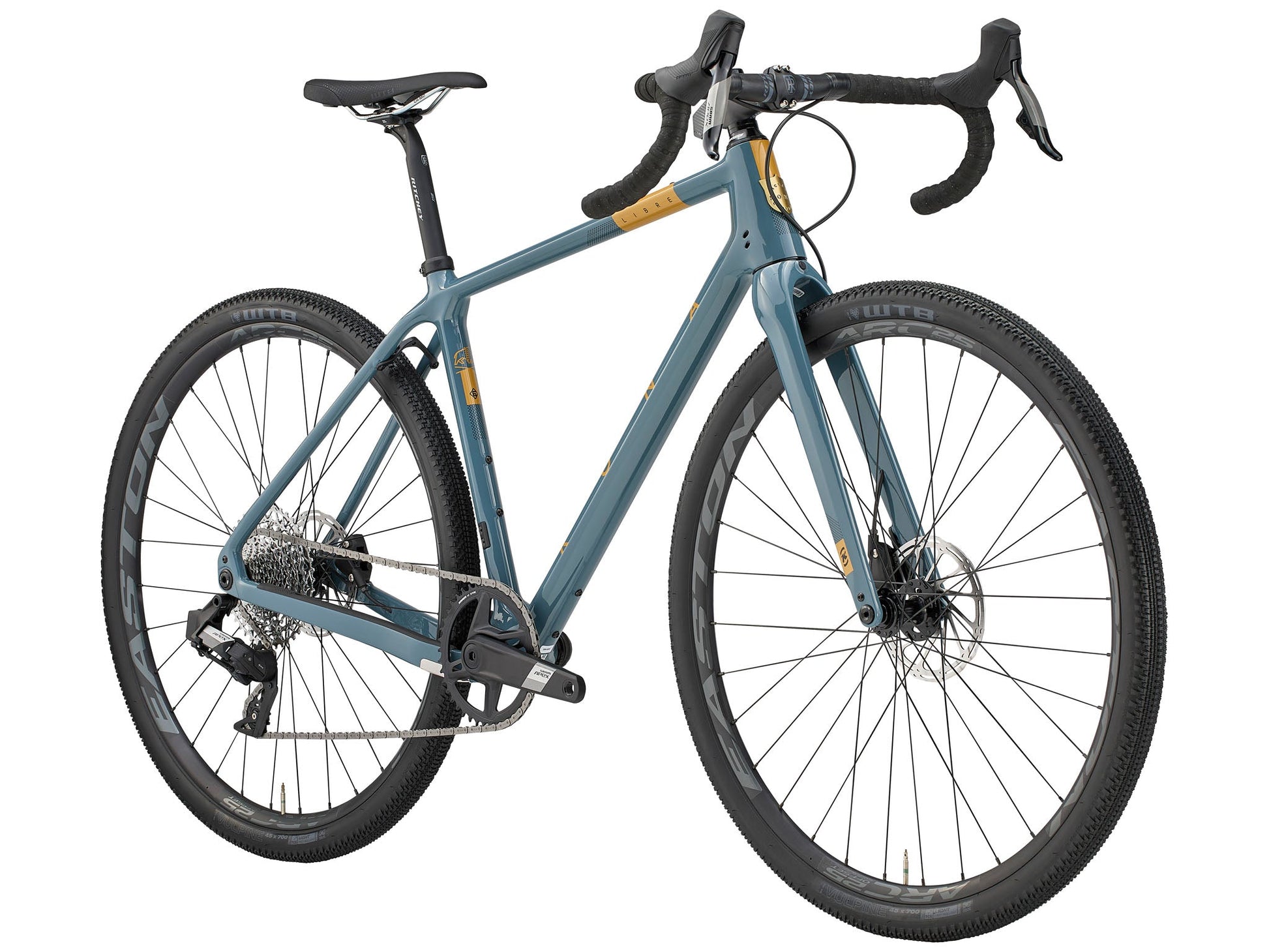

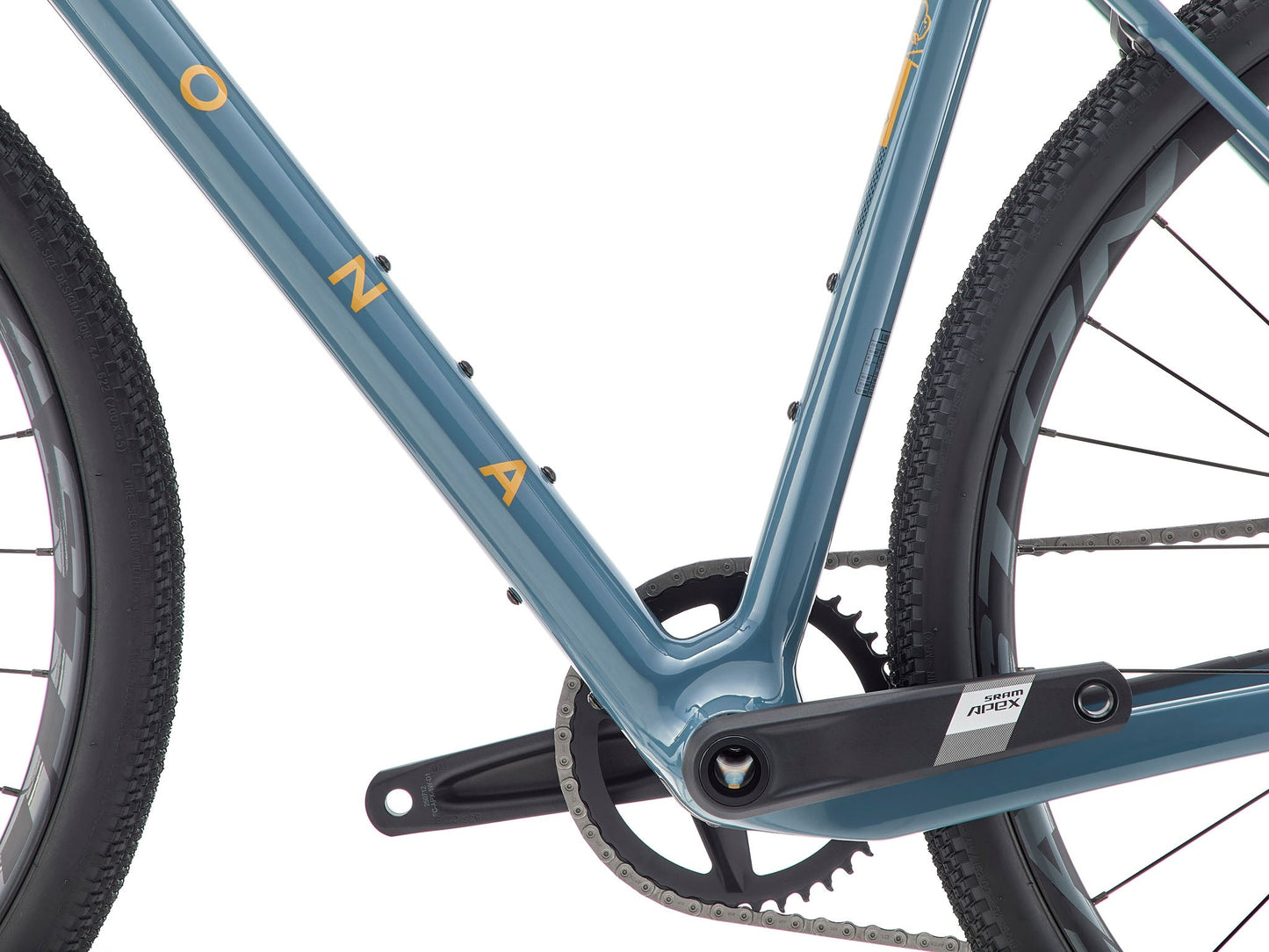

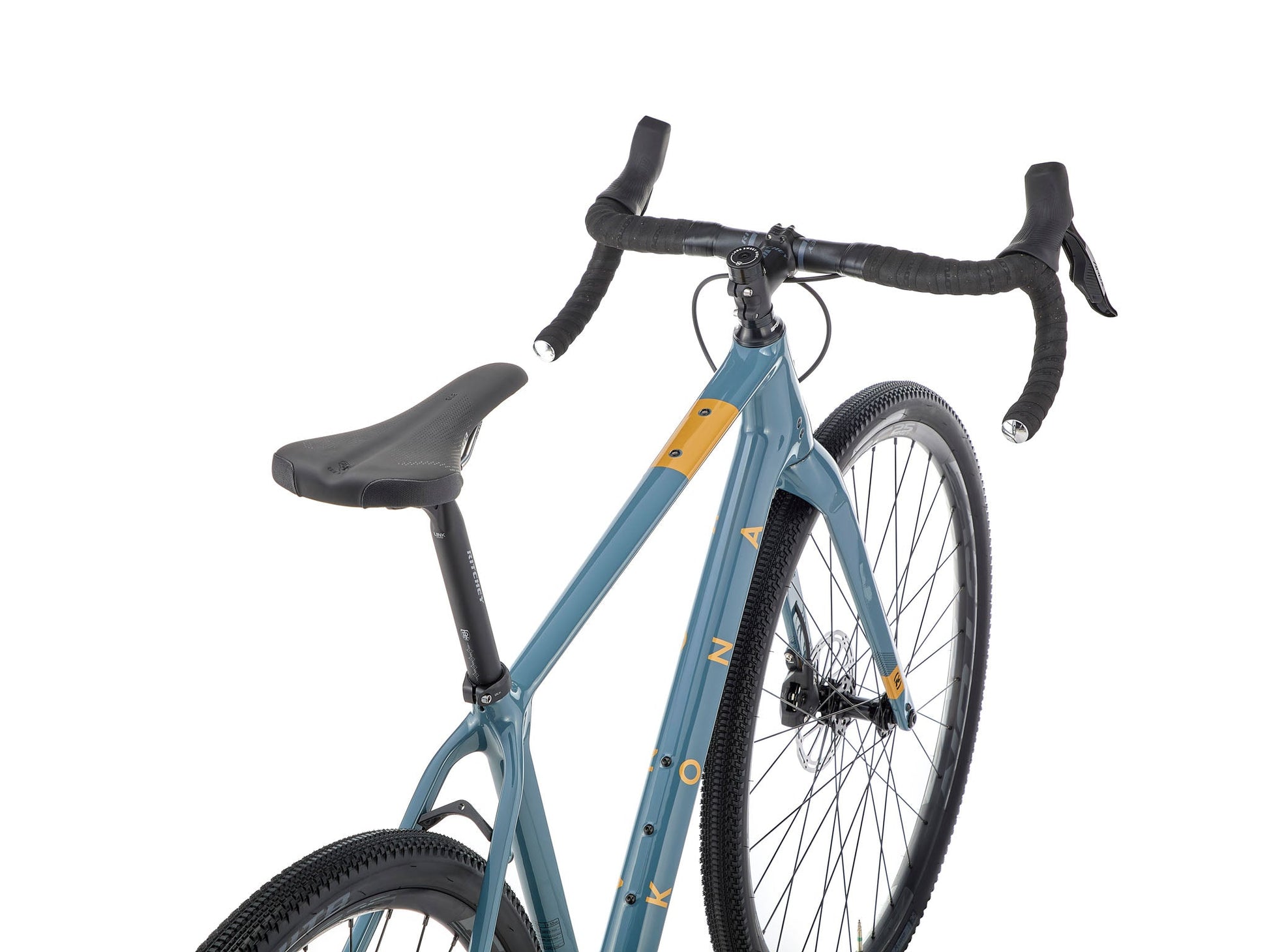

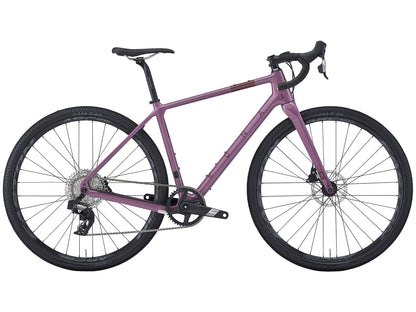

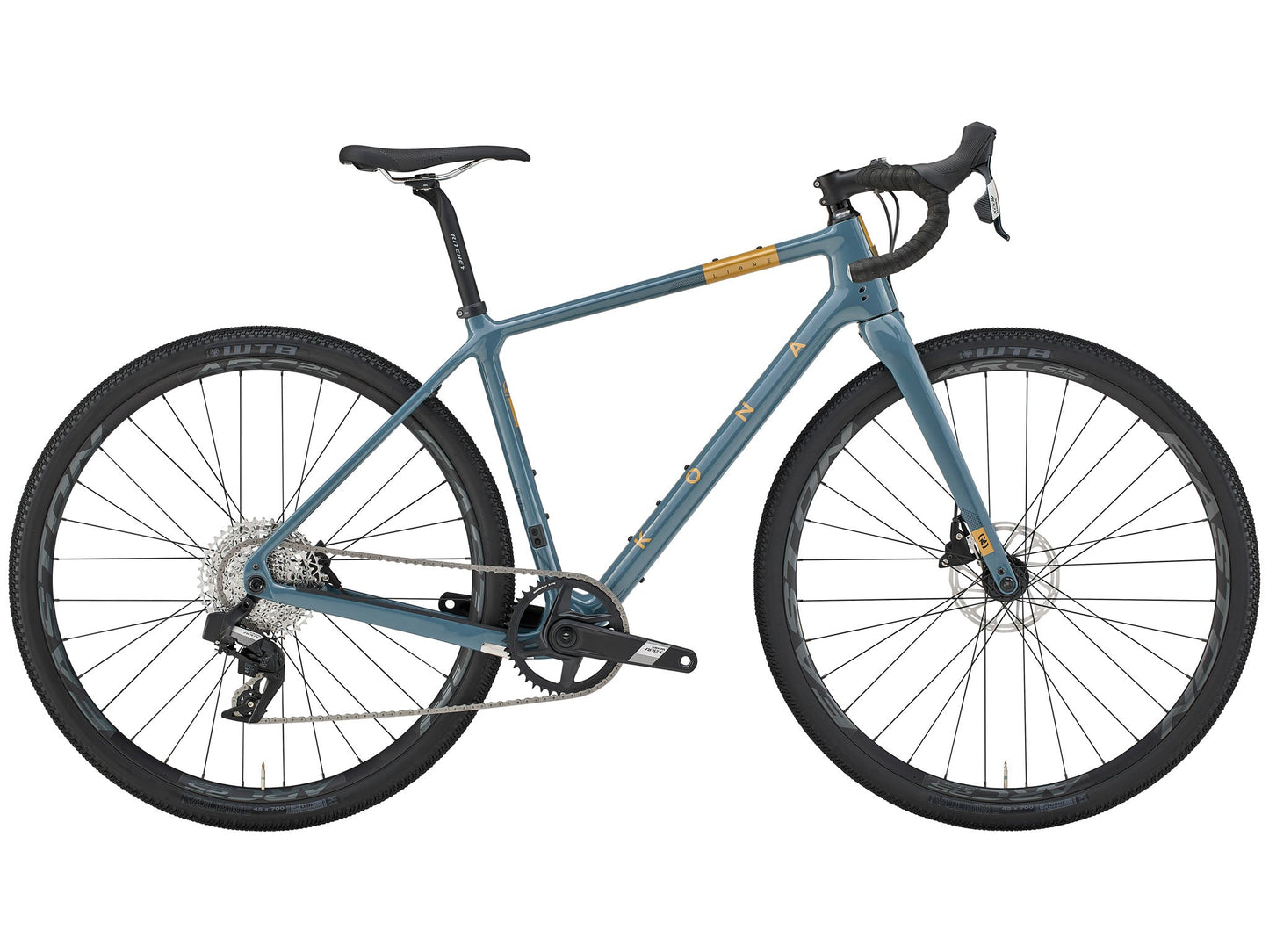

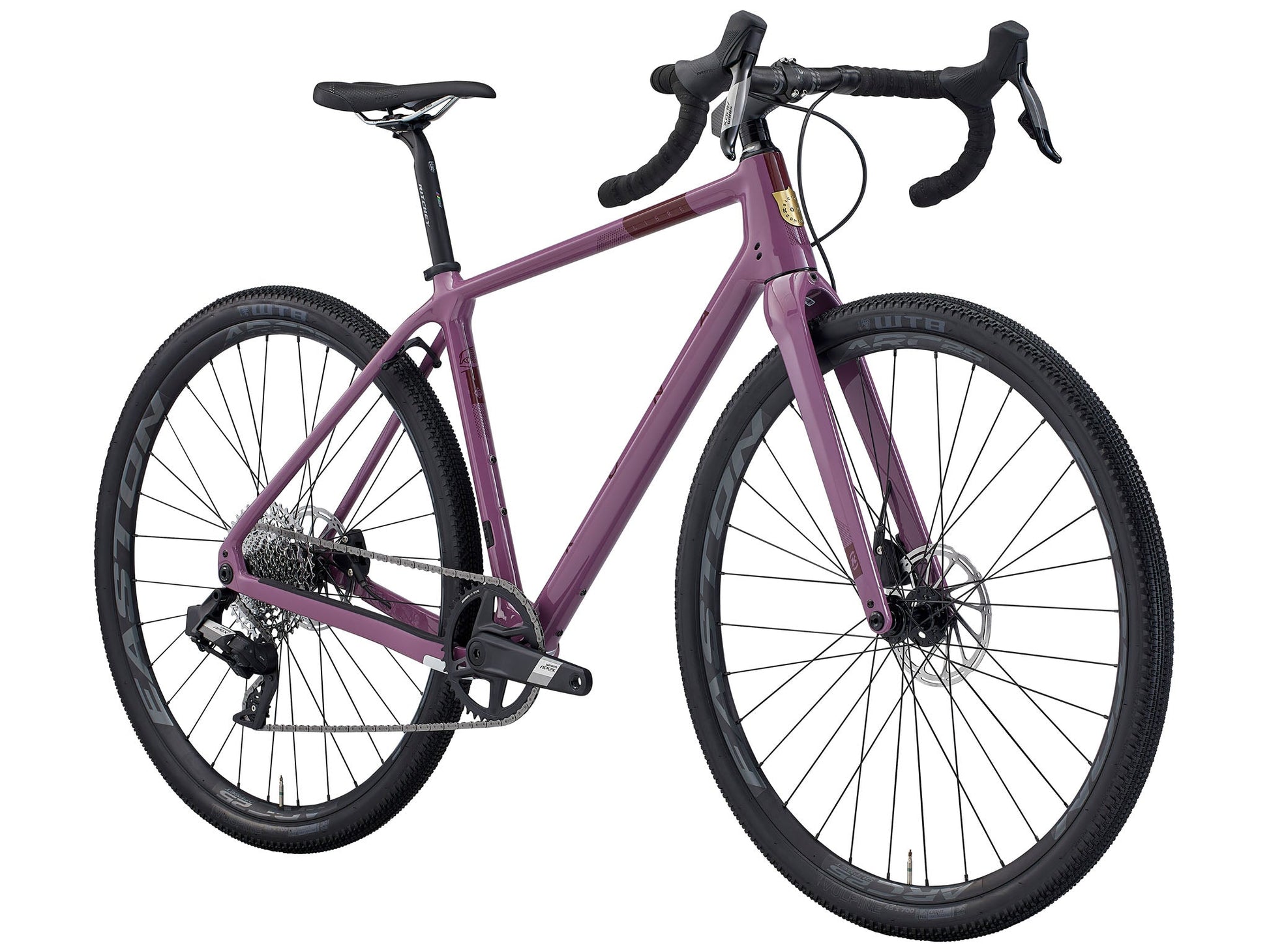

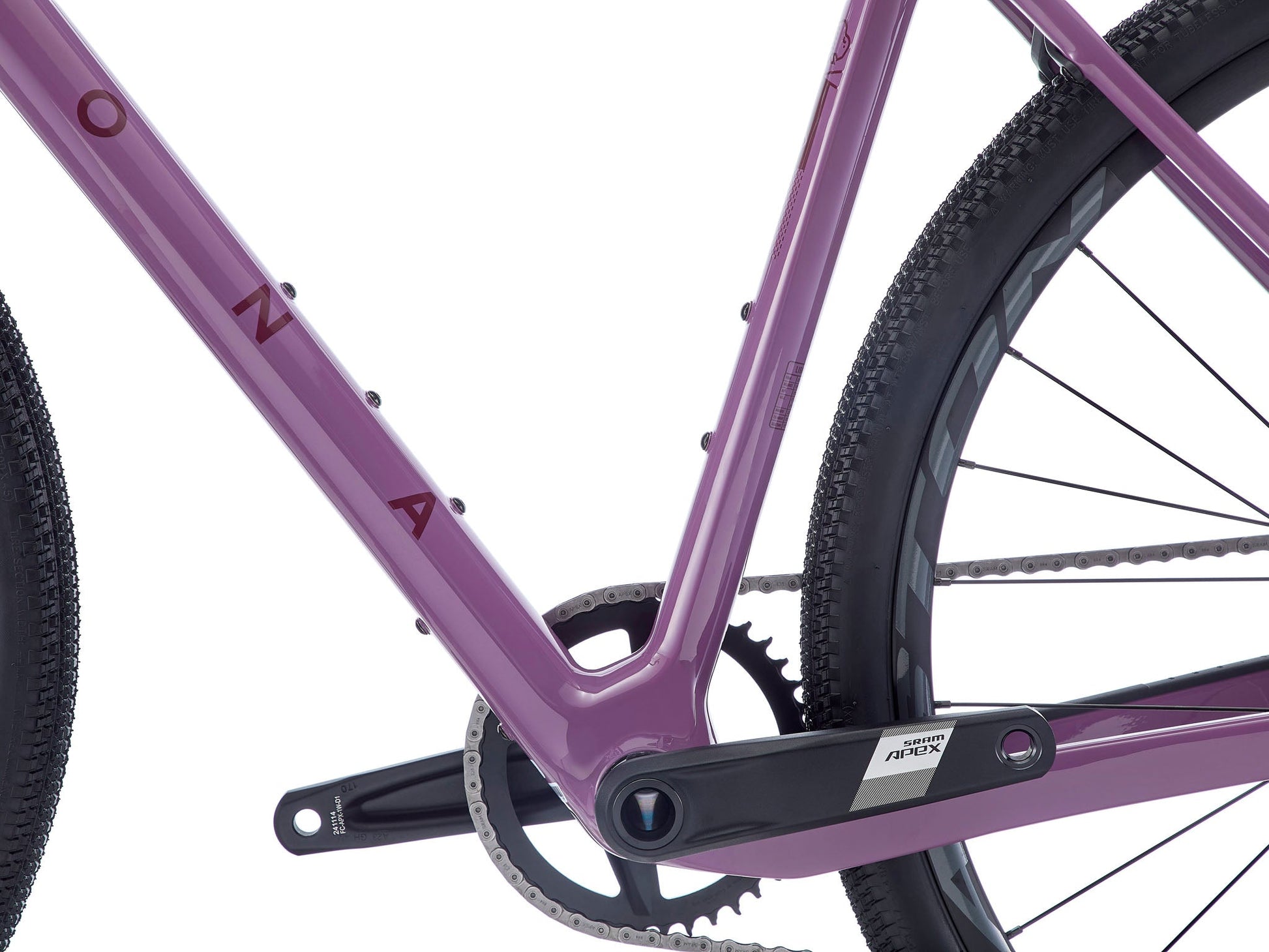

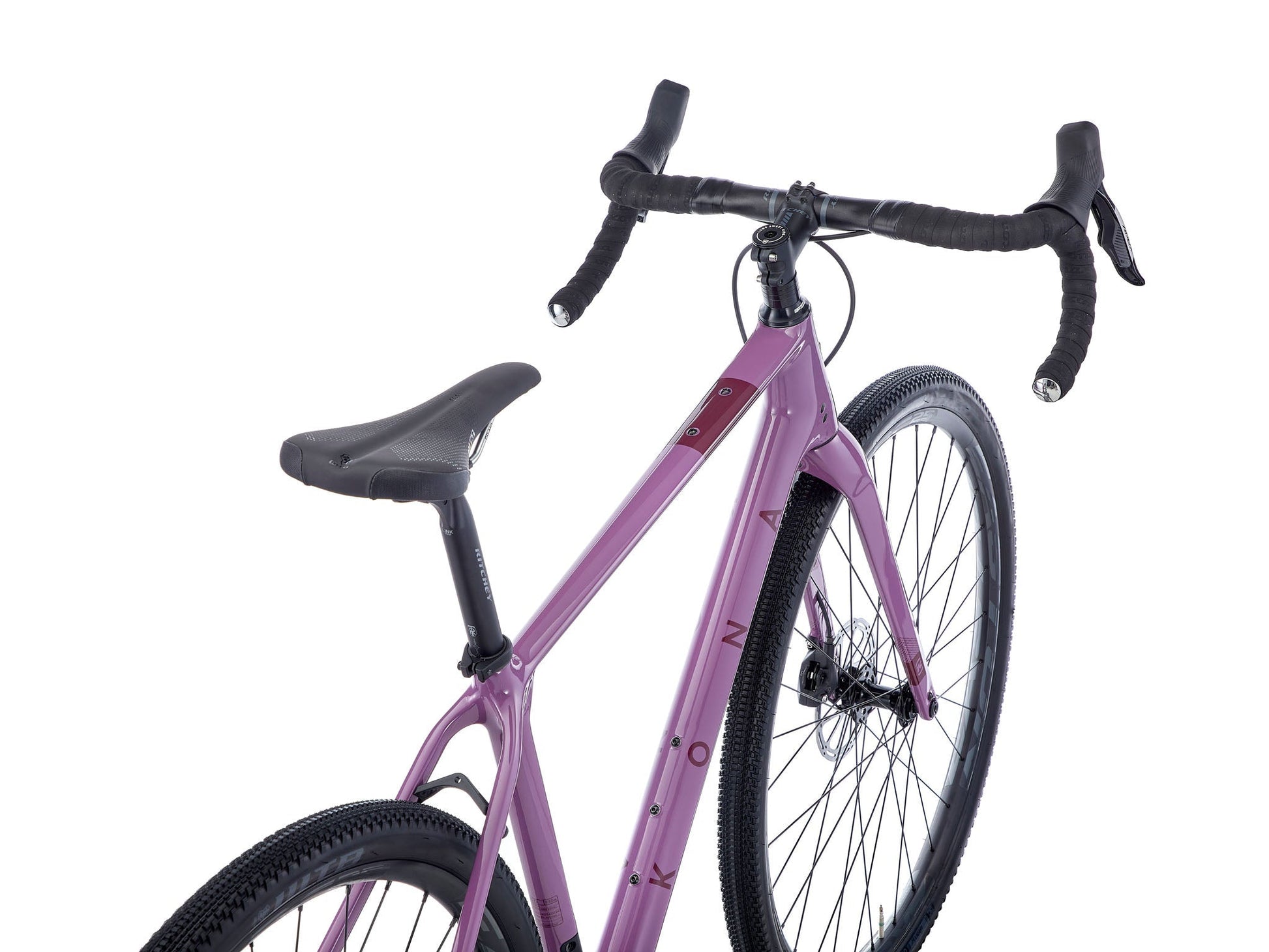

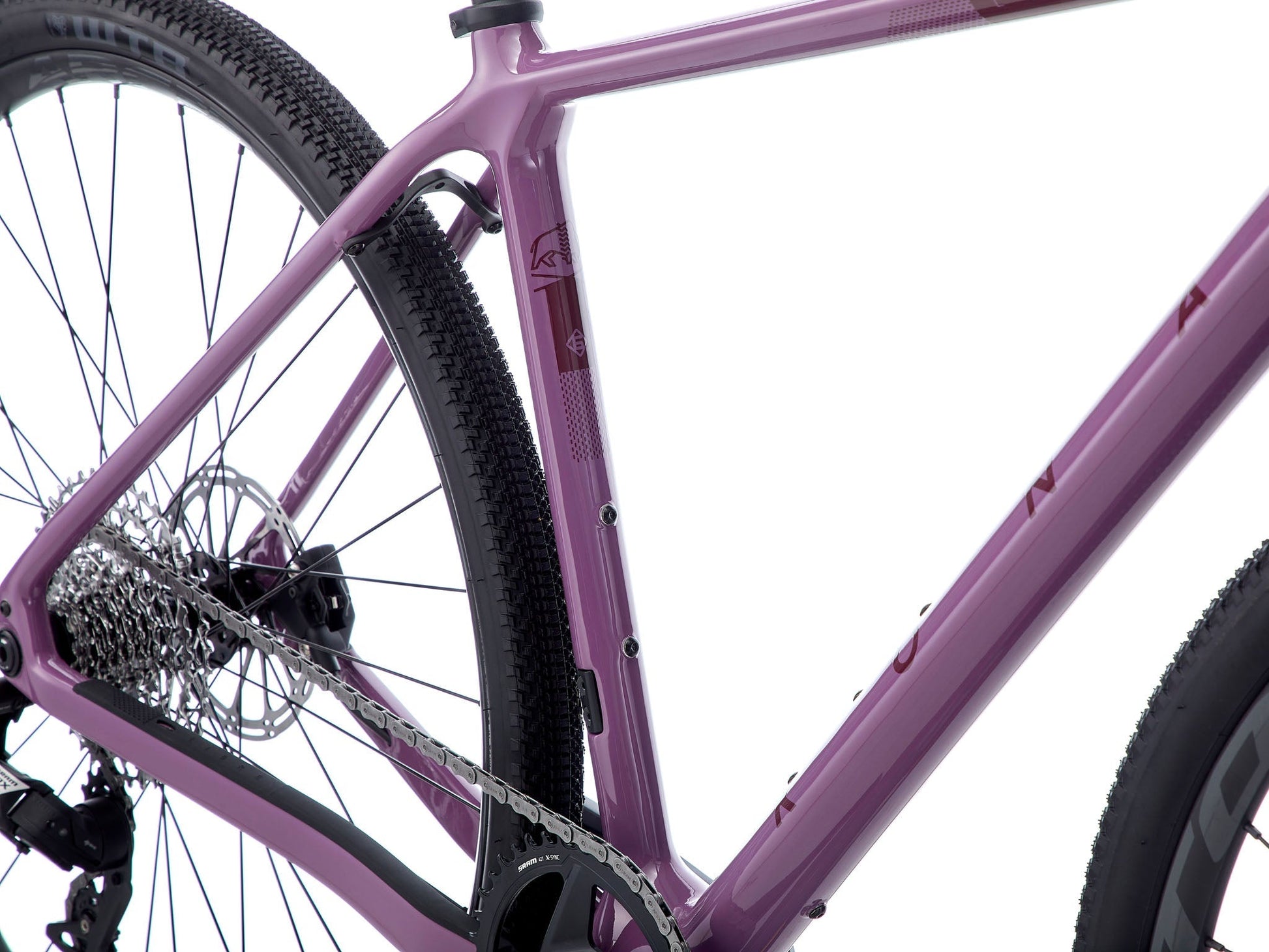

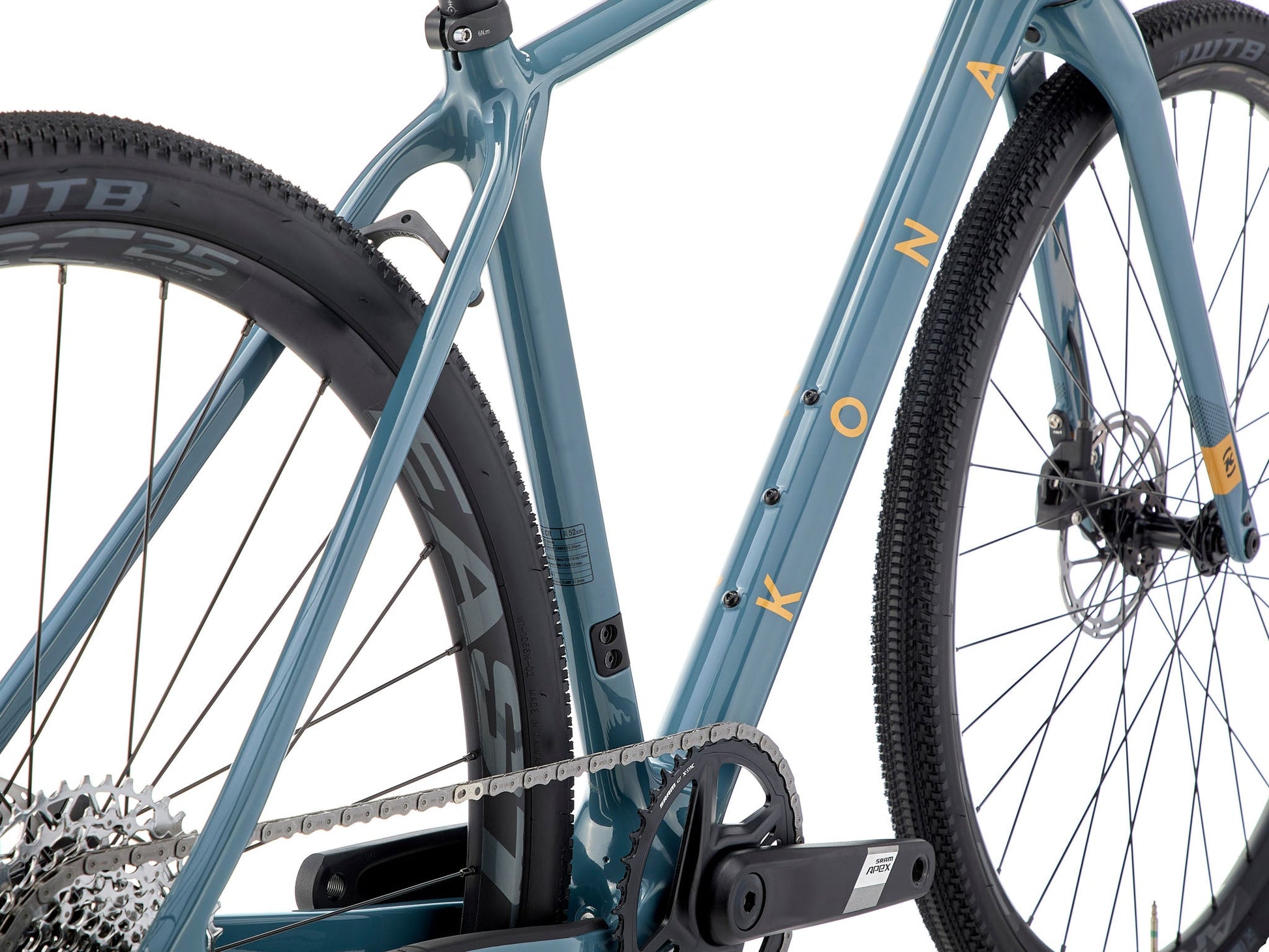

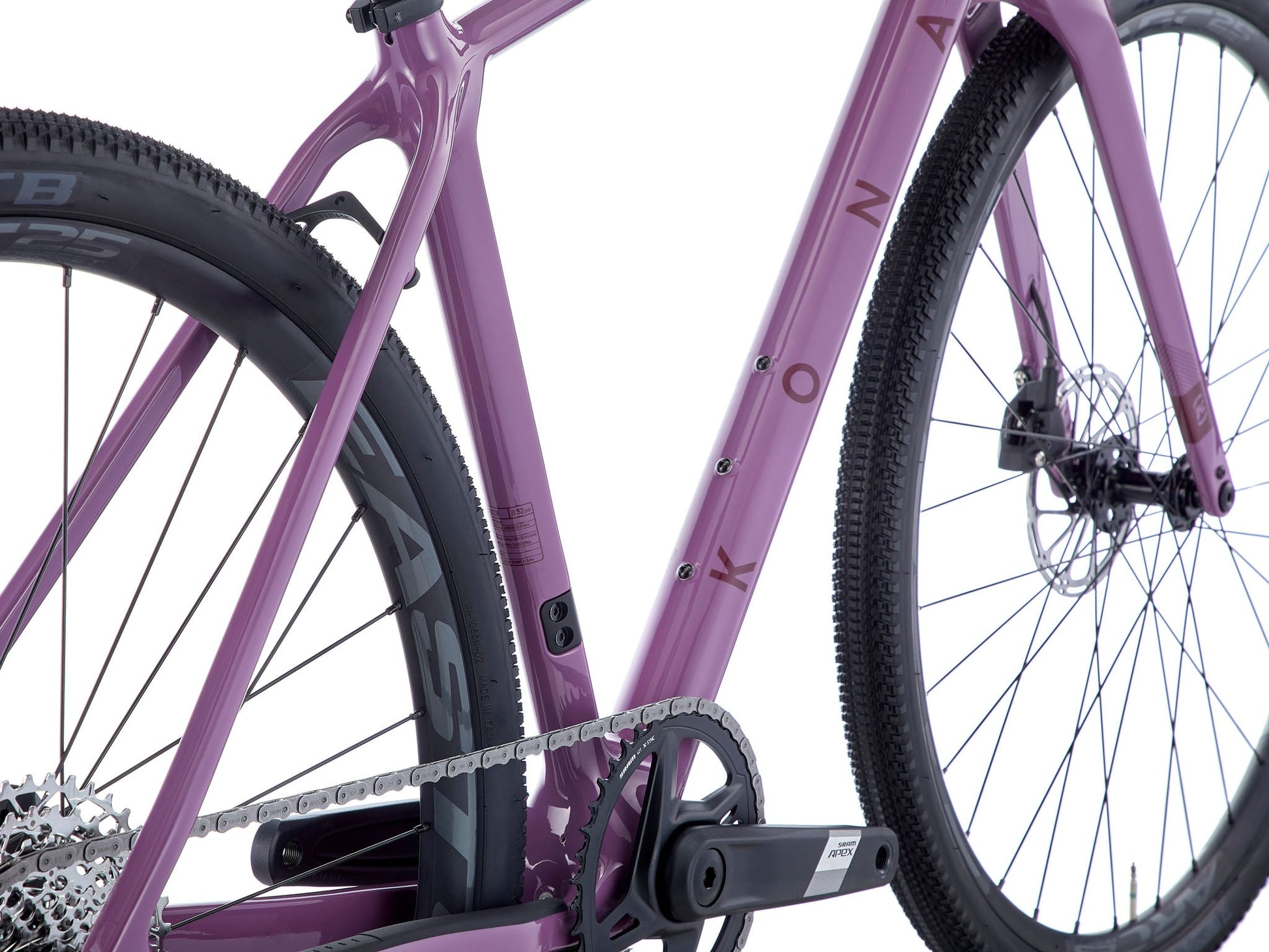

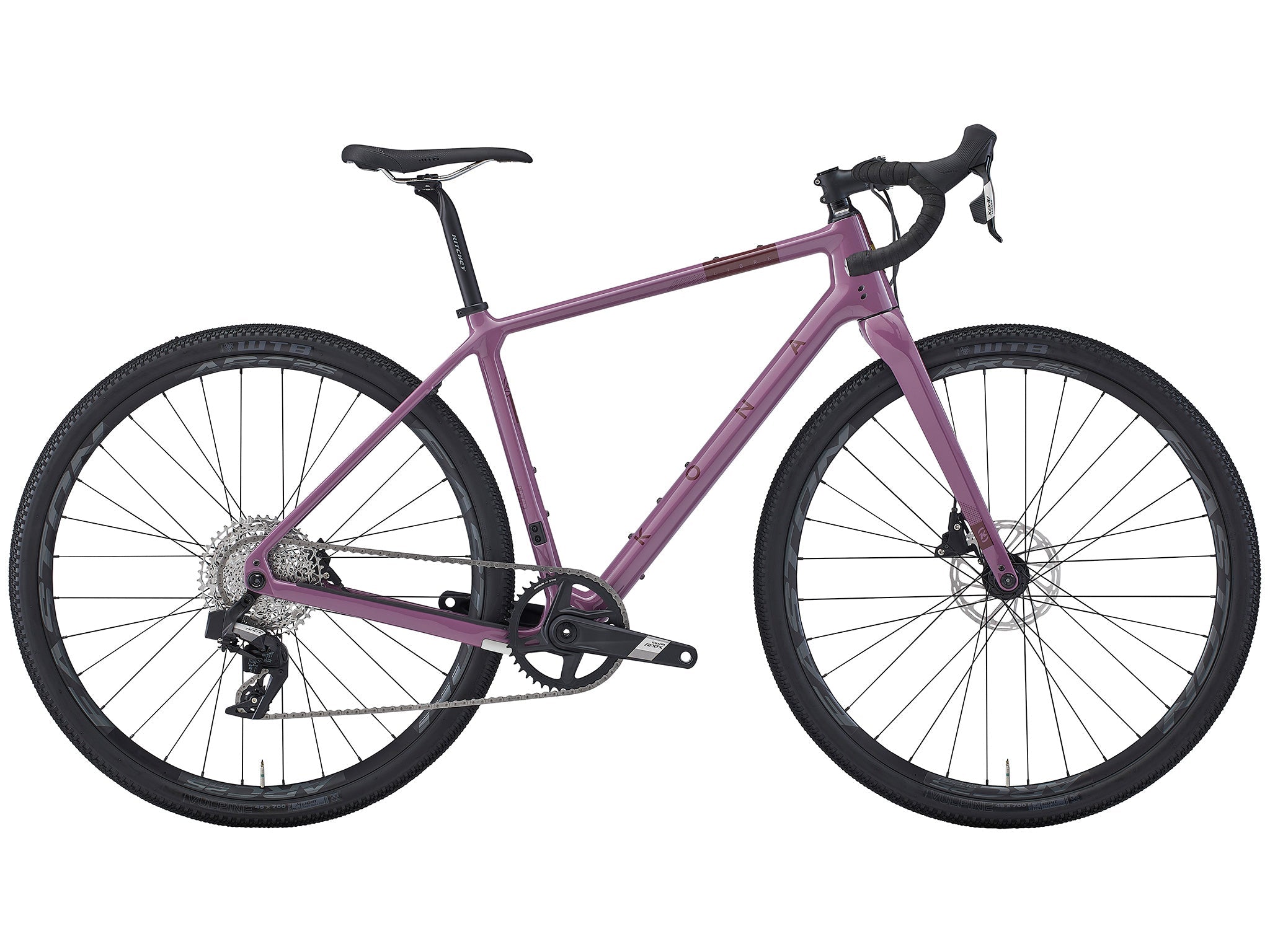

Libre CR
$3,699.00
In stock
SKU: B37LBC48
Gravel all day, pavement whenever you want.
Somewhere between the stable but often sluggish beast of burden world of touring and the highly strung, tightly focused realm of road performance, there exists a need for a drop bar bike that can grind out mile after mile of washboard gravel and still snap to attention when you stomp on the pedals. It needs to be fast, with geometry relaxed and composed enough to eat all that gravel without a twitch, but still sharp enough to carve turns on pavement with authority. Build it out of carbon fiber, so it’s super light, but plenty strong as well. Festoon it with bosses for lots of water bottles and bento mounts, but don’t go crazy. Lots of tire clearance, just in case. Sharp, but smooth. Fast, but comfortable.
SPECIFICATIONS
GEOMETRY
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 440 | 460 | 480 | 510 | 540 | 570 |
| 2 | TT Length | 527 | 542 | 556 | 573 | 590 | 610 |
| 3 | Reach | 380 | 385 | 390 | 395 | 400 | 405 |
| 4 | Stack | 550 | 565 | 580 | 600 | 620 | 650 |
| 5 | Standover | 733 | 752 | 770 | 799 | 825 | 855 |
| 6 | HT Angle | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT Length | 109 | 125 | 140 | 165 | 186 | 218 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 75 | 75 | 75 | 72 | 72 | 72 |
| 11 | BB Height | 285 | 285 | 285 | 288 | 288 | 288 |
| 12 | Wheelbase | 1030 | 1040 | 1050 | 1064 | 1076 | 1092 |
| 13 | Front Center | 606 | 616 | 626 | 639 | 651 | 667 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
