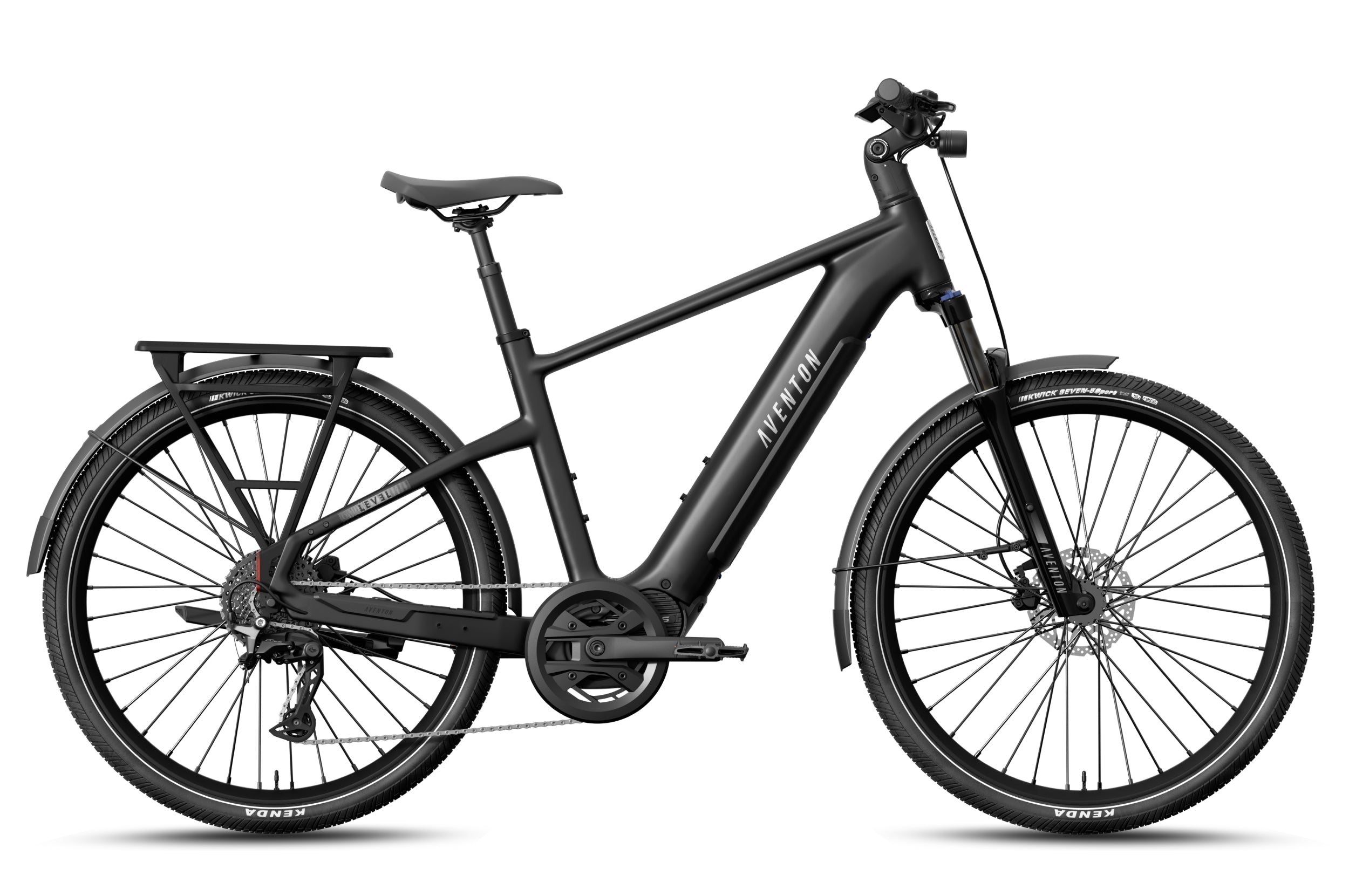

The Level 4 ADV redefines the modern commute by blending high-performance mid-drive power with sophisticated, intuitive control. At its heart is the Aventon Ultro S motor, delivering a commanding 100Nm of torque for effortless climbing and acceleration.
This power is seamlessly managed by a Shimano CUES 10-speed drivetrain, enhanced by Aventon’s proprietary E-Shifter and Autoshift technology. The result is a ride that feels entirely natural, providing efficient power delivery across any terrain without the need for constant manual adjustment.
Designed for the discerning rider, the ADV focuses on:
The Level 4 ADV isn't just a bike; it’s the ultimate expression of performance and elegance for the daily rider.
Aventon
The Aventon Level comes in two sizes to suit most adults.
| Frame Size | Medium | Large |
| Height | 5’3" - 5’10" | 5’10" - 6’4" |
| Top Tube Length | 579mm | 603mm |
| Reach | 364mm | 385mm |
| Head Tube Length | 150mm | 160mm |
| Standover Height | 662mm | 695mm |
| Wheelbase | 1097mm | 1122mm |
| Min Saddle Height | 835mm | 907mm |
| Max Saddle Height | 1015mm | 1080mm |
SKU: 1E027-0034202
The Level 4 ADV redefines the modern commute by blending high-performance mid-drive power with sophisticated, intuitive control. At its heart is the Aventon Ultro S motor, delivering a commanding 100Nm of torque for effortless climbing and acceleration.
This power is seamlessly managed by a Shimano CUES 10-speed drivetrain, enhanced by Aventon’s proprietary E-Shifter and Autoshift technology. The result is a ride that feels entirely natural, providing efficient power delivery across any terrain without the need for constant manual adjustment.
Designed for the discerning rider, the ADV focuses on:
The Level 4 ADV isn't just a bike; it’s the ultimate expression of performance and elegance for the daily rider.
| Frame Size | Medium | Large | Extra Large |
|---|---|---|---|
| A - Seat Tube Length | 425mm | 450mm | 520mm |
| B - Top Tube Length Horizontal | 614mm | 632mm | 649mm |
| C - Bottom Bracket Drop | 65mm | 65mm | 65mm |
| D - Head Tube Length | 120mm | 130mm | 140mm |
| E - Head Tube Angle | 69° | 69° | 69° |
| F - Seat Tube Angle | 74° | 74° | 74° |
| G - Rear Chainstay Length | 480mm | 480mm | 480mm |
| H - Front Wheel Center | 704mm | 722mm | 741mm |
| I - Wheelbase | 1176mm | 1195mm | 1214mm |
| J - Reach | 430mm | 445mm | 460mm |
| K - Stack Height | 642mm | 652mm | 661mm |
| L - Fork Length | 515mm | 515mm | 515mm |
| M - Fork Offset | 46mm | 46mm | 46mm |
| N - Trail | 84.3mm | 84.3mm | 84.3mm |
| Wheel Size in Inches | 27.5" | 27.5" | 27.5" |
| Stand Over Height | 699mm | 743mm | 766mm |
| Rider Height (Range) | 162cm - 179cm (5'3" - 5'10") | 180cm - 189cm (5'10" - 6'4") | 190cm - 195cm (6'4" - 6'7") |
