Surly

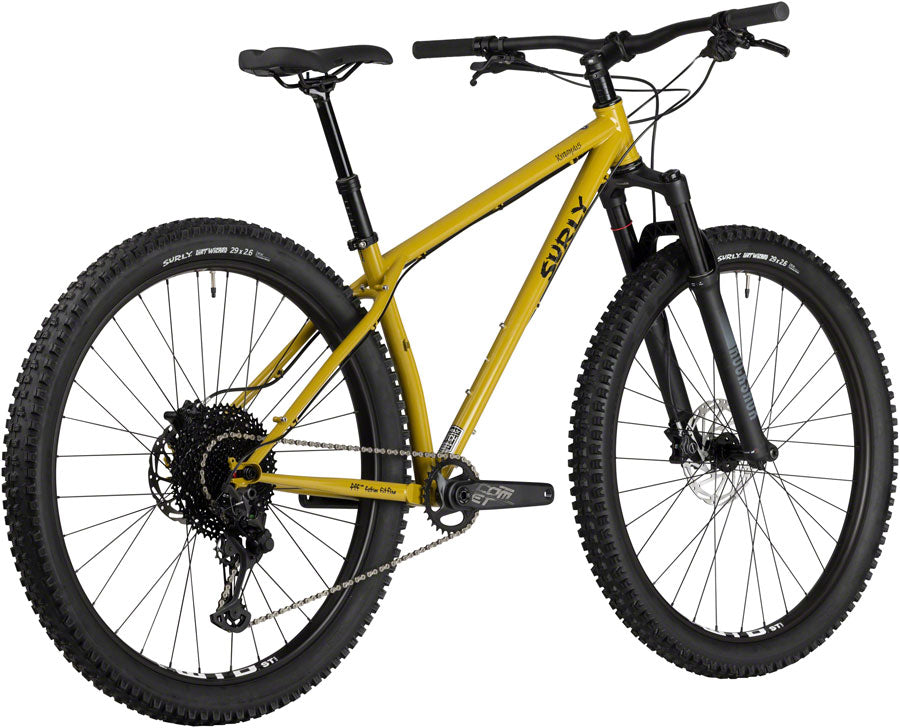

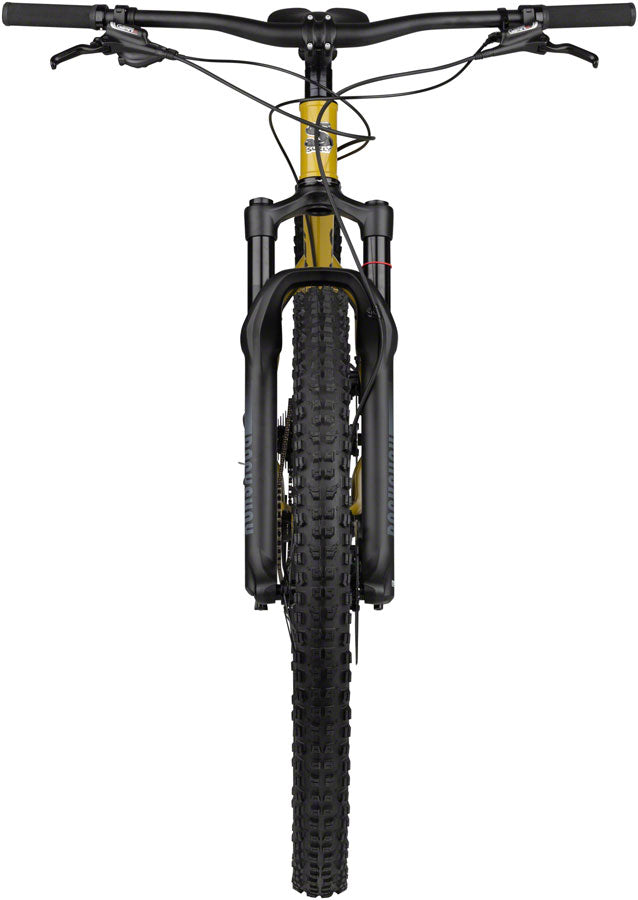

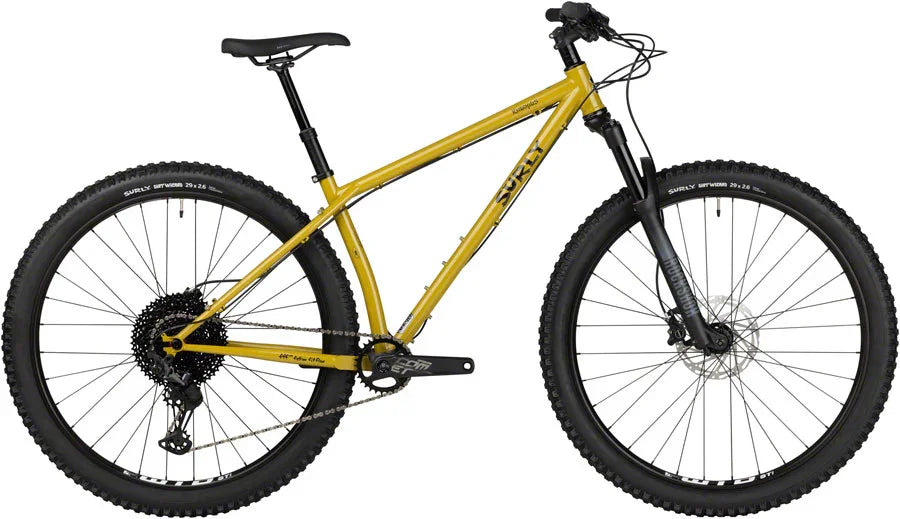

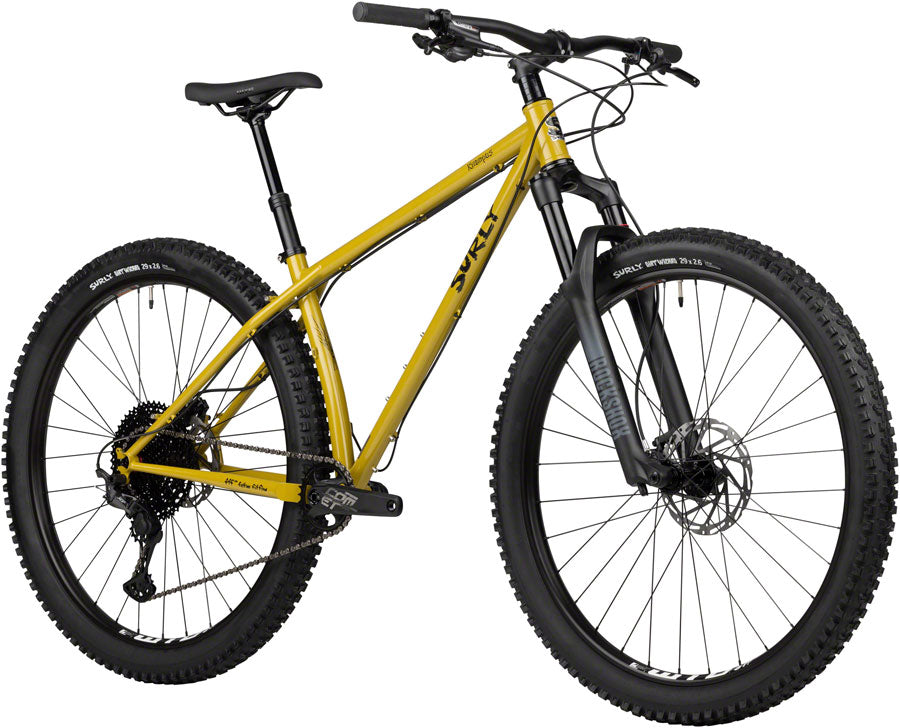

Krampus Front Suspension Bike - 29" Steel
SKU: 04-001919
Breaking the Mold with a 29er Bike
As the first “plus” bike to hit the market, Krampus changed the way many people approach trail riding. It’s shown people the light of how high volume, large diameter tires can vastly improve the ride experience. It’s also done a bang-up job dispelling the myth that big tires make you slow.
Krampus is kind of like the opposite of a mullet: long in the front and short in the rear. With a long toptube and compact chainstays, it takes trail-shredding abilities to the next level. A mullet may be business in the front, party in the back but Krampus makes partying its business.
"Lean back, hang on, and ride that wild horse." -Thor
- Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
- Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
- Clearance for 29" x 3" tires
SPECIFICATIONS
GEOMETRY
| Frame measurements (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| A. BB Drop | 60 | 60 | 60 | 60 |
| B. Chainstay Length | 435 | 435 | 435 | 435 |
| C. Fork Length - Axle to Crown | 498 | 498 | 498 | 498 |
| D. Fork Offset | 51 | 51 | 51 | 51 |
| E. Head Tube Angle (deg) | 68.4 | 68.4 | 68.4 | 68.4 |
| F. Headtube Length | 90 | 100 | 110 | 120 |
| G. Reach | 397 | 419 | 442 | 464 |
| H. Seat Tube Angle (deg) | 72.4 | 72.4 | 72.4 | 72.4 |
| I. Seat Tube Length - Center to Top | 368 | 419 | 470 | 521 |
| J. Stack | 597 | 607 | 616 | 626 |
| K. Standover | 776 | 803 | 832 | 861 |
| L. Top Tube Length (Effective) | 587 | 612 | 637 | 662 |
| M. Wheelbase | 1096 | 1121 | 1147 | 1173 |
| Component measurements (mm) | ||||
| Crank Arm Length | 170 | 175 | 175 | 175 |
| Handlebar Width | 750 | 800 | 800 | 800 |
| Handlebar Rise / Drop | - | - | - | - |
| Stem Length | 70 | 70 | 70 | 80 |
| Stem Angle (deg) | 7 | 7 | 7 | 7 |
