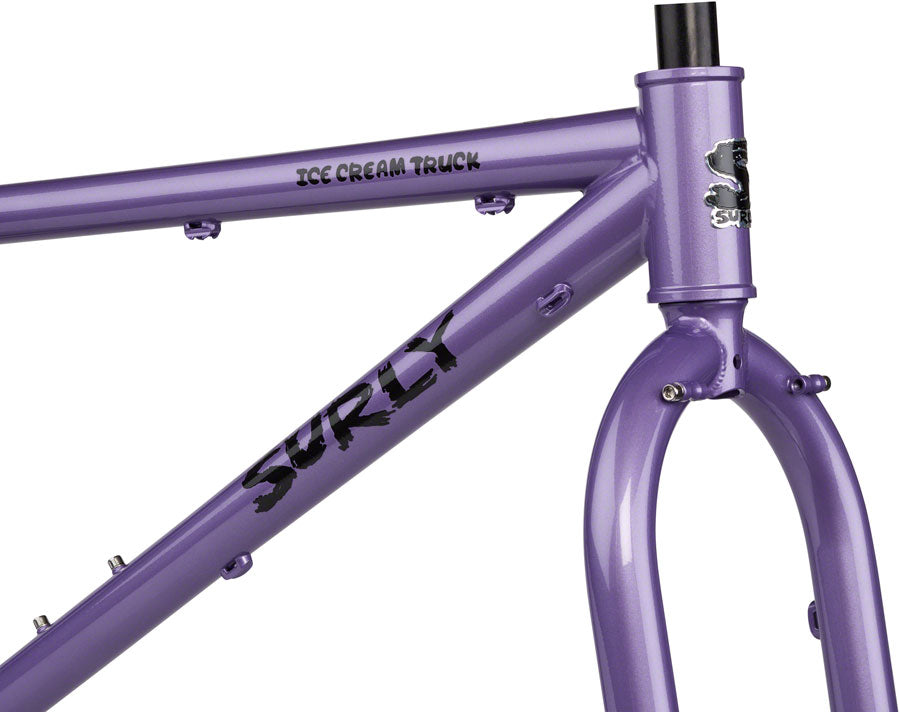

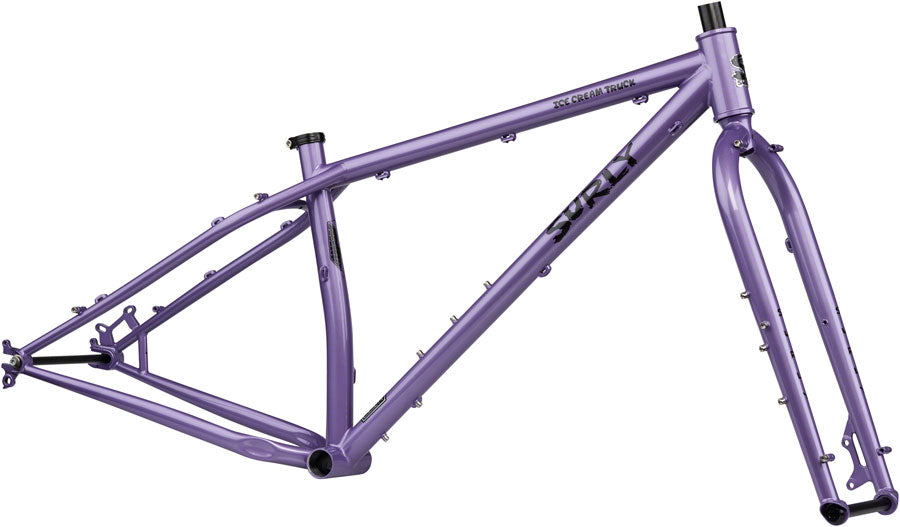

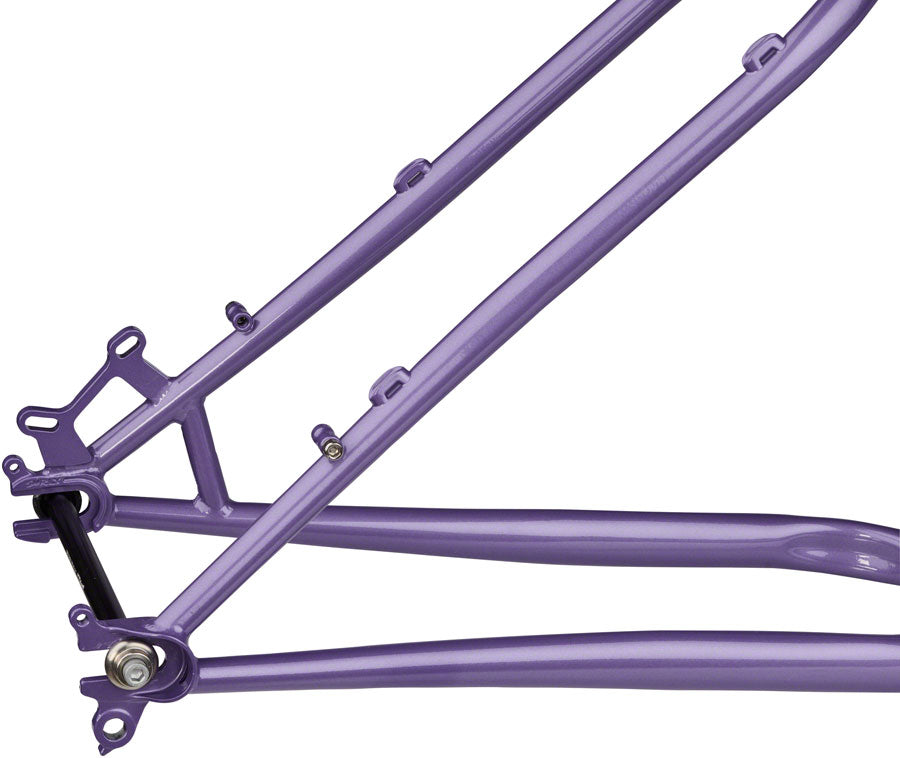

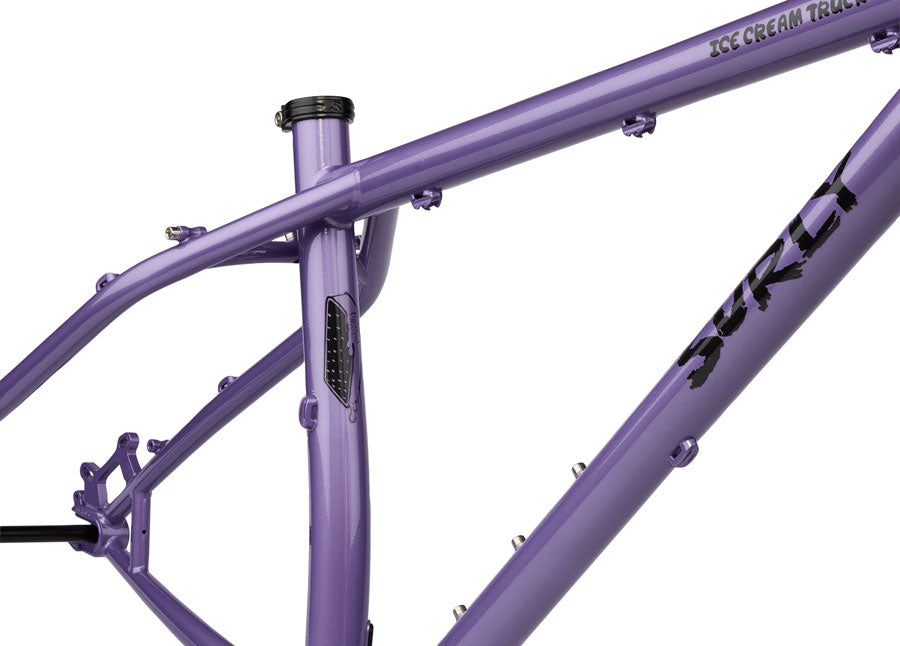

Surly Ice Cream Truck Frameset - 26" Steel

Surly Ice Cream Truck Frameset - 26" Steel

Regular price $899.00
Regular price $899.00 Sale price $899.00
Sale Sold out
Size

Have questions about buying a bike?
Chat with a specialist ↗
Our Platinum Pro Assembly fee of only $79 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Surly bike comes 90% built, reassembly is quick and easy with our video guides.

Out of stock

SKU:04-002361

View full details

The Largest Tire Clearance on a Fat Bike Frame

From log and root covered ribbons of twisty singletrack to miles of powdery snow or sandy beaches, Ice Cream Truck can handle it all. Hell, you could probably even hop over a grizzly if the situation arises. Probably.

While we could certainly throw out terms like “confidence-inspiring” and “traction-laden” to describe Ice Cream Truck, those phrases are mostly bullshit, so we’re not going to do that. We’re not here to inspire you, and we didn’t laden it with anything. What we did do was design a monolith of a trail bike that doesn’t give two shits about what’s in front of it.

  • Long toptube, short seatstays, and a 68-degree headtube angle makes it tight and maneuverable on fast, technical terrain
  • Modern trail bike standards like stealth dropper post routing, 44mm headtube, and thru-axles
  • Clearance for a full 26” x 5” tire on 100mm rims

Frame: Surly Ice Cream Truck 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color: Taro Milk Tea

Fork: Surly Ice Cream Truck 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Seatpost Clamp: Stainless 33.1 collar, Black

Front Axle: 15 x 150mm (Surly axle included)

Rear Axle: 12 x 197mm (Surly axle included)

No technical specifications available.
Size Small Medium Large X-Large
A. Effective Top Tube 585.0 610.0 635.0 660.0
B. Stand Over 777.0 803.0 831.0 860.0
C. Reach 405.0 427.0 449.0 472.0
D. Stack 588.0 598.0 607.0 616.0
E. Total Seat Tube Length 366.0 419.0 470.0 521.0
F. Headtube Length 95.0 105.0 115.0 125.0
G. Headtube Angle
68.0
68.0
68.0
68.0
H. Seat Tube Angle
73.0
73.0
73.0
73.0
I. BB Drop 60.0 60.0 60.0 60.0
K. Chainstay Length 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0
M. Fork Offset 47.0 47.0 47.0 47.0
N. Wheelbase 1105.0 1131.0 1157.0 1182.0
Crank Arm Length
Handlebar Width
Recommended Rider Height 162.0 - 173.0 170.0 - 183.0 180.0 - 190.0 188.0 - 198.0
Stem Length
