Light takes Flight

A silhouette drawn from heritage, reimagined for tomorrow in featherweight carbon. FlyingV is a ride ahead of its time.

Model Description

Elevate your urban riding with the ultimate lightweight e-bike, the FlyingV. Full carbon fiber frame, fork, and fenders keep the weight low, while Bosch’s Performance Line Sprint motor and 400Wh battery deliver effortlessly smooth power, all the way up to 28mph. A clean and quiet Gates belt-drive mates with Shimano’s Nexus 5 speed internal gear hub for flawless shifting, even while stopped. And a special SPC+ mount on the stem and our AppTag turns your smartphone into a connected dashboard for navigation and all your ride stats. Easy to ride, easy to carry. This isn’t just urban mobility, this is freedom on two wheels.

What it's for

Light and fast commuting, zipping through the city, and sporty fun rides

Highlights

  • Super-light carbon fiber frame and fork. Born from racing. Engineered for the city. Warrantied for life.
  • First-of-their-kind forged carbon fiber fenders - light, rigid, quiet, and as beautiful as they are unique.
  • Silky smooth power from Bosch’s Performance Sprint motor. Up to 60Nm of torque, 600 watts of output, and assist all the way to 28mph, in a lightweight, easy-pedaling package.
  • Integrated Bosch CompactTube 400Wh battery - the ideal balance of effective range and minimal weight.
  • Proven Shimano Nexus Inter-5E 5-speed internal gear hub – smooth, reliable shifting while pedaling, coasting, or stopped.
  • Clean, quiet, and virtually maintenance-free, the Gates CDX Carbon Belt Drive is tops for urban cycling.

Cannondale

FlyingV

$6,749.00

Size Guide

Jump to: MOUNTAIN | GRAVEL | ROAD | ELECTRIC | FITNESS

Mountain Bikes

Trail

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'3" - 5'8"
160 - 172
  5'7" - 6'0"
170 - 182 		  5'11" - 6'3"
180 - 190
XS S M L XL

Trail Women's

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182
XS S M L

Trail SE

5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182 		  6'0" - 6'3"
182 - 190
S M L XL

Habit, Habit HT

5'0" - 5'2"
142 - 157
 5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
XS S M L XL

Scalpel, Scalpel SE, Scalpel HT

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Jekyll

5'2" - 5'5"
157 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Moterra, Moterra LT, Moterra SL

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'1"
172 - 185 		  6'0" - 6'5"
182 - 195
S M L XL

Gravel

Topstone, Topstone Carbon

4'10" - 5'5"
147 - 165		 5'3" - 5'9"
160 - 175		 5'7" - 6'1"
170 - 185		  5'10" - 6'4"
177 - 193		  6'0" - 6'8"
182 - 203
XS

 S M L XL

SuperSix EVO SE, SuperSix EVO CX

5'0" - 5'4"
152 - 162
 5'5" - 5'9"
165 - 175
 5'7" - 5'11"
170 - 180
  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
46cm

 51cm 54cm 56cm 58cm

Road

Synapse

5'0 - 5'4"
152 - 162
 5'2" - 5'6"
157 - 167 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
175 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'8"
190 - 203
44cm 48cm
 		 51cm 54cm 56cm 58cm 61cm

SuperSix Evo

5'1 - 5'5"
154 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'7"
190 - 200
44cm
48cm
 		 51cm 54cm 56cm 58cm 61cm

SystemSix

5'3 - 5'7"
160 - 170
 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		 5'10" - 6'2"
177 - 187 		  6'10" - 6'4"
182 - 193		  6'2" - 6'6"
187 - 198 		 6'5" - 6'9"
195 - 205
47cm 51cm
 		 54cm 56cm 58cm 60cm 62cm

CAAD Optimo

5'2" - 5'5"
157 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
44cm 48cm
 		 51cm 54cm 56cm 58cm

CAAD13

5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'4" - 5'9"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'2" - 6'6"
187 - 198
48cm
 		 51cm 54cm 56cm 58cm
60cm

Fitness, Urban & Comfort

Adventure, Adventure EQ

4'11" - 5'6"
149 - 167		 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187
S M L

Quick, Quick Women's, Quick Remixte

4'10 - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170 		 5'5" - 5'10"
165 - 177 		 5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
XS S
 		 M L XL XXL

Quick CX

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
 5'9" - 6'2"
175 - 187
  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
S

 M L XL XXL

Quick CX Women's

4'10" - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170
  5'5" - 5'10"
165 - 177
XS S M

Bad Boy

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195
S M L XL

Treadwell, Treadwell EQ

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L

Treadwell Remixte, Treadwell EQ Remixte

4'11" - 5'6"
149 - 167
  5'4" - 6'0"
162 - 182
S L

Electric

Adventure Neo, Adventure Neo EQ

4'11" - 5'7"
149 - 170
  5'7" - 6'6"
170 - 198
S L

Adventure Neo Allroad, Adventure Neo Allroad Low StepThru

5'0" - 5'7"
152 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'5"
175 - 195
S M L

Compact Neo

4'5" - 6'1"
134 - 185
OS

Tesoro Neo SL, Tesoro Neo SL Remixte

5'4" - 5'8"
162 - 172
 5'7" - 6'0"
170 - 182
  6'0" - 6'3"
182 - 190
S M L

Treadwell Neo, Treadwell Neo Remixte

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: C6401GU10MD

Light takes Flight

A silhouette drawn from heritage, reimagined for tomorrow in featherweight carbon. FlyingV is a ride ahead of its time.

Model Description

Elevate your urban riding with the ultimate lightweight e-bike, the FlyingV. Full carbon fiber frame, fork, and fenders keep the weight low, while Bosch’s Performance Line Sprint motor and 400Wh battery deliver effortlessly smooth power, all the way up to 28mph. A clean and quiet Gates belt-drive mates with Shimano’s Nexus 5 speed internal gear hub for flawless shifting, even while stopped. And a special SPC+ mount on the stem and our AppTag turns your smartphone into a connected dashboard for navigation and all your ride stats. Easy to ride, easy to carry. This isn’t just urban mobility, this is freedom on two wheels.

What it's for

Light and fast commuting, zipping through the city, and sporty fun rides

Highlights

  • Super-light carbon fiber frame and fork. Born from racing. Engineered for the city. Warrantied for life.
  • First-of-their-kind forged carbon fiber fenders - light, rigid, quiet, and as beautiful as they are unique.
  • Silky smooth power from Bosch’s Performance Sprint motor. Up to 60Nm of torque, 600 watts of output, and assist all the way to 28mph, in a lightweight, easy-pedaling package.
  • Integrated Bosch CompactTube 400Wh battery - the ideal balance of effective range and minimal weight.
  • Proven Shimano Nexus Inter-5E 5-speed internal gear hub – smooth, reliable shifting while pedaling, coasting, or stopped.
  • Clean, quiet, and virtually maintenance-free, the Gates CDX Carbon Belt Drive is tops for urban cycling.
SPECIFICATIONS

Frameset

  • Frame: FlyingV, lightweight carbon construction, internal downtube battery, integrated cable routing, 135mm dropout spacing, 1.5" headtube, flat mount disc, removable kickstand mount (40mm Pletscher-style), hidden holder for bluetooth tracking device (Chipolo, Airtag, etc)
  • Fork: Flying V, lightweight carbon construction, 1.25 - 1.5" tapered steerer, flat mount disc, internal routing, 12x100 thru-axle
  • Headset: Integrated Sealed Bearing, Tapered, internal cable routing

E-System

  • Drive Unit: Bosch Performance Line Sprint, Smart System, 60Nm, 600W max/250W nominal, 28mph
  • Battery: Bosch CompactTube, 400Wh
  • Charger: Bosch 2A
  • Display: Bosch LED Remote
  • Certifications: UL 2849

Drivetrain

  • Rear Derailleur: Shimano Nexus Inter-5E, 5-speed internal gear hub
  • Shifters: microSHIFT trigger-shift, 5-speed
  • Chain: Gates CDX, CenterTrack high-performance carbon belt, 132T
  • Crank: Samox Bosch E-bike, left 0 offset, right 13mm offset, w/ 52T Gates sprocket
  • Rear Cogs: Gates CDC, 36T

Brakes

  • Brakes: Shimano UR300 hydraulic disc, 180/180mm RT64 rotors
  • Brake Levers: Shimano MT201 hydraulic disc

Wheels

  • Rims: Ryde, alloy, double wall, 32 hole, 25mm inner width, disc-specific
  • Spokes: DT Swiss Champion
  • Tire Size: 50
  • Wheel Size: 700c
  • Hubs: (F) Shimano TC500, 12x100mm thru-axle / (R) Nexus 5-speed internal gear hub
  • Tires: Continental Contact Urban, 700x50c (50-622)

Components

  • Handlebar: Cannondale Urban Backsweep, 93mm rise, 24 degree sweep, 31.8 clamp, 700mm
  • Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°, with SP-Connect SPC+ mount top cap
  • Grips: Ergon GA3
  • Saddle: Selle Royal Essenza, Moderate Wide
  • Seatpost: Cannondale 3, 6061 Alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (L & XL)

Connectivity

  • Features: Cannondale AppTag, SP-Connect SPC+ top cap mount for Cannondale Conceal stem

Extras

  • Included: Custom full-coverage carbon fenders, Supernova Mini2 LDM front light and SuperNova TL3-Z rear light with integrated reflector, rear pannier rack (40lb), kickstand

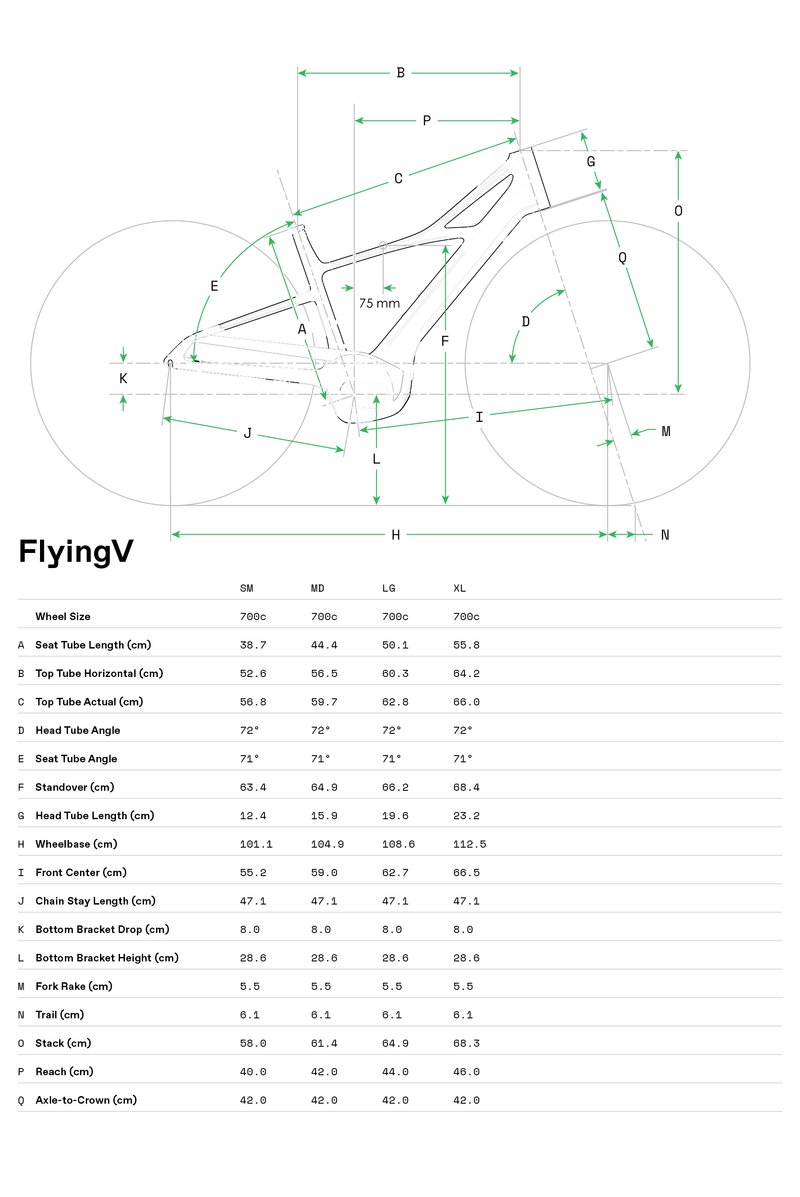

GEOMETRY
