Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

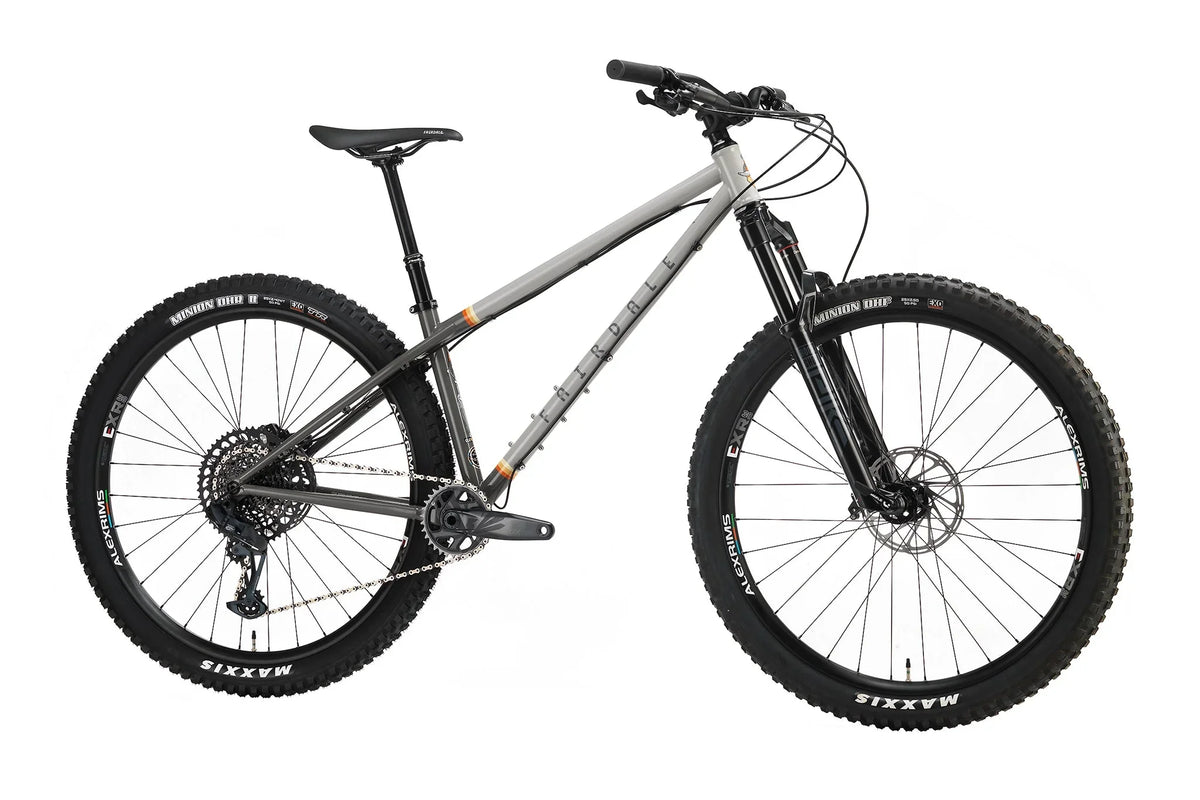

Introducing the Fairdale Elevator.

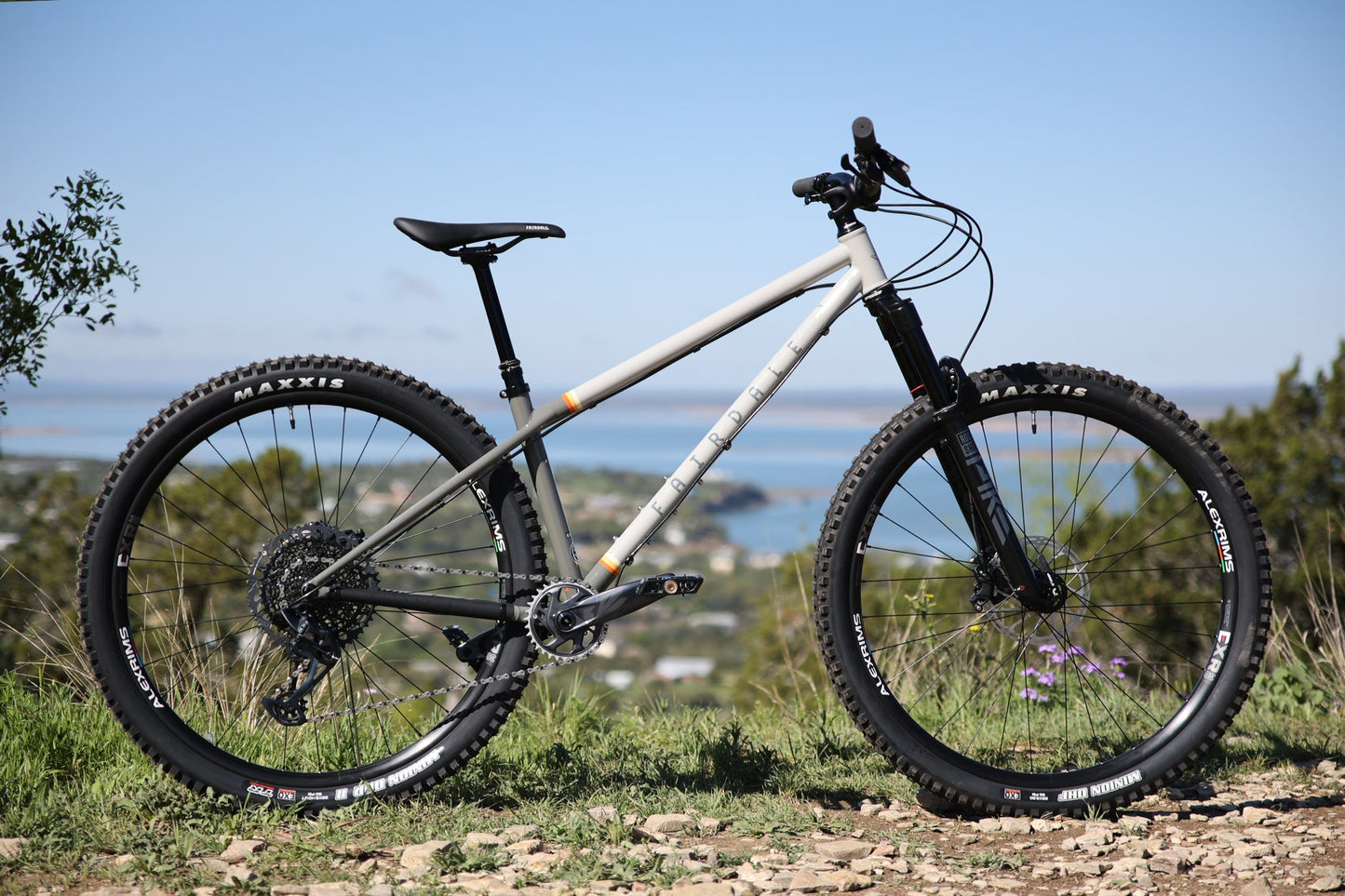

Fairdale is happy to introduce the Elevator; their 29" hardtail mountain bike that comes fully equipped with a SRAM GX Eagle groupset, a RockShox Pike fork, Alex wheels, Maxxis tires and more.
The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.
As always, making the ride fun is our main priority. This is a bike that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.
Bike Features

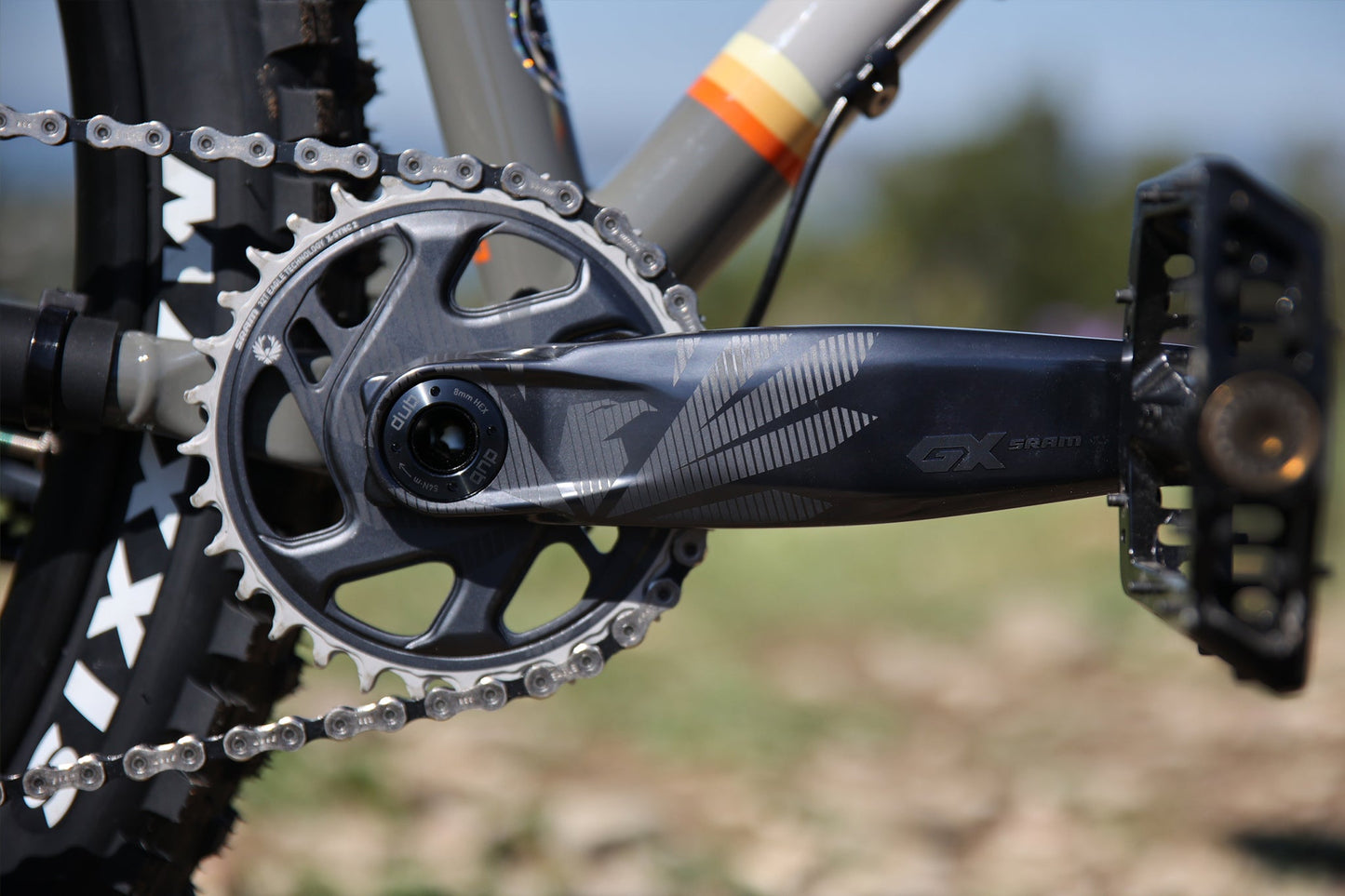

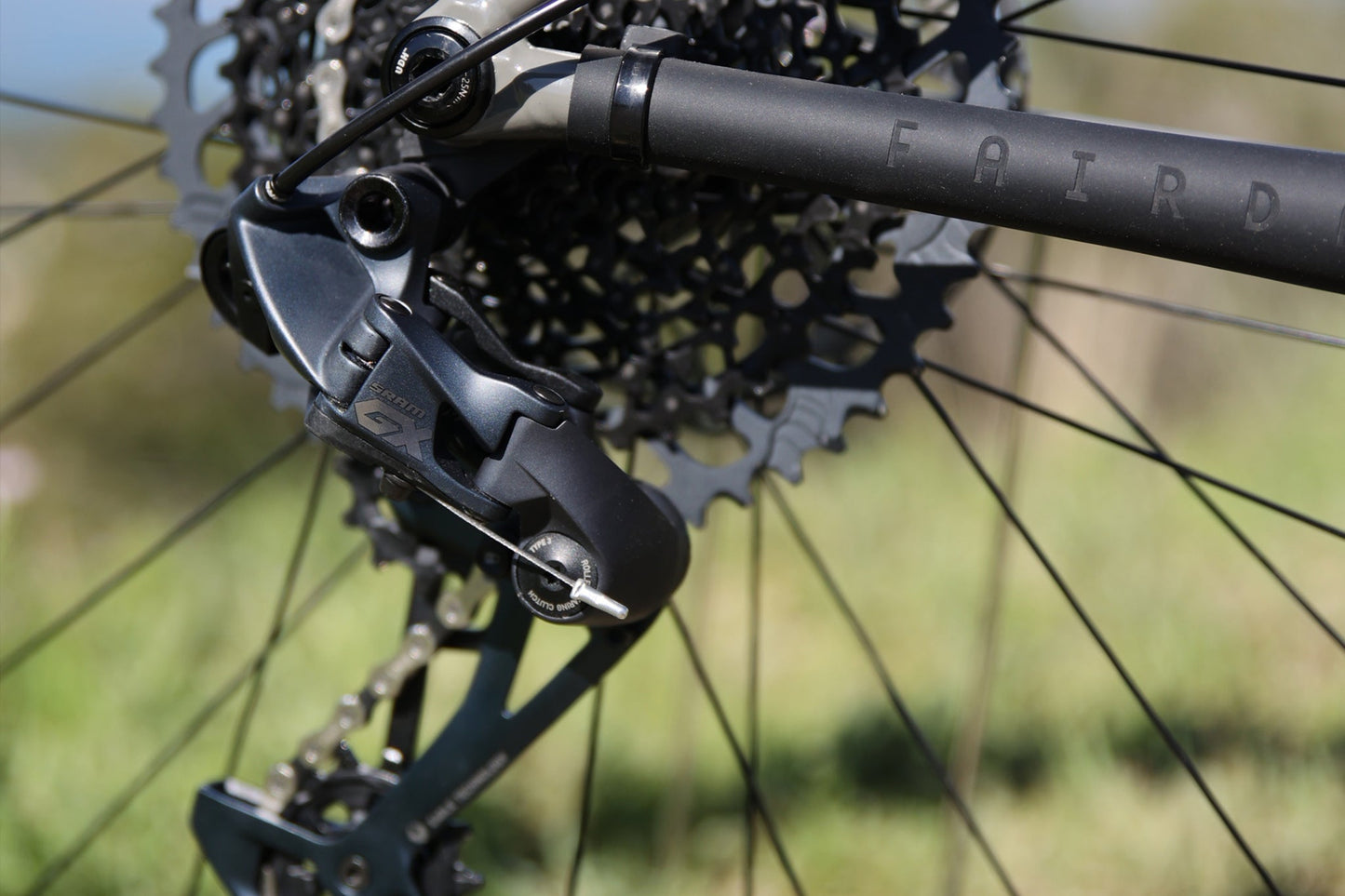

- SRAM GX Eagle groupset

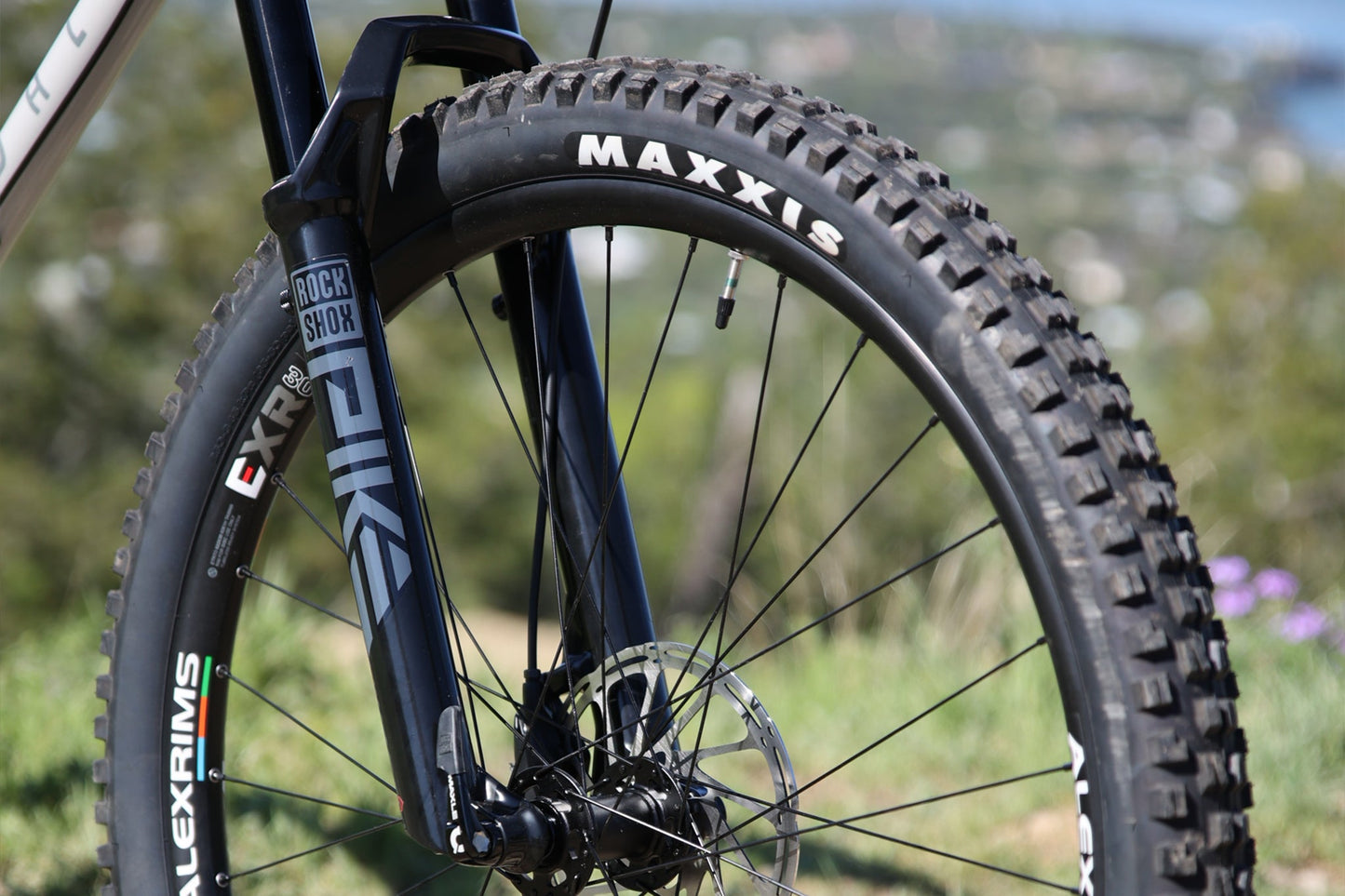

- RockShox Pike fork
- Maxxis Minion tires
- Alex wheelset
Frame Features
- 100% 4130 chromoly 29” rigid frame
- Butted top tube, down tube, and seat tube
- Highly maneuverable BMX-inspired geometry
- Investment cast yoke allows for extra short chain stays and 2.5” tire clearance

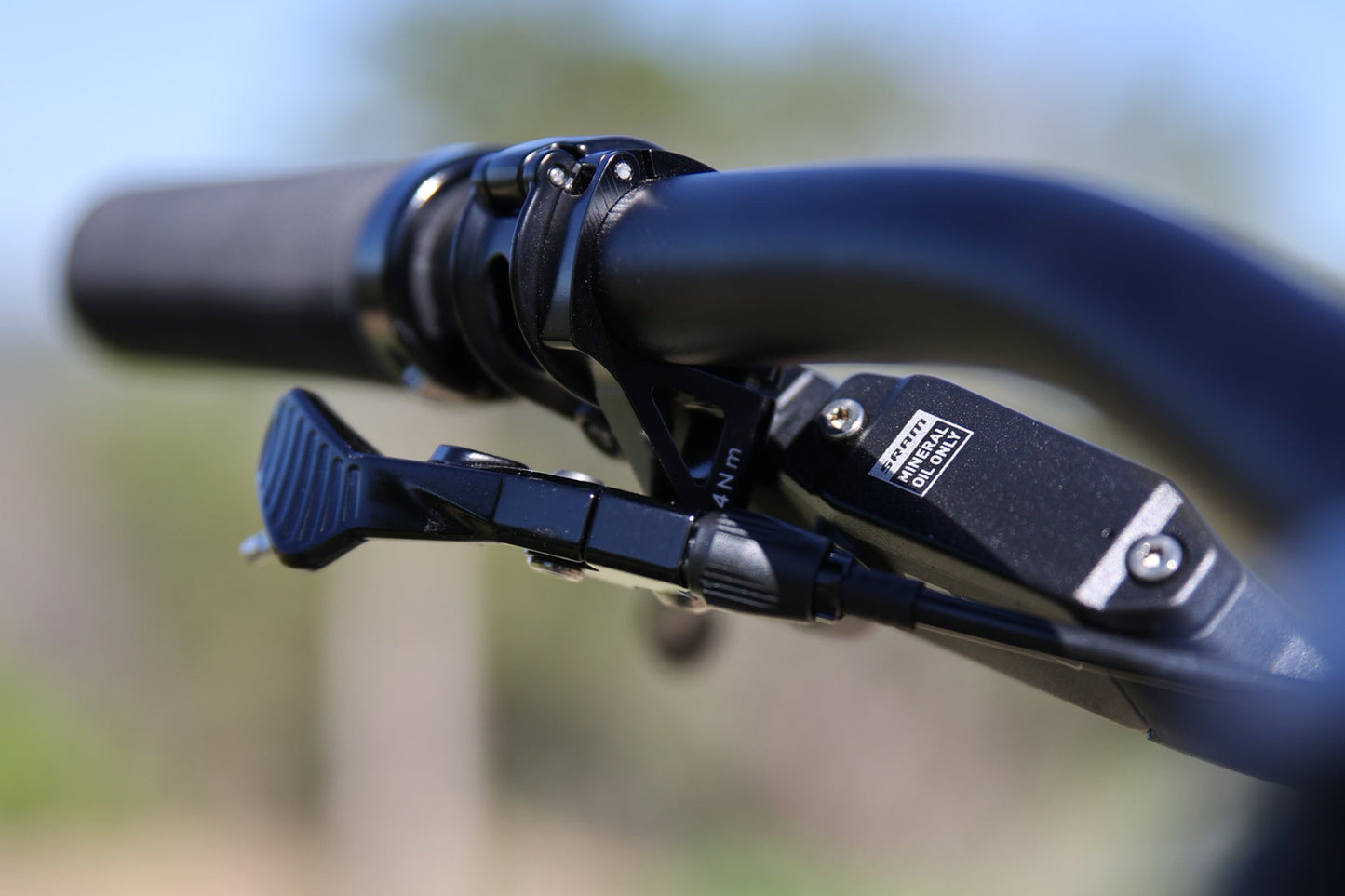

- External brake, derailleur, and dropper post routing with removable hardware
- Extensive hardware for bottles, accessories and ISCG mounting
Sizing
-
Medium Reach: 5'7" - 5'11" height
- Large Reach: 5'10" - 6'2" height
| Size | Medium | Large |
| Fork Travel | 130mm | 130mm |
| Fork Axle-to-Crown | 541mm | 541mm |
| Fork Offset | 44mm | 44mm |
| Wheelbase | 1177mm | 1200mm |
| Front-Center Length | 776mm | 799mm |
| Top Tube (Effective) | 620mm | 639mm |
| Seat Tube (BB Center to TT Center) |
380mm | 400mm |
| Seat Tube Angle | 76° | 76° |
| Head Tube Length | 102mm | 112mm |
| Head Tube Length w/Lower Headset Cup |
115mm | 125mm |
| Head Tube Angle | 65.5° | 65.5° |
| Chain Stay Length | 406mm | 406mm |
| Standover | 729mm | 745mm |
| Stack | 627mm | 636mm |
| Reach | 463mm | 482mm |
| BB Drop | 50mm | 50mm |
| Rear Dropout Spacing (Boost Thru-Axle) |
12x148mm | 12x148mm |
| Derailleur Hanger | SRAM UDH | SRAM UDH |
| BB Type | 73mm threaded | 73mm threaded |
| Seat Post (Dropper Ready) |
31.6mm | 31.6mm |
| Max Post Insertion (With OneUp Dropper) |
280mm | 300mm |
| Seat Clamp | 35mm | 35mm |
| Rear Tire Max Clearance | 29x2.50" | 29x2.50" |
| Sprocket Max Clearance | 32-T round | 32-T round |

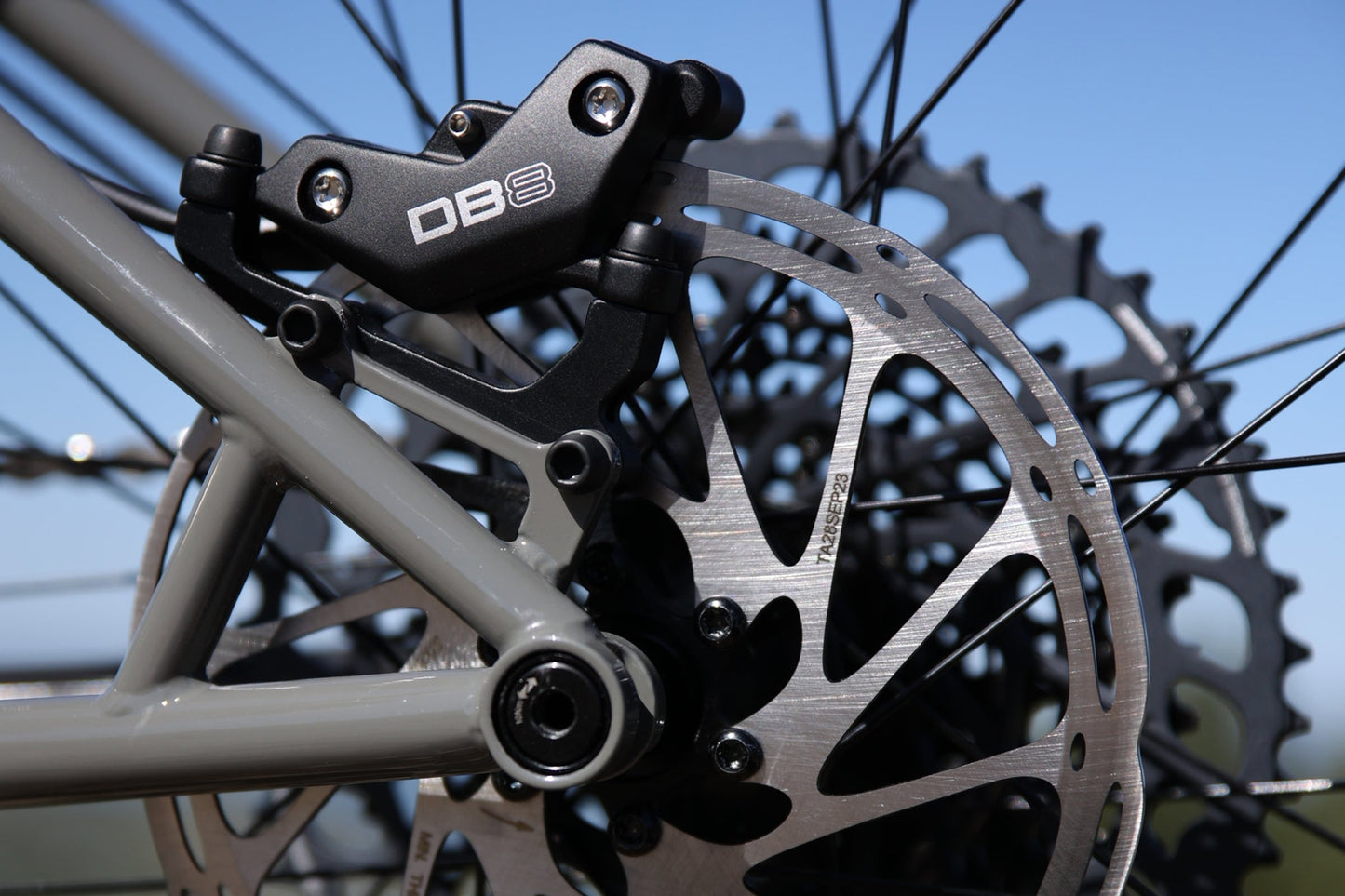

| Brake Rotor Clearance (IS Mount) |
203mm | 203mm |
| Wheel Size | 29" | 29" |
