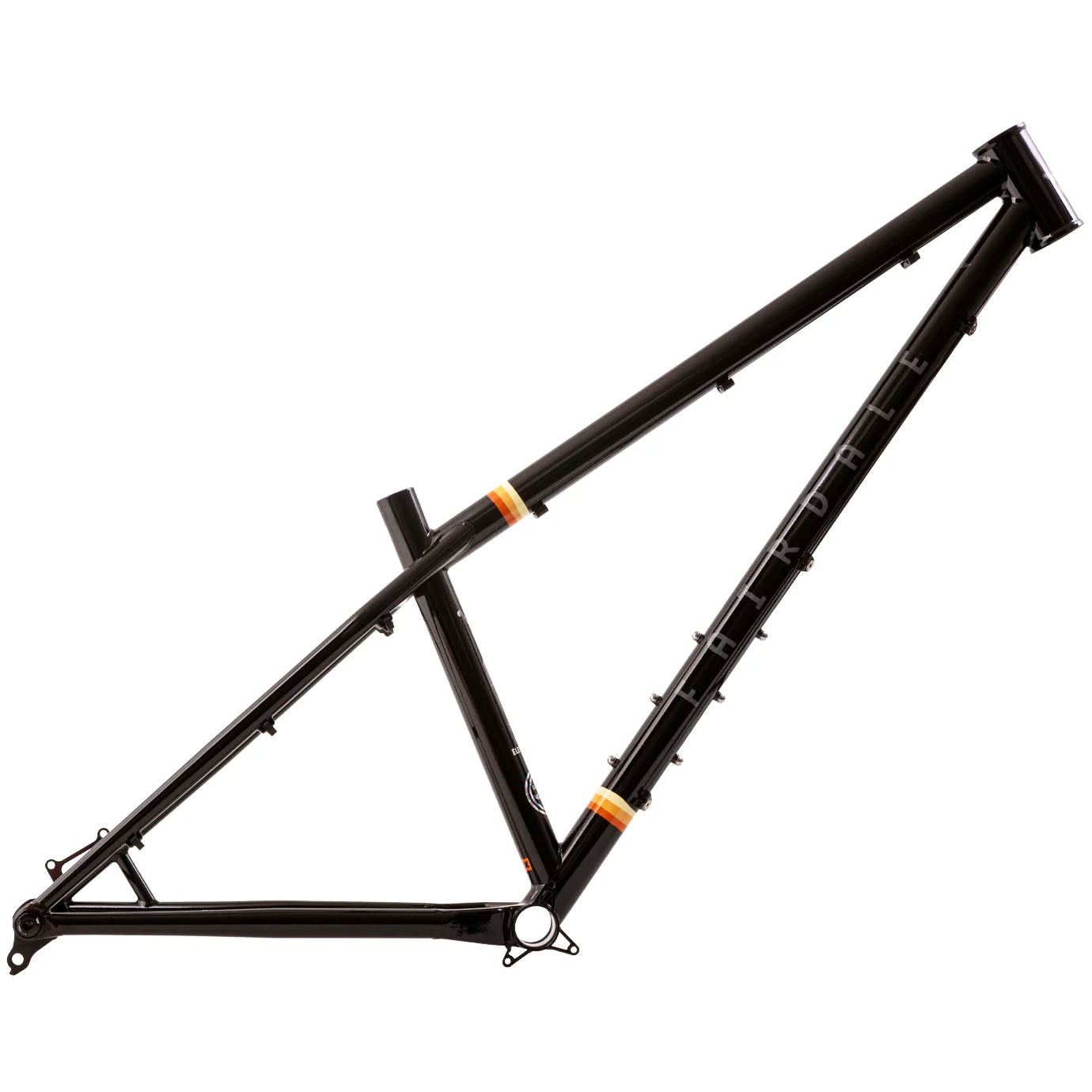

Fairdale Fairdale Elevator 29" - Gloss Black

The Fairdale Elevator is a 29" rigid frame designed for riders who demand a blend of BMX-inspired playfulness and mountain bike stability. This frame focuses on nimble maneuverability and predictable performance during both technical climbs and spirited descents. Built from 100 percent 4130 chromoly, it provides the legendary ride feel and durability that steel is known for, balanced by a butted top tube, down tube, and seat tube to optimize weight without sacrificing strength. The geometry is engineered for an active riding style. An ultra-short 406 mm chainstay length, made possible by an investment cast yoke, supports effortless manuals and quick line adjustments while providing clearance for tires up to 2.5 inches. For modern trail versatility, the straight seat tube allows for full dropper post insertion to maximize your available drop. Assembly and maintenance are simplified through external routing for the brakes, derailleur, and dropper post, featuring removable hardware for a clean aesthetic. Equipped with multiple mounting points for bottles and accessories, as well as ISCG compatibility for chain guards, this frame is ready for any custom build. Each frame kit comes complete with a sealed FSA Orbit ITA integrated headset, a UDH derailleur hanger, and a Boost thru-axle.

• BMX-inspired geometry focused on nimble maneuverability and predictable climbing and descending
• Short 406 mm chainstay length supports manuals, quick line adjustments, and an active riding style
• 100 percent 4130 chromoly rigid 29 inch frame construction for durability and ride feel
• Butted top tube, down tube, and seat tube balance strength and weight
• Investment cast yoke design enables extra short chainstays and clearance for tires up to 2.5 inches
• Straight seat tube allows full dropper post insertion to maximize available drop
• External brake, derailleur, and dropper post routing with removable hardware simplifies assembly and maintenance
• Multiple mounting points support bottles, accessories, and ISCG compatibility
• Frame kit includes sealed FSA Orbit ITA integrated headset, UDH derailleur hanger, and Boost thru-axle

Model	Elevator
Chainstay	406mm
Head Angle	65.5 Deg
Seat Angle	76 Deg
Headset	IS42/28.6 / IS52/40
Bottom Bracket	73 mm
Seatpost	31.6mm
Wheel Size	29"
Dropout	12 x 148mm (Boost)
