For riders who want a bit more from their commute, the Dew DL is the capable, stylish commuter that takes the beloved Dew platform up a notch.

Outfitted with powerful hydraulic disc brakes for confident stopping in any weather and a smooth-shifting 10-speed drivetrain for tackling varied terrain, the Dew DL delivers a perfect blend of comfort, control, and everyday reliability.

Kona

Dew DL

$899.00

Size Guide

No size chart available for this product.

In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: B37DWDPUSHIN01

For riders who want a bit more from their commute, the Dew DL is the capable, stylish commuter that takes the beloved Dew platform up a notch.

Outfitted with powerful hydraulic disc brakes for confident stopping in any weather and a smooth-shifting 10-speed drivetrain for tackling varied terrain, the Dew DL delivers a perfect blend of comfort, control, and everyday reliability.

SPECIFICATIONS

Frameset

  • Frame: Kona 6061 Aluminum Butted
  • Sizes: S, M, L, XL
  • Fork: Kona 6061 Aluminum
  • Rear Shock: n/a

Drivetrain

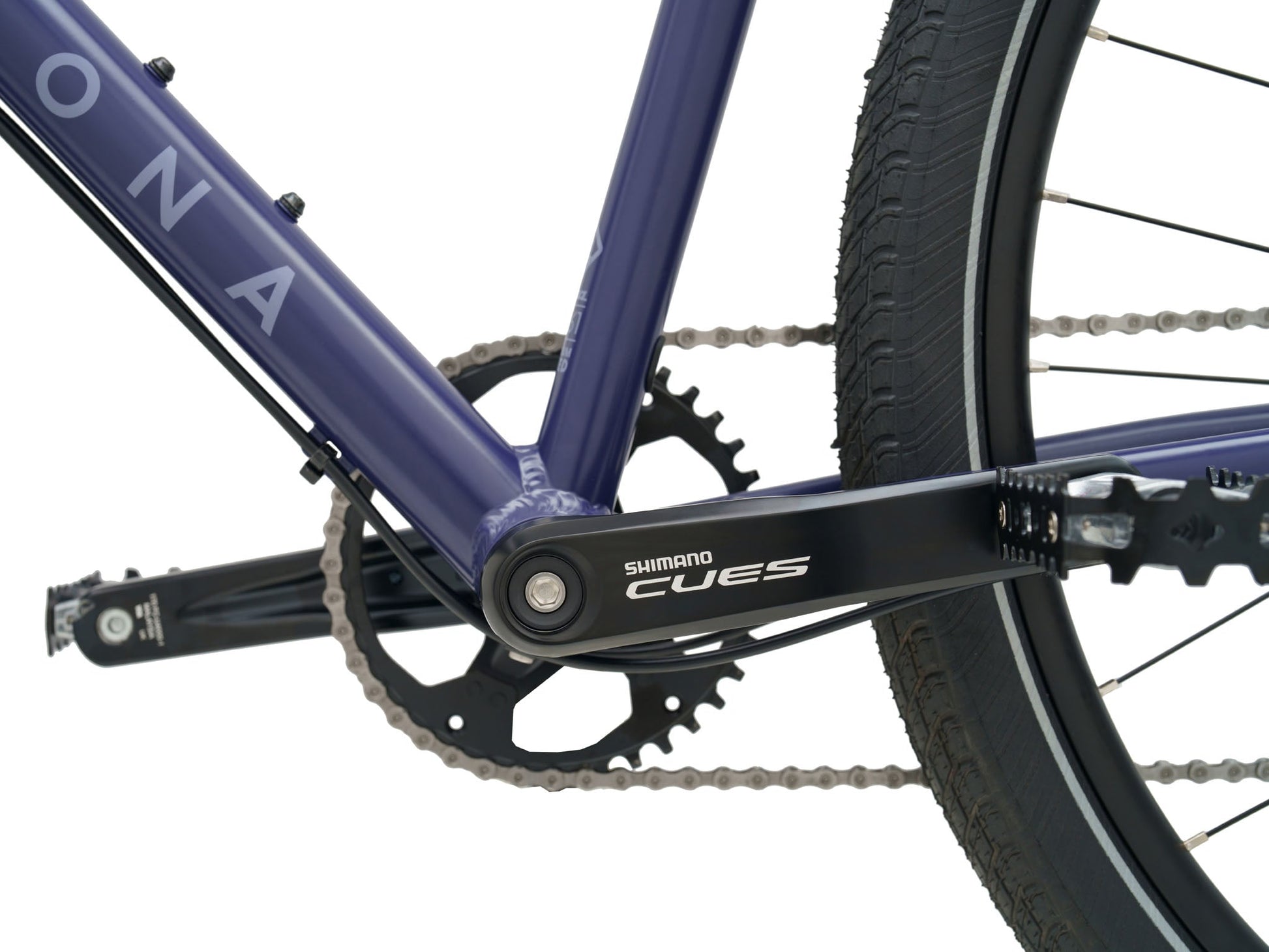

  • Crankset: Shimano CUES 4000 40t / S-M 170mm / L-XL 175mm
  • Bottom Bracket: Feimin BSA 73
  • Cassette: Shimano CUES LG300 11-48t 10spd
  • Chain: KMC Xglide 10spd
  • Pedals: Feimin Platform
  • Rear Derailleur: Shimano CUES 6000
  • Shifters: Shimano CUES 6000 10spd
  • Chain Guide: n/a

Braking

  • Brake Calipers: Shimano ALTUS
  • Front Brake Rotor: Shimano 160mm 6B
  • Rear Brake Rotor: Shimano 160mm 6B
  • Brake Levers: Shimano ALTUS

Cockpit

  • Headset: Feimin ZS44/ZS44

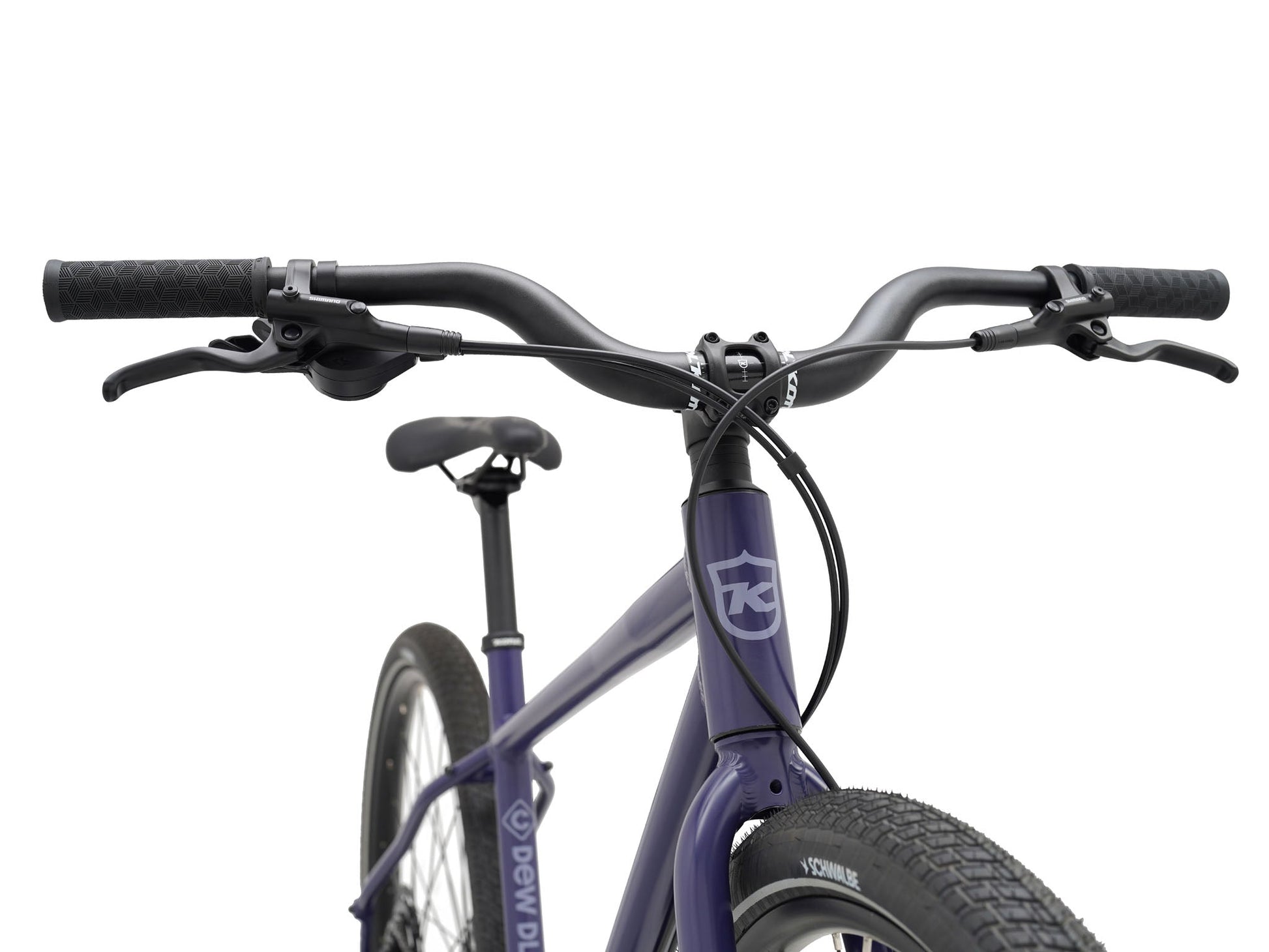

  • Handlebar: Kona Back 10º / Up 6º / Rise 70mm / Width 700mm
  • Stem: Kona 31.8mm / Rise 3º / Length 45mm
  • Grips: Kona Key
  • Saddle: Kona Commuter
  • Seatpost: Kona w/Offset 27.2mm / 375mm
  • Seat Clamp: Kona Clamp 31.8mm

Wheels & Tires

  • Front Hub: Joytech 9x100mm
  • Rear Hub: Joytech 10x135mm
  • Spokes: Stainless 2.0mm Black
  • Rims: Double Wall Aluminum
  • Front Tire: WTB GROOV-E 29x2.0"
  • Rear Tire: WTB GROOV-E 29x2.0"

Finish & Extras

  • Paint Color: Satin Future Dusk w/ Mesa Decals
  • Extras: Bell / Kickstand
GEOMETRY

GEOMETRY

  Size S M L XL
1 ST Length 420 470 520 570
2 TT Length 565 606 648 695
3 Reach 400 430 460 490
4 Stack 539 576 614 651
5 Standover 711 733 767 809
6 HT Angle 69 69 69 69
7 HT Length 90 130 170 210
8 ST Angle 73 73 73 73
9 CS Length 470 470 470 470
10 BB Drop 70 70 70 70
11 BB Height 295 295 295 295
12 Wheelbase 1098 1143 1187 1231
13 Front Center 637 682 726 770
14 Fork Length 430 430 430 430
15 Fork Offset 50 50 50 50
