Liv Road Bikes Size Chart
| Height Range | |
| XX-Small | 4'9"-5'2" |
| X-Small | 5'-5'4" |
| Small | 5'2"-5'6" |
| Medium | 5'4"-5'10" |
| Large | 5'7"-6'0" |

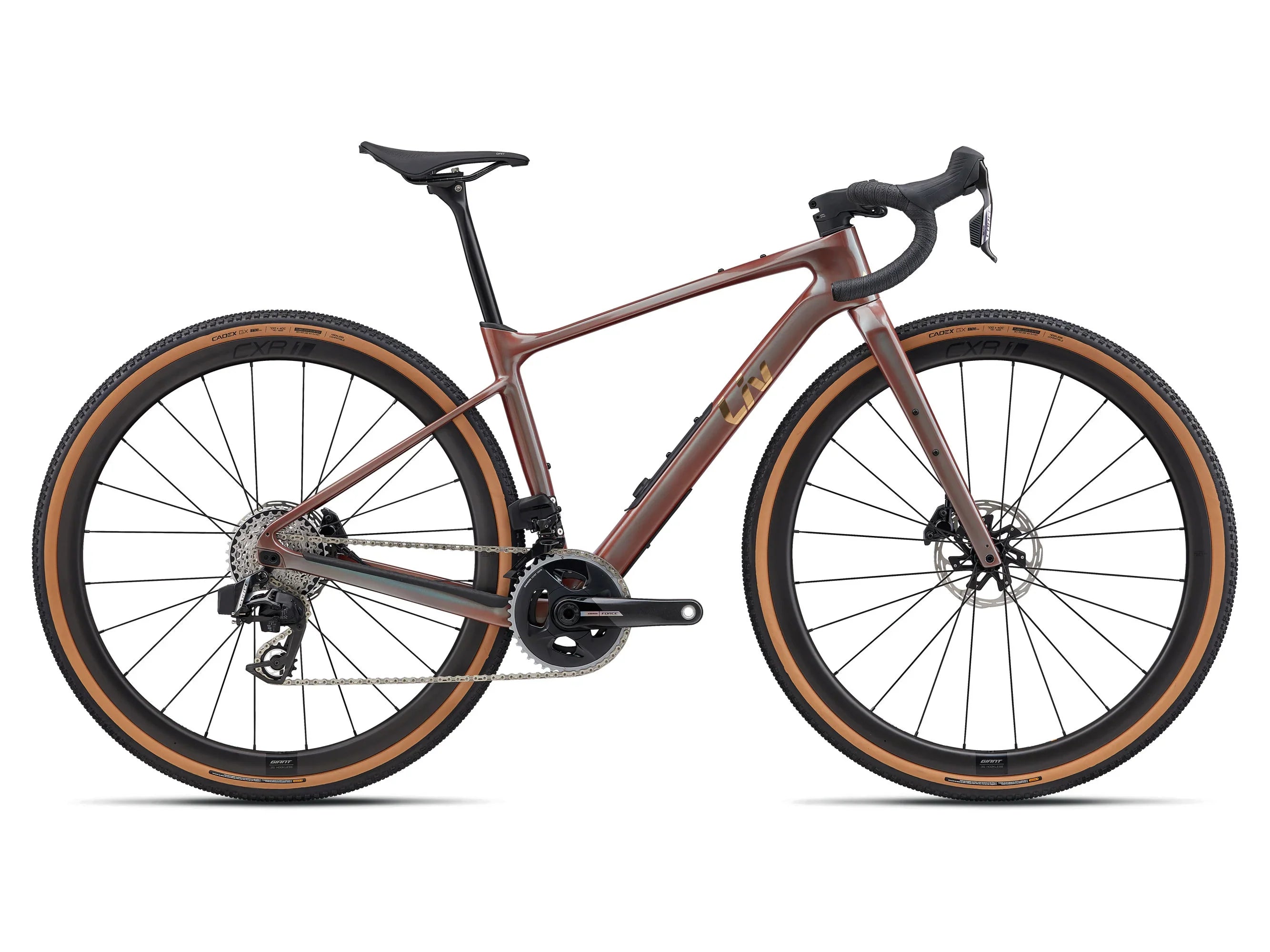

Engineered for gravel race domination, the Devote Advanced Pro combines featherlight strength with relentless performance. Tackle every rugged mile at thrilling speed, conquering county roads, mountain passes, and race finishes with fearless precision. This is the bike built to push limits and win glory.
Ultralight Agility
An ultralight Advanced-grade composite frame and new Advanced SL-grade composite fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
Superior Compliance and Control
The Contact SLR XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. The Contact SLR D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
![Advanced SL Composite Technology](http://bicyclewarehouse.com/cdn/shop/files/ADVANCED_SL_COMPOSITE_TECHNOLOGY_500x.png?v=1720653217")
Advanced SL Composite Technology
Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.
More Info![D-Fuse](http://bicyclewarehouse.com/cdn/shop/files/dfuse_500x.png?v=1721344622")
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info![Tubeless System](http://bicyclewarehouse.com/cdn/shop/files/tubeless_500x.png?v=1715993078")
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info![Overdrive](http://bicyclewarehouse.com/cdn/shop/files/overdrive_500x.png?v=1715992468")
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info| XS | S | M | L | |
|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (inch) | 15.4 | 16.5 | 18.3 | 19.7 |
| B Seat Tube Angle | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° |
| C Top Tube Length (inch) | 20.7 | 20.7 | 21.1 | 21.1 | 21.5 | 21.5 | 21.9 | 21.9 |
| D Head Tube Length (inch) | 3.5 | 4.3 | 5.5 | 6.3 |
| E Head Tube Angle | 70.0° | 69.9° | 70.5° | 70.4° | 71.0° | 70.9° | 71.0° | 70.9° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 3.2 | 3 | 3.1 | 2.8 | 3 | 2.8 | 3 |
| H Wheelbase (inch) | 39.8 | 40.2 | 40.1 | 40.5 | 40.4 | 40.8 | 41.1 | 41.4 |
| I Chain Stay Length (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.9 | 17.3 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K Stack (inch) | 20.6 | 20.6 | 21.4 | 21.5 | 22.6 | 22.6 | 23.3 | 23.4 |
| L Reach (inch) | 15 | 14.9 | 15.1 | 15.1 | 15.2 | 15.2 | 15.4 | 15.3 |
| M Stand Over Height (inch) | 26.8 | 27.1 | 27.9 | 28.1 | 29.4 | 29.7 | 30.7 | 30.9 |
| N Handlebar Width (inch) | 15.7 | 15.7 | 16.5 | 16.5 |
| O Stem Length (inch) | 2 | 2.4 | 2.8 | 3.1 |
| P Crank Length (inch) | 6.5 | 6.7 | 6.8 | 6.8 |
