Liv Road Bikes Size Chart
| Height Range | |
| XX-Small | 4'9"-5'2" |
| X-Small | 5'-5'4" |
| Small | 5'2"-5'6" |
| Medium | 5'4"-5'10" |
| Large | 5'7"-6'0" |
Designed for racers and adventure riders alike, this bike excels on race day and sustains performance through endurance rides.

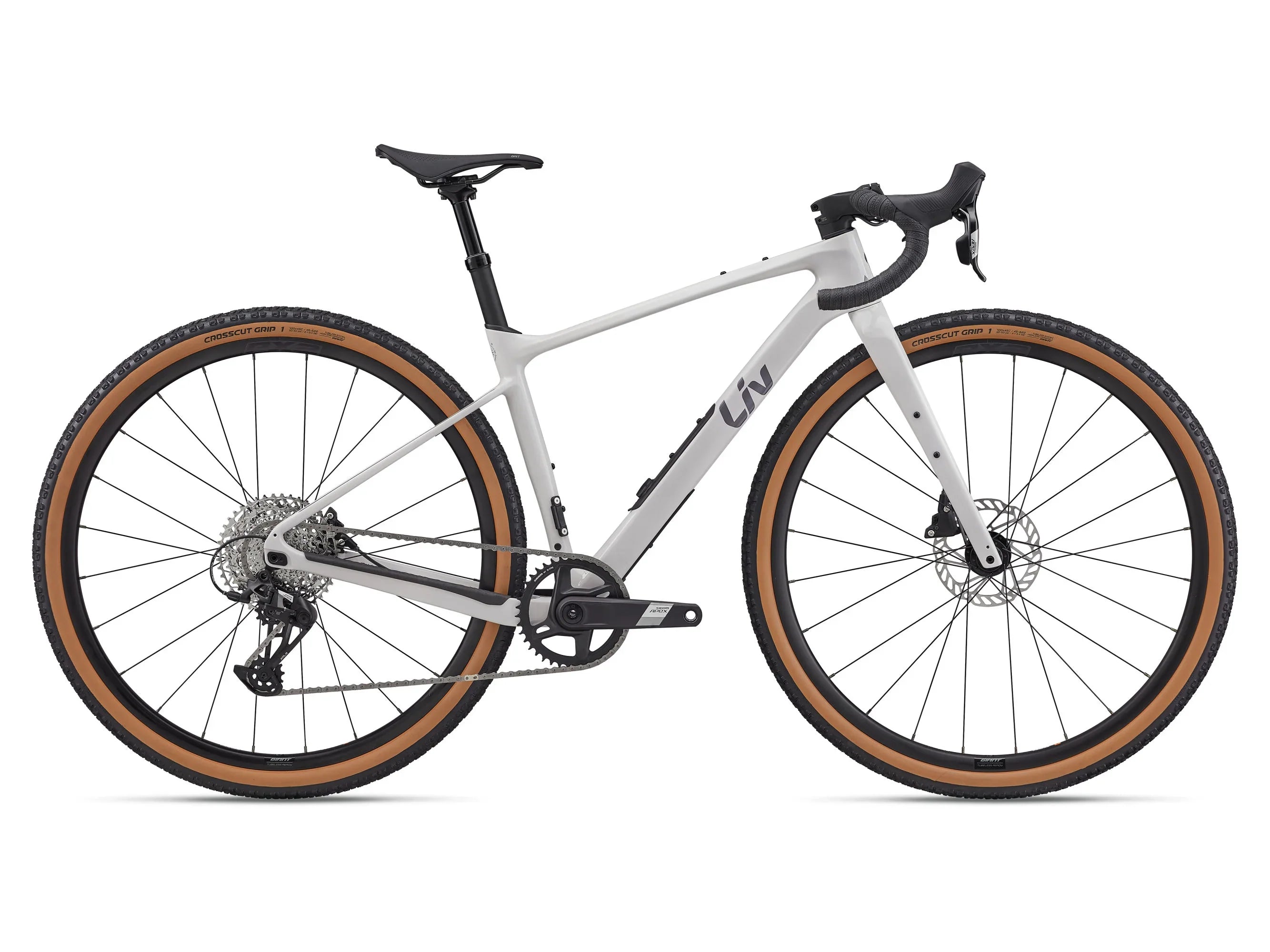

The Devote Advanced 1 expertly blends speed with durability, making it ideal for challenging gravel terrains. Its versatile construction ensures confidence and control across diverse conditions, empowering you to push your limits on every journey.
Ultralight Agility
An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
Superior Compliance and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
![Advanced Forged Composite Technology](http://bicyclewarehouse.com/cdn/shop/files/ADVANCED_FORGED_COMPOSITE_TECHNOLOGY_500x.jpg?v=1717030218")
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
More Info![Overdrive](http://bicyclewarehouse.com/cdn/shop/files/overdrive_500x.png?v=1715992468")
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info![D-Fuse](http://bicyclewarehouse.com/cdn/shop/files/dfuse_500x.png?v=1721344622")
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info![Tubeless System](http://bicyclewarehouse.com/cdn/shop/files/tubeless_500x.png?v=1715993078")
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info| XS | S | M | L | |
|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (inch) | 15.4 | 16.5 | 18.3 | 19.7 |
| B Seat Tube Angle | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° |
| C Top Tube Length (inch) | 20.7 | 20.7 | 21.1 | 21.1 | 21.5 | 21.5 | 21.9 | 21.9 |
| D Head Tube Length (inch) | 3.5 | 4.3 | 5.5 | 6.3 |
| E Head Tube Angle | 70.0° | 69.9° | 70.5° | 70.4° | 71.0° | 70.9° | 71.0° | 70.9° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 3.2 | 3 | 3.1 | 2.8 | 3 | 2.8 | 3 |
| H Wheelbase (inch) | 39.8 | 40.2 | 40.1 | 40.5 | 40.4 | 40.8 | 41.1 | 41.4 |
| I Chain Stay Length (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.9 | 17.3 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K Stack (inch) | 20.6 | 20.6 | 21.4 | 21.5 | 22.6 | 22.6 | 23.3 | 23.4 |
| L Reach (inch) | 15 | 14.9 | 15.1 | 15.1 | 15.2 | 15.2 | 15.4 | 15.3 |
| M Stand Over Height (inch) | 26.8 | 27.1 | 27.9 | 28.1 | 29.4 | 29.7 | 30.7 | 30.9 |
| N Handlebar Width (inch) | 15.7 | 15.7 | 16.5 | 16.5 |
| O Stem Length (inch) | 2 | 2.4 | 2.8 | 3.1 |
| P Crank Length (inch) | 6.5 | 6.7 | 6.8 | 6.8 |
