Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

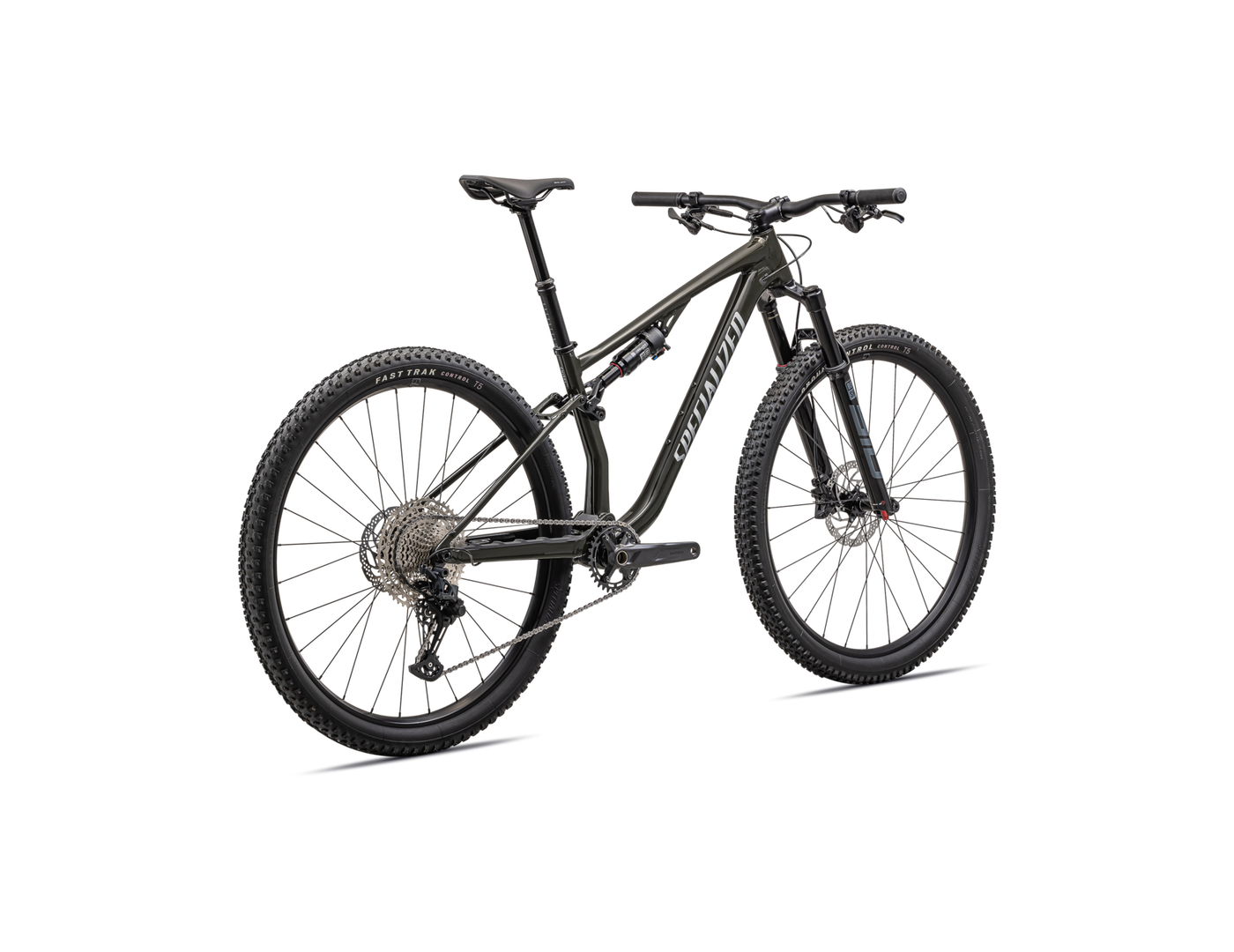

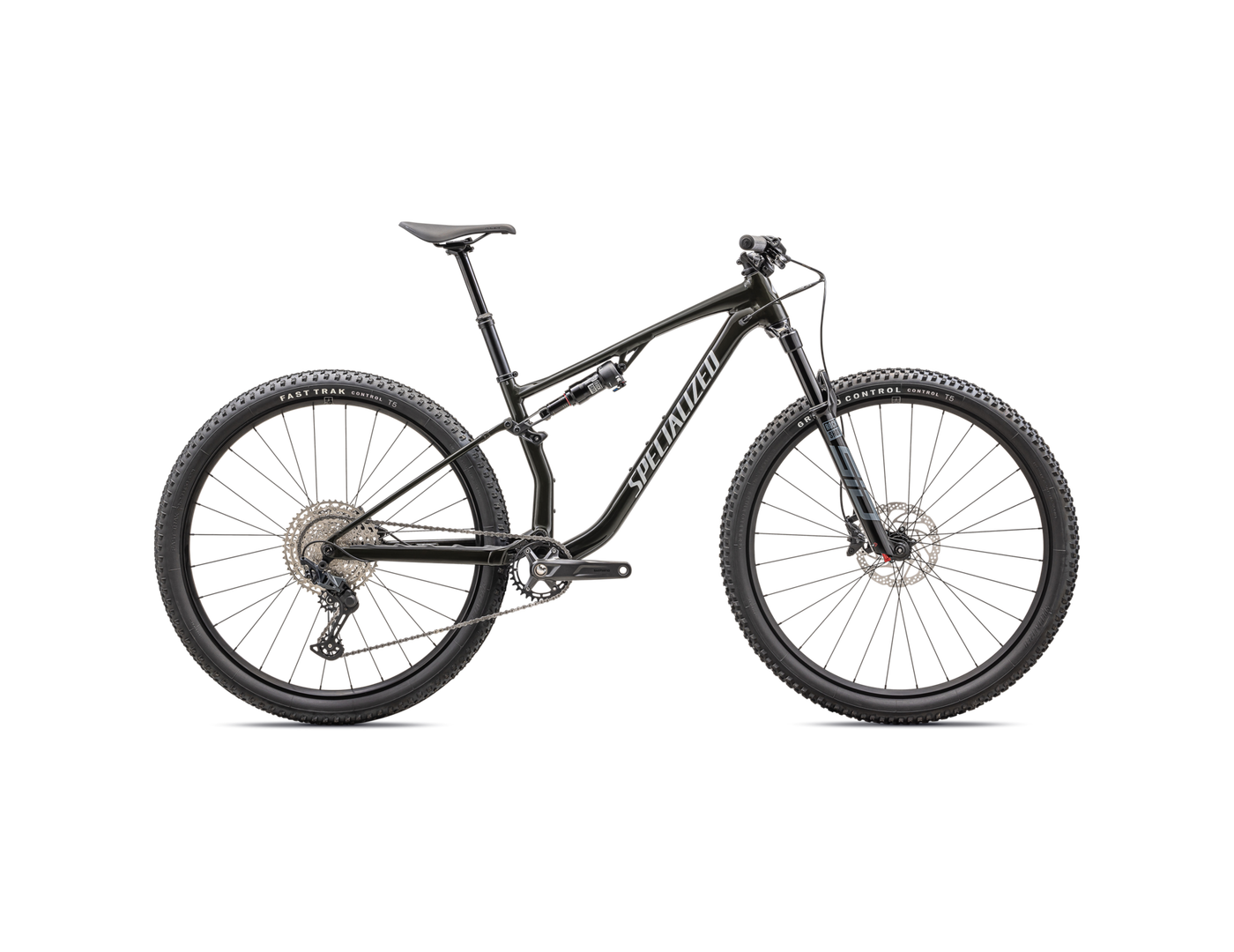

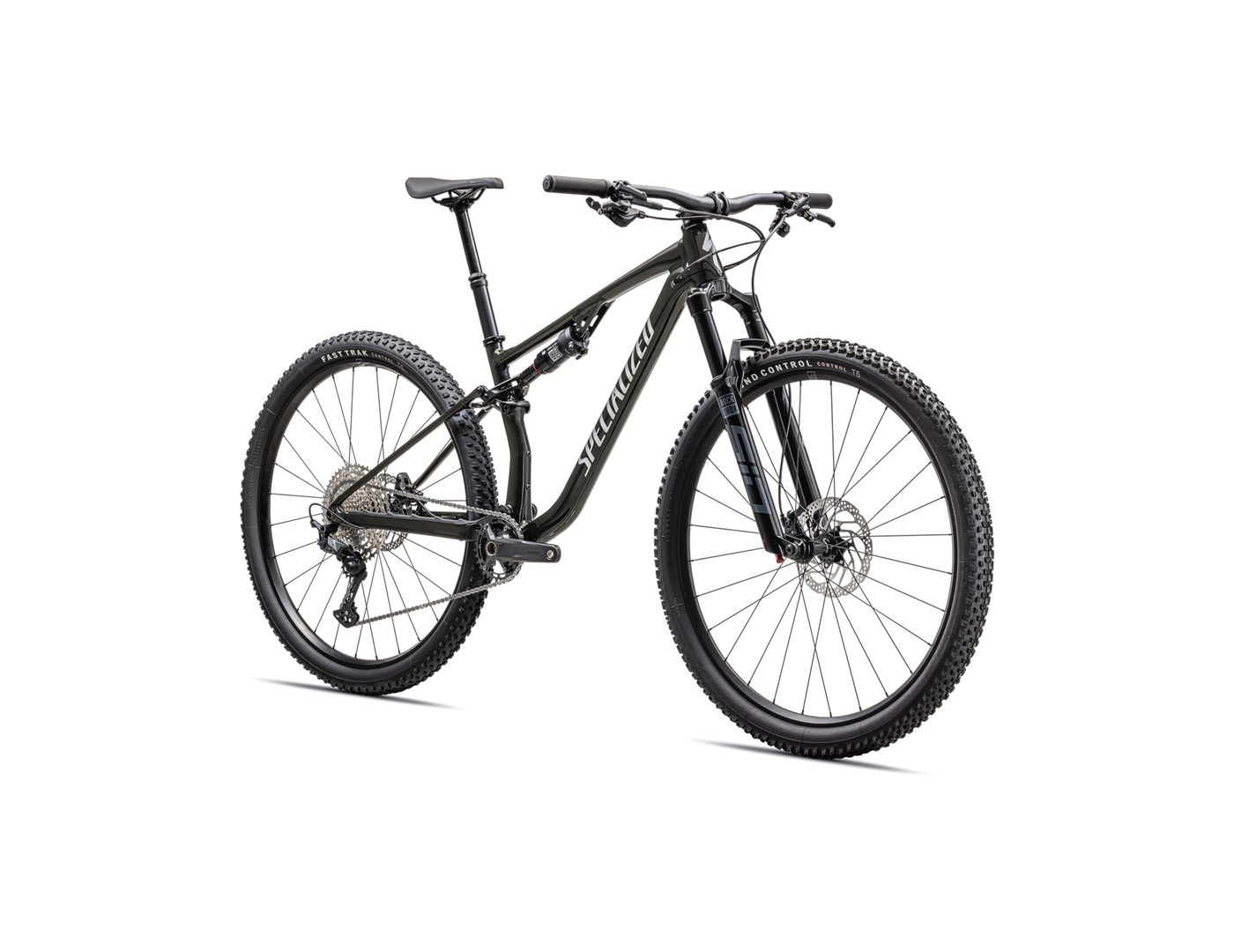

The Lightest, Fastest Alloy Full Suspension Bike in the World. 18.4% lighter than the closest competitor and sharing geometry and kinematics from Specialized's World Cup ready Epic 8 mountain bike, the all-new Chisel delivers performance you can feel—whether you’re racing “between the tape” or ripping solo hot laps on local trails.
SPEED METAL: Thanks to D’Aluisio Smartweld, the Chisel boasts the lightest aluminum XC frameset in its class. Each highly-manipulated frame tube features continuously-varied wall thicknesses and shaping that deliver stiffness where you need it - for efficiency - and ride-smoothing compliance where you want it - for comfort and optimal control.
UNMATCHED CAPABILITY: With 110mm of Ride Dynamics tuned suspension, the high performance pedigree of Chisel can be traced directly to the Epic 8, our World Cup race machine. DNA from the Epic 8’s advanced suspension kinematics, Ride Dynamics tuned suspension, and progressive geometry honed on technical World Cup courses can all be found in the Chisel, making it more than capable of handling varied terrain with confidence and speed.
INCREDIBLE EFFICIENCY: Chisel is the most efficient pedaling bike in its class, thanks to the utilization of geometry and kinematics that went into our World Cup racing Epic 8 platform. The steep seat tube positions the rider in the optimal pedaling position. Honed anti-squat reduces pedal-bob. Put it together and Chisel translates every watt applied to the pedals into maximum forward motion.
SMOOTHER IS FASTER: Specialized engineered a flex stay rear end for class-leading suspension performance, while eliminating the extra weight and maintenance associated with pivots required in a traditional design. More common on carbon bikes, extensive field and lab testing prove that Chisel has achieved the impossible—the efficiency, control, and light-weight of a flex stay design, in advanced alloy.
HYDROFORMED ALLOY: Chisel shaves extra material and weight with a one-piece hydroformed seat tube that integrates the seat tube pivot, main pivot, and BB shell. On a more traditional bike, the seat tube is typically just a "tube" with pivots and BB shell welded on.
FEATURES
- Frame - D’Alusio Smartweld hydroformed tubes and engineered tube junctions, Flip chip geo adjust, 110mm travel
- RockShox's SID 120mm fork, featuring their Rush Damper
- Ride Dynamics Tuned Rockshox Deluxe Select+ rear shock
- TranzX dropper post
- Shimano SLX 12 speed drivetrain
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 165m | 170 | 170 | 175 | 175 |
Handlebar Width | 760 | 760 | 760 | 760 | 760 |
Stem Length | 60 | 60 | 60 | 60 | 60 |
Saddle Width | 155 | 155 | 143 | 143 | 143 |
Seatpost Length | 357 | 412 | 412 | 459 | 459 |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
Stack | 602.3 | 593 | 606 | 620 | 629 |
Front Center | 682 | 706 | 742 | 773 | 802 |
Reach | 390 | 415 | 445 | 470 | 495 |
Chainstay Length | 437 | 437 | 437 | 437 | 437 |
Head Tube Length | 95 | 95 | 110 | 125 | 135 |
Head Tube Angle (low) | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
Wheelbase | 1115 | 1141 | 1177 | 1208 | 1237 |
Bike Standover Height | 756 | 777 | 777 | 787 | 790 |
BB Height (low) | 326 | 336 | 336 | 336 | 336 |
Seat Tube Length | 375 | 392 | 410 | 450 | 500 |
BB Height (high) | 332 | 342 | 342 | 342 | 342 |
Seat Tube Angle | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
BB Drop (low) | 46 | 36 | 36 | 36 | 36 |
Top Tube Length, Horizontal | 527 | 565 | 602 | 634 | 664 |
Trail | 113 | 113 | 113 | 113 | 113 |
Fork Length, Full | 530 | 530 | 530 | 530 | 530 |
