Progressive, kid-focused design.

Charger Youth 20 has kid-friendly geometry, high-quality suspension and gearing, and powerful disc brakes.

Details

  • Versatile and durable frame details.
  • Low standover – built just for kids.
  • Plush, supportive suspension and gearing.
  • High-quality, powerful disc brakes.
  • Premium Shimano drivetrain.
  • No Other Way Limited Lifetime Warranty.

Norco

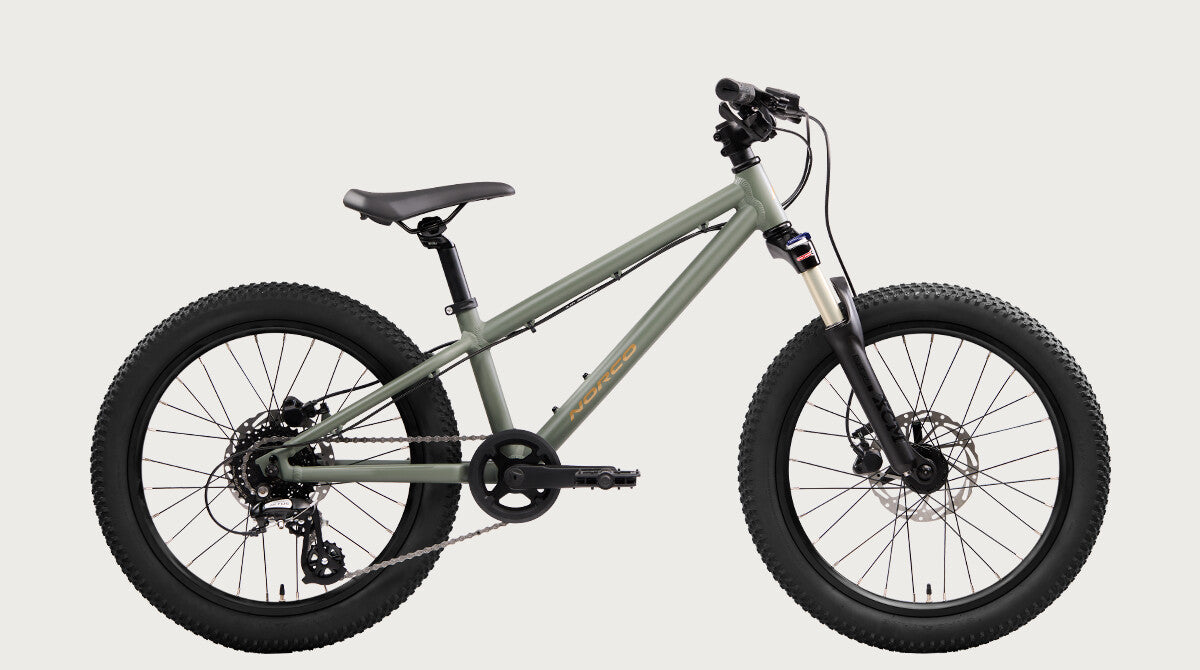

Charger Youth 20

$719.00

Size Guide

One Size 3'11" to 4'7"
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 1230315054

Progressive, kid-focused design.

Charger Youth 20 has kid-friendly geometry, high-quality suspension and gearing, and powerful disc brakes.

Details

  • Versatile and durable frame details.
  • Low standover – built just for kids.
  • Plush, supportive suspension and gearing.
  • High-quality, powerful disc brakes.
  • Premium Shimano drivetrain.
  • No Other Way Limited Lifetime Warranty.
SPECIFICATIONS

Frameset

  • Frame: Aluminum, 9x135mm QR, 20"
  • Fork: SR Suntour XCR Air w/LO, 63mm, 9X100 QR

Drivetrain

  • Rear Shifter: Shimano Altus SL-M315-8R, 8sp, Rapid Fire plus
  • Rear Derailleur: Shimano Acera RD-M3020-8, 8sp, SGS
  • Crankset: Alloy 3pc 127mm, 28T Narrow Wide
  • Bottom Bracket: Sealed bearing, ST 68mm
  • Cassette: Shimano Altus CS-HG31, 11-30T, 8sp
  • Chain: KMC Z9

Brakes

  • Front Brake: Tektro HD-M286, Resin Pads
  • Front Brake Rotor: Tektro, 160mm rotor, 6-bolt
  • Rear Brake: Tektro HD-M286, Resin Pads
  • Rear Brake Rotor: Tektro, 160mm rotor, 6-bolt
  • Brake Levers: Tektro HD-M286, Hydraulic 2-Finger Jr. Levers

Components

  • Handlebar: Alloy Jr. Riser, 540mm, 30mm Rise
  • Stem: Alloy 35mm Length, 31.8mm Clamp
  • Seatpost: Norco Alloy 27.2mm, 250mm length
  • Headset: External Cup Ball Bearing, 1-1/8" EC 34
  • Headset Spacer: 1x10mm, 2x5mm
  • Saddle: Norco Youth, Steel Rail
  • Grips: Norco Youth, 115mm Length
  • Pedals: Jr. MTB Flat, 9/16"
  • Seatpost Clamp: Norco Alloy Bolted, 31.8mm ID

Wheels

  • Front Hub: Formula DC-1420, 9x100mm QR, 28h, 6-bolt
  • Rear Hub: Formula DC-1425, 10x135mm QR, HG, 28H, 6-bolt
  • Rims: Aluminum DW, 28h, 20" MTB
  • Front Tire: CY Trail, 20x2.25", Wire
  • Rear Tire: CY Trail, 20x2.25", Wire
  • Spokes/Nipples: Stainless Steel w/Brass Nipples - Black

Weight

  • Weight: 10.63 kg (23.4 lbs)
Please Note: Product images are for illustrative purposes only. Manufacturers occasionaly make updates to components, specifications, and finishes, meaning the actual bike you receive may vary slightly from the photos. However, any substituted parts will always be of like or better quality. If you have any questions about specific components, please don't hesitate to reach out to our team so we can get you the most up-to-date info on our current stock.
GEOMETRY
Travel (mm front) 20" 80
Reach 20" 330
Stack 20" 433
Head Tube Angle 20" 65
Fork Offset 20" 40
Seat Tube Length 20" 255
Effective Seat Tube Angle 20" 73
Rear Centre Length 20" 338
Bottom Bracket Drop 20" 7
Bottom Bracket Height 20" 253
Horizontal Top Tube 20" 462
Wheelbase 20" 911
Standover 20" 468
Head Tube Length 20" 90
Trail 20" 77
Recommended Seatpost Drop 20" 0
Maximum Post Insertion 20" 230
Stem Length 20" 45
Crank Length 20" 140
Tire Size 20" 2.2" – 2.4"
Water Bottle Compatible 20" 1 x 620mL
