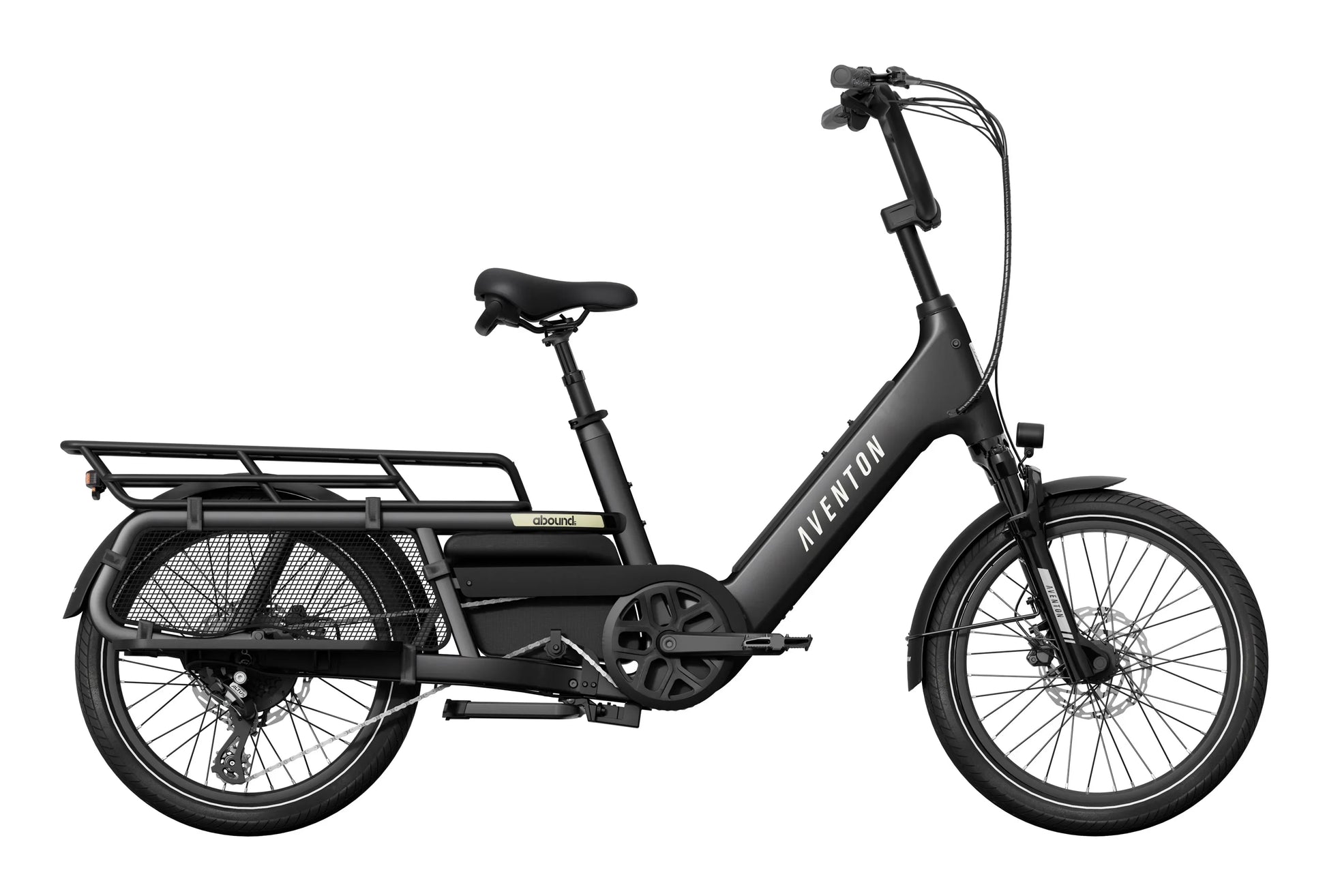

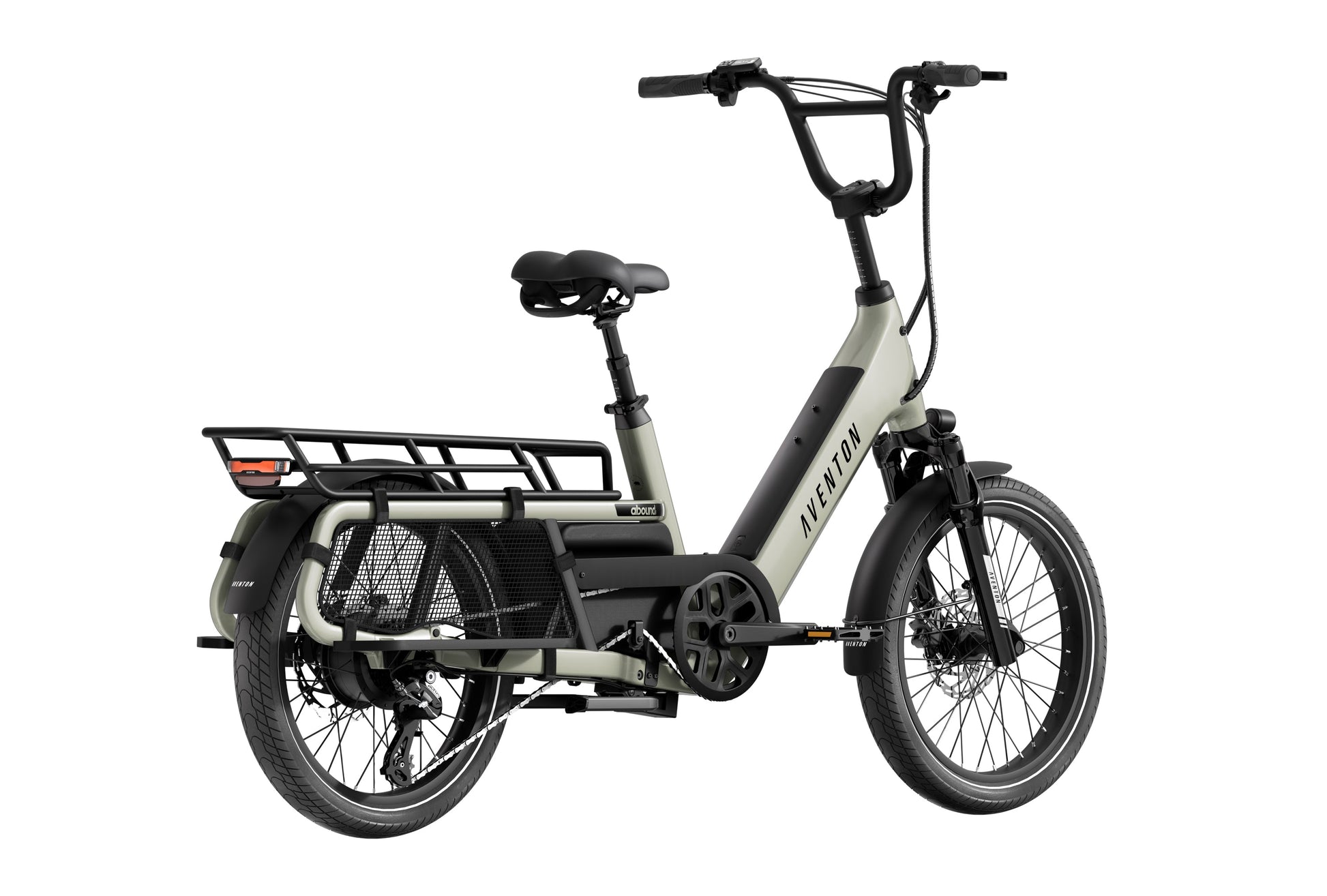

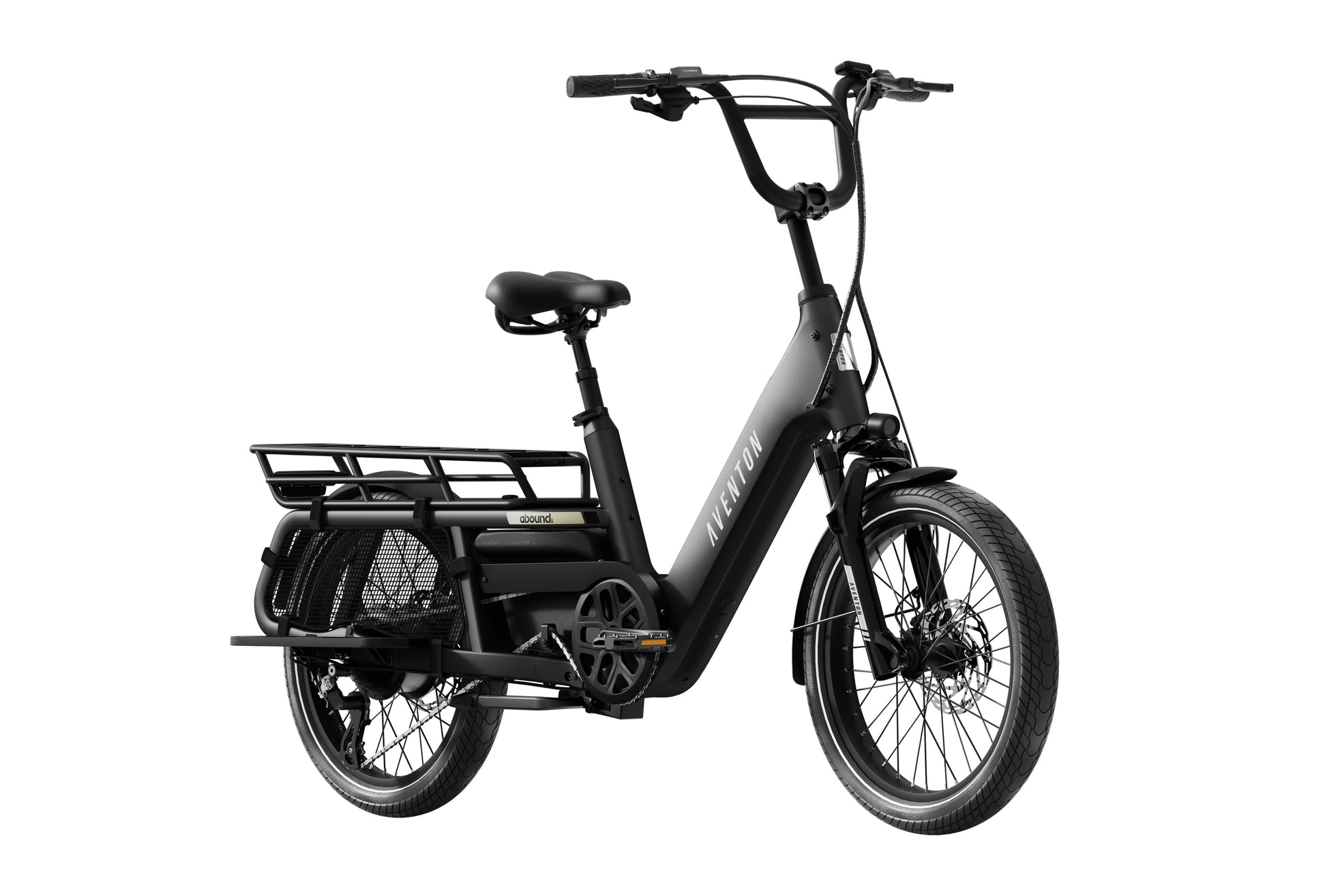

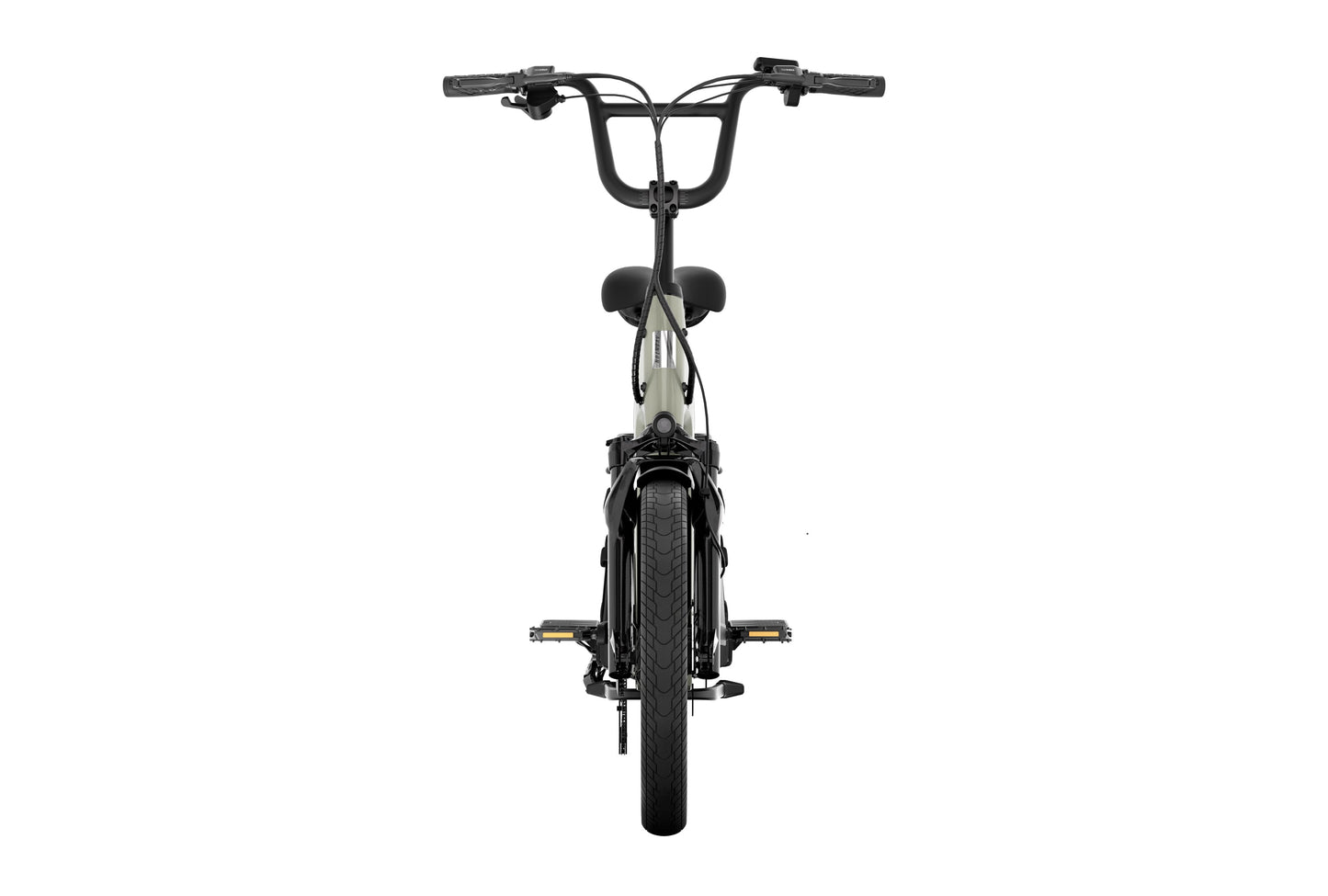

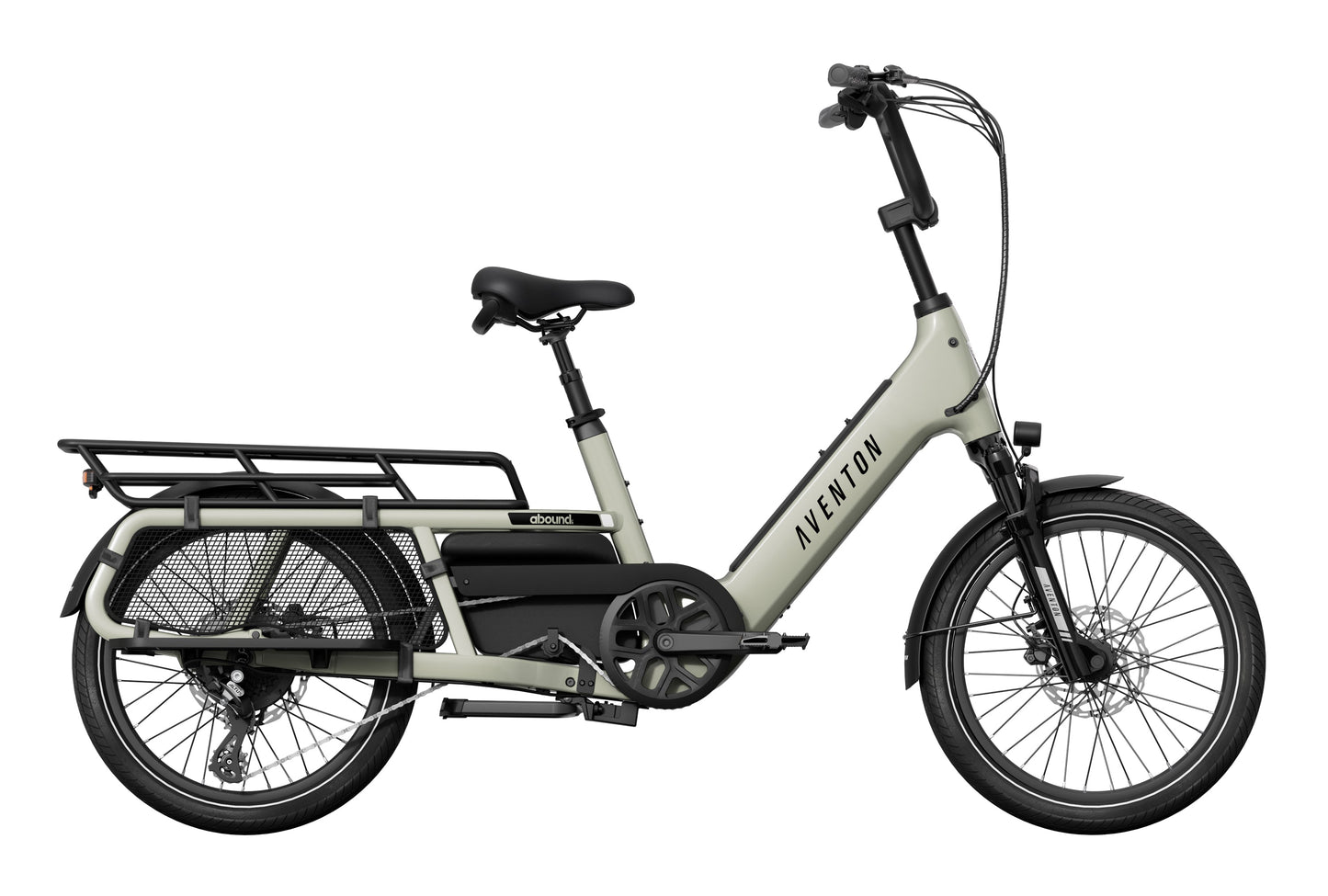

Aventon Abound LR Ebike

Name: Abound LR Ebike
Brand: Aventon
SKU: 1E054-0033802
Price: 1999.0 USD
Availability: InStock

$1,999.00

~~$1,999.00~~ $1,999.00

Sale Sold out

Size One Size

Color: Black

Quantity

Free $100 Gift Card with the purchase of this bike! | Learn More.

Ride Ready, No Worries! Aventon e-bikes ship with expert assembly for a hassle-free experience! A $100 oversized shipping fee and $89 Platinum Assembly Fee apply at checkout.

Need help?

Need help finding the perfect bike? Text Kathleen, 619-333-2576, or chat with us. Monday-Friday 8AM-5PM PST

Size & Fit Guide

The Aventon Abound comes in 1 size and fits most adults from 4’11 “ - 6’3”.

Aventon Abound E-Bike

Frame Size	One size fits all
Top Tube Length	613mm
Reach	426mm
Head Tube Length	174mm
Standover Height	472mm
Wheelbase	1274mm
Min Saddle Height	770mm
Max Saddle Height	970mm

Low stock

SKU:1E054-0033802

View full details

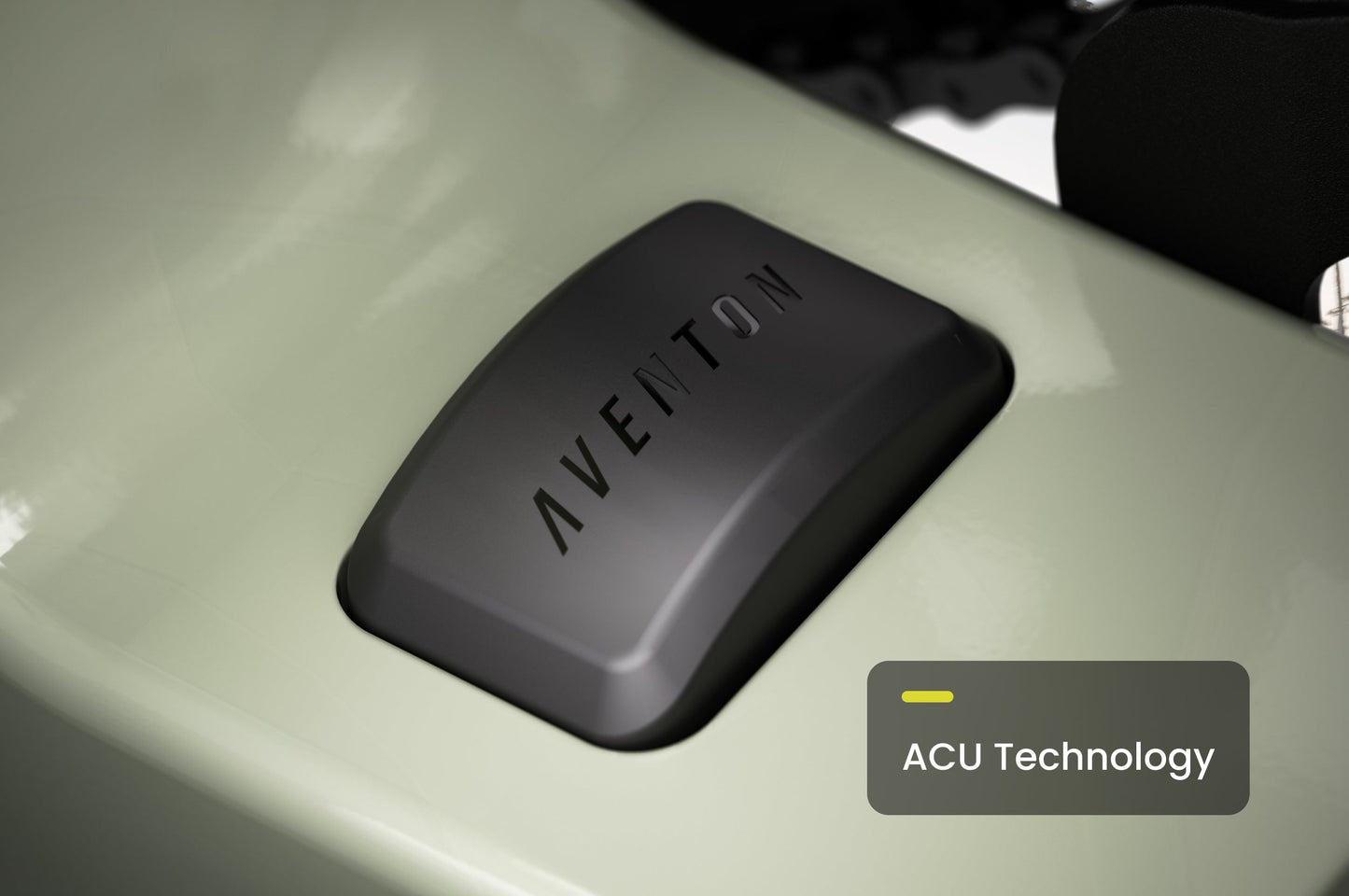

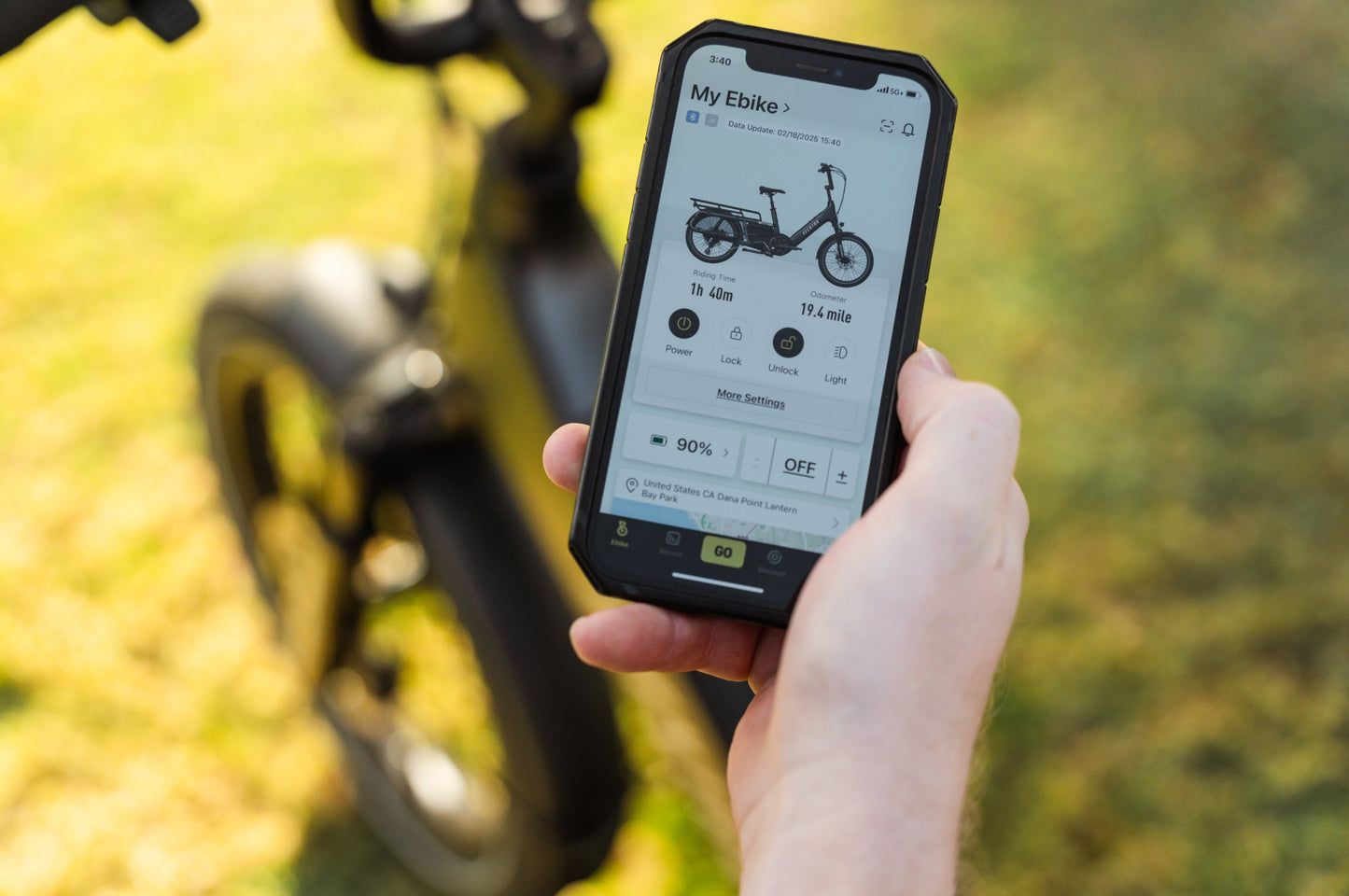

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

General

Weight: 88 lbs

Total Weight Limit: 440 lbs

Rider Height: 4'11" - 6'3"

Class: Class 2 Ebike

Water Resistance: IPX4

Range: Up to 60 miles

Battery Safety Certifications: Certified to UL 2271

Safety Certifications: UL and TUV Safety Certified (UL 2849)

Frameset

Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

Fork: Threaded Steerer Tube for Quill Stem, 15x110 spacing, 51mm travel, adjustable lockout, black stanchions

Rear Spacing: 175mm

Fork Spacing: 110mm

Wheelset

Front Wheel: Double Wall Aluminum, 20in, 36-hole, 13g, 20x110 Thru Axle, Schrader Valve

Rear Wheel: Double Wall Aluminum, 20in, 36-hole, 12g, Nutted Hub Drive Motor, Schrader Valve

Tires: 20x3.0 Innova IA-2131 Urban Tire with Reflective Sidewalls

Ebike System

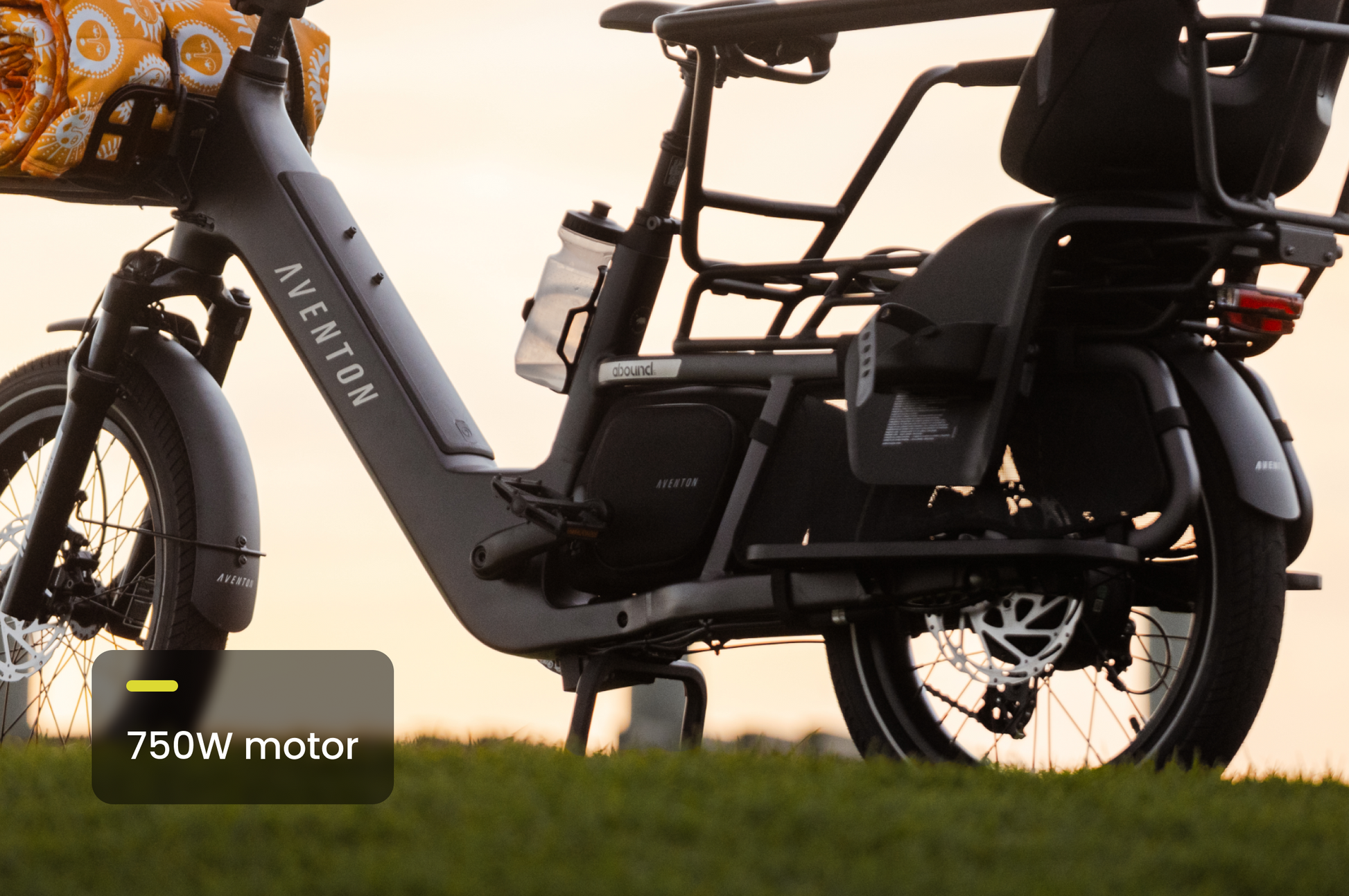

Motor: Shengyi 36V 750W Hub Drive with 6 speed sensors (1188W peak)

Motor Torque: 80Nm

Display: Aventon BC147

Battery: Removable Internal Lithium-ion (36V, 20Ah, 733Wh, LG 21700 cells)

Battery Weight: 8.7 lbs

Controller: 36V/33A

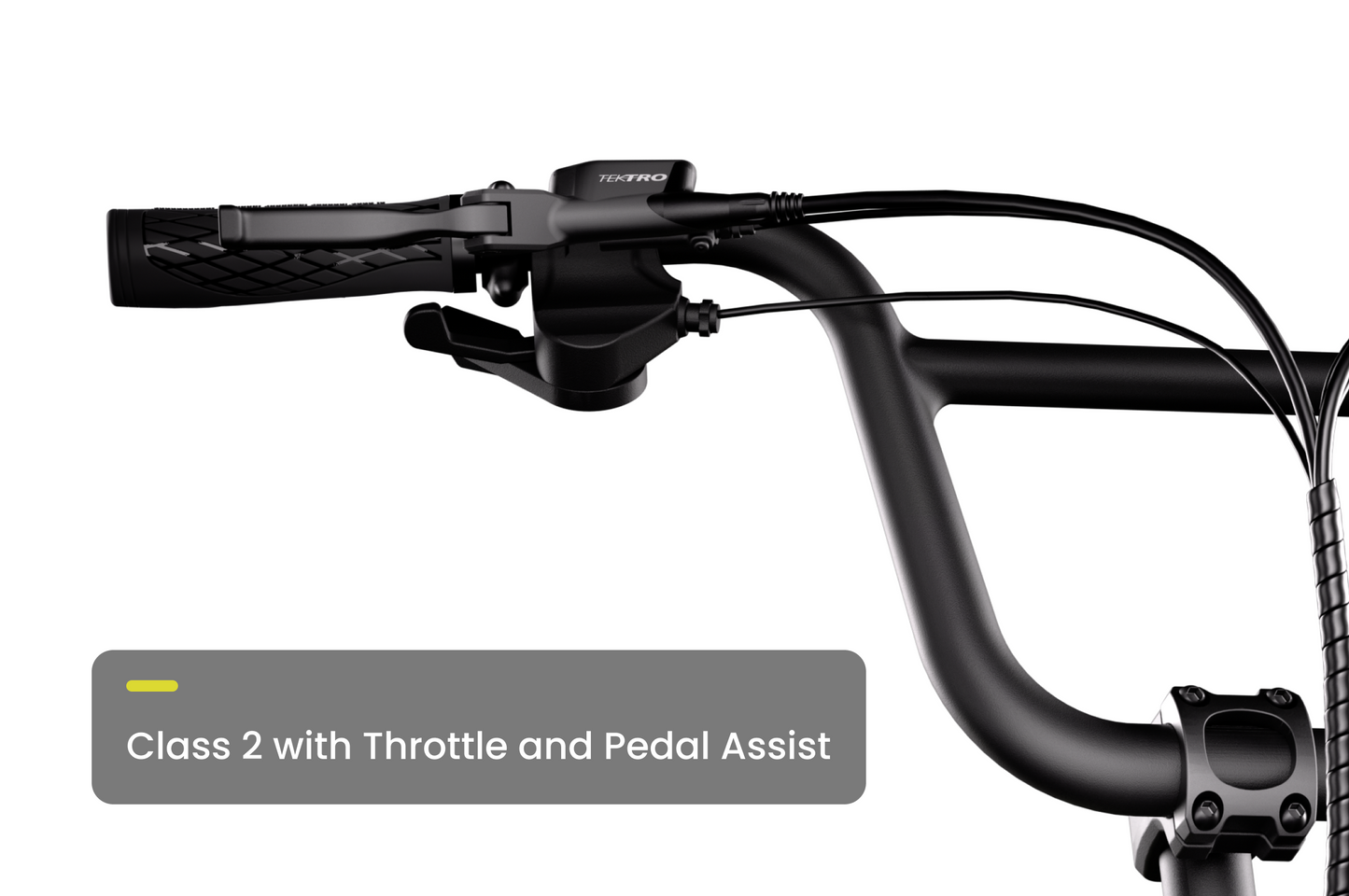

Throttle: Aventon LH Handlebar Mounted

Sensors: Double-Sided Bottom Bracket Torque Sensor

Charger: 36V Output (42V/4A)

Charging Time (0% to 100%): 5 hours

Lighting

Front and Rear Lights: Integrated with Turn Signals

Brakes

Front Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor: 180mm, 6-bolt

Rear Brake Rotor: 203mm, 6-bolt

Drivetrain

Rear Derailleur: Shimano Altus RD-M310, 8-Speed

Shifter: Shimano 8-Speed Trigger (SL-M315-8R)

Chain: 7/8-Speed, 154L

Cassette: 12-32T / 8-Speed (Shimano CS HG200-8)

Chainring: 52 Tooth

Chainring BCD: 104mm

Crank: 3-Piece, 165mm Crank Arm

Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor

Pedals: 9/16" Composite Platform

Cockpit

Saddle: Aventon Saddle with Grab Handle by Selle Royal

Seatpost: Aventon Suspension Seatpost (Ø 30.9mm, 350mm Length, 50mm Travel)

Seatpost Clamp: 34.9mm

Handlebars: BMX Style Aluminum (31.8mm, 720mm)

Grips: Aventon Ergonomic Comfort Lock-On Grips

Headset: H886HW Peilin (28.6mm * 56mm * 56mm H19.5mm, 6pcs)

Included Accessories

Fenders: Included

Rear Rack: Included

Rear Rack Weight Limit: 143 lbs

The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*

No technical specifications available.

One Size Fits Most
A - Seat Tube Length	380mm (15.0")
B - Top Tube Length Horizontal	610mm (24.0")
C - Bottom Bracket Drop	30mm (1.2")
D - Head Tube Length	210mm (8.3")
E - Head Tube Angle	69°
F - Seat Tube Angle	70°
G - Rear Chainstay Length	660mm (26.0")
H - Front Wheel Center	673mm (26.5")
I - Wheelbase	1332mm (52.4")
J - Reach	420mm (16.5")
K - Stack Height	521mm (20.5")
L - Fork Length	394.5mm (15.5")
M - Fork Offset	38mm (1.5")
N - Trail	63mm (2.5")
Wheel Size in Inches	20"
Rider Height (Range)	150cm - 198cm (4'11"-6'3")
