Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

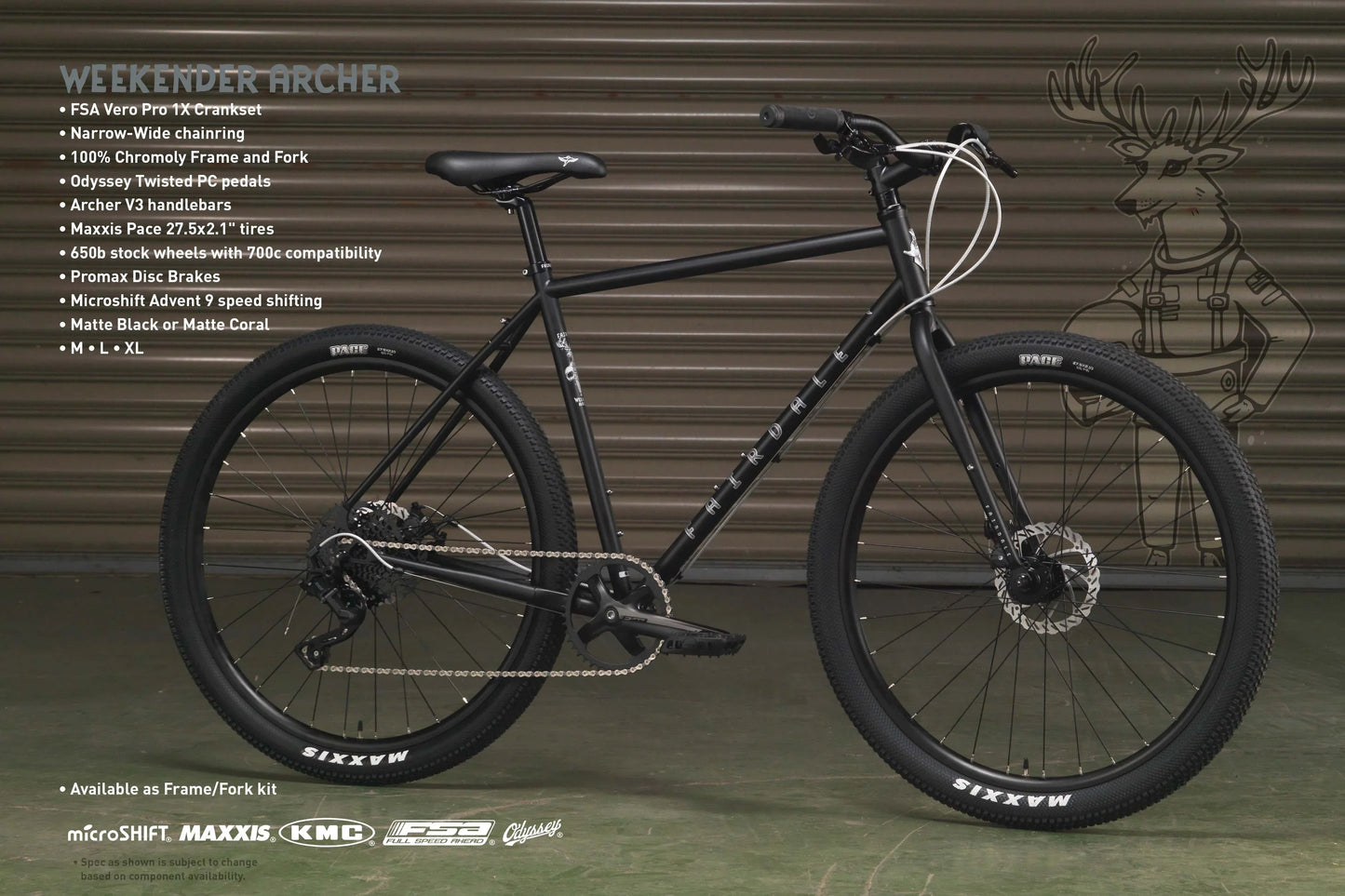

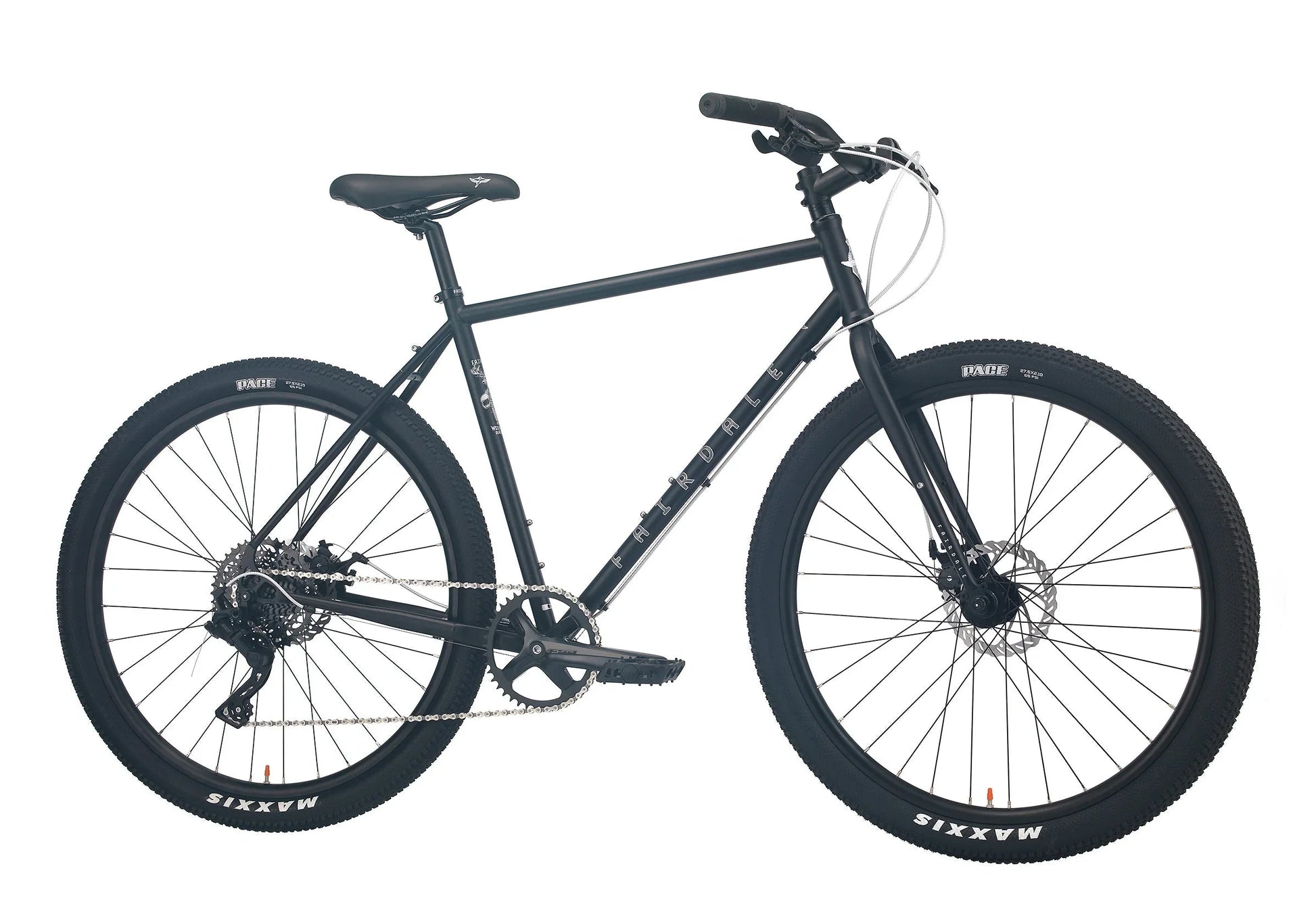

Fairdale envisioned a “light-tourer” that would work as a weekday commuter and a weekend getaway machine when they cooked up the Weekender.
Over the years Fairdale has refined the Weekender, but its focus has stayed the same. The riding position is comfortable for the long haul or an evening ride. The shifting is wonderfully simple to use, and the disc brakes get a nice power-boost from our own Linear Slic Kables, made for us by Odyssey®.
The Weekender has a redesigned geometry to work with 27.5 x 2.1" tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.*
Sizing
X-Small: 4'11 - 5'4" height
Small: 5'2" 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Geometry
| Size | XS (50cm) | S (52cm) | M (55cm) | L (58cm) | XL (60cm) |
| Top Tube (Effective) | 505mm |
523mm | 545mm | 579mm | 602cm |
| Top Tube (Actual) | 487mm |
505mm | 532mm | 559mm | 585mm |
| Seat Tube (BB Center to TT Top) | 401mm |
454mm | 485mm | 533mm | 576mm |
| Seat Tube (BB Center to TT Center) |
360mm |
414mm | 445mm | 493mm | 536mm |
| Seat Tube Angle | 74.5° | 74° | 73° | 73° | 73° |
| Head Tube Length | 115mm |
120mm | 122mm | 146mm | 167mm |
| Head Tube Angle | 70° | 70° | 71° | 71.5° | 71.5° |
| Chain Stay Length | 415mm | 415mm | 440mm | 440mm | 440mm |
| Wheelbase | 992mm |
1005mm | 1037mm | 1058mm | 1081mm |
| Standover | 717mm |
745mm | 765mm | 800mm | 830mm |
| Stack | 512mm |
517mm | 565mm | 589mm | 609mm |
| Reach | 361mm |
373mm | 380mm | 398mm | 414mm |
| Fork Length | 390mm | 390mm | 416mm | 416mm | 416mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 54mm | 54mm | 72mm | 72mm | 72mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 272.mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width 27.5"/650b | 47mm | 47mm |
54mm |
54mm |
54mm |
| Approx. Max Tire Width 29"/700c | N/A | N/A | 53mm | 53mm | 53mm |
| Wheel Size | 27.5" |
27.5" |
27.5" | 27.5" | 27.5" |
