Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

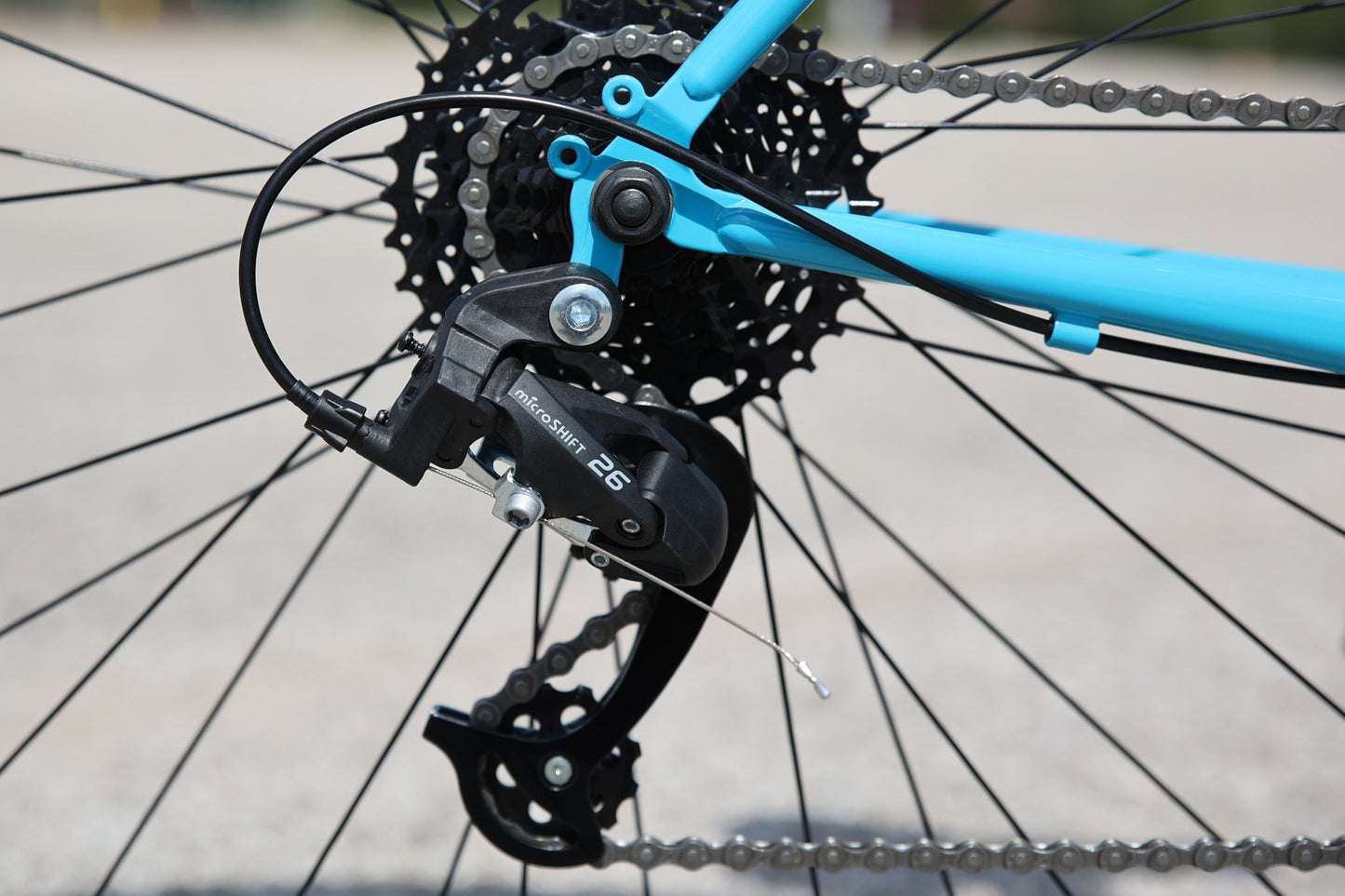

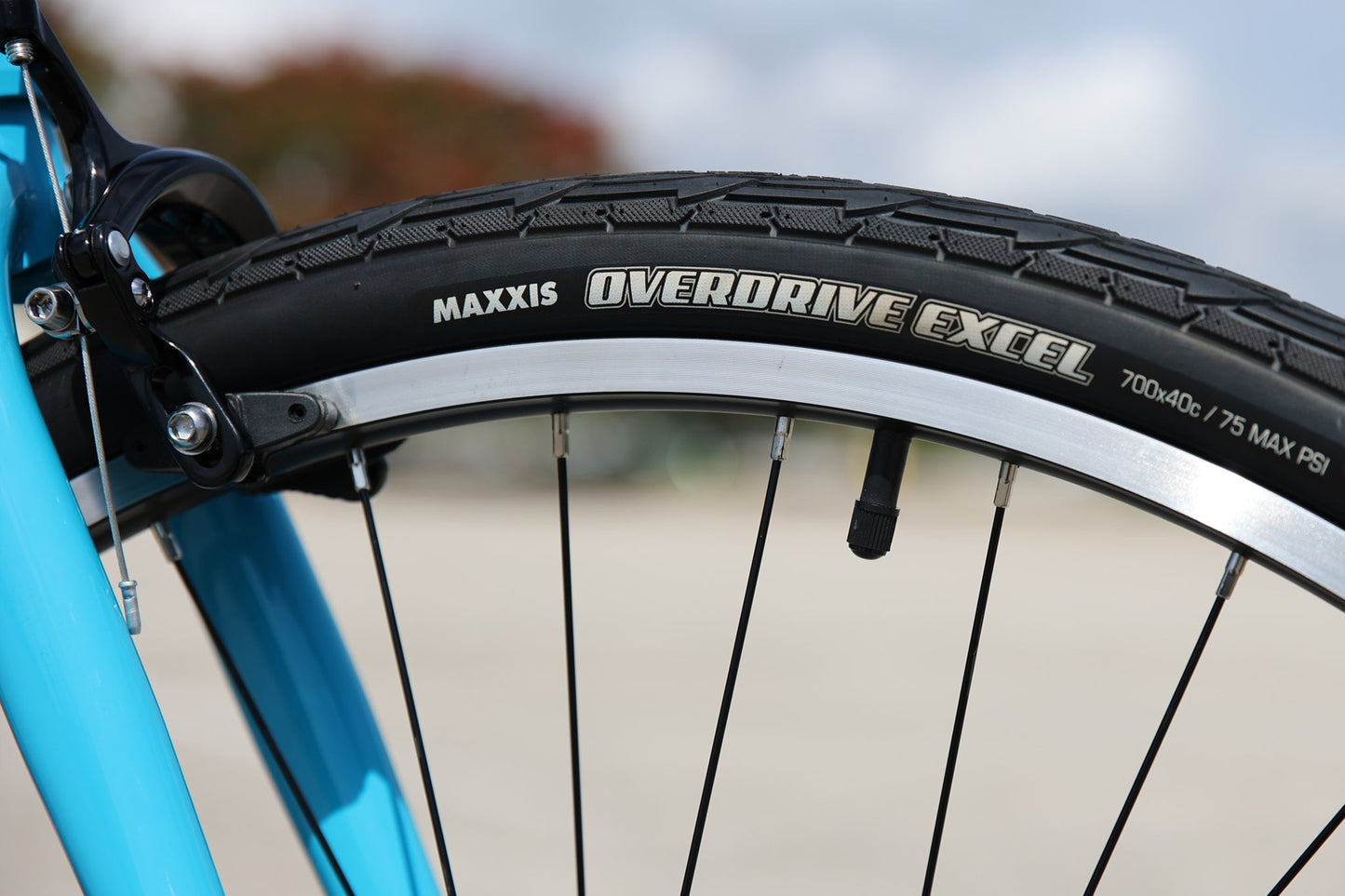

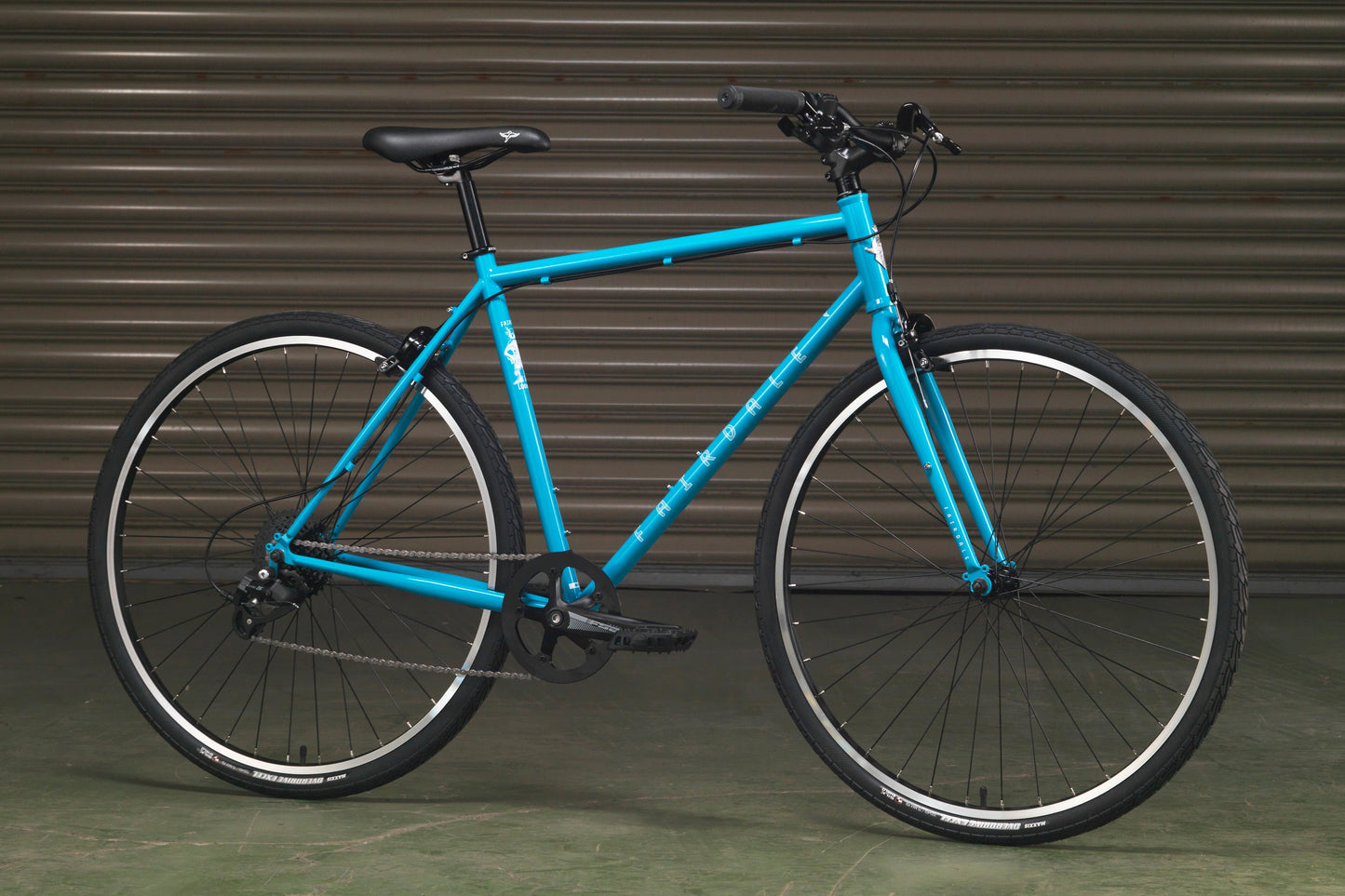

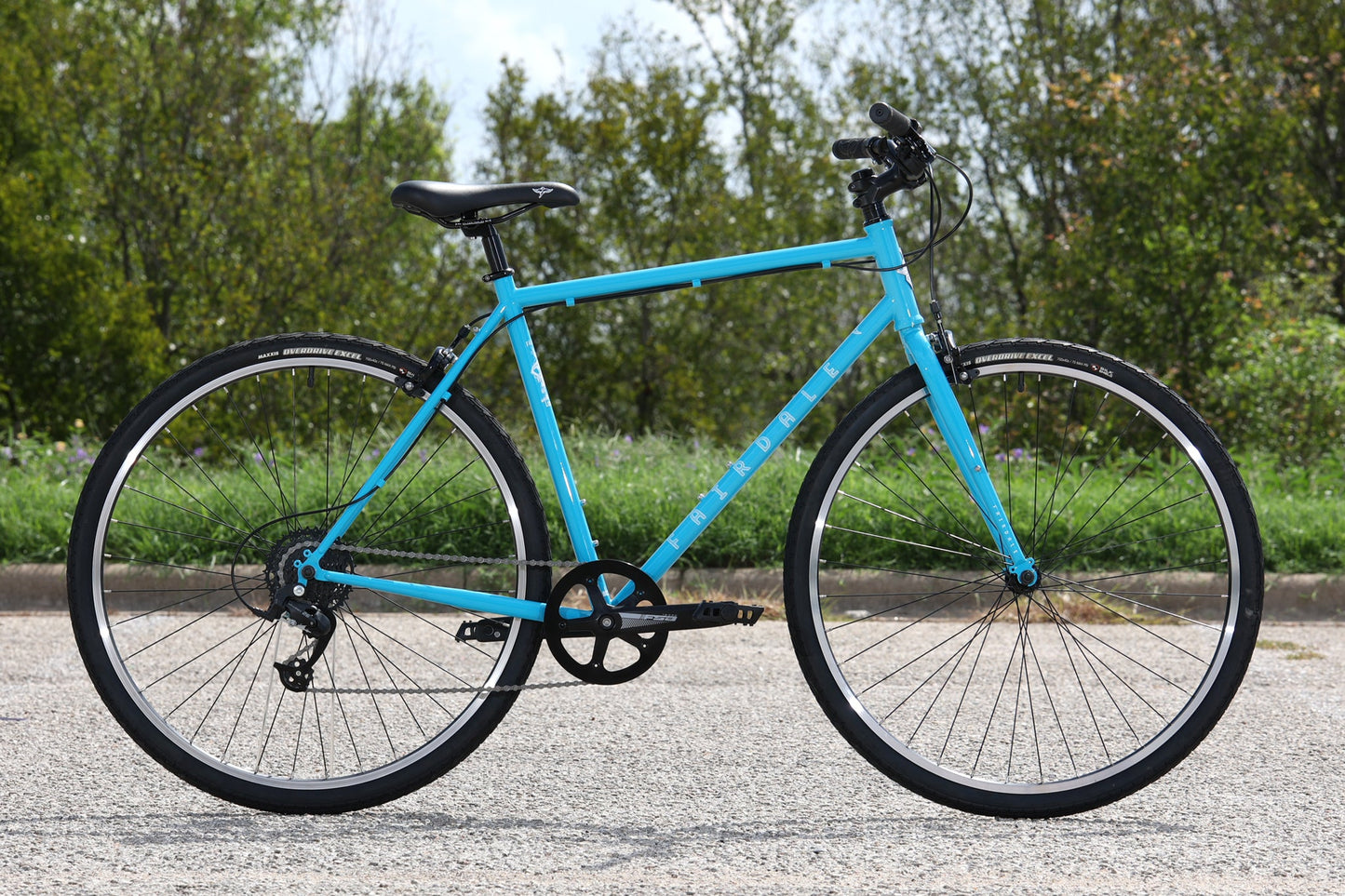

The Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 40mm wide Maxxis tires feel fast on smooth ground while still confidently handling rough terrain.
The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.
The Lookfar shares the same proven geometry as our ever-popular Weekender model.
Sizing
- X-Small: 4'11" - 5'4" height
- Small: 5'2" - 5'7" height
- Medium: 5'7" - 5'10" height
- Large: 5'9" - 6'1" height
Geometry
| Size | XS (49cm) | S (52cm) | M (55cm) | L (58cm) |
| Top Tube (Effective) | 508mm |
525mm |
552mm |
578mm |
| Top Tube (Actual) | 495mm |
507mm |
531mm |
559mm |
| Seat Tube (BB Center to TT Top) | 385mm |
436mm |
490mm |
538mm |
| Seat Tube (BB Center to TT Center) |
317mm |
370mm |
448mm |
496mm |
| Seat Tube Angle | 74.5 ° | 74° | 73° | 73° |
| Head Tube Length | 100mm | 120mm | 140mm |
160mm |
| Head Tube Angle | 69.6 ° | 70° | 71° | 72.5° |
| Chain Stay Length | 440mm | 440mm |
440mm |
440mm |
| Wheelbase | 1021mm | 1030mm |
1038mm |
1050mm |
| Standover | 698mm | 733mm |
780mm | 815mm |
| Stack | 521mm | 541mm |
564mm |
589mm |
| Reach | 363mm | 370mm |
379mm |
398mm |
| Fork Length | 401mm | 401mm |
401mm |
401mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 68mm | 68mm |
68mm |
68mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width | 42mm | 42mm |
42mm |
42mm |
| Wheel Size | 700c | 700c | 700c | 700c |
