Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.
Introducing the Vida E+ LDS 20MPH E-Bike - it's like riding a bike, but with an electrifying twist that will leave you grinning from ear to ear!
This bad boy boasts a SyncDrive Life motor and pedals, so you can pedal your heart out or kick back and let the motor do the heavy lifting. Talk about versatility! And with a low step-through design, getting on and off this beauty is a breeze. No more awkwardly trying to swing your leg over the seat - this baby makes it easy as pie.
But wait, there's more! The Vida E+ is perfect for cruising around the city, feeling the wind in your hair, and getting fit while having fun. The upright rider position ensures a comfortable and easy ride, so you can focus on enjoying the journey instead of worrying about any aches or pains.
So what are you waiting for? Hop on the Vida E+ LDS 20MPH E-Bike and let the good times roll!
Features:

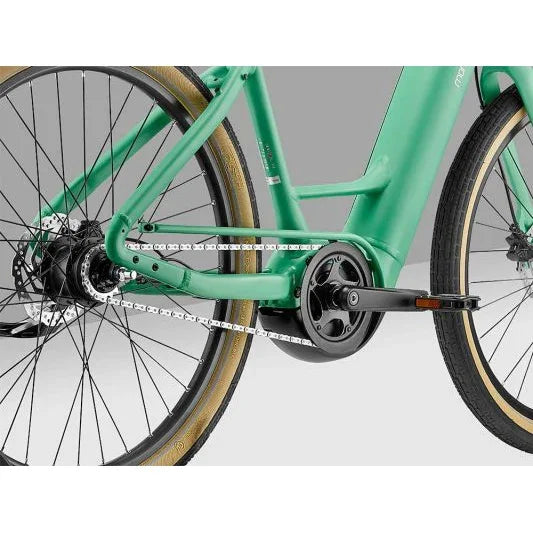

- Mid-Drive Motor - SyncDrive motor features Smart Assist technology with six sensors to calculate torque, cadence, slope and speed and deliver smooth, powerful pedaling assistance.
- Integrated Battery - EnergyPak 500Wh battery, located in the downtube and removable via side release, can fully chare in less than 3 hours.
- Internal Geared Hub - Integrated gear changing for smooth, worry-free shifting.
- Six Levels of Support - Choose from Eco, Eco+, Normal, Sport, Sport+ and Auto Assist modes for max assist speed up to 20mph.
- Hydraulic Disc Brakes - Tektro brakes with 160mm rotors provide optimal control and stopping power in all conditions.
- Grippy Tires - High-volume 2.35-inch tires provide a smooth, comfortable ride on variable surfaces.
- Wide Gear Range - 7-Speed Shimano Nexus drivetrain makes it easy to choose the perfect gear for flat or hilly terrain
- Chainguard - Protects clothing from chain dirt and grime.
Specifications
Motor |
60Nm torque, 250W Mid Drive Motor, power by YAMAHA, SyncDrive Life motor |
||
Controller |
RideControl One ANT+, 5 power level plus auto mode |
||
Display |
ANT+ Wireless display compatible |
||
Battery |
500Wh capacity Integrated Panasonic cell, partner with Panasonic, EnergyPak 500 |
||
Sizes |
LDS: S, M, L |
||
Colors |
Color A: Indigo, Color B: Happy Mint |
||
Frame |
ALUXX aluminium, Low Step |
||
Fork |
ALUXX aluminium |
||
Shock |
- |
||
Handlebar |
TR49A-00S1, aluminium 20D sweep back, rise 50 mm, width: 720mm |
||
Grips |
Momentum dual compound |
||
Stem |
TDS-807-8 FOV 31.8 |
||
Seatpost |
Aluminium 30.9mm |
||
Saddle |
Selle Royal Essenza Relax A0A7 |
||
Pedals |
Anti-slip |
||
Shifters |
Shimano Nexus 7sp RevoShift |
||
Front Derailleur |
- |
||
Rear Derailleur |
- |
||
Brakes |
Tektro HD-M275, hydraulic disc, 160mm [F/R] |
||
Brake Levers |
Tektro HD-M275 |
||
Cassette |
18T |
||
Chain |
KMC Z1eHX NP/NP |
||
Crankset |
AlloyChain guard |
||
Bottom Bracket |
Steel 38T chain ring, 160mm |
||
Rims |
Momentum, 26 aluminum, e-bike optimized |
||
Hubs |
Shimano TX505 [F] Nexus 7 [R] |
||
Spokes |
Stainless steel |
||
Tires |
CST Metropolitan Palm Bay 26x2.35" |
||
Extras |
- |
||
Lighting |
Optional |
||
Lock |
- |
||
Carrier |
Optional front and/or rear |
||
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
S | M | L | ||
---|---|---|---|---|
A | Seat Tube Length (inch) | 15 | 16.9 | 18.7 |
B | Seat Tube Angle | 67.0° | 67.0° | 67.0° |
C | Top Tube Length (inch) | 23.6 | 24.4 | 25.2 |
D | Head Tube Length (inch) | 7.5 | 8.1 | 8.3 |
E | Head Tube Angle | 69.0° | 69.0° | 69.0° |
F | Fork Rake (inch) | 2 | 2 | 2 |
H | Wheelbase (inch) | 42.9 | 43.6 | 44.4 |
I | Chain Stay Length (inch) | 18.9 | 18.9 | 18.9 |
J | Bottom Bracket Drop (inch) | 1.8 | 1.8 | 1.8 |
K | Stack (inch) | 24.6 | 25.2 | 25.7 |
L | Reach (inch) | 13.2 | 13.7 | 14.3 |
M | Stand Over Height (inch) | 18.6 | 18.6 | 18.6 |
N | Handlebar Width (inch) | 28.3 | 28.3 | 28.3 |
O | Stem Length (inch) | 1.6 | 1.6 | 2.4 |
P | Crank Length (inch) | 6.5 | 6.5 | 6.5 |
Q | Wheel Size | 26 | 26 | 26 |
