Liv Mountain Bike Size Chart
| Height Range | |
| XX-Small | 4'9"-5'2" |
| X-Small | 5'-5'4" |
| Small | 5'2"-5'6" |
| Medium | 5'4"-5'10" |
| Large | 5'7"-6'0" |

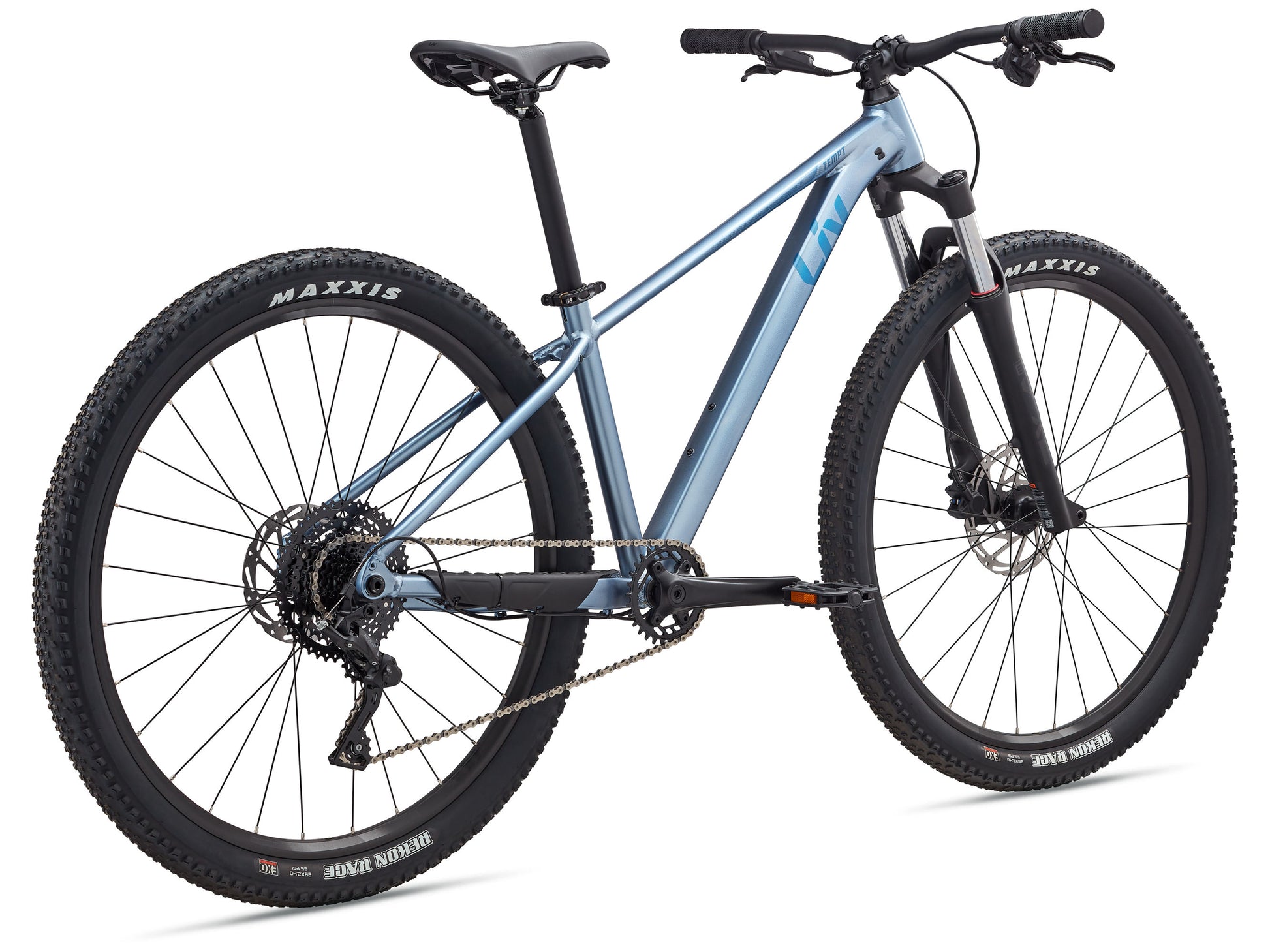

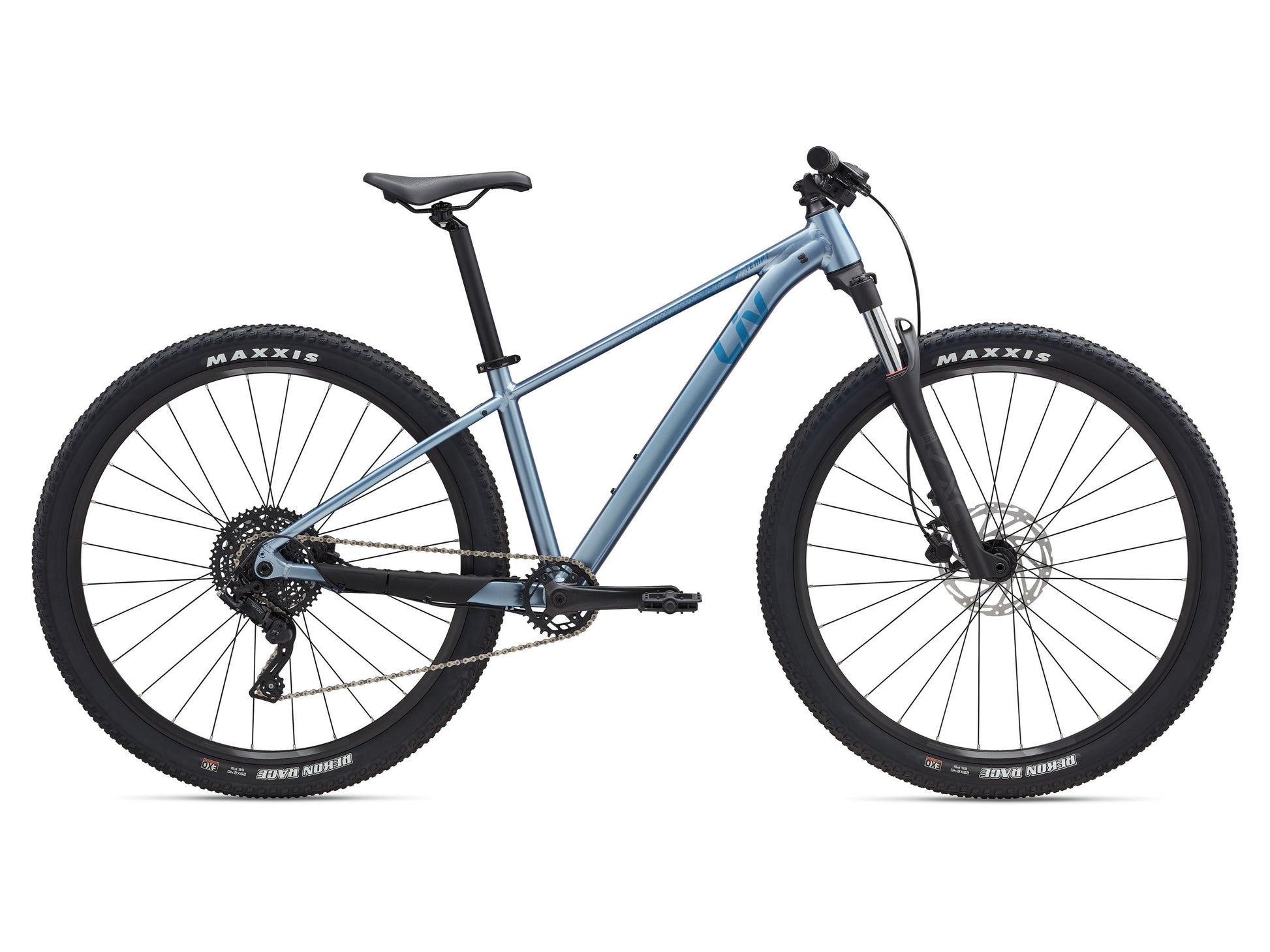

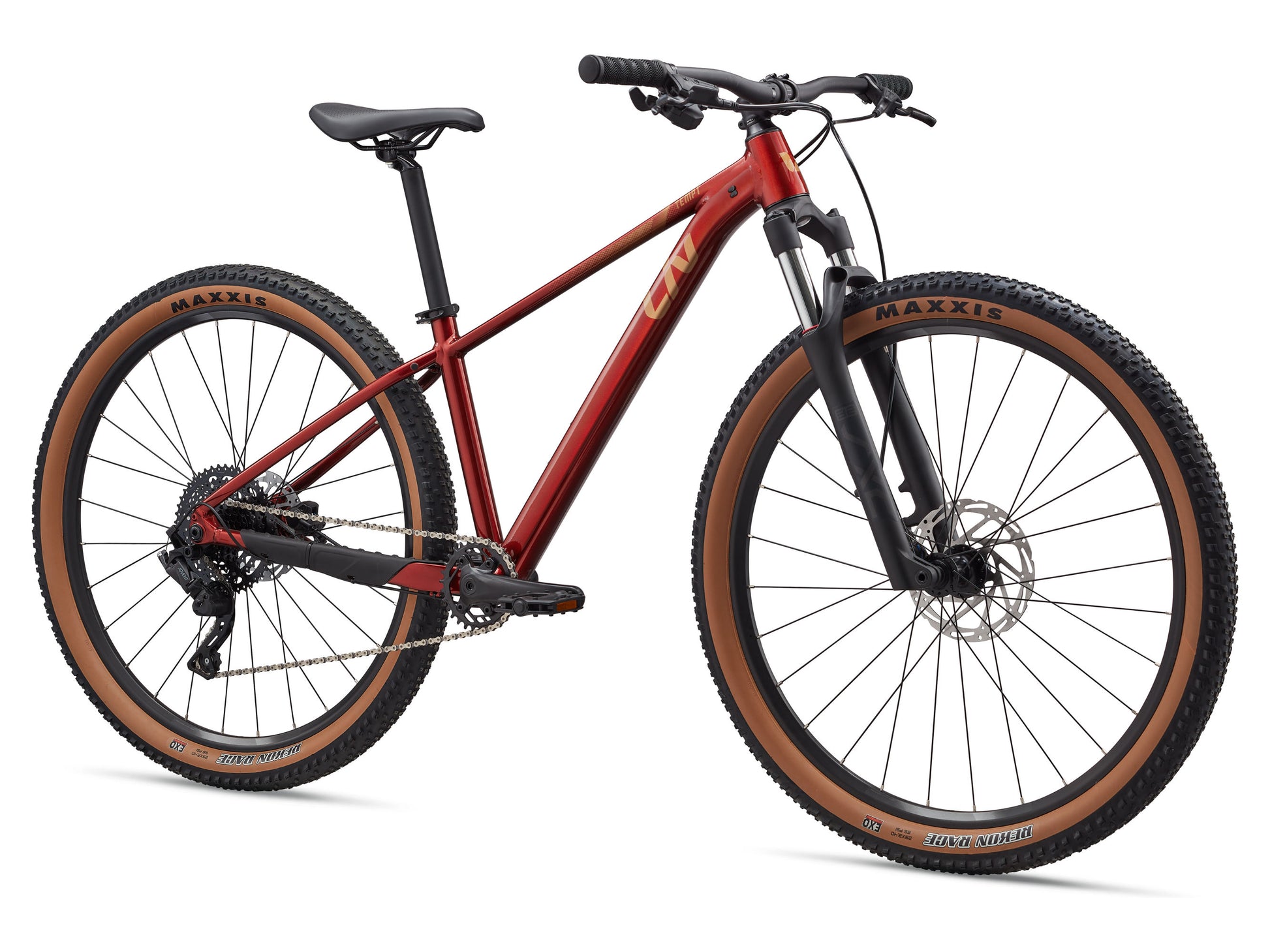

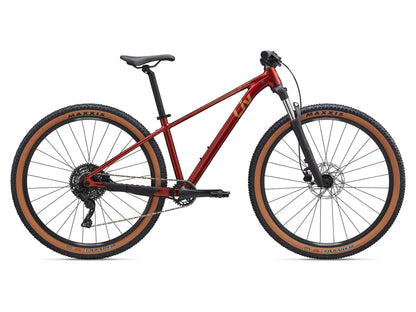

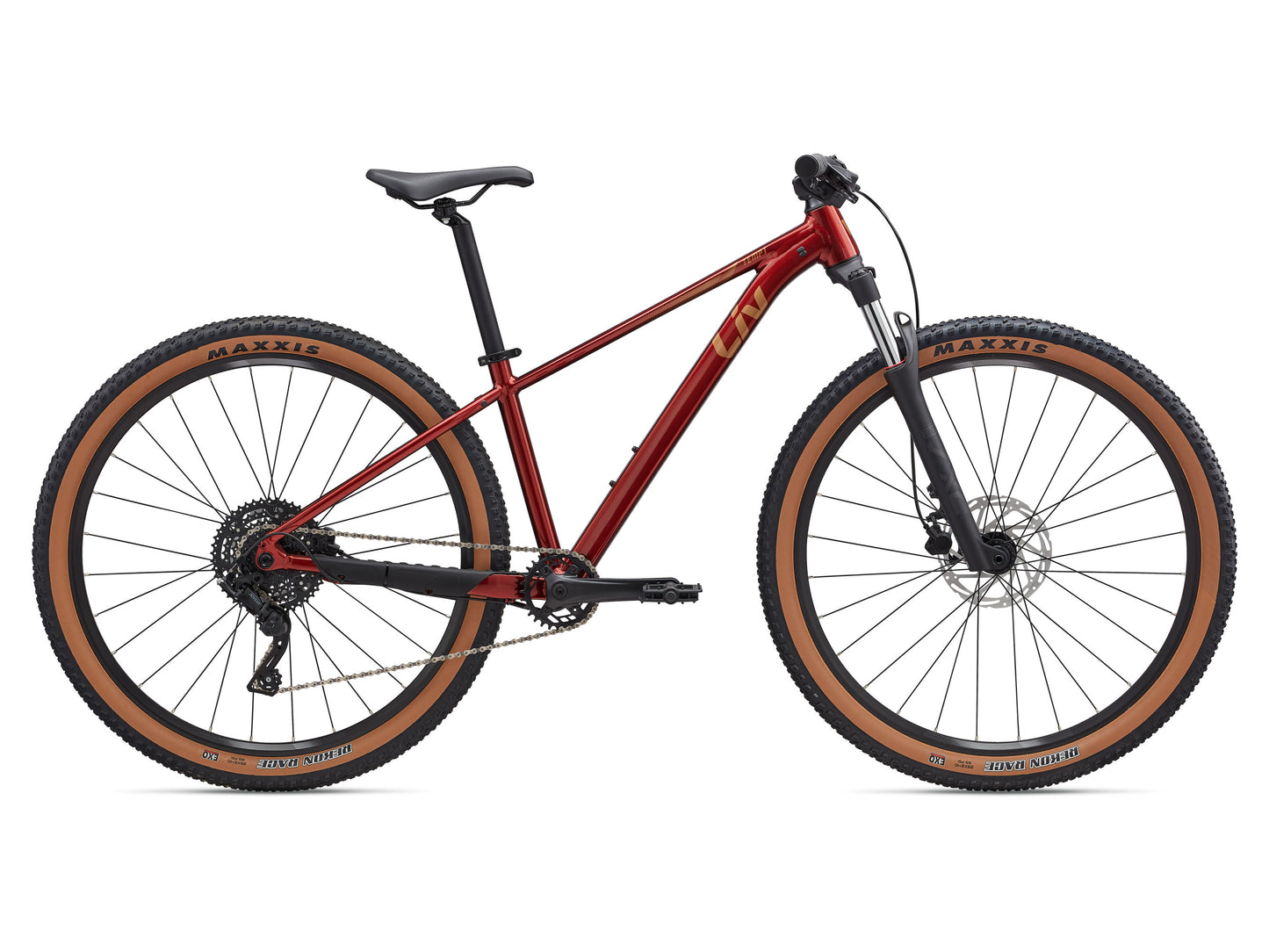

The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Modern MTB Design

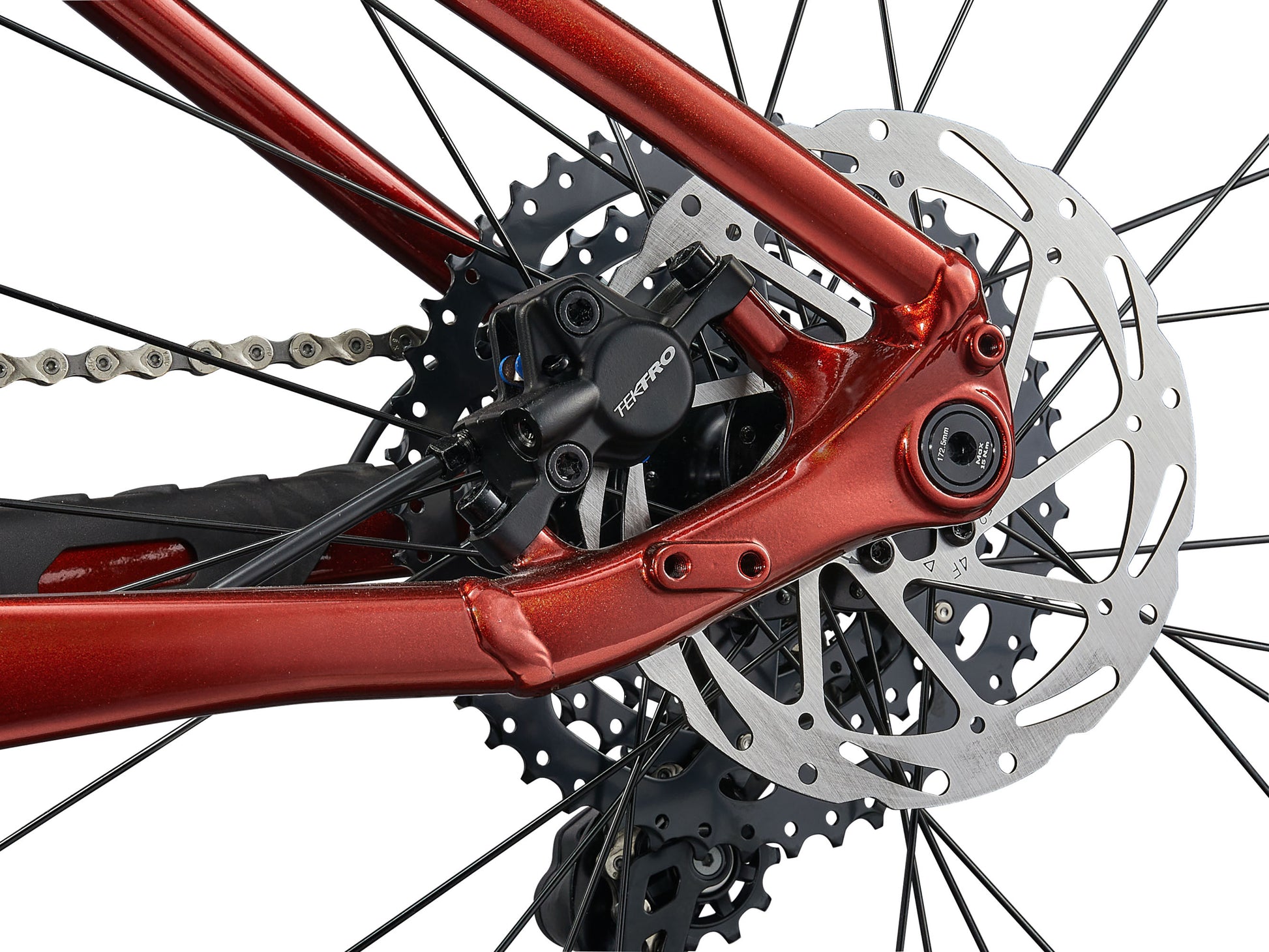

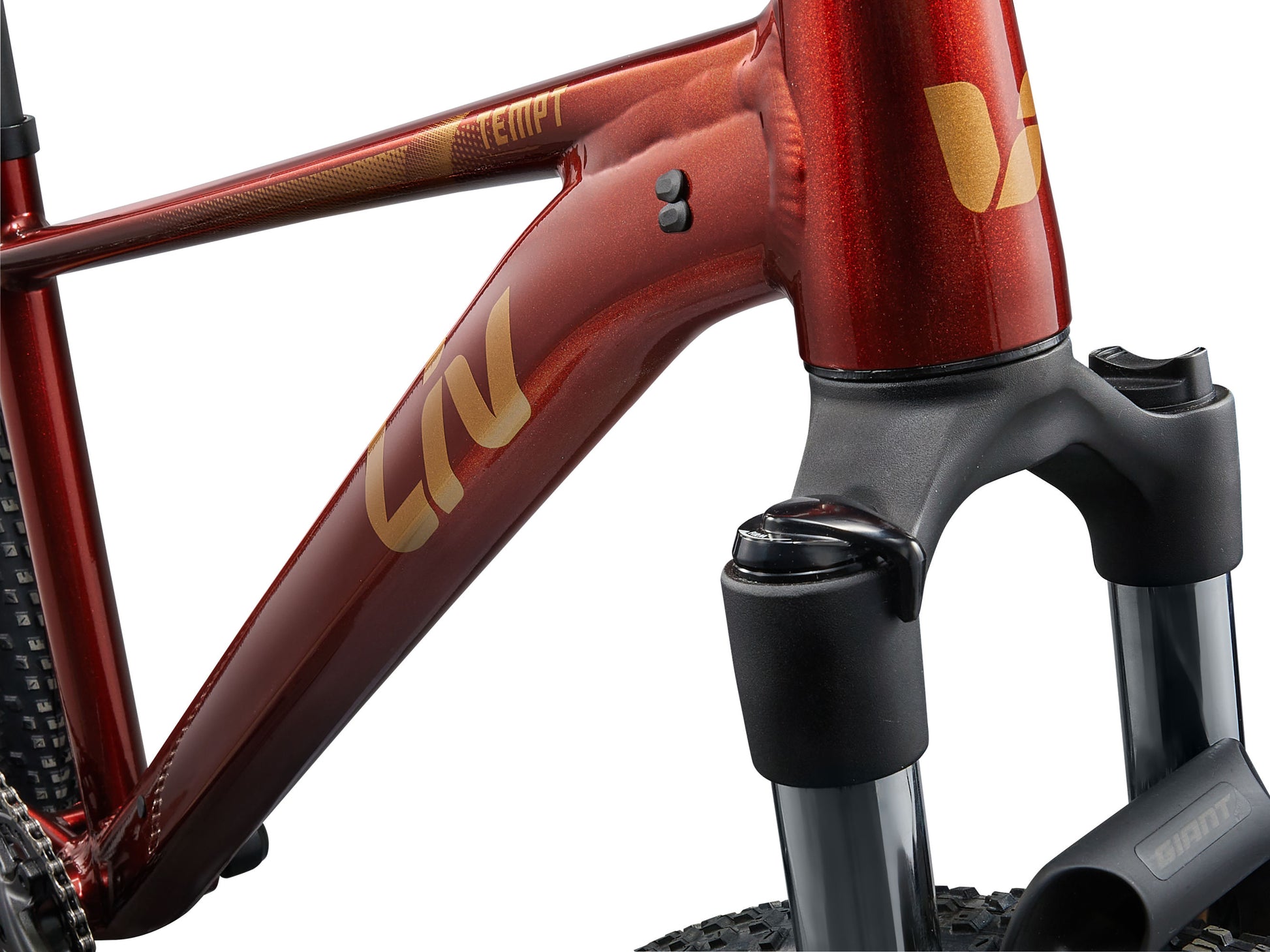

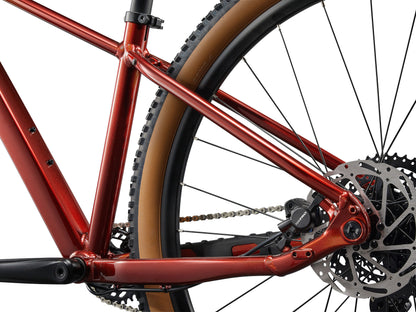

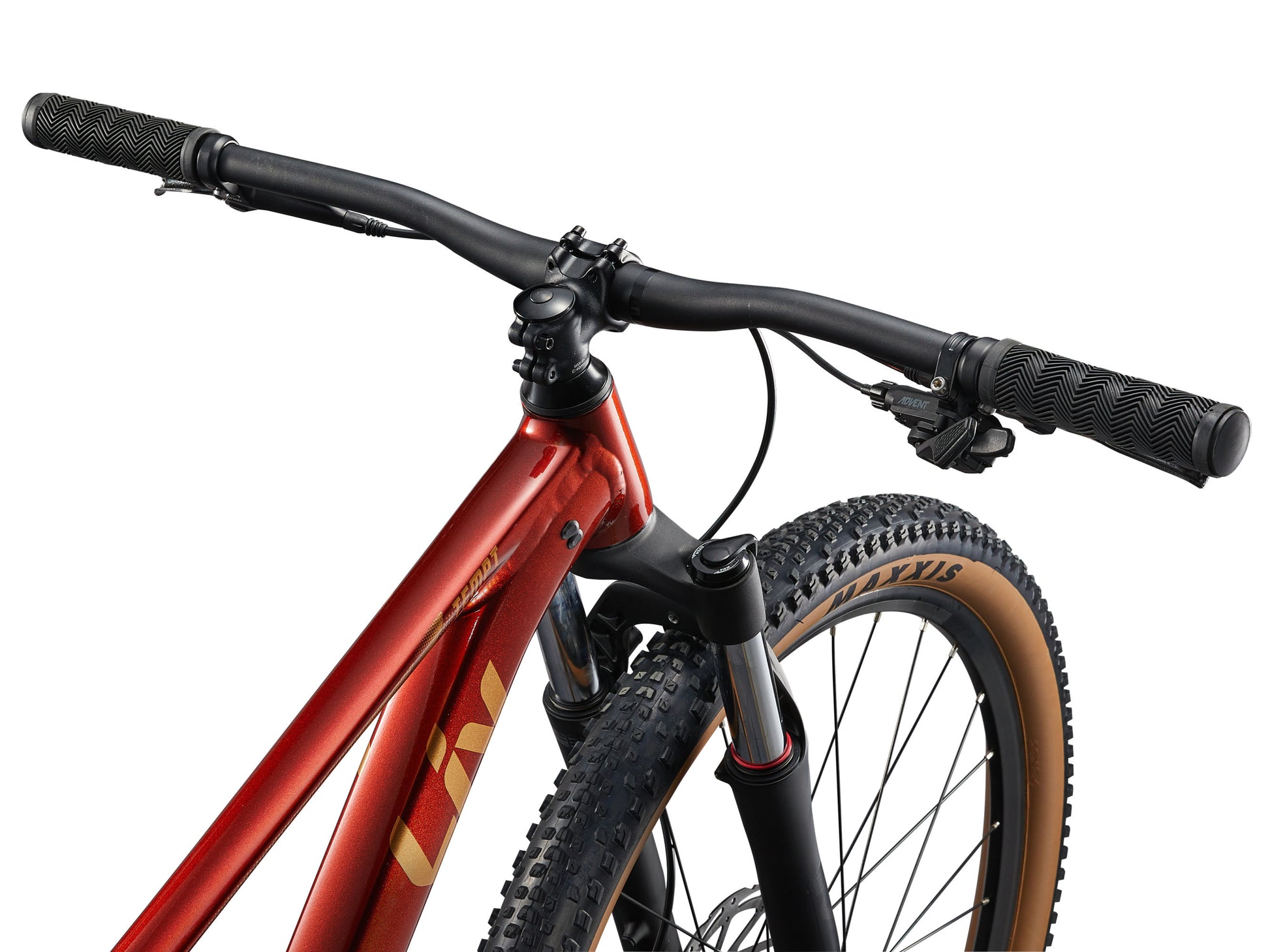

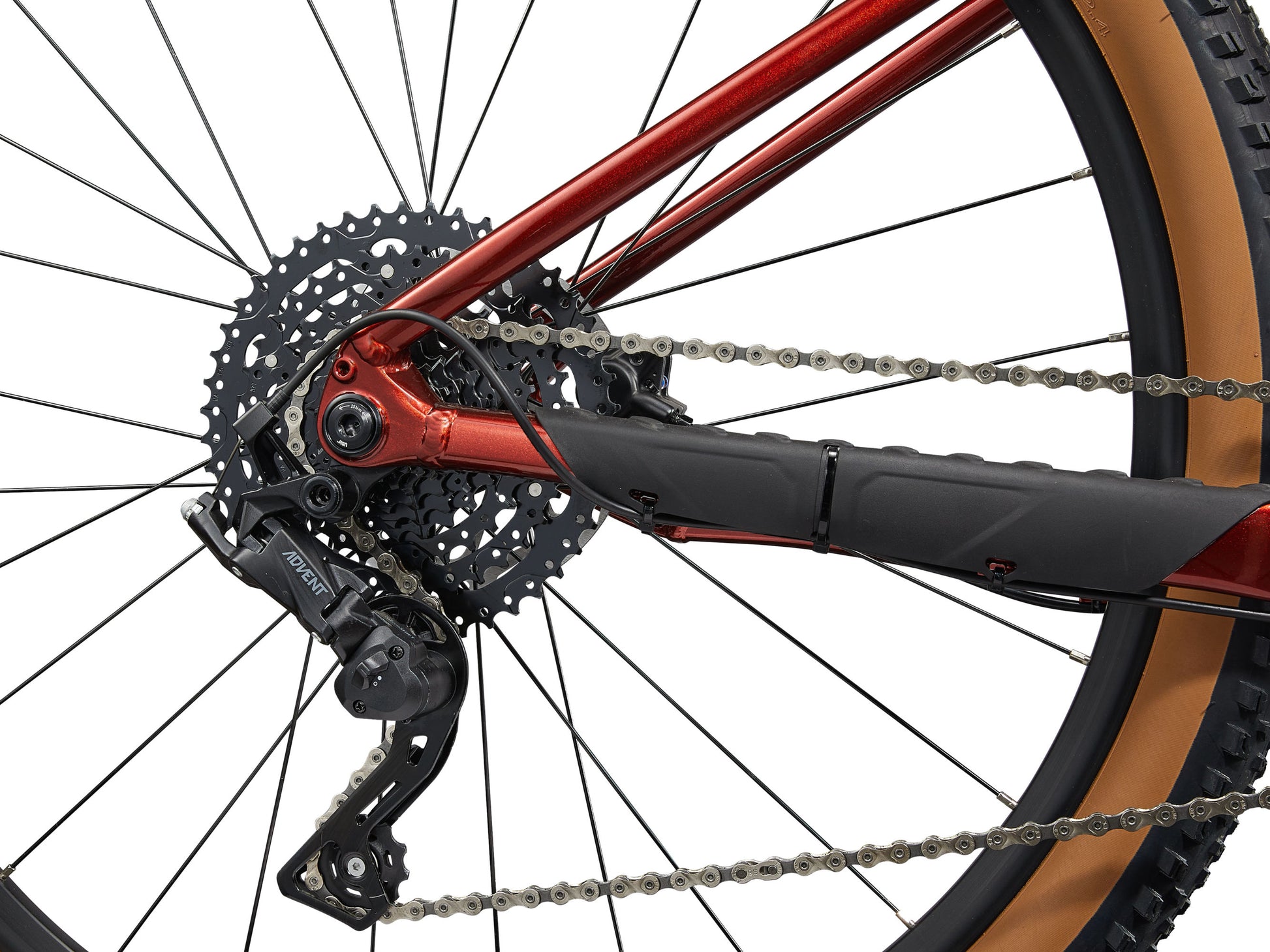

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable

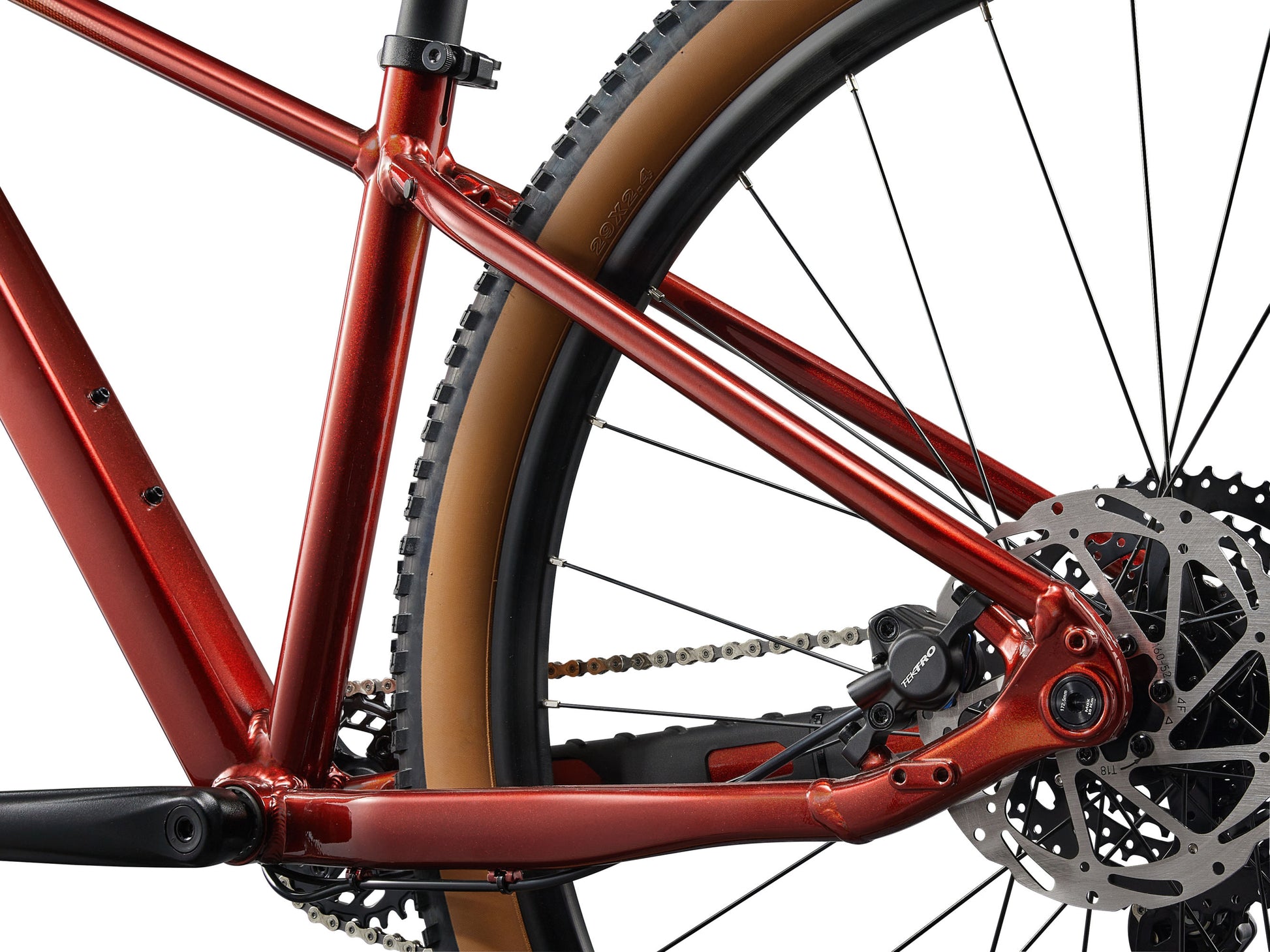

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
![ALUXX Aluminum Technology](http://bicyclewarehouse.com/cdn/shop/files/aluxxslr_500x.png?v=1715647704")
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
More Info| XS (27.5") | S (29") | M (29") | L (29") | |
|---|---|---|---|---|
| A Seat Tube Length (inch) | 13 | 15 | 16.1 | 17.7 |
| A1 Seat Post Insertion Depth (inch) | 11 | 13 | 14.2 | 8.7 |
| B Seat Tube Angle | 74.0° | 74.5° | 74.5° | 74.0° |
| C Top Tube Length (inch) | 21.2 | 22.5 | 23.6 | 24 |
| D Head Tube Length (inch) | 3.5 | 3.5 | 3.9 | 4.1 |
| E Head Tube Angle | 67.0° | 67.5° | 67.5° | 68.5° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 2 |
| G Trail (inch) | 4.1 | 4.3 | 4.3 | 3.7 |
| H Wheelbase (inch) | 42.5 | 44.4 | 45.6 | 45.7 |
| I Chain Stay Length (inch) | 17.3 | 17.9 | 17.9 | 17.9 |
| J Bottom Bracket Drop (inch) | 1.8 | 2.2 | 2.2 | 2.2 |
| K Stack (inch) | 21.6 | 23.3 | 23.7 | 24 |
| L Reach (inch) | 15 | 16 | 17 | 17.1 |
| M Stand Over Height (inch) | 26.8 | 27.1 | 27.9 | 29.8 |
| N Handlebar Width (inch) | 27.2 | 29.5 | 29.5 | 29.5 |
| O Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P Crank Length (inch) | 6.5 | 6.7 | 6.7 | 6.9 |
| Q Wheel Size | 27.5" | 29" | 29" | 29" |
