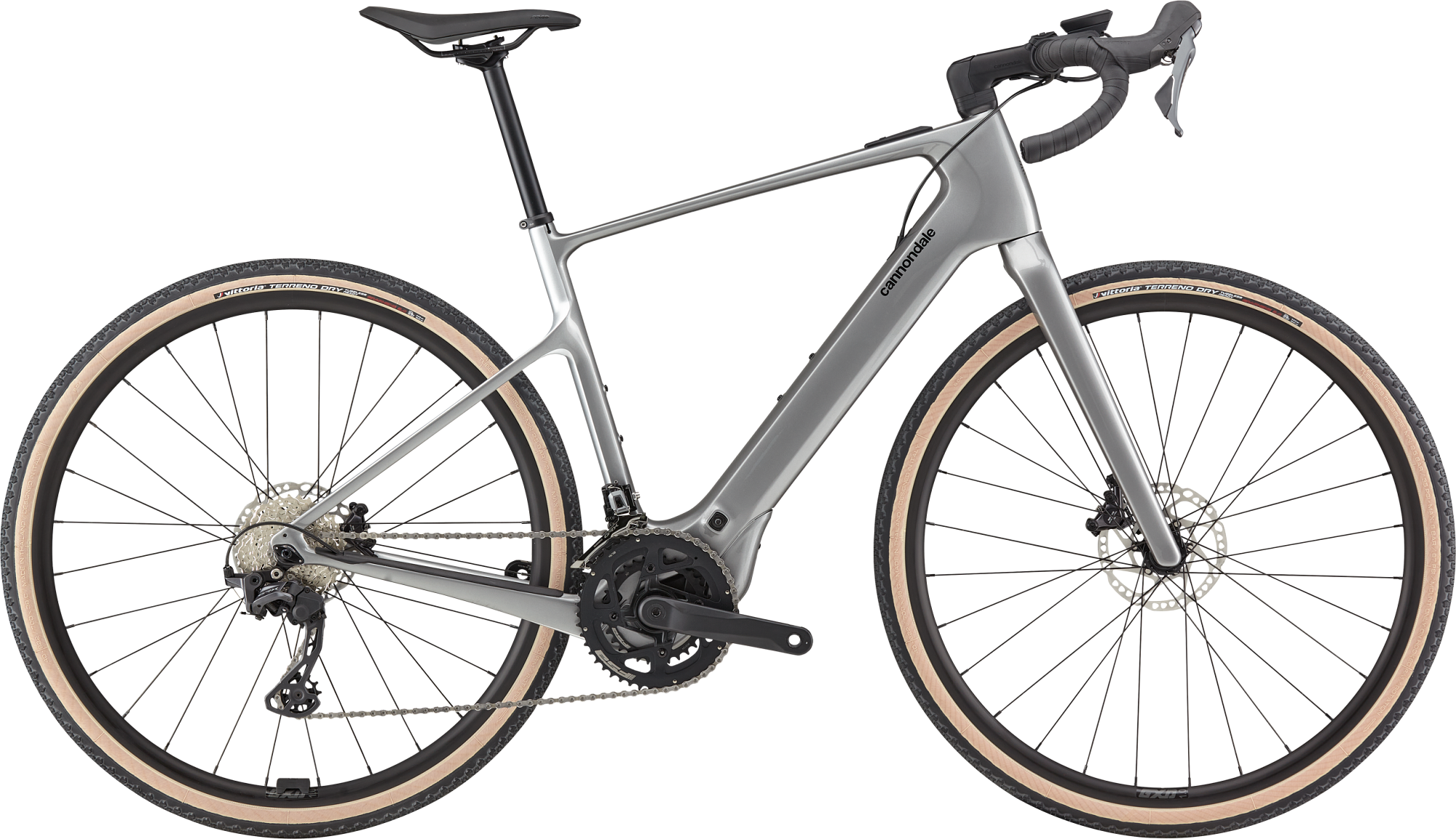

Synapse Neo Allroad 2
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

All Roads Are Yours

With a powerful electric drive unit and features for comfort, durability, and practicality, all roads are yours on Synapse Neo Allroad.

Model Description

Made for the road ahead – no matter what that road's made of. The Synapse Neo Allroad 2 gravel bike is made with a light, durable carbon frameset, an ultra-reliable Shimano GRX mechanical drivetrain, a Bosch Performance Line Sprint e-motor, and tough, grippy 40mm tires, so you can roll with confidence over any road, anywhere. It’s practical, too, with mounts for fenders, a rear rack, and even a kickstand.

What it's for

Exploring the backroads with speed and comfort, spirited gravel rides, taking the road less travelled.

Highlights

  • Lightweight carbon-fiber construction and proven endurance race geometry.
  • Rugged wheels with Vittoria 700x40c gravel endurance tires deliver confidence and grip, on pavement or off.
  • Bosch Performance Line Sprint motor offers an ideal combination of low weight and smooth power, delivering up to 55 Nm of torque and 600 watts of assist all the way up to 28 mph.
  • Integrated 400Wh battery offers serious range for long rides, and keeps the weight low for a lively ride-feel.
  • Shimano’s gravel-specific GRX 800 group delivers smooth shifting, reliable braking, and the excellent cadence control of a 2x12-speed set-up.
  • Flared drop-bars with a Conceal internal-routing stem deliver comfort and control over all kinds of road surfaces.

Cannondale

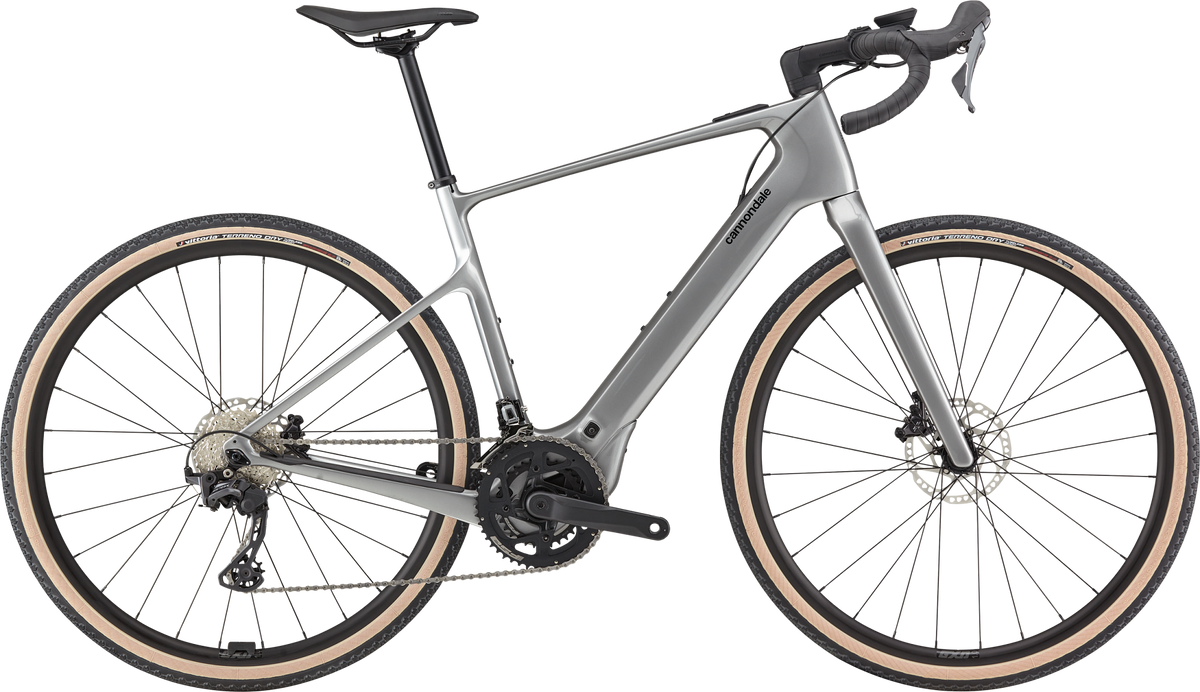

Synapse Neo Allroad 2

$6,049.00

Size Guide

Jump to: MOUNTAIN | GRAVEL | ROAD | ELECTRIC | FITNESS

Mountain Bikes

Trail

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'3" - 5'8"
160 - 172
  5'7" - 6'0"
170 - 182 		  5'11" - 6'3"
180 - 190
XS S M L XL

Trail Women's

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182
XS S M L

Trail SE

5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182 		  6'0" - 6'3"
182 - 190
S M L XL

Habit, Habit HT

5'0" - 5'2"
142 - 157
 5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
XS S M L XL

Scalpel, Scalpel SE, Scalpel HT

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Jekyll

5'2" - 5'5"
157 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Moterra, Moterra LT, Moterra SL

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'1"
172 - 185 		  6'0" - 6'5"
182 - 195
S M L XL

Gravel

Topstone, Topstone Carbon

4'10" - 5'5"
147 - 165		 5'3" - 5'9"
160 - 175		 5'7" - 6'1"
170 - 185		  5'10" - 6'4"
177 - 193		  6'0" - 6'8"
182 - 203
XS

 S M L XL

SuperSix EVO SE, SuperSix EVO CX

5'0" - 5'4"
152 - 162
 5'5" - 5'9"
165 - 175
 5'7" - 5'11"
170 - 180
  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
46cm

 51cm 54cm 56cm 58cm

Road

Synapse

5'0 - 5'4"
152 - 162
 5'2" - 5'6"
157 - 167 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
175 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'8"
190 - 203
44cm 48cm
 		 51cm 54cm 56cm 58cm 61cm

SuperSix Evo

5'1 - 5'5"
154 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'7"
190 - 200
44cm
48cm
 		 51cm 54cm 56cm 58cm 61cm

SystemSix

5'3 - 5'7"
160 - 170
 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		 5'10" - 6'2"
177 - 187 		  6'10" - 6'4"
182 - 193		  6'2" - 6'6"
187 - 198 		 6'5" - 6'9"
195 - 205
47cm 51cm
 		 54cm 56cm 58cm 60cm 62cm

CAAD Optimo

5'2" - 5'5"
157 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
44cm 48cm
 		 51cm 54cm 56cm 58cm

CAAD13

5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'4" - 5'9"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'2" - 6'6"
187 - 198
48cm
 		 51cm 54cm 56cm 58cm
60cm

Fitness, Urban & Comfort

Adventure, Adventure EQ

4'11" - 5'6"
149 - 167		 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187
S M L

Quick, Quick Women's, Quick Remixte

4'10 - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170 		 5'5" - 5'10"
165 - 177 		 5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
XS S
 		 M L XL XXL

Quick CX

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
 5'9" - 6'2"
175 - 187
  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
S

 M L XL XXL

Quick CX Women's

4'10" - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170
  5'5" - 5'10"
165 - 177
XS S M

Bad Boy

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195
S M L XL

Treadwell, Treadwell EQ

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L

Treadwell Remixte, Treadwell EQ Remixte

4'11" - 5'6"
149 - 167
  5'4" - 6'0"
162 - 182
S L

Electric

Adventure Neo, Adventure Neo EQ

4'11" - 5'7"
149 - 170
  5'7" - 6'6"
170 - 198
S L

Adventure Neo Allroad, Adventure Neo Allroad Low StepThru

5'0" - 5'7"
152 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'5"
175 - 195
S M L

Compact Neo

4'5" - 6'1"
134 - 185
OS

Tesoro Neo SL, Tesoro Neo SL Remixte

5'4" - 5'8"
162 - 172
 5'7" - 6'0"
170 - 182
  6'0" - 6'3"
182 - 190
S M L

Treadwell Neo, Treadwell Neo Remixte

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: C67134U10SM

All Roads Are Yours

With a powerful electric drive unit and features for comfort, durability, and practicality, all roads are yours on Synapse Neo Allroad.

Model Description

Made for the road ahead – no matter what that road's made of. The Synapse Neo Allroad 2 gravel bike is made with a light, durable carbon frameset, an ultra-reliable Shimano GRX mechanical drivetrain, a Bosch Performance Line Sprint e-motor, and tough, grippy 40mm tires, so you can roll with confidence over any road, anywhere. It’s practical, too, with mounts for fenders, a rear rack, and even a kickstand.

What it's for

Exploring the backroads with speed and comfort, spirited gravel rides, taking the road less travelled.

Highlights

  • Lightweight carbon-fiber construction and proven endurance race geometry.
  • Rugged wheels with Vittoria 700x40c gravel endurance tires deliver confidence and grip, on pavement or off.
  • Bosch Performance Line Sprint motor offers an ideal combination of low weight and smooth power, delivering up to 55 Nm of torque and 600 watts of assist all the way up to 28 mph.
  • Integrated 400Wh battery offers serious range for long rides, and keeps the weight low for a lively ride-feel.
  • Shimano’s gravel-specific GRX 800 group delivers smooth shifting, reliable braking, and the excellent cadence control of a 2x12-speed set-up.
  • Flared drop-bars with a Conceal internal-routing stem deliver comfort and control over all kinds of road surfaces.
SPECIFICATIONS

Core Identity

  • Platform: Synapse Neo Allroad
  • Model Name: Synapse Neo Allroad 2
  • Model Code: C67134U

E-System

  • Drive Unit: Bosch Performance Line Sprint (Class 3, 28 mph).
  • Battery: Bosch Compact Powertube 400Wh.
  • Display: Bosch Kiox 300.
  • Charger: Bosch 2A.
  • Certifications: UL 2849.

Frameset

  • Frame: Synapse Neo Carbon, internal battery, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc.
  • Fork: Synapse Neo Carbon, $1\text{-}1/8"$ to $1.5"$ Delta steerer, internal routing, $12 \times 110\text{mm}$ thru-axle.
  • Headset: Integrated, $1\text{-}1/8" \text{ to } 1.5"$.

Drivetrain

  • Rear Derailleur: Shimano GRX 820, Shadow RD+.
  • Front Derailleur: Shimano GRX 820, braze-on.
  • Shifters: Shimano GRX 800, 12-speed.
  • Crank: FSA Bosch E-Bike, Boost 48/32.
  • Rear Cogs: Shimano 105, 11-34, 12-speed.
  • Chain: Shimano 105, 12-speed.

Brakes

  • Brakes: Shimano GRX 800 hydraulic disc.
  • Rotors: 160/160mm RT64 rotors.
  • Brake Levers: Shimano GRX 800 hydraulic disc.

Wheels & Tires

  • Rims: Cannondale GXD10, alloy double-wall, 28h.
  • Tires: Vittoria Terreno Dry, $700 \times 40\text{c}$, tubeless ready.
  • Hubs: (F) Formula sealed cartridge, $12 \times 110\text{mm}$ / (R) Formula sealed cartridge, $12 \times 148\text{mm}$.
  • Spokes: Stainless Steel, 14g.

Components

  • Handlebar: Butted 6061 alloy, $20^\circ$ flare drop.
  • Stem: Cannondale C1 Conceal, Alloy, $31.8\text{mm}$, $-6^\circ$.
  • Grips: Fabric Knurl tape, 3mm.
  • Saddle: Fizik Terra Argo X5, 150mm width, S-alloy rails.
  • Seatpost: Cannondale 3, 6061 Alloy, $27.2\text{mm}$ (XS-S: 350mm / M-XL: 400mm).

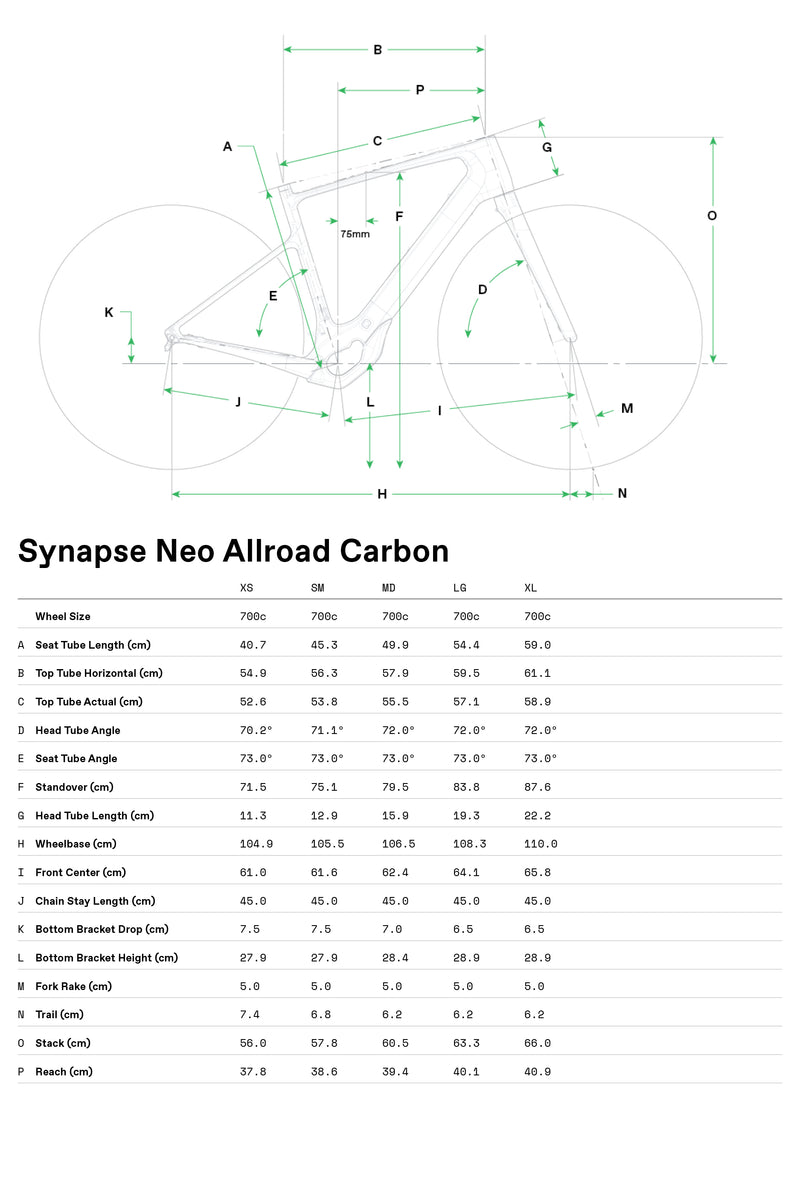

GEOMETRY
