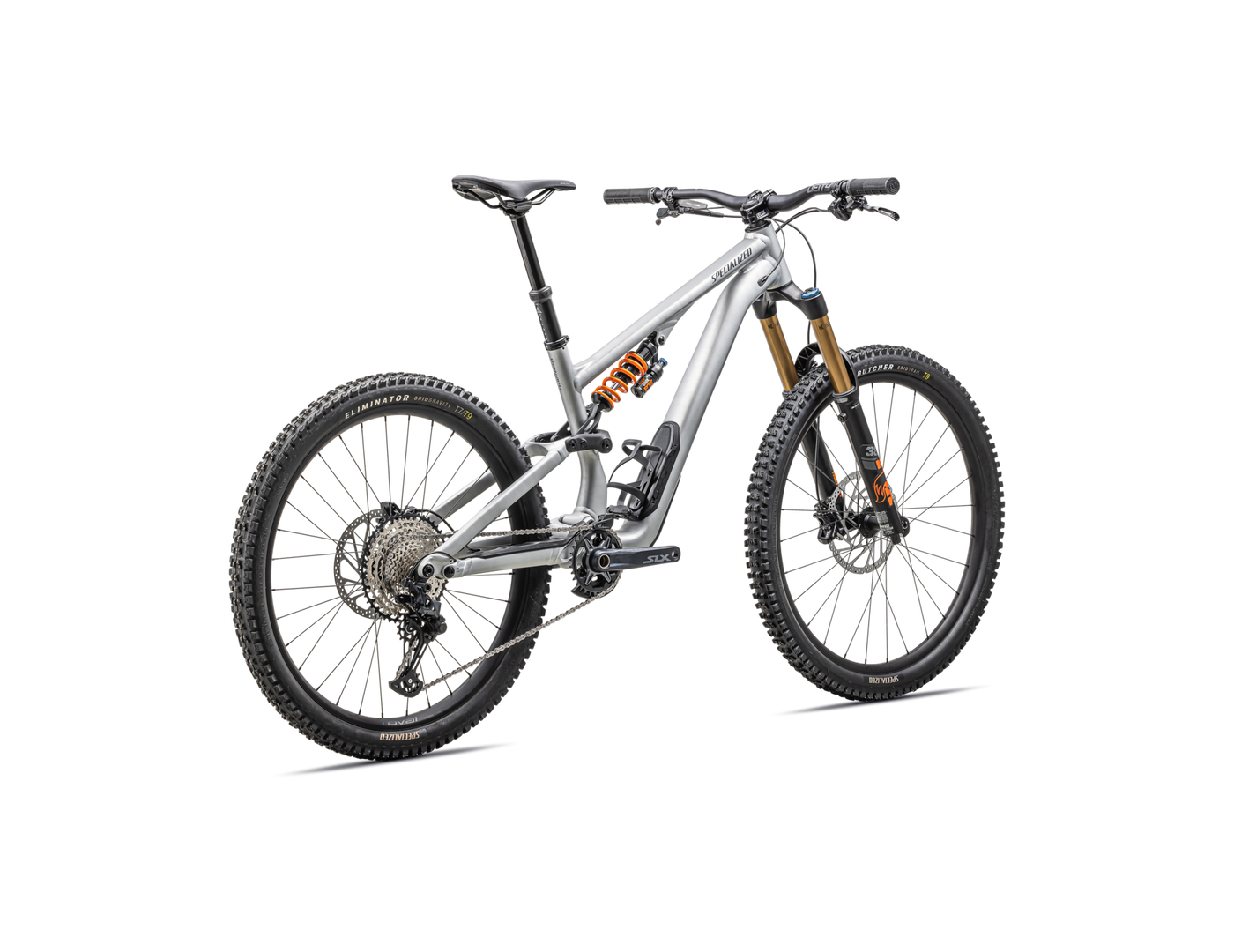

Introducing the Stumpjumper 15 Alloy, designed to eliminate all compromises on the trail. Its big bike capabilities allow it to easily handle bumps, while providing short-travel control, playfulness, and efficiency. Plus, with the ability to personalize, this bike is perfect for you - the rider who truly matters.
KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 Alloy balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15 Alloy, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.
HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY: The Stumpjumper 15 Alloy seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style and any terrain. The head angle and bottom bracket can be fine-tuned for stability or clearance.
FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the M5 Alloy chassis—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.
WHEEL SIZE: All coil-sprung models come with mixed wheels.
WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL: SWAT on Stumpjumper 15 elevates downtube storage, an innovation we pioneered.
MORE RELENTLESS THAN YOU: Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and programs to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner is just one way we've got you covered.
- All-new M5 alloy frame with SWAT door integration
- Roval Traverse alloy wheels with DT Swiss hubs

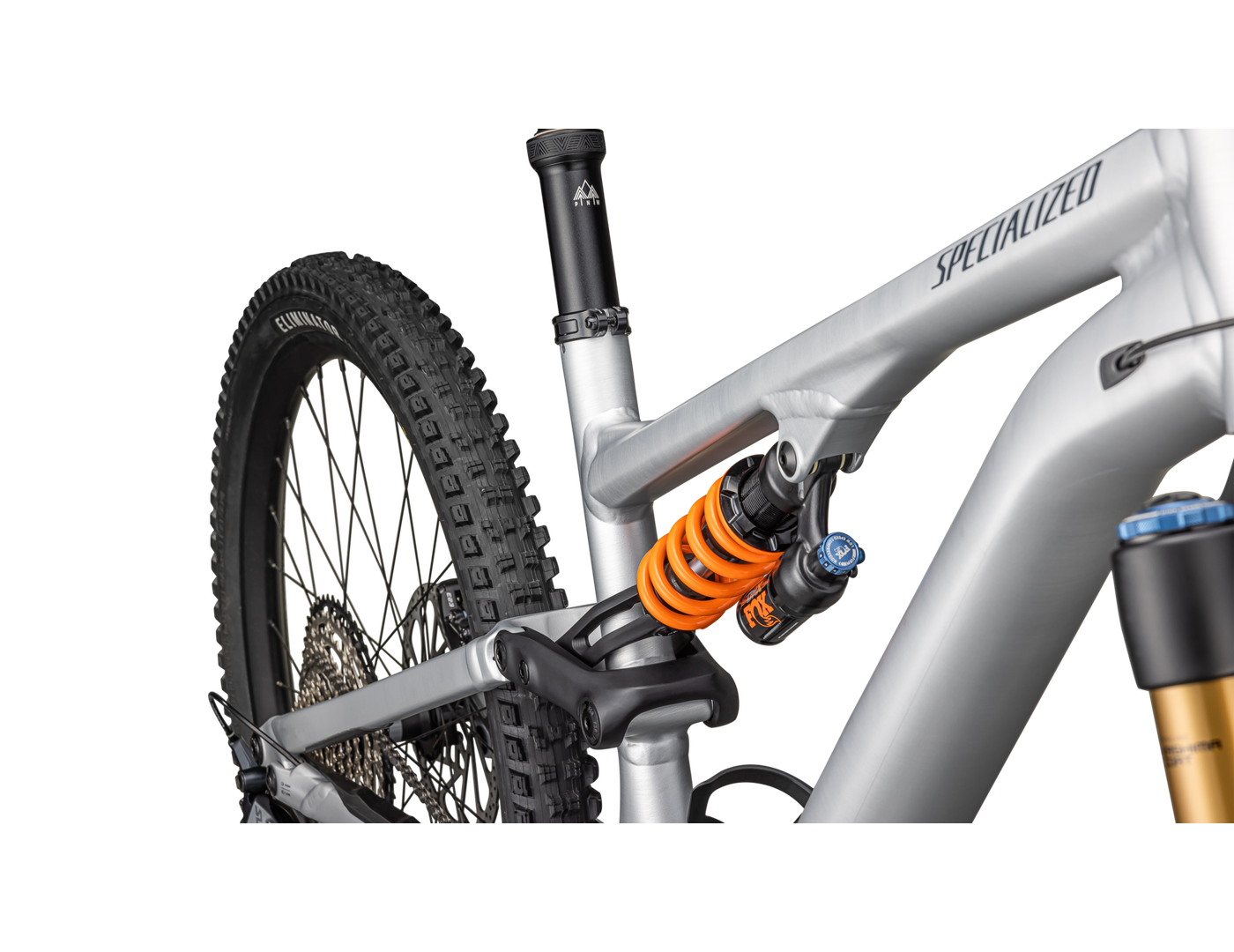

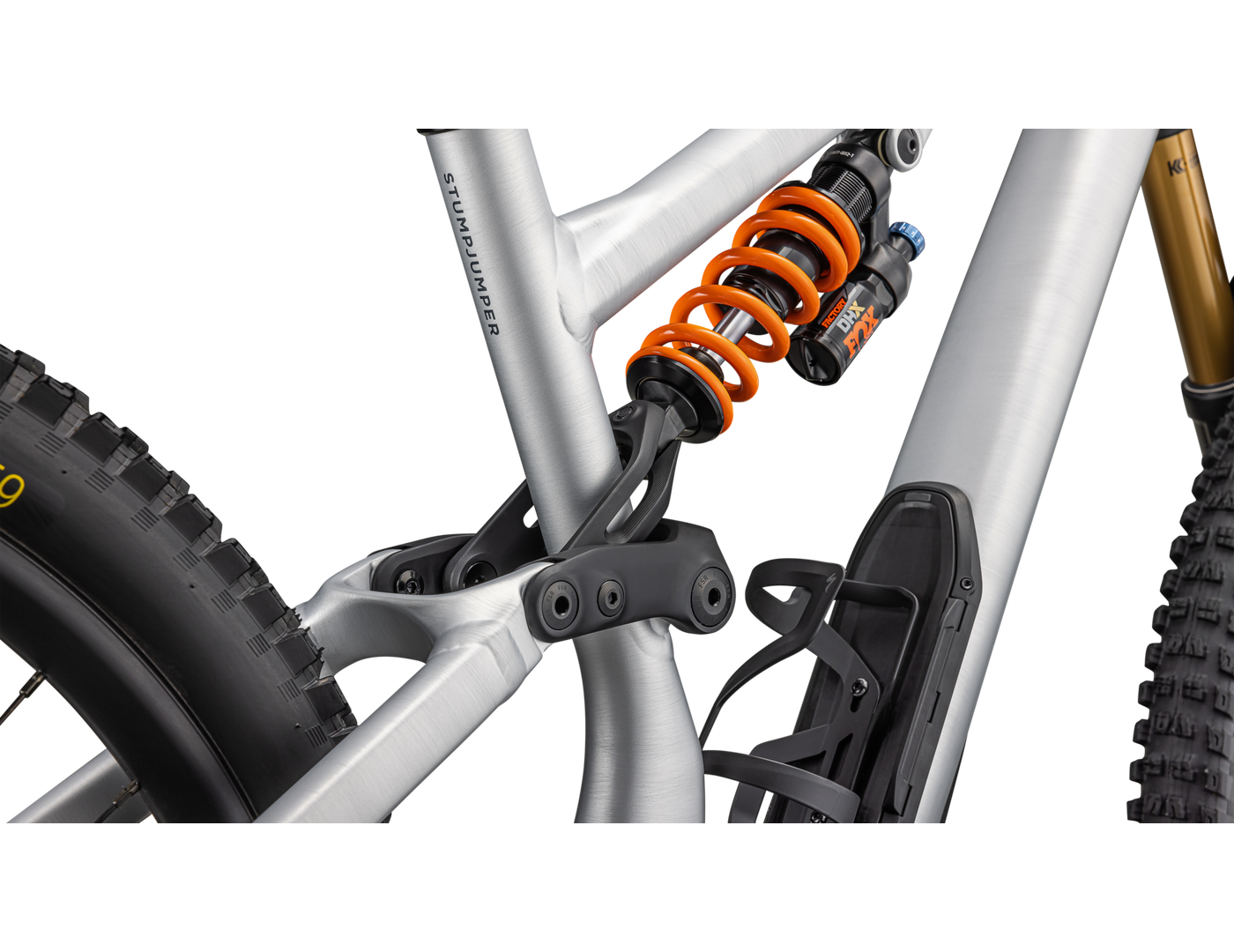

- Ride Dynamics Tuned FOX DHX Factory coil shock
- Beefy FOX FLOAT 38 Factory fork with GRIP X2 damper
- Performance-focused and durable Shimano SLX drivetrain
- Big stopping power from TRP Trail EVO 4-piston brakes
- Adjustable travel PNW LOAM dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
![SWAT](http://bicyclewarehouse.com/cdn/shop/files/swat-frame-storange_1_500x.png?v=1715716301")
SWAT
With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Handlebar Width | 810 | 810 | 810 | 810 | 810 |
| Stem Length | 35 | 35 | 35 | 35 | 35 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 150 | 170 | 200 | 200 | 200 |
| Stack | 621 | 630 | 644 | 657 | 671 |
| Reach | 420 | 445 | 470 | 495 | 525 |
| Headtube Length | 100 | 110 | 125 | 140 | 155 |
| Headtube Angle | 64 | 64 | 64 | 64 | 64 |
| BB Height | 340 | 340 | 340 | 340 | 340 |
| BB Drop | 35 | 35 | 35 | 35 | 35 |
| Trail | 134 | 134 | 134 | 134 | 134 |
| Fork Length (full) | 573 | 573 | 573 | 573 | 573 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 755 | 785 | 816 | 848 | 884 |
| Chainstay Length | 432 | 432 | 432 | 442 | 442 |
| Wheelbase | 1186 | 1216 | 1247 | 1288 | 1325 |
| Top-tube Length (horizontal) | 574 | 596 | 625 | 649 | 678 |
| Bike Standover Height | 751 | 745 | 745 | 745 | 751 |
| Seat Tube Length | 385 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76.5 | 76.5 | 76 | 76 | 76 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 245 | 255 | 255 | 285 | 285 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
