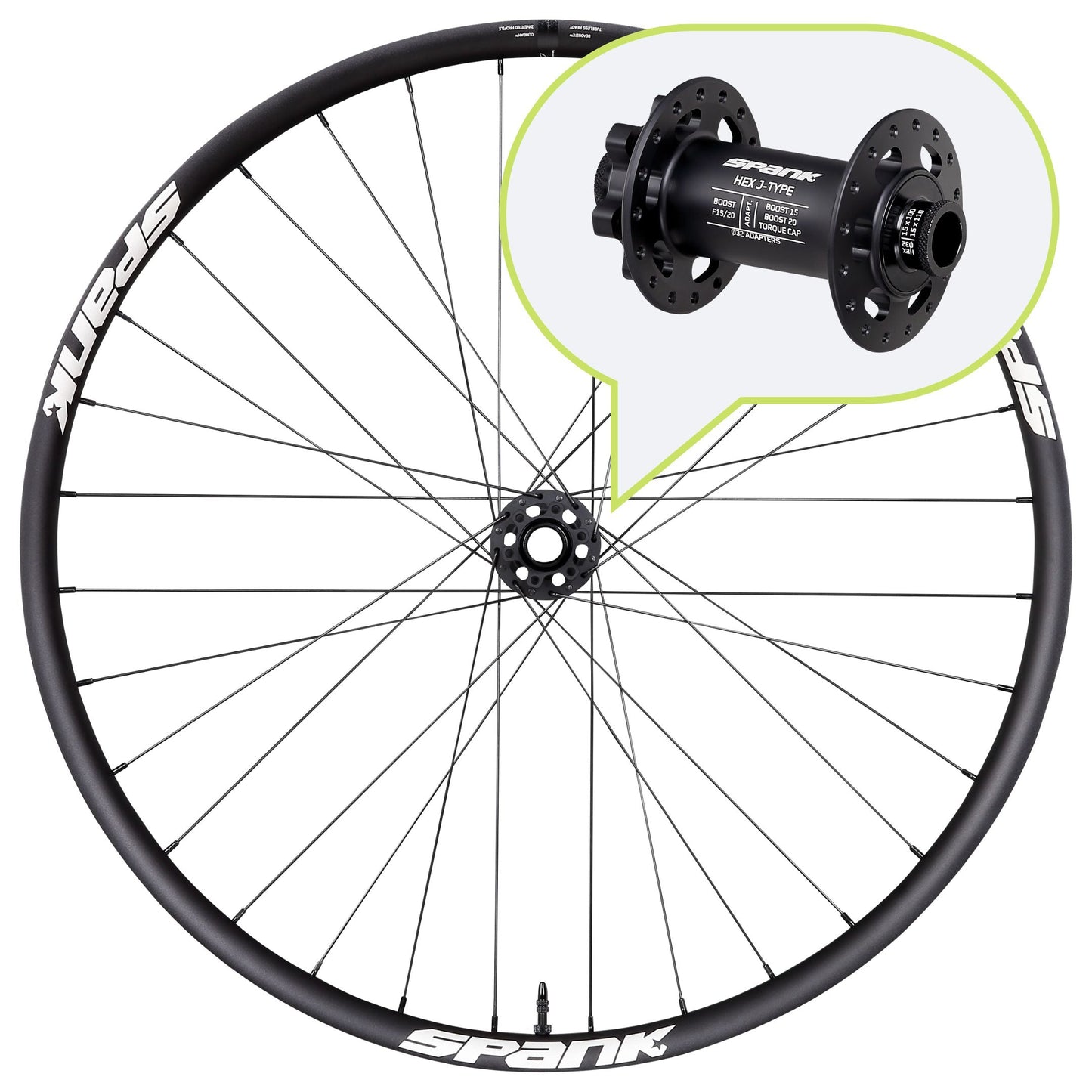

Spank SPIKE Race 33 27.5" Front Wheel
Spank SPIKE Race 33 27.5" Front Wheel
Regular price
$269.99
Regular price
$269.99
Sale price
$269.99
Unit price
per
Couldn't load pickup availability
FEATURES
- A high-performance alloy rim designed for freeride, enduro and downhill race use
- Tubeless-ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
- 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shot peen finish to increase fatigue life and make it more durable
REAR WHEELS TO PAIR WITH:
| SPIKE RACE 33 |
|---|
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" | HEX J TYPE | 20x110 | - | 32H | 15x100 | 845g | 529++ | 559x28 | R-258 | L-256 |
| 27.5" | HEX J TYPE | 20x110 | - | 32H | 15x100 | 887g | 554++ | 584x28 | R-269 | L-267 |
| HEX J TYPE | BOOST 15x110 | BOOST | 32H | BOOST 20x110 | 899g | 554++ | 584x28 | R-269 | L-267 | |
| 29" | HEX J TYPE | 20x110 | - | 32H | 15x100 | 923g | 591++ | 622x28 | R-288 | L-286 |
| HEX J TYPE | BOOST 15x110 | BOOST | 32H | BOOST 20x110 | 936g | 591++ | 622x28 | R-288 | L-286 |
COMPATIBLE ADAPTERS FOR SPANK HEX J-TYPE FRONT HUBS
| Boost F15/20 | |
|---|---|
| F15/20 | |
| All Hex J-Type Front Hubs | |
| |
COMPATIBLE SERVICE KITS FOR SPANK HEX J-TYPE FRONT HUBS
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| ✔ | ✔ | - | ✔ |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| ✔ | - | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline. (See Hex Drive Service Parts)
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | ✔ | ✔ | ✔ |
| Medium Impact | ✔ | ✔ | ✔ |
| Light impact | ✔ | ✔ | ✔ |
RIM SPECIFICATIONS
| HOLE COUNT: | 32 |
|---|---|
| INNER WIDTH (mm): | 28 |
| OUTER WIDTH (mm): | 33 |
| PROFILE HEIGHT: | 22 |
| TYRE FIT | 1.9" to 2.5" |
BUILD SPECIFICATIONS
| BUILD: | Handbuilt |
|---|---|
| HUB: | SPANK HEX J-TYPE |
| SPOKES: | J-Hook, tripple butted 2.2/1.8/2.0 |
| NIPPLES: | Brass external |
| LACING: | 3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
SKU:WHE6022
