Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

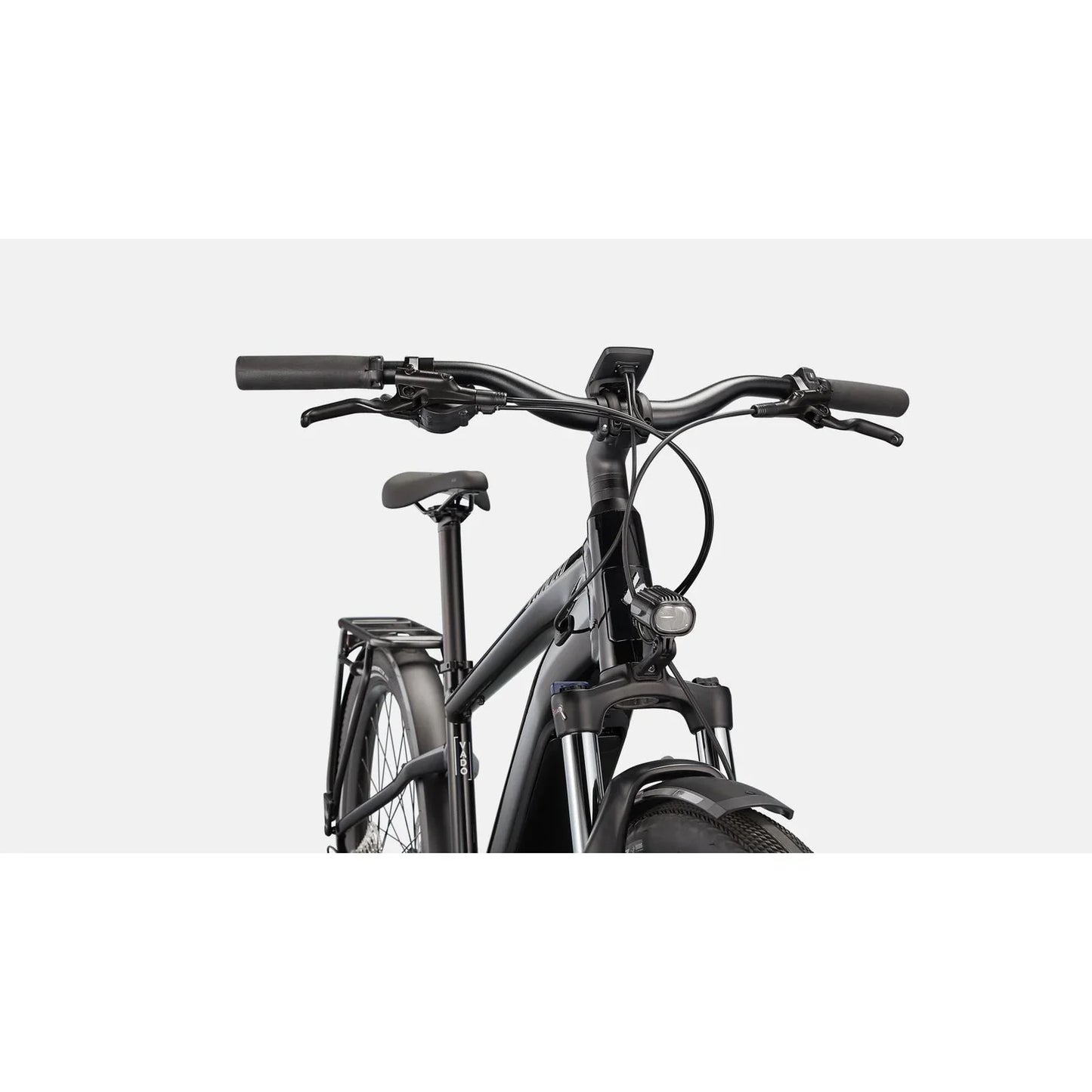

Introducing the Specialized Turbo Vado 3.0 Active Electric Bike – your turbocharged ticket to transportation awesomeness! Picture this: you, zooming through life with the flair of a Rockstar, powered by a bike that's more than just electric; it's electrifying. The Turbo Vado 3.0 isn't just a bike; it's your trusty sidekick, your speed-demon partner, and your gateway to high-performance commuting magic.
Behold the Vado – the knight in shining alloy that conquers your daily grind with the grace of a ballerina and the punch of a heavyweight champ. Whether you're piling on the cargo or taking off for a spontaneous adventure, this two-wheeled wonder is your ticket to traversing the urban jungle with flair.
Embrace the Turbo technology that fuels the Vado's beating heart, and prepare to be blown away. We're talking power galore, a natural ride feel that makes you forget you're on an e-bike, and anti-theft smarts that leave potential bike thieves scratching their heads in bewilderment. With a range that stretches up to 93 miles – that's like cycling to a whole new city – the Vado is the Iron Man of the electric bike world, minus the cumbersome suit.
Ever dream of effortlessly zipping up hills? Well, dream no more. The Turbo Full Power system takes the sweat out of slopes, quadrupling your pedal power and turning even the steepest inclines into a piece of cake – a cake you won't need to work off at the gym, mind you.
Comfort? Check. Confidence? Double check. With a body position and handling that feels like a custom-made suit, you'll own the road like a seasoned pro. Need to stop on a dime? The hydraulic disc brakes have your back. Turning heads while turning corners? The larger tires ensure you've got more grip than a champion rock climber. Prepare for the smoothest ride of your life, courtesy of the 80mm front suspension fork, cushiony tires, and a suspension seat post that's as comfy as your favorite recliner.
And for the ultimate mic-drop moment, let's talk security. The Vado doesn't mess around when it comes to keeping your ride safe and sound. Built-in anti-theft wizardry means you can deactivate the motor with a mere button press, leaving would-be thieves scratching their heads. And if they dare to move your bike, brace yourself for an alarm that'll send them running.
But hey, before you pedal off into the sunset, remember: speed limits might vary, and your Vado's got your back. It adapts to the rules of the road while keeping you in the fast lane of life.
So there you have it – the Specialized Turbo Vado 3.0 Active Electric Bike, where turbocharged dreams become exhilarating reality. Say goodbye to traffic jams and hello to the wind in your hair, because with the Vado, 'point A' to 'point B' just became a high-speed adventure.
Features:
- Turbo Full Power 2.0E motor and 530Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
- MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
- Long-Range - With a ride-anywhere range, go up to 68 miles (110 km) or 5 hours on a single charge (eco mode).
Specifications
Fenders |
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
Headlight |
Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V |
Bell |
Simple bell |
Taillight |
Spanninga Commuter Glow XE, 12V |
Pedals |
Specialized Commuter w/ grip tape & reflectors |
Kickstand |
Specialized kickstand, 40mm mount |
Rack |
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load |
Bike Lock |
Turbo System Lock |
Chainrings |
Praxis, 48T, 104BCD |
Crankset |
Custom alloy forged crankarms |
Chaincase |
Custom chaincover |
Chain |
KMC e9T, 9-speed w/ Missing Link™ |
Shift Levers |
Shimano Alivio, 9-speed w/ Optical Gear Display |
Rear Derailleur |
Shimano Alivio, SGS, 9-speed |
Cassette |
Shimano CS-HG400, 9-speed, 11-36t |
Rims |
650b disc, double-wall alloy, pinned, 32h |
Spokes |
DT Swiss Industry |
Rear Tire |
Pathfinder Sport Reflect, 650Bx2.3 |
Front Tire |
Pathfinder Sport Reflect, 650Bx2.3 |
Front Hub |
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
Rear Hub |
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h |
Inner Tubes |
Standard 40mm SV 650Bx1.75-2.4 |
Seat Binder |
Alloy, bolt-type, 34.9mm |
Frame |
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout |
Fork |
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
Saddle |
Rivo Sport, steel rails, 155mm |
Grips |
Specialized Body Geometry Contour, lock-on |
Stem |
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
SeatPost |
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
Handlebars |
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
Charger |
Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
Wiring Harness |
Custom wire harness |
UI/Remote |
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
Motor |
Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal |
Battery |
Specialized U2-530, alloy casing, state of charge display, 530Wh |
Rear Brake |
Shimano BR-MT200, hydraulic disc, 160mm |
Front Brake |
Shimano BR-MT200, hydraulic disc, 180mm |
Geometry
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170mm | 170mm | 170mm | 170mm |
Handlebar Width | 680mm | 680mm | 680mm | 680mm |
Stem Length | 60mm | 60mm | 75mm | 75mm |
Saddle Width | 155mm | 155mm | 155mm | 155mm |
Seatpost Length | 300mm | 400mm | 400mm | 400mm |
Stack | 625mm | 639mm | 652mm | 676mm |
Reach | 423mm | 444mm | 464mm | 481mm |
Headtube Length | 135mm | 150mm | 165mm | 190mm |
Headtube Angle | 68° | 68° | 68° | 68° |
BB Height | 285mm | 285mm | 285mm | 285mm |
BB Drop | 70mm | 70mm | 70mm | 70mm |
Trail | 96mm | 96mm | 96mm | 96mm |
Fork Length (full) | 480mm | 480mm | 480mm | 480mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
Front Center | 699mm | 724mm | 750mm | 777mm |
Chainstay Length | 470mm | 470mm | 470mm | 470mm |
Wheelbase | 1160mm | 1186mm | 1212mm | 1239mm |
Toptube Length (horizontal) | 585mm | 615mm | 645mm | 675mm |
Bike Standover Height | 735mm | 771mm | 771mm | 805mm |
Seat Tube Length | 400mm | 450mm | 460mm | 500mm |
Seat Tube Angle (Virtual) | 75.5° | 75° | 74.5° | 74° |
