Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

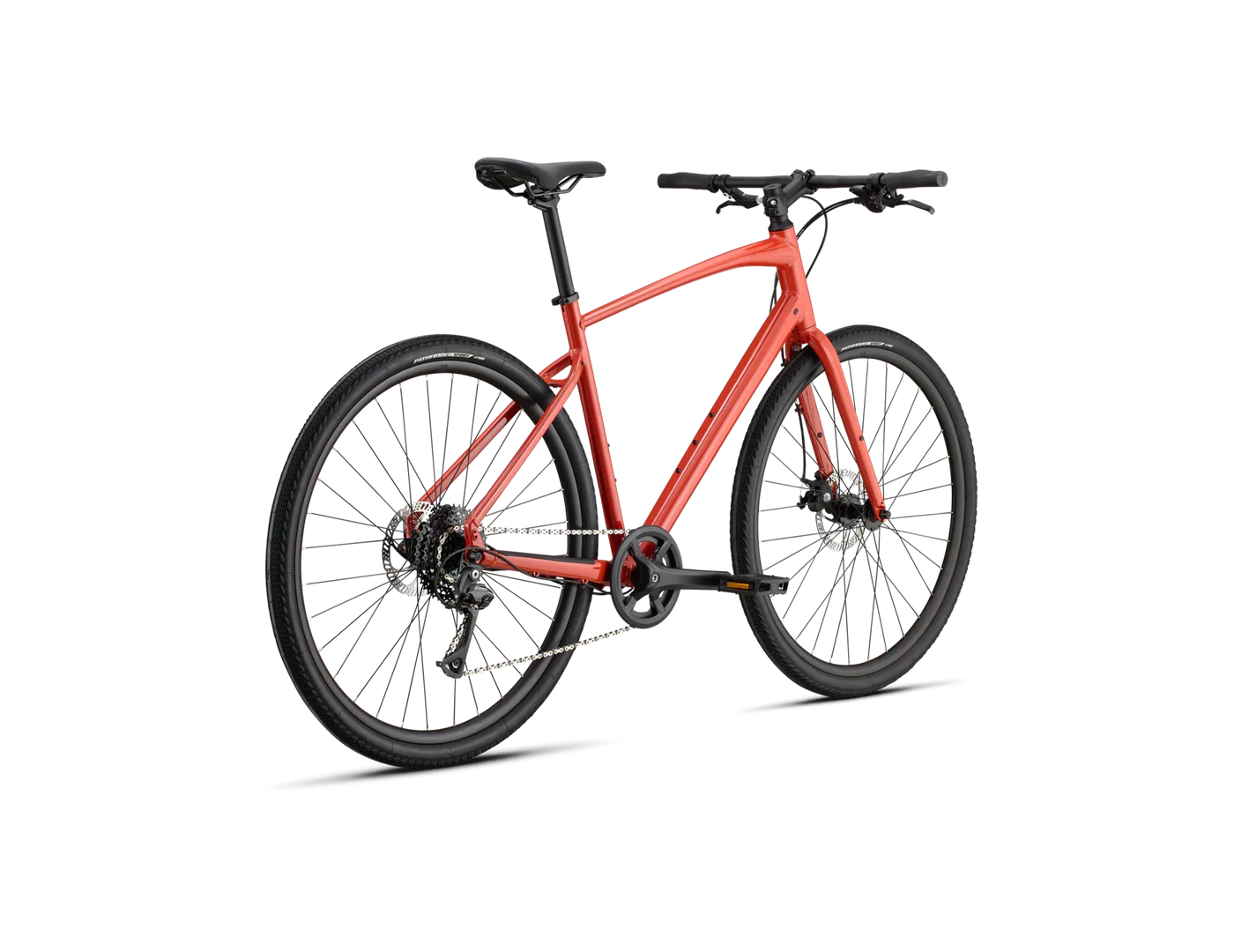

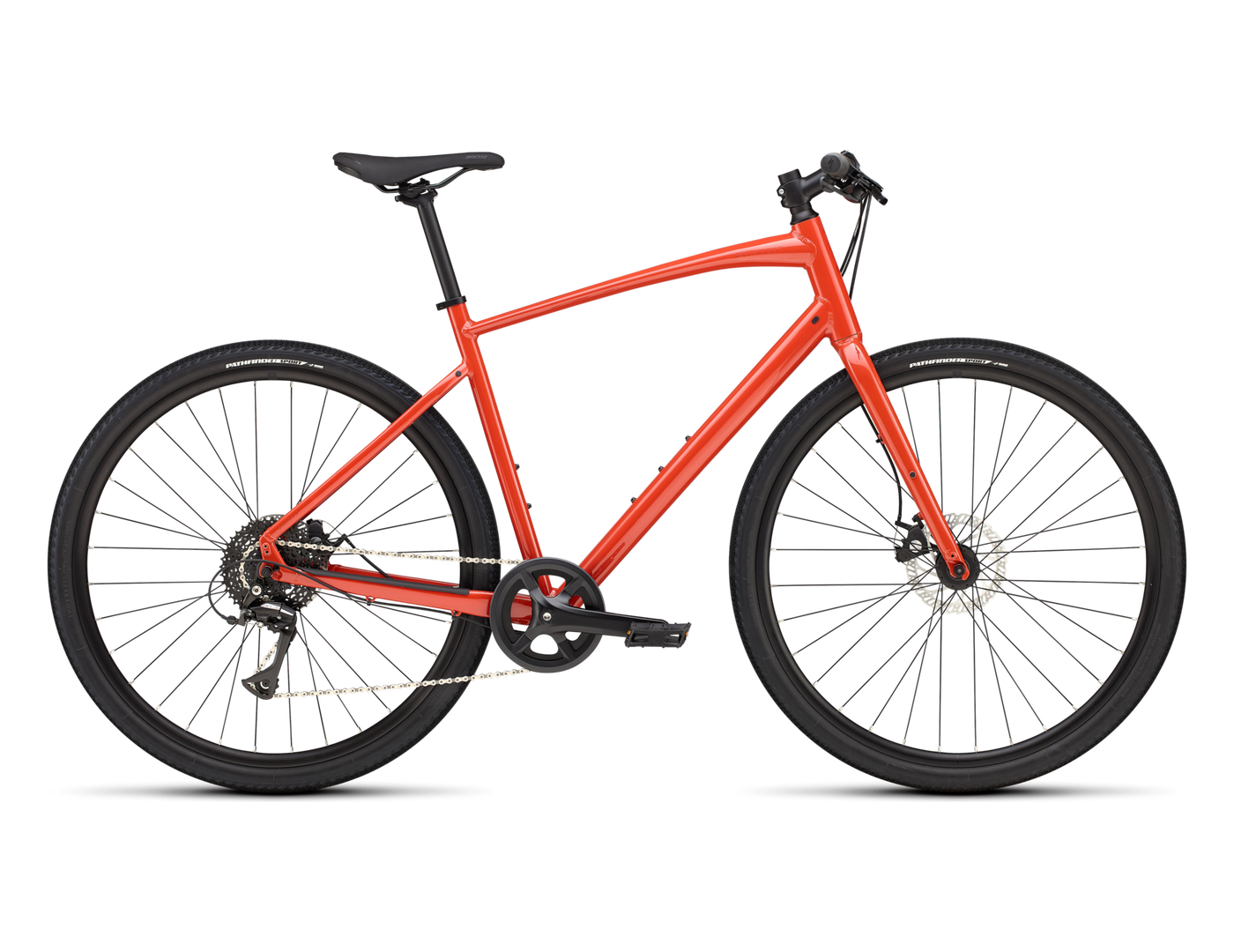

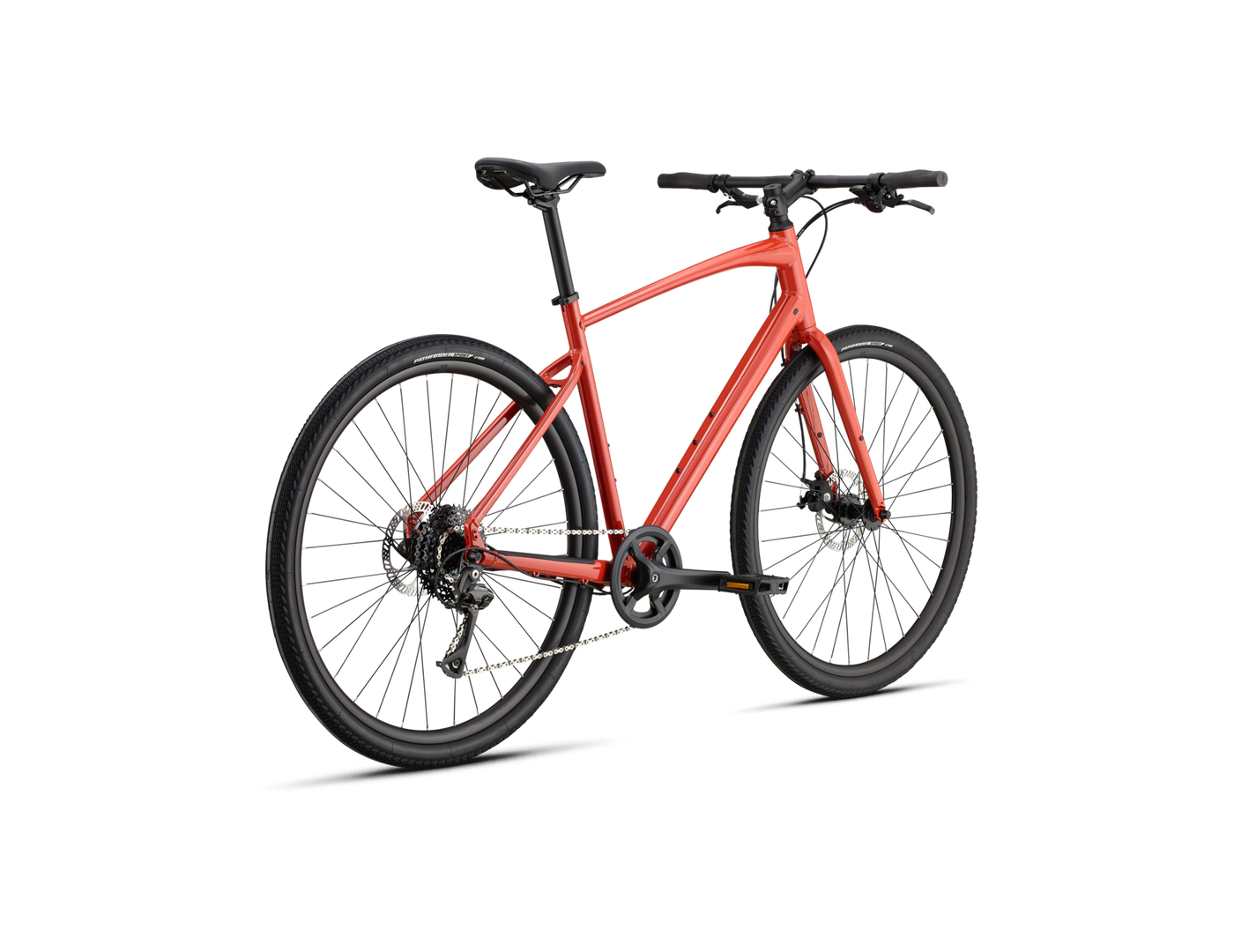

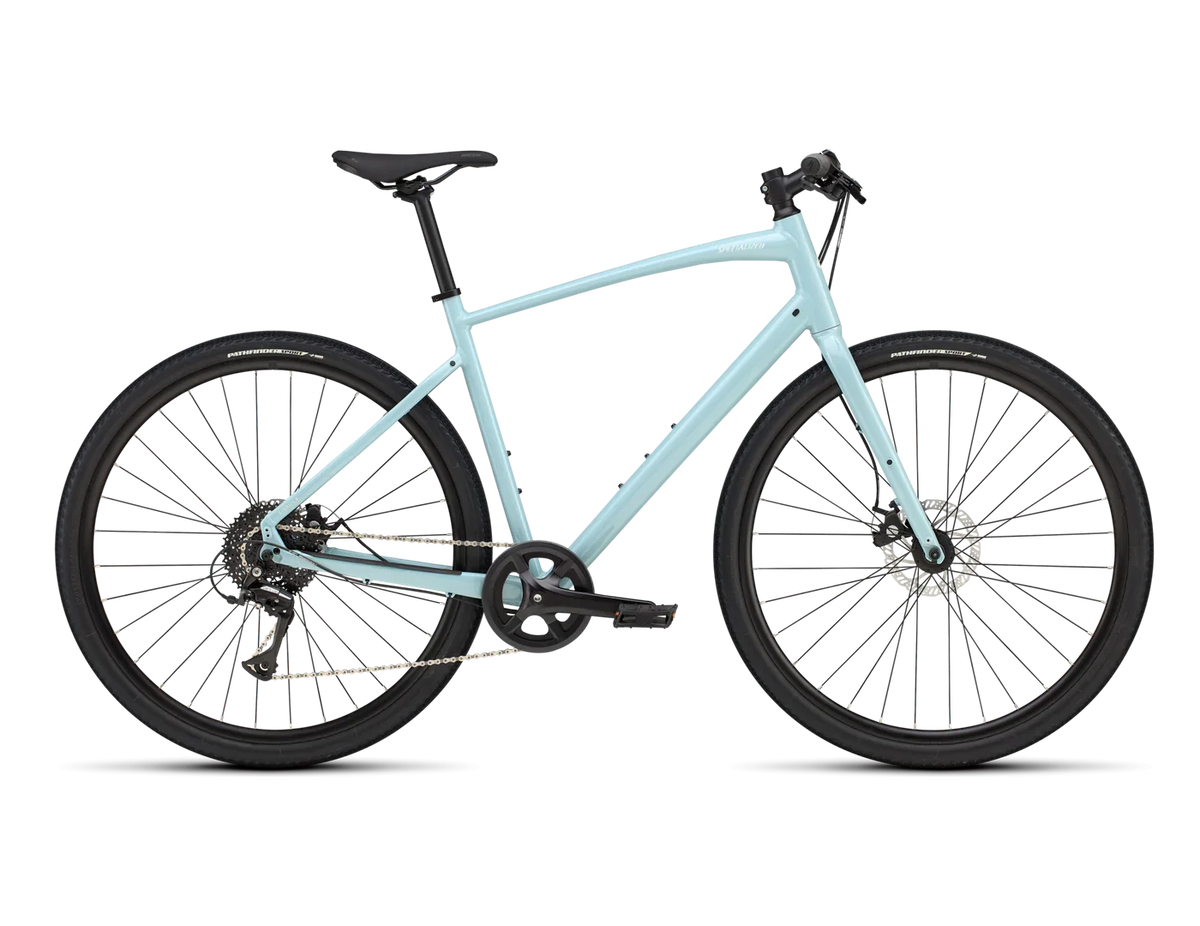

Offering an unprecedented combination of comfort, efficiency, and nimble handling, the Sirrus X excels on pavement, dirt, and any terrain in between.
SMOOTH, COMFORTABLE, AND EFFICIENT: Sirrus X provides the smoothest ride in its class. With bigger, confidence-inspiring tires, a slightly more upright riding position, and a super intuitive one-by drivetrain.
RIDER-FIRST ENGINEERED: Like all Specialized performance bikes, the geometry of each frame is uniquely crafted. This means that for every frame, each tube size is specifically selected to achieve the optimal balance of rigidity, weight, and responsiveness to ensure that no matter what size you’re riding, you will experience the world’s best ride.
NIMBLE: Class-leading light-weight, exceptional pedaling efficiency, and steering precision merge for confident, nearly telepathic handling characteristics.
FEATURES
- Lightweight A1 Alloy frame with clean internal cable routing, 3.5lbs (1.7kg) lighter than our Crosstrail Hydro model.
- Maximum control through intuitive shifting with 1x8 wide range gearing, and powerful hydraulic disc brakes.
- Float over rough terrain with fast rolling Specialized Pathfinder 42c tires featuring proprietary Gripton rubber compound.
| XS | XS | S | S | M | M | L | L | XL | XL | XXL | XXL | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 170 | 170 | 170 | 175 | 175 | 175 | 175 | 175 | 175 |
| Handlebar Width | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 |
| Stem Length | 60 | 60 | 70 | 70 | 80 | 80 | 90 | 90 | 100 | 100 | 110 | 110 |
| Saddle Width | 155 | 155 | 155 | 155 | 143 | 143 | 143 | 143 | 143 | 143 | 143 | 143 |
| Seatpost Length | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 580 | 600 | 625 | 650 | 680 | 710 | ||||||
| Reach | 350 | 365 | 380 | 395 | 410 | 425 | ||||||
| Head-Tube Length | 107 | 128 | 151 | 176 | 208 | 237 | ||||||
| Head-Tube Angle | 69.5 | 69.5 | 70 | 70.5 | 70.5 | 71 | ||||||
| B-B Height | 268 | 268 | 268 | 268 | 268 | 268 | ||||||
| B-B Drop | 80 | 80 | 80 | 80 | 80 | 80 | ||||||
| Trail | 76 | 76 | 72 | 69 | 69 | 66 | ||||||
| Fork Length (full) | 395 | 395 | 395 | 395 | 395 | 395 | ||||||
| Fork Rake/Offset | 51 | 51 | 51 | 51 | 51 | 51 | ||||||
| Front-Center | 597 | 619 | 637 | 656 | 681 | 700 | ||||||
| Chain-Stay Length | 440 | 440 | 440 | 440 | 440 | 440 | ||||||
| Wheelbase | 1024 | 1047 | 1065 | 1084 | 1109 | 1128 | ||||||
| Top-Tube Length (horizontal) | 521 | 547 | 568 | 590 | 614 | 644 | ||||||
| Bike Stand-Over Height | 703.3 | 748.3 | 780.5 | 807.1 | 847.7 | 872.5 | ||||||
| Seat-Tube Length | 355 | 416 | 453 | 483 | 533 | 563 | ||||||
| Seat-Tube Angle | 74 | 73.5 | 73.5 | 73.5 | 73.5 | 73 |
