Giant Road Bikes Size Guide
| Size | Height Range |
| X-Small | 5'2"-5'7" |
| Small | 5'5"-5'9" |
| Medium | 5'7"-5'11" |
| Medium/Large | 5'10"-6'2" |
| Large | 6'0"-6'4" |
| X-Large | 6'2"-6'6" |

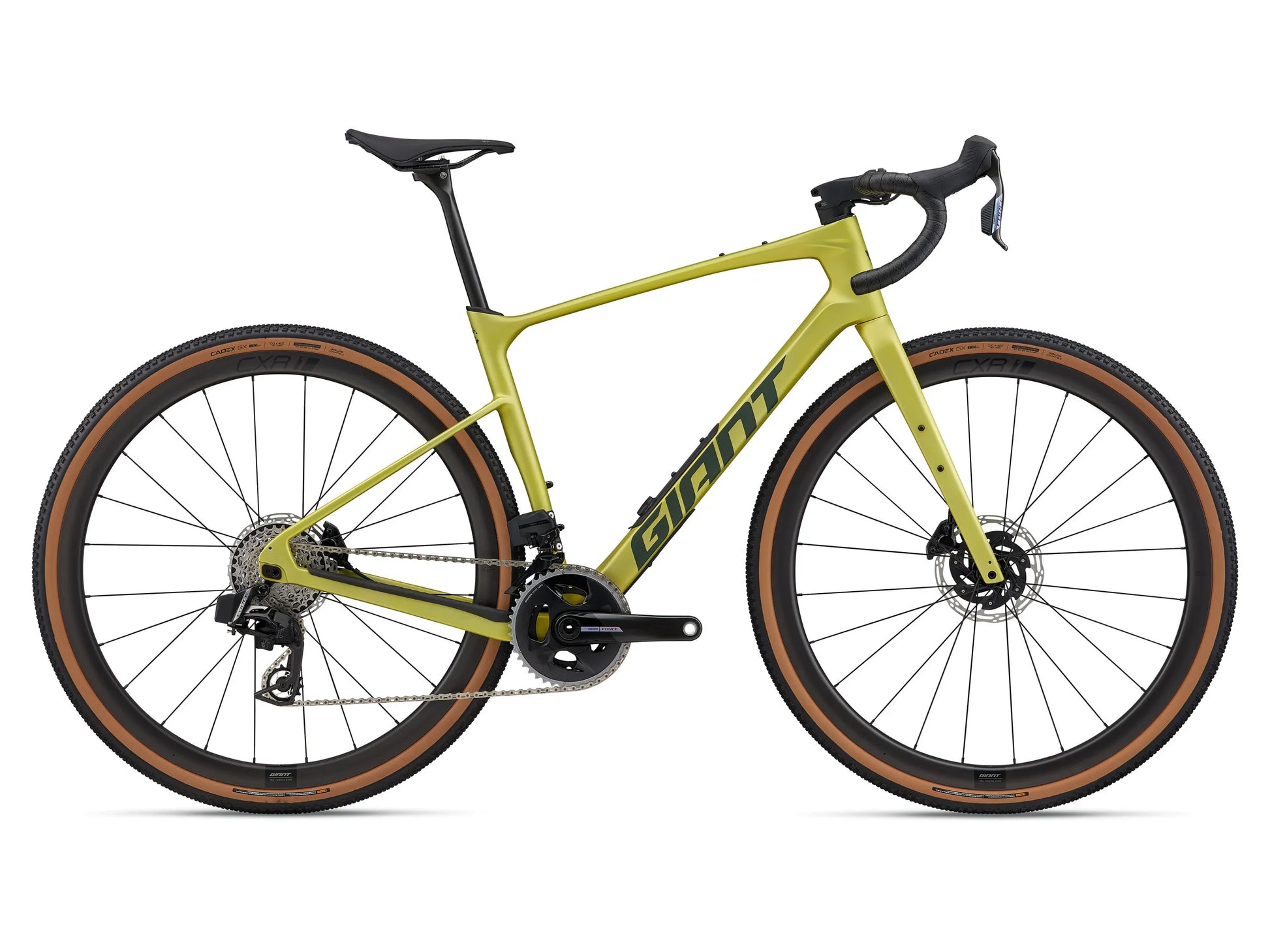

The Revolt Advanced Pro is a game-changer in gravel biking: lighter, smoother, and engineered to conquer any terrain.
Its reimagined composite frame delivers ultra-efficient power transfer, while precision handling and control let you tackle the toughest trails with confidence. Elevate your ride and push limits like never before.
FAST AND VERSATILE
Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
![Tubeless System](http://bicyclewarehouse.com/cdn/shop/files/tubeless_500x.png?v=1715993078")
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info![Overdrive](http://bicyclewarehouse.com/cdn/shop/files/overdrive_500x.png?v=1715992468")
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info![Powercore](http://bicyclewarehouse.com/cdn/shop/files/powercore_500x.png?v=1715993920")

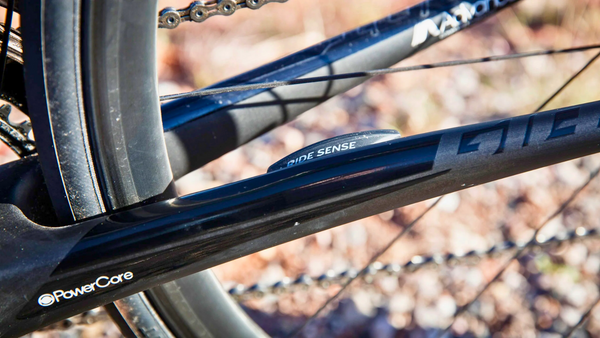

Powercore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
More Info![D-Fuse](http://bicyclewarehouse.com/cdn/shop/files/dfuse_500x.png?v=1721344622")
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info![Compact Road Design](http://bicyclewarehouse.com/cdn/shop/files/compact-road-bike-design_500x.png?v=1720632048")
Compact Road Design
The world's first Compact Road frame is introduced and ridden by the ONCE ProTour team. With a dramatically sloping toptube and a compact rear triangle, the new design increases rigidity, improves handling and reduces weight. ONCE rider Joseba Beloki will ride the Giant TCR (Total Compact Road) to two Tour de France podiums.
More Info![Advanced Forged Composite Technology](http://bicyclewarehouse.com/cdn/shop/files/ADVANCED_FORGED_COMPOSITE_TECHNOLOGY_500x.jpg?v=1717030218")
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
More Info| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| B Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (inch) | 21.3 | 21.7 | 22 | 22.6 | 23 | 23.6 |
| D Head Tube Length (inch) | 4.9 | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| E Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 3.2 | 2.8 | 3 | 2.7 | 2.8 | 2.6 | 2.7 | 2.6 | 2.7 | 2.6 | 2.7 |
| H Wheelbase (inch) | 40.3 | 40.7 | 40.2 | 40.6 | 40.4 | 40.8 | 40.6 | 41 | 41 | 41.4 | 41.6 | 42 |
| I Chain Stay Length (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K Stack (inch) | 21.9 | 22.4 | 23.1 | 23.7 | 24.3 | 24.8 |
| L Reach (inch) | 15 | 15 | 15.2 | 15.4 | 15.6 | 16 |
| M Stand Over Height (inch) | 28.5 | 28.8 | 29.1 | 29.4 | 29.8 | 30.1 | 30.5 | 30.7 | 31.1 | 31.4 | 31.8 | 32 |
| N Handlebar Width (inch) | 16.5 | 16.5 | 17.3 | 17.3 | 18.1 | 18.1 |
| O Stem Length (inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| P Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
