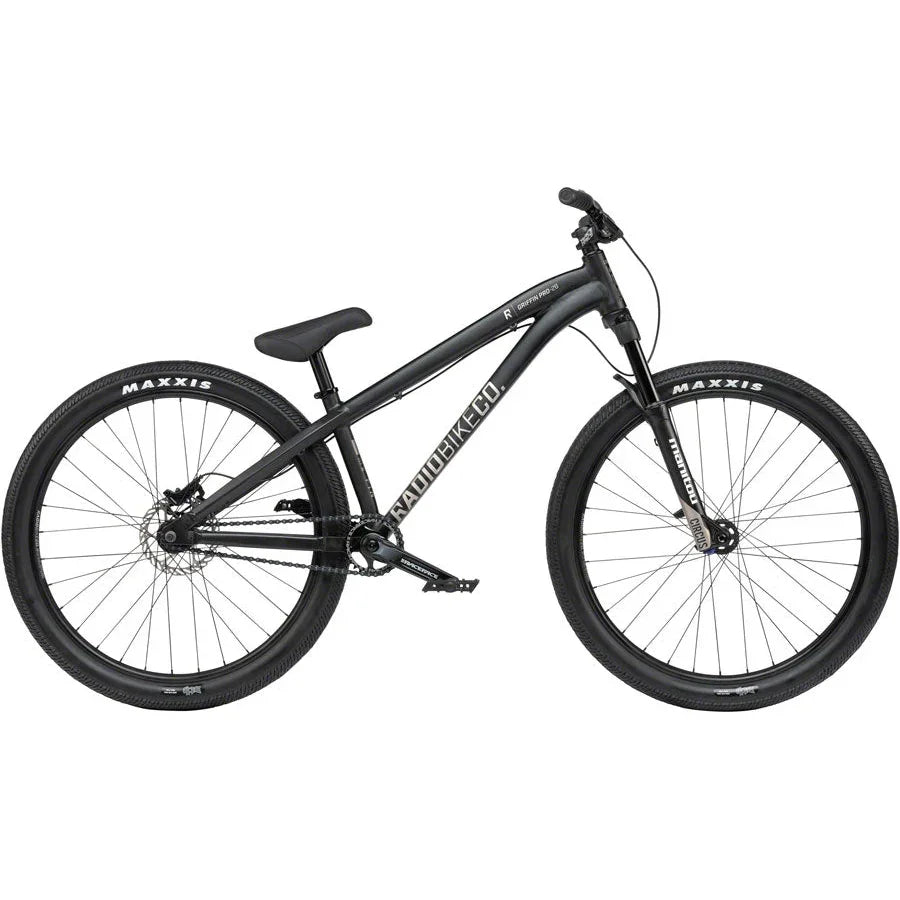

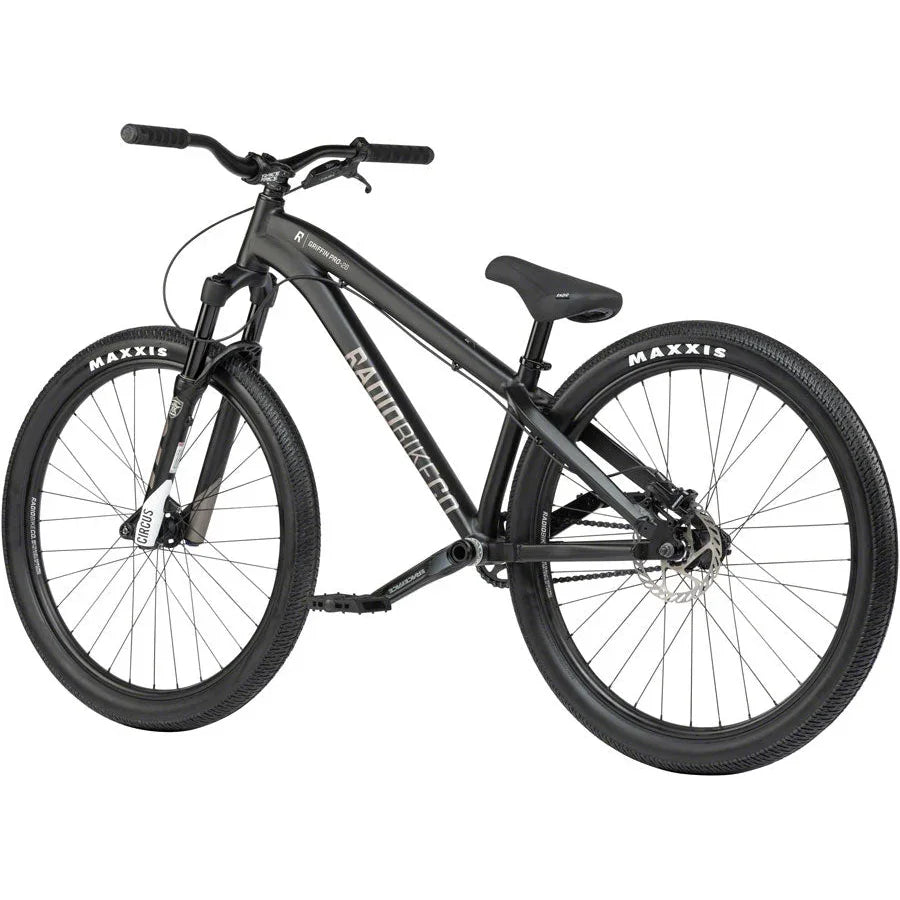

Radio Griffin Pro 26" Dirt Jump Bike - 22.8" TT

Radio Griffin Pro 26" Dirt Jump Bike - 22.8" TT

$1,869.99
$1,869.99
Sale Sold out
Color

A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.

The crème de la crème of 26” bikes, the Griffin PRO is built around a super light and stiff 6061-T6 Alloy frame and is adorned with Manitou “Circus Expert” 100mm forks and a premium level parts package from Race Face and Maxxis.

Specifications

  • FRAME RADIO “GRIFFIN PRO” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
  • FORK MANITOU “CIRCUS EXPERT” 100mm travel
  • HANDLEBAR RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
  • GRIPS RADIO “FREQUENCY XL” grips, flangeless, 160mm
  • STEM RACE FACE “CHESTER 35” front load stem, alloy, 40mm reach
  • HEADSET FSA “NO.42/ACB-A” integrated a-headset, 1-1/8″-1.5″
  • BRAKE LEVER TEKTRO “RS-360A” front, SRAM “DB-LVL-A1” rear
  • BRAKE TEKTRO “ARIES” mechanical disc brake front, SRAM “DB-LVL-A1” hydraulic disc brake rear, 160mm rotor
  • CRANK RACE FACE “AEFFECT” crank alloy, 170mm
  • BB RACE FACE “AEFFECT” crank alloy, 170mm
  • PEDALS RADIO “SLIM” nylon/fiberglass pedals
  • CHAIN SALT “AM” chain, WZ1 type
  • SPROCKET RACE FACE “AEFFECT” alloy sprocket 28T
  • DRIVER 10T cassette driver, sealed bearing
  • FRONT HUB RADIO “PRO-DJ” disc hub, sealed, 15mm alloy through axle, 32h
  • REAR HUB RADIO “PRO-DJ” disc hub, sealed, 3/8″s crmo axle, 32h
  • FRONT RIM RADIO “DB-T25” rim, double wall, sleeved
  • REAR RIM RADIO “DB-T25” rim, double wall, sleeved
  • SEAT RADIO “CENTURY” pivotal seat, fat padded
  • SEAT POST RADIO “PIVOTAL” seat post, alloy
  • SEAT CLAMP RADIO “SLIM” 31.8mm alloy clamp
  • TIRES MAXXIS “DTH” tires, 2.3″ front & rear
  • WEIGHT 11.31kg / 24.94lbs

Geometry

FRAME GEOMETRY

  • TOP TUBE LENGTH 22.8″
  • CHAIN STAY LENGTH 15″
  • HEAD TUBE ANGLE 70°
  • SEAT TUBE ANGLE 70°
  • BOTTOM BRACKET HEIGHT 14mm drop
  • STANDOVER HEIGHT 10.2″

HANDLEBAR GEOMETRY

  • RISE 50mm
  • WIDTH 760mm
  • BACKSWEEP 8°
  • UPSWEEP 3°
Due to continued shortages in the bicycle industry some components may be replaced with components of equal or higher value different than listed in specifications. We are working dilligently to update as changes are made by manufactures.
