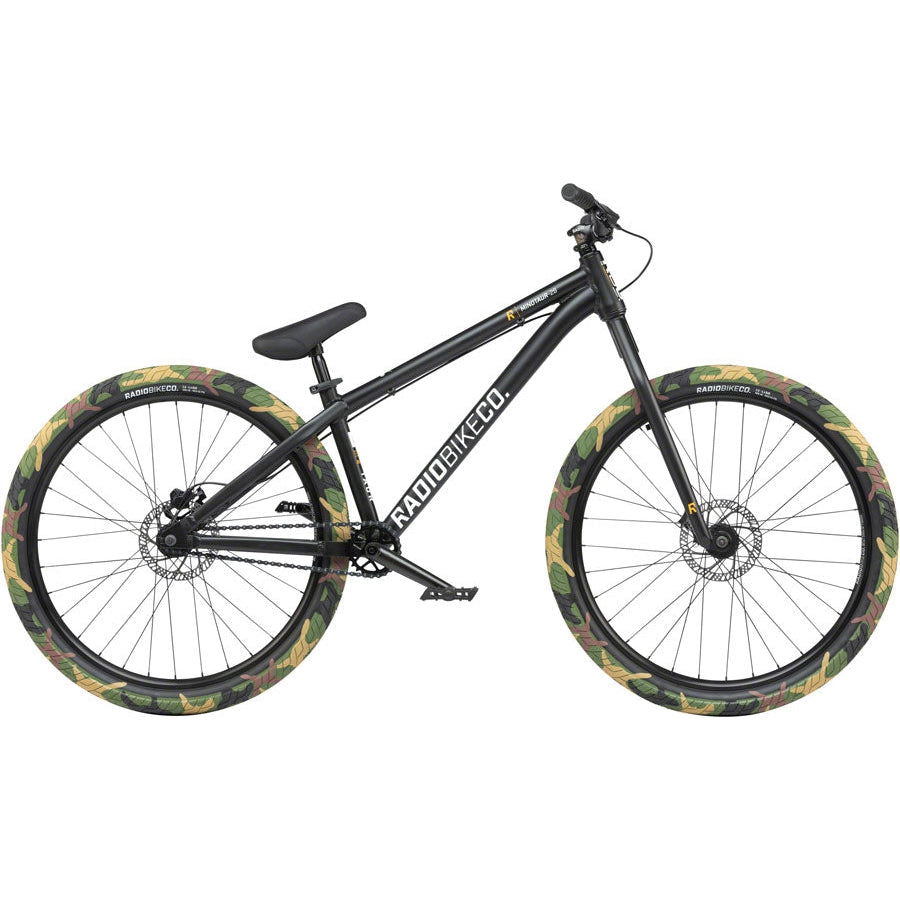

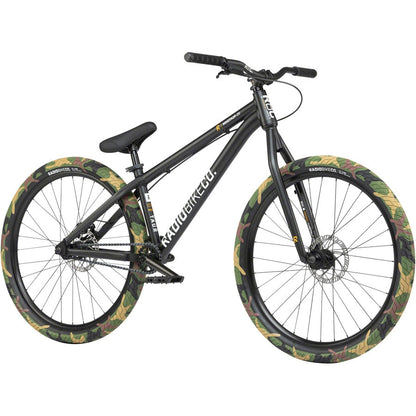

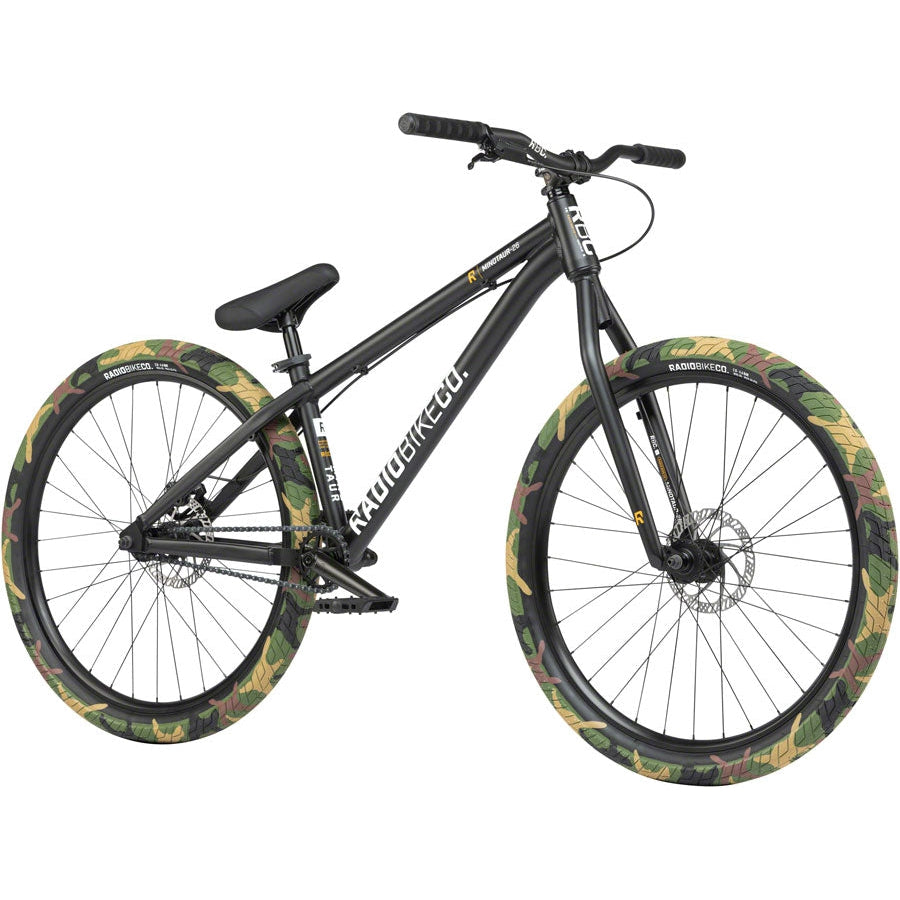

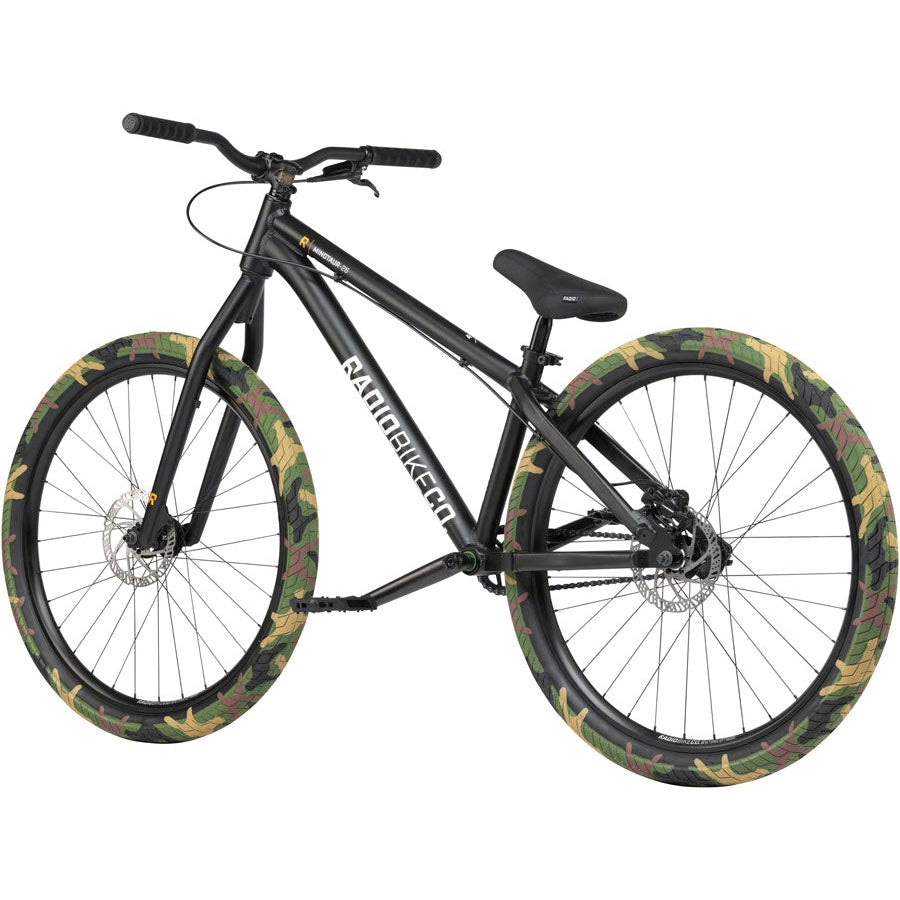

Radio Minotaur 26" Dirt Jump Bike - 22.6" TT

Radio Minotaur 26" Dirt Jump Bike - 22.6" TT

$1,159.99
$1,159.99 $1,159.99
Sale Sold out
Color
🌴 END OF SUMMER SALE 🌴
15% OFF off gear!
*Discount automatically applies in checkout.
Estimated Ship Date: Calculating...

Simply for shredding. All new Minotaur is a dirt/pump track beast with a full 6061-T6 alloy frame for performance, and our own ridged chromoly fork for simplicity, speed and style.

By using a ridged fork Radio was able to not only offer an easily upgradable bike with a PRO spec alloy frame for a much lower price, but also create a bike which simply didn’t exist yet. The Minotaur is a bike which is as fun to ride as it looks. With camo Radio HELIX tires and a ridged fork, this is one lively bike design for nothing but fun!

Specifications

  • FRAME RADIO “MINOTAUR” frame, 6061-T6 alloy, tapered head tube, forged yoke
  • FORK RADIO “MINOTAUR” fork, full crmo, tapered crmo steerer, 28mm offset
  • HANDLEBAR RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
  • GRIPS RADIO “FREQUENCY XL” grips, flangeless, 160mm
  • STEM RADIO “ZOOM” frontload stem, alloy, 40mm reach
  • HEADSET FSA “NO.57E” integrated A-headset, 1-1/8″-1.5″
  • BRAKE LEVER TEKTRO “RS-360A” front lever / TEKTRO ” HD-M275″ rear lever
  • BRAKE TEKTRO “ARIES” mechanical disc brake, 160mm rotor, front / TEKTRO ” HD-M275″ hydraulic disc brake, 160mm rotor
  • CRANK SALTPLUS “ULTRA” 3pc crank, TSS, crmo, 170mm, 8 spline
  • BB RADIO “BSA19” bb set, sealed bearing
  • PEDALS RADIO “SLIM” Nylon Fibreglass Pedals
  • CHAIN SALT “AM” chain, WZ1 type
  • SPROCKET SALT “GATEWAY” sprocket, alloy, 25t
  • DRIVER cassette driver, 10t, sealed bearing
  • FRONT HUB RADIO “AM-DJ” disc hub, alloy, sealed, 3/8″s male axle, 32h
  • REAR HUB RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8″s male axle, 32h
  • FRONT RIM RADIO “DB30” rim, double wall
  • REAR RIM RADIO “DB30” rim, double wall
  • SEAT RADIO “DJ” medium padded combo seat
  • SEAT POST –
  • SEAT CLAMP RADIO “QUICK RELEASE” seat clamp, alloy
  • TIRES RADIO “HELIX” tires, 2.3″, front & rear
  • WEIGHT 11.87kg / 26.17lbs

Geometry

FRAME GEOMETRY

  • TOP TUBE LENGTH 22.6″
  • CHAIN STAY LENGTH 15″
  • HEAD TUBE ANGLE 69°
  • SEAT TUBE ANGLE 72°
  • BOTTOM BRACKET HEIGHT 20mm drop
  • STANDOVER HEIGHT 11″

HANDLEBAR GEOMETRY

  • RISE 50mm

  • WIDTH 740mm

  • BACKSWEEP 8°

  • UPSWEEP 3°
