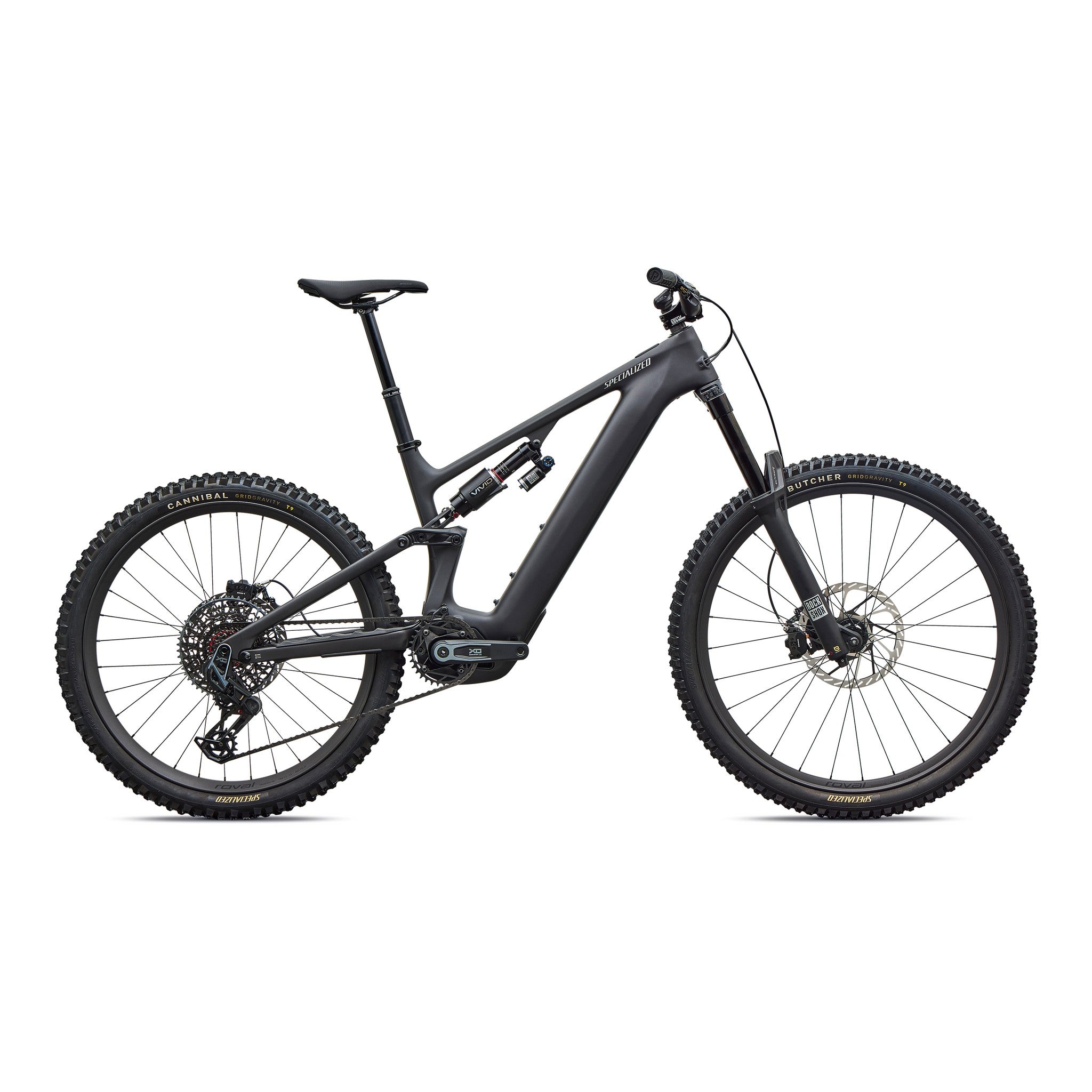

Levo 4 EVO Pro
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

FEATURES

  • Use - Electric Enduro
  • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
  • Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
  • Suspension - Fork: 180mm RockShox Zeb Ultimate
    Shock: Vivid Ultimate Air Linear
  • Drivetrain - SRAM X0 Eagle Transmission
  • Wheels - Traverse HD with DT Swiss 350 hubs

Specialized

Levo 4 EVO Pro

$10,499.99

Size Guide

S0 / XXS  S1 / XS S2 / S S3 / M S4 / L S5 / XL S6 / XXL
4'9" - 5'2" 4'11" - 5'3" 5'2" - 5'8" 5'5" - 5'11" 5'8" - 6'2" 5'10" - 6'4" 6'2" - 6'8"

Size Down for More Maneuverability, Size Up for More Stability



In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 95227-1102

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

FEATURES

  • Use - Electric Enduro
  • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
  • Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
  • Suspension - Fork: 180mm RockShox Zeb Ultimate
    Shock: Vivid Ultimate Air Linear
  • Drivetrain - SRAM X0 Eagle Transmission
  • Wheels - Traverse HD with DT Swiss 350 hubs
SPECIFICATIONS

E-Bike System

  • Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
  • Battery: 840Wh battery
  • UI/Remote: Mastermind TCU, 2.2" high-resolution screen, Specialized app customizable, Apple Find My compatible
  • Charger: Specialized 4amp charger

Frameset & Suspension

  • Frame: Levo Evo FACT 11m carbon, 170mm travel, 12x148mm dropouts, SRAM UDH compatible, mixed wheel (29"/27.5"), adjustable head tube angle and chainstay length, integrated SWAT storage
  • Fork: SRAM FS ZEB Ultimate, 180mm travel, 29", Linear XL spring with ButterCups, adjustable bottom out, Charger 3.2 damper (HSC/LSC), rebound adjust
  • Rear Shock: Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper (HSC/LSC), HBO adjust, rebound adjust
  • Seat Binder: Alloy, 38.6mm

Drivetrain & Brakes

  • Rear Derailleur: SRAM X0 Eagle Transmission
  • Shift Levers: SRAM AXS Pod Controller w/ discrete clamp
  • Cassette: SRAM XS 1295, 12-speed, 10-52t
  • Chain: SRAM X0 Eagle Transmission 12-Speed Flattop
  • Crankset: SRAM X0 Alloy crank, ISIS interface, 155mm length
  • Chainrings: SRAM 34t T-Type, 104 BCD, steel
  • Brakes: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotors [Front and Rear]

Wheels & Tires

  • Front Wheel: Traverse HD Carbon 29", DT Swiss 350 hub, 30mm inner width, 28h
  • Rear Wheel: Traverse HD 350, 27.5", carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148mm, 32h
  • Front Tire: Butcher, GRID Gravity, T9, TLR, 29x2.4"
  • Rear Tire: Cannibal GRID Gravity, T9, TLR Downhill Tire, 27.5x2.4"
  • Inner Tubes: Standard, Presta Valve

Cockpit

  • Handlebars: Deity Speedway Carbon, 35mm diameter, 5° upsweep, 9° backsweep (S1-S2: 810mm width/30mm rise, S3-S6: 810mm width/50mm rise)
  • Stem: Deity, 35mm clamp, 42mm length
  • Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm length
  • Saddle: Bridge Expert with MIMIC, Hollow Ti rails
  • SeatPost: Bike Yoke Revive Max 3.0, 34.9mm (S2: 125mm, S3: 160mm, S4: 185mm, S5/S6: 213mm)

Product Details

  • Weight: 24.4 kg (53 lb, 12.7 oz) - Measured in size S4
  • Accessories: SWAT Internal downtube storage
  • Product ID: 294785
  • Compliance: Certified to UL 2849 (e-system) and/or UL 2271 (battery)
GEOMETRY
S2 S3 S4 S5 S6
Crank Length 155 155 155 155 155
Handlebar Width 810 810 810 810 810
Stem Length 42 42 42 42 42
Saddle Width 155 143 143 143 143
Seatpost Length 125 160 185 213 213
Stack 625 633 646 659 675
Reach 425 445 470 495 525
Headtube Length 95 103 117 132 149
Headtube Angle 63.6 63.6 63.6 63.6 63.6
BB Height 356 356 356 356 356
BB Drop 24 24 24 24 24
Trail 139 139 139 139 139
Fork Length (full) 597 597 597 597 597
Fork Rake/Offset 44 44 44 44 44
Front Center 773 797 828 859 897
Chainstay Length 435 435 435 435 435
Wheelbase 1208 1232 1263 1294 1331
Top-tube Length (horizontal) 580 602 630 658 691
Bike Standover Height 764 765 763 768 771
Seat Tube Length 390 405 425 445 465
Seat Tube Angle 76 76 76 76 76
Saddle Height for Effective ST Angle 690 735 780 825 870
Max Seatpost Insertion 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80
FEATURES

Key Technologies

Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info
fact-10-carbon-bikes.png__PID:dd2bc090-6360-4998-9db4-69a982a96392

FACT Carbon Fiber

Short for Functional Advanced Composite Technology, is a comprehensive engineering process that guides the development of frames and components, all the way from initial sketches to finished products.
