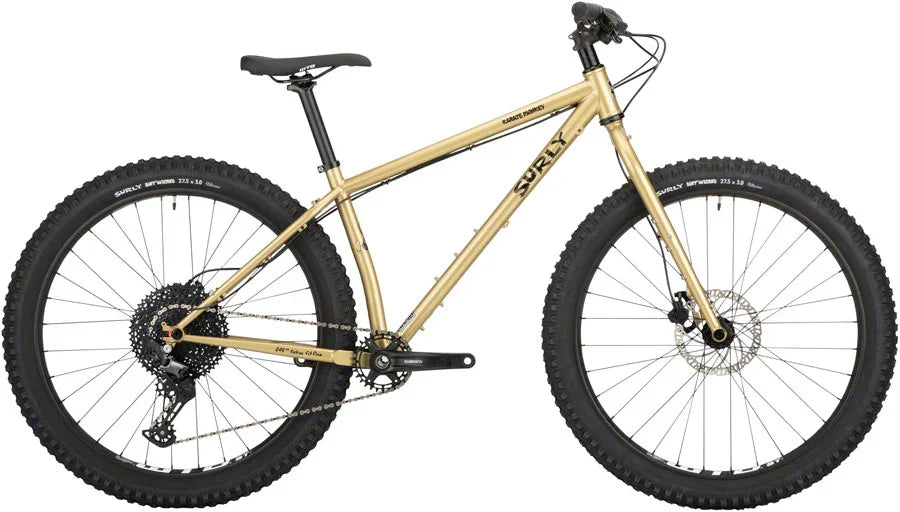

Karate Monkey Bike - 27.5"
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Multipurpose Hardtail Mountain Bike

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.

Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.

  • Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
  • Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
  • Clearance for 29” x 2.5” or 27.5” x 3” tires

Surly

Karate Monkey Bike - 27.5"

$1,849.00
END OF SUMMER SALE ☀️
New Bike Bonus
Score $100 in gear credit with the Karate Monkey Bike - 27.5"!
*Your promo code hits your inbox after your ride ships.

Size Guide

No size chart available for this product.

In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 04-001738

Multipurpose Hardtail Mountain Bike

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.

Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.

  • Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
  • Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
  • Clearance for 29” x 2.5” or 27.5” x 3” tires
SPECIFICATIONS

Frameset

Frame: 100% Surly Chromoly Steel.
Fork: RockShox 35 Gold RL, 27.5", 15 x 110mm, 140mm travel, 44mm offset.
Seatpost Clamp: Surly Stainless, 33.1mm.

Components

Headset: Cane Creek.
Brakes: Tektro HD-M3520.
Rotors: Tektro 180mm (Front) / 160mm (Rear), 6-Bolt.
Shifter: Shimano Deore XT M8100.
Stem: Promax DA-296, 31.8mm.
Handlebar: Salsa Rustler.
Grips: Velo Black.
Saddle: WTB Volt Medium.
Seatpost: TranzX YSP15, 30.9mm Travel

  • XS: 100mm
  • SM-XL: 120mm

Drivetrain

Crankset: Shimano MT511, 30T.
Bottom Bracket: Shimano MT501, BSA.
Front Derailleur: N/A.
Rear Derailleur: Shimano M8100 XT SGS.
Cassette: SunRace CSMZ800, 11-51T, 12-speed.
Chain: KMC X12 Anti-Rust.

Wheels

Front Hub: Novatec 15x110mm, 32h.
Rear Hub: Novatec 12x148mm, 32h.
Rims: WTB ST i35 TCS 2.0, 27.5".
Tires: Surly Dirt Wizard 27.5 x 2.8", 60tpi, Tubeless Ready.

GEOMETRY
SIZE XS SM MD LG XL
Reach 377 402 427 450 472
Stack 597 597 597 606 615
Head Tube Angle 69.0° 69.0° 69.0° 69.0° 69.0°
Head Tube Length 100 100 100 110 120
Seat Tube Length 330 368 419 470 521
BB Drop 55 55 55 55 55
Wheelbase 1053 1078 1103 1129 1155
Chainstay Length 423 423 423 423 423
Top Tube Length, Actual 549.7 560.4 575 597.5 624.5
Top Tube Length, Effective 560 585 610 635 660
Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0°
Standover Height 743 759 783 812 827
Stem Length 60 70 70 70 80
Stem Angle 7° 7° 7° 7° 7°
Handlebar Width 750 750 800 800 800
Crank Length 170 170 175 175 175
Fork Length 483 483 483 483 483
Fork Rake 47 47 47 47 47
