Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

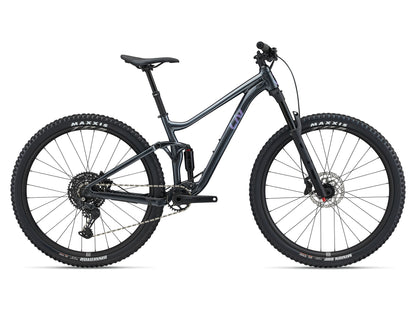

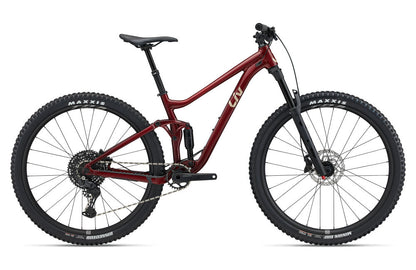

Nothing is off-limits to the Embolden, a trail bike designed to conquer tricky climbs, rowdy descents, and chunky rock gardens with confidence.
Wheel Options
Available in both 27.5- and 29-inch wheel size options, select the Embolden that best fits you and where you want to ride.
Trail Ready
ALUXX-grade aluminum frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.
Custom Tuned Suspension
The 120mm of FlexPoint Suspension have been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
More InfoTubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More InfoFlexpoint Suspension Technology
A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
More InfoOverdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More InfoPowercore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
More InfoXS (27.5") | S (27.5") | S (29") | M (27.5") | M (29") | L (27.5") | L (29") | |
Seat Tube Length (MM) | 380 | 406 | 405 | 445 | 420 | 490 | 440 |
Seat Tube Angle | 74.0° | 74.0° | 76.0° | 74.0° | 76.0° | 74.0° | 76.0° |
Top Tube Length (MM) | 565 | 580 | 565 | 595 | 585 | 610 | 605 |
Head Tube Length (MM) | 95 | 100 | 105 | 110 | 115 | 120 | 125 |
Head Tube Angle | 67.5° | 67.5° | 67.0° | 67.5° | 67.0° | 67.5° | 67.0° |
Fork Rake (MM) | 43 | 43 | 51 | 43 | 51 | 43 | 51 |
Trail (MM) | 103.6 | 103.6 | 105.3 | 103.6 | 105.3 | 103.6 | 105.3 |
Wheelbase (MM) | 1109 | 1125 | 1147 | 1141 | 1169 | 1157 | 1190 |
Chain Stay Length (MM) | 435 | 435 | 438 | 435 | 438 | 435 | 438 |
Bottom Bracket Drop (MM) | 20 | 20 | 40 | 20 | 40 | 20 | 40 |
Stack (MM) | 560 | 565 | 614 | 574 | 623 | 583 | 632 |
Reach (MM) | 404 | 418 | 412 | 430 | 430 | 442 | 447 |
Stand Over Height (MM) | 690 | 705 | 712 | 733 | 734 | 759 | 755 |
Handlebar Width (MM) | 750 | 750 | 740 | 780 | 760 | 780 | 780 |
Stem Length (MM) | 40 | 40 | 40 | 50 | 50 | 50 | 50 |
Crank Length (MM) | 165 | 170 | 170 | 170 | 170 | 175 | 170 |
Wheel Size | 27 | 27 | 29 | 27 | 29 | 27 | 29 |
Wheel Size | 27 | 27 | 29 | 27 | 29 | 27 | 29 |
