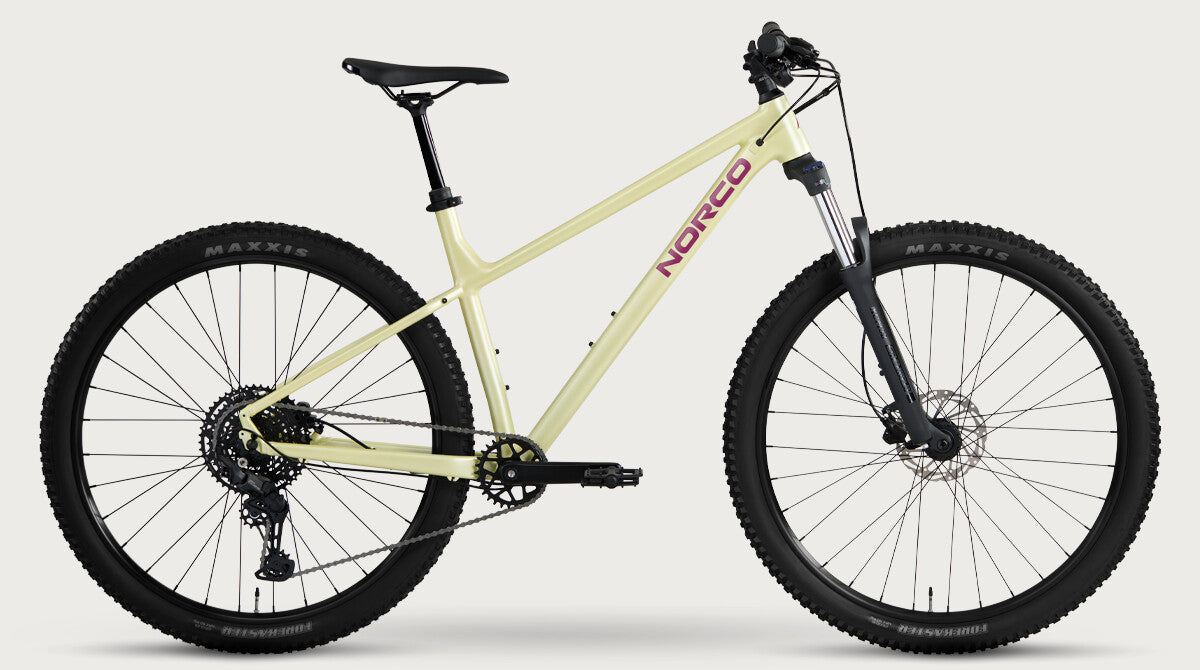

The Storm 120 opens up the world of off-road adventure.
It’s built for off-road adventure, but the lightweight aluminum Storm 120 is more than happy to lead a double life on city streets and park paths.
Details
- Progressive design for nimble, confident trail performance.
The perfect amount of suspension for comfort and control on the trail.
- Mechanical systems protected from the elements.
- Stop on a dime.
- Size-specific wheels optimize the ride.
- Versatile frame features to take you anywhere.
- No Other Way Limited Lifetime Warranty.
Norco
Storm 120
Talk to a Bike Specialist
Support Online
Questions on frame sizing, specs, or stock?
SKU: 0672025955
The Storm 120 opens up the world of off-road adventure.
It’s built for off-road adventure, but the lightweight aluminum Storm 120 is more than happy to lead a double life on city streets and park paths.
Details
- Progressive design for nimble, confident trail performance.
The perfect amount of suspension for comfort and control on the trail.
- Mechanical systems protected from the elements.
- Stop on a dime.
- Size-specific wheels optimize the ride.
- Versatile frame features to take you anywhere.
- No Other Way Limited Lifetime Warranty.
SPECIFICATIONS
GEOMETRY
| Travel (mm front) | 27.5" | 120 | ||
| 29" | M120 | L120 | XL120 | XXL120 |
| Reach | 27.5" | 410 | ||
| 29" | M440 | L470 | XL500 | XXL530 |
| Stack | 27.5" | 608 | ||
| 29" | M628 | L637 | XL646 | XXL655 |
| Head Tube Angle | 27.5" | 67 | ||
| 29" | M67 | L67 | XL67 | XXL67 |
| Fork Offset | 27.5" | 42 | ||
| 29" | M46 | L46 | XL46 | XXL46 |
| Seat Tube Length | 27.5" | 430 | ||
| 29" | M470 | L510 | XL550 | XXL590 |
| Effective Seat Tube Angle | 27.5" | 74.5 | ||
| 29" | M74.75 | L75 | XL75.25 | XXL75.5 |
| Rear Centre Length | 27.5" | 430 | ||
| 29" | M440 | L440 | XL440 | XXL440 |
| Bottom Bracket Drop | 27.5" | 32 | ||
| 29" | M52 | L52 | XL52 | XXL52 |
| Bottom Bracket Height | 27.5" | 321 | ||
| 29" | M321 | L321 | XL321 | XXL321 |
| Horizontal Top Tube | 27.5" | 579 | ||
| 29" | M611 | L641 | XL670 | XXL699 |
| Wheelbase | 27.5" | 1129 | ||
| 29" | M1171 | L1205 | XL1239 | XXL1273 |
| Standover | 27.5" | 646 | ||
| 29" | M671 | L718 | XL738 | XXL769 |
| Head Tube Length | 27.5" | 125 | ||
| 29" | M105 | L115 | XL125 | XXL135 |
| Trail | 27.5" | 104 | ||
| 29" | M108 | L108 | XL108 | XXL108 |
| Recommended Seatpost Drop | 27.5" | 100 | ||
| 29" | M100 | L100 | XL100 | XXL100 |
| Maximum Post Insertion | 27.5" | 300 | ||
| 29" | M265 | L300 | XL340 | XXL380 |
| Stem Length | 27.5" | 50 | ||
| 29" | M50 | L50 | XL50 | XXL50 |
| Crank Length | 27.5" | 170 | ||
| 29" | M170 | L175 | XL175 | XXL175 |
| Tire Size | 27.5" | 2.2" – 2.4" | ||
| 29" | M2.2" – 2.4" | L2.2" – 2.4" | XL2.2" – 2.4" | XXL2.2" – 2.4" |
| Water Bottle Compatible | 27.5" | 1 x 620 mL | ||
| 29" | M1 x 620mL and 1 x 750 mL | L2 x 750 mL | XL2 x 750 mL | XXL2 x 750 mL |
