Seek new heights with the Youth Rampage 20.

Designed with a BMX mindset so you can ride hard and level up.

The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.

Details

  • Smooth, seamless look for aluminum frame.
  • Frame features that allow you to push your potential.
  • Purpose-built for big air.
  • Components custom-selected for reliability.
  • Two wheel sizes and two models for the ideal ride.
  • No Other Way Limited Lifetime Warranty.

Norco

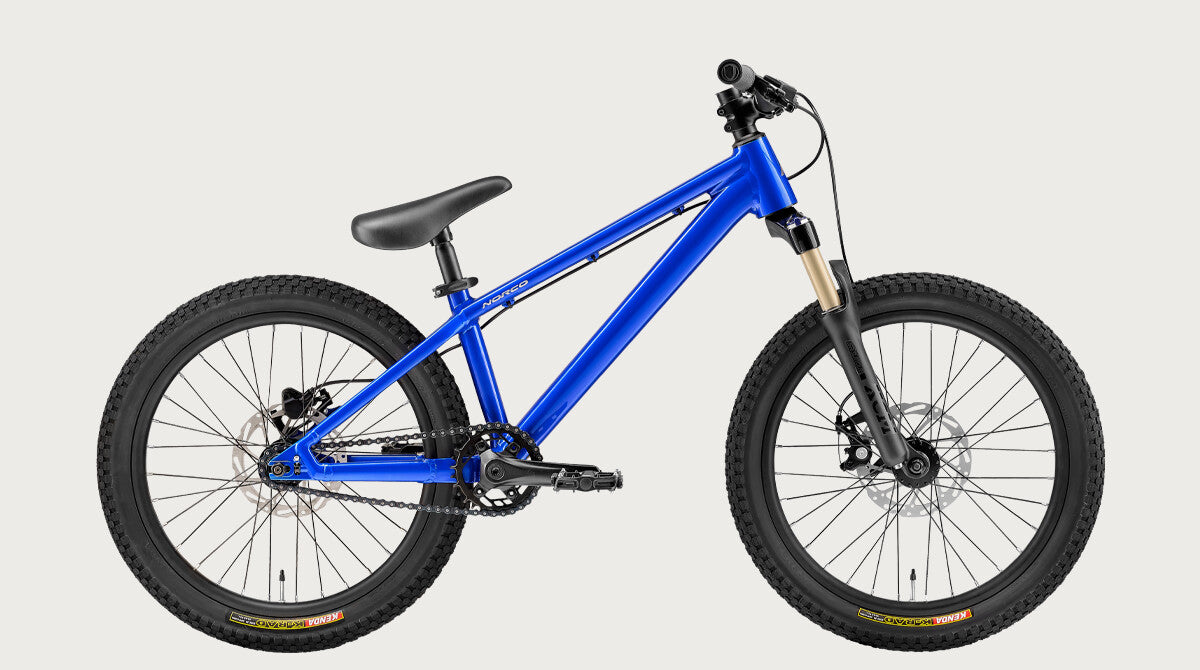

Rampage Youth 20"

$749.00

Size Guide

One Size 3'11" to 4'7"
EARLY BLACK FRIDAY ACCESS ⚡
Early Access Ride BONUS
$40 PROMO CODE Ride Bonus Included
Unlocked automatically with this Rampage Youth 20"
  Store credit code sent via email once bike ships.
Talk to a Bike Specialist Support Online
Questions on frame sizing, specs, or stock?
We're currently away — send a message and we'll reply first thing! Mon–Fri: 9:00 AM – 6:00 PM PT • Sat: 10:00 AM – 4:00 PM PT • Sun: Closed
Chat / Text UsQuick replies on sizing & stock
Email UsBuild specs & order questions
Send an Email
Call UsSpeak with our team directly
PRO BUILT Expert Assembly 95% assembled and precision dialed before shipping.
100% AUTHENTIC Authorized Dealer Backed by full factory frame and parts warranties.
SINCE 1992 Over 30 Years of Trust Real riders sharing decades of cycling expertise.

SKU: 1220015054

In stock

Seek new heights with the Youth Rampage 20.

Designed with a BMX mindset so you can ride hard and level up.

The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.

Details

  • Smooth, seamless look for aluminum frame.
  • Frame features that allow you to push your potential.
  • Purpose-built for big air.
  • Components custom-selected for reliability.
  • Two wheel sizes and two models for the ideal ride.
  • No Other Way Limited Lifetime Warranty.
SPECIFICATIONS

Frameset

  • Frame: Aluminum DJ 20"
  • Fork: SR Suntour XCM Jr Air, 80mm, 9x100mm

Drivetrain

  • Crankset: Prowheel 3pc, 30T, 127mm
  • Bottom Bracket: Square Taper, 73mm, 122.5mm axle
  • Cassette: Single speed, 13T
  • Chain: KMC Z1 natural black 1/2 x 3/32" single speed chain

Brakes

  • Front Brake: Tektro MD-280, Mechanical, Resin pads
  • Front Brake Rotor: TR 160-24, 160mm, 6 bolt
  • Rear Brake: Tektro HD-M286, Hydraulic, Resin pads
  • Rear Brake Rotor: TR 160-24, 160mm, 6 bolt
  • Brake Levers: Tektro Alloy

Components

  • Handlebar: Norco 6061 alloy, 640mm, 30mm rise
  • Stem: Norco, 40mm Length, 31.8 Clamp
  • Seatpost: Integrated w/ saddle, 27.2mm ID, 200mm Length
  • Headset: Tapered 1-1/8" - 1.5" (ZS44/28.6 | ZS56/40)
  • Headset Spacer: 2x10mm, 1x5mm
  • Saddle: Norco One Piece
  • Grips: Norco JR Single lock on, 92mm length
  • Pedals: FM Composite Jr Flat Pedal
  • Seatpost Clamp: Norco Alloy QR, 31.8mm ID

Wheels

  • Front Hub: KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt
  • Rear Hub: KT sealed bearing, 3/8" nutted axle, 32H, 13T SS sprocket, 6 bolt
  • Rims: XD-181 DW, 32h, F/R-20", 24.7mm ID
  • Front Tire: Kenda K-Rad, 20x2.35", Wire Bead
  • Rear Tire: Kenda K-Rad, 20x2.35", Wire Bead
  • Spokes/Nipples: Stainless Steel, 14g
Please Note: Product images are for illustrative purposes only. Manufacturers occasionaly make updates to components, specifications, and finishes, meaning the actual bike you receive may vary slightly from the photos. However, any substituted parts will always be of like or better quality. If you have any questions about specific components, please don't hesitate to reach out to our team so we can get you the most up-to-date info on our current stock.
GEOMETRY
Wheel Size 20"
Travel (mm front) 80
Reach 345
Stack 444
HTA Head Tube Angle 68.5
OS Fork Offset 40
ST Seat Tube Length 260
STA Effective Seat Tube Angle 75
RC Rear Centre Length 295
BB Bottom Bracket Drop 0
BBH Bottom Bracket Height 261.5
HTT Horizontal Top Tube 464
WB Wheelbase 858
SOH Standover 492
HT Head Tube Length 100
Trail 60
Maximum Post Insertion 212
Stem Length 35
Crank Length 127
Tire Size 2.35" – 2.5"
