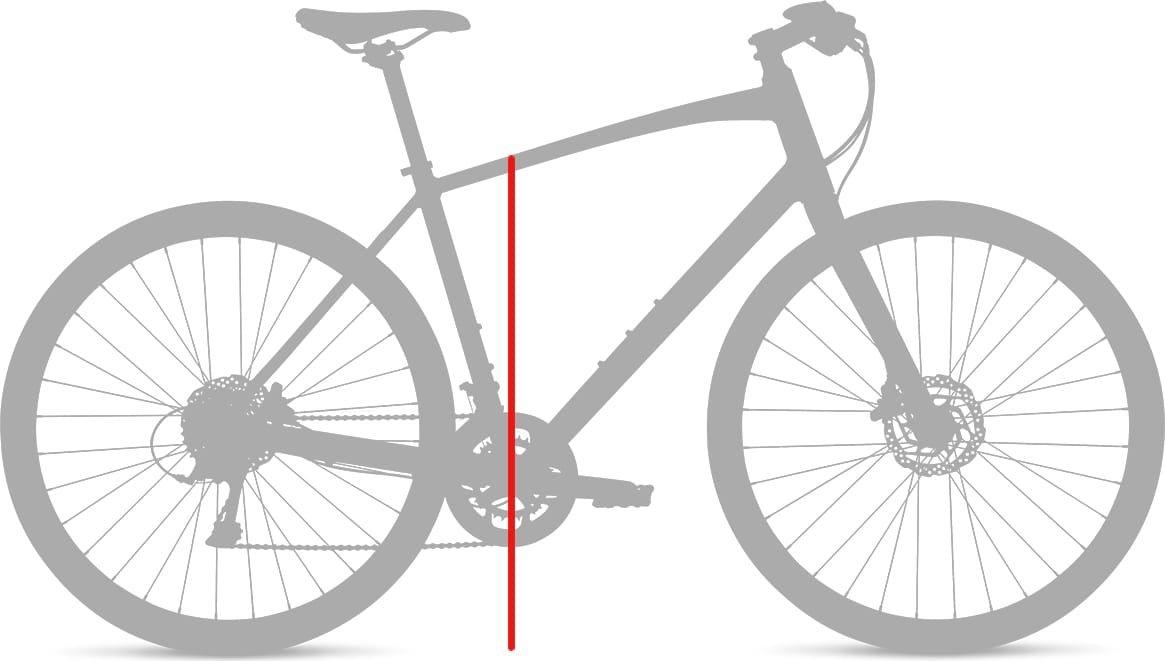

Specialized Roll Geometry
| S | M | L | |
|---|---|---|---|
| Crank Length | 165mm | 170mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 70mm | 70mm | 70mm |
| Saddle Width | 200mm | 200mm | 200mm |
| Seatpost Length | 350mm | 350mm | 350mm |
| Stack | 538mm | 621mm | 644mm |
| Reach | 346mm | 352mm | 370mm |
| Head Tube Length | 155mm | 190mm | 215mm |
| Head Tube Angle | 68° | 69° | 69° |
| BB Height | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm |
| Trail | 84mm | 77mm | 77mm |
| Fork Length, Full | 420mm | 420mm | 420mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm |
| Front Center | 617mm | 626mm | 653mm |
| Chainstay Length | 480mm | 480mm | 480mm |
| Wheelbase | 1088mm | 1097mm | 1124mm |
| Top Tube Length, Horizontal | 594mm | 615mm | 643mm |
| Bike Standover Height | 495mm | 495mm | 495mm |
| Seat Tube Length | 370mm | 450mm | 500mm |
| Seat Tube Angle | 67° | 67° | 67° |
