Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

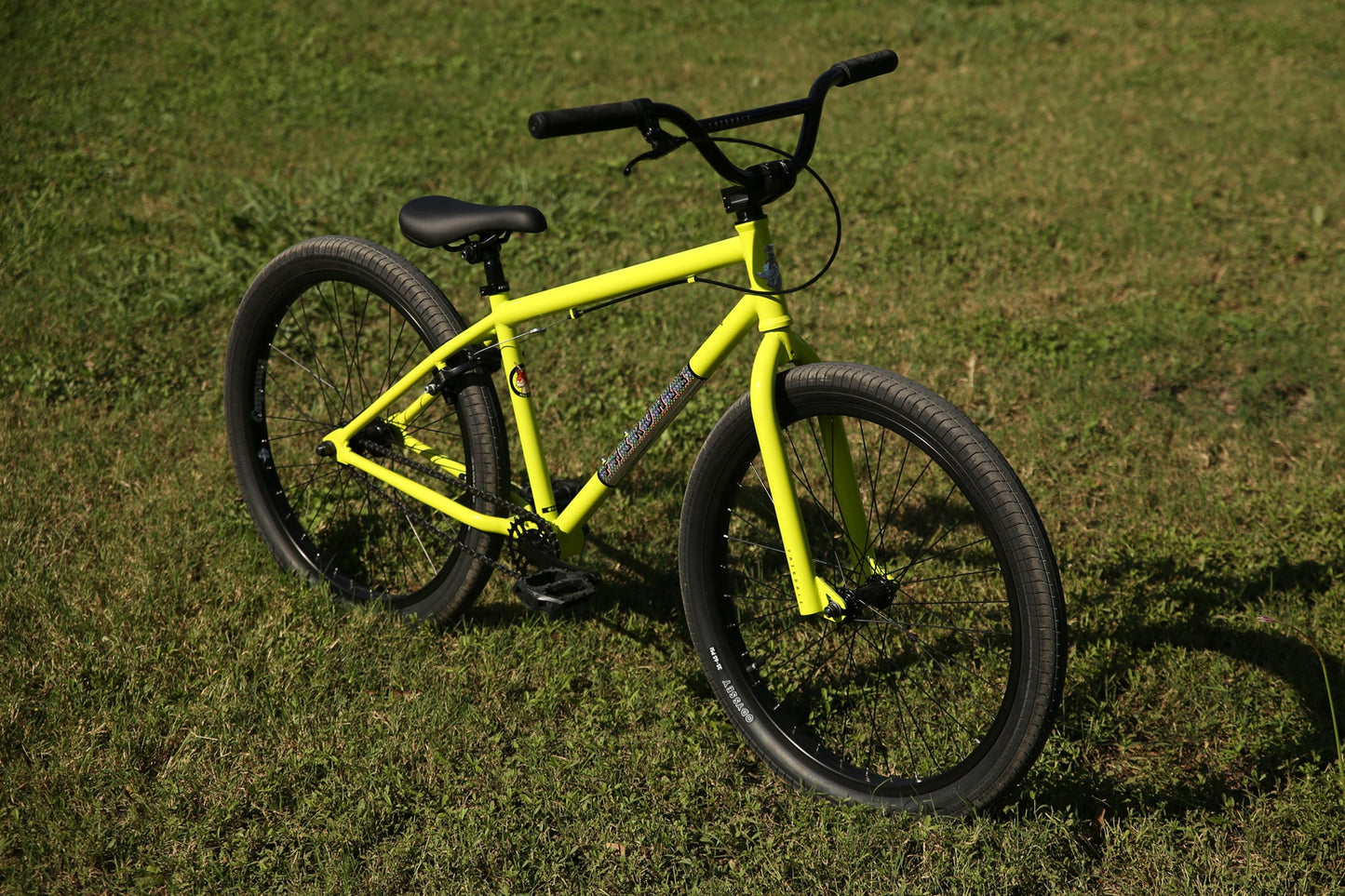

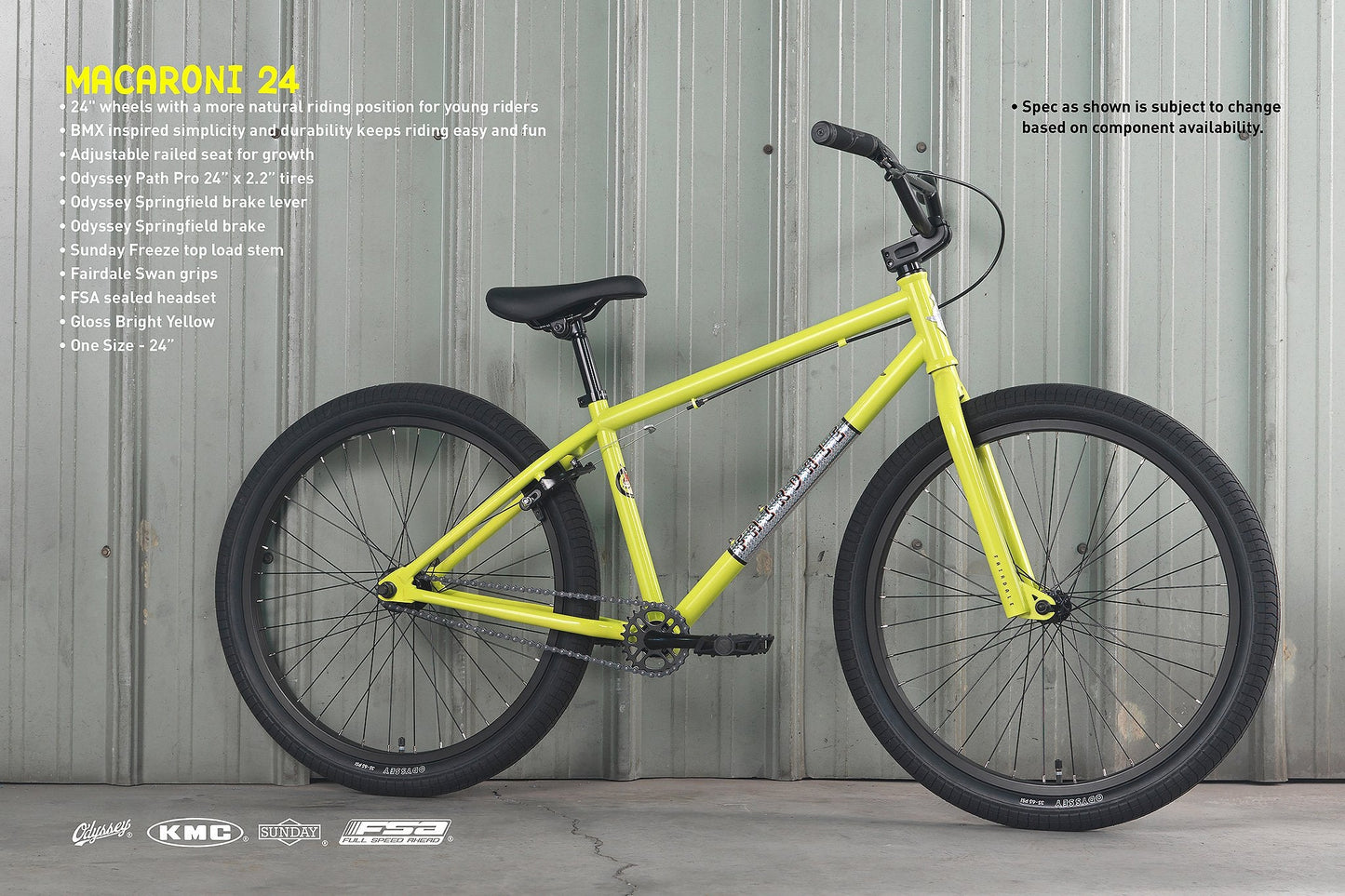

There are lots of different ways to enjoy riding a bike, and it all starts here. Designed to create a more natural riding position for young riders, the Macaroni 24 kids bike opens the doors to cycling.
BMX-inspired simplicity and durability mean the Macaroni is easy to ride and tough enough to keep on working. Carefully designed riding position allows young riders to feel balanced and confident. 2.4" wide tires smooth out bumps, and adjustable components help the bike grow with the rider.

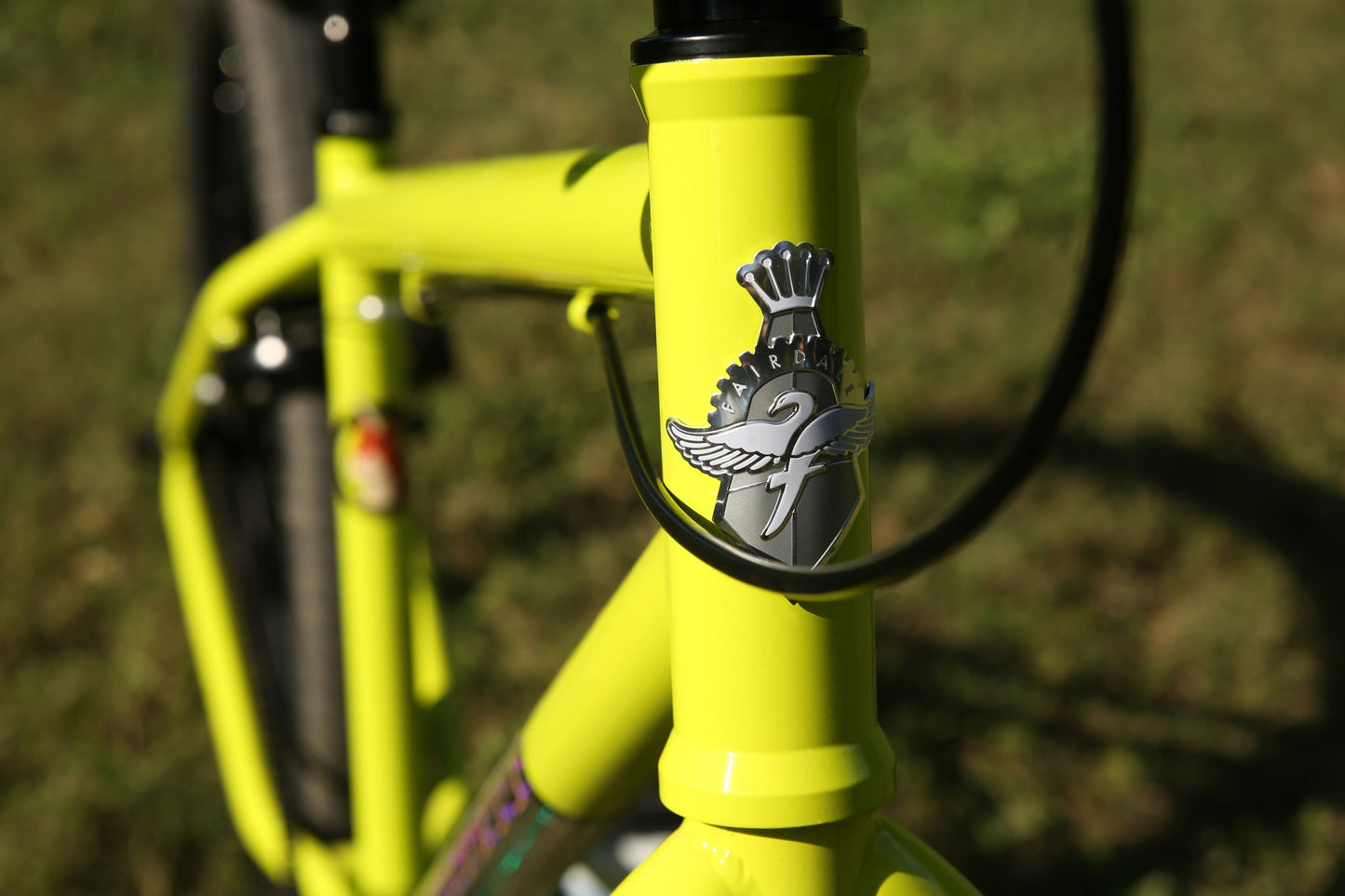

Gloss Bright Yellow available with 20" and 24" wheels.
Gloss Red (Toy Machine) available with 20" wheels.

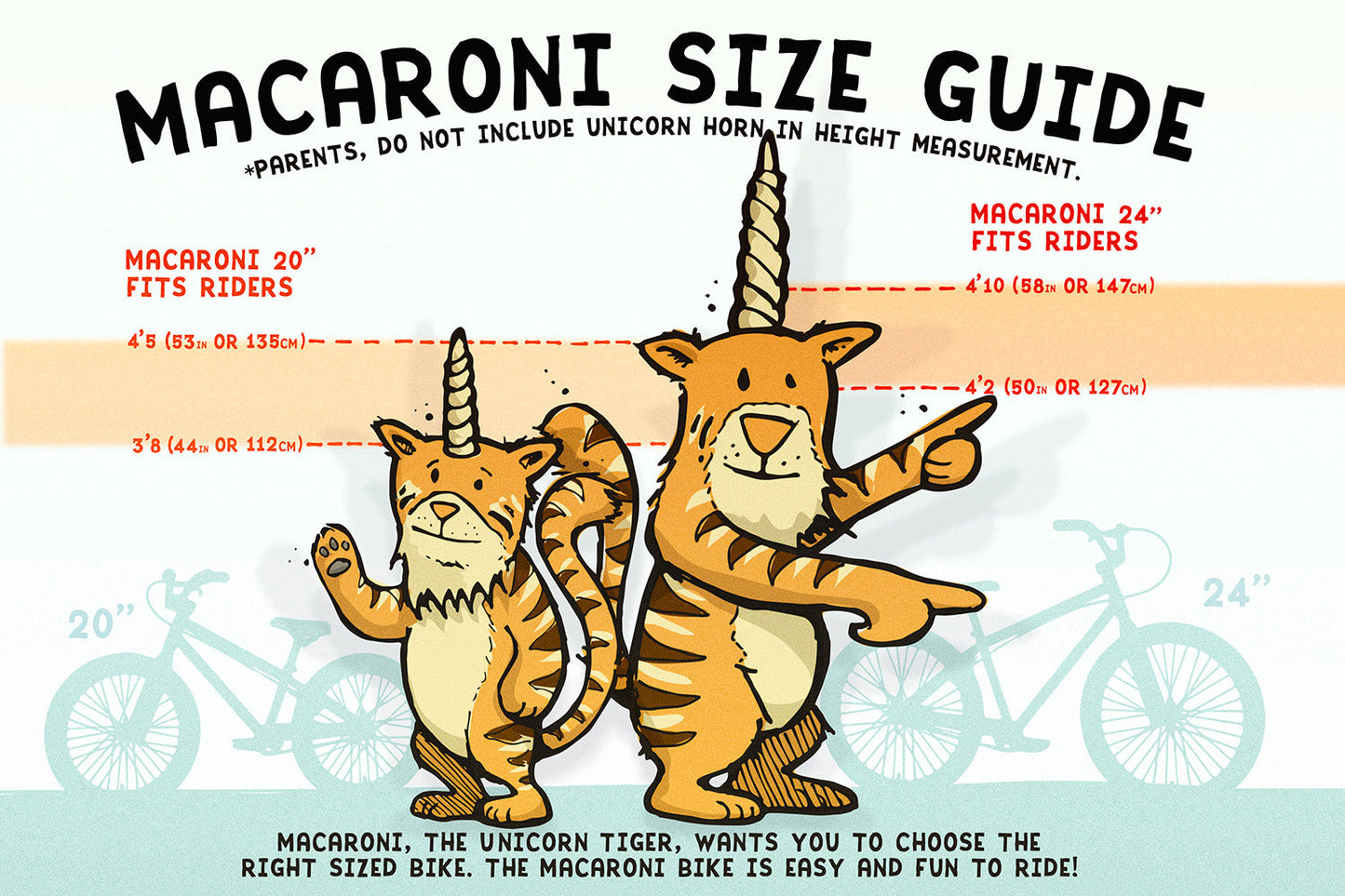

Sizing
20" Wheels: 3'8" (112cm) to 4'5" (135cm) height
24" Wheels: 4'2" (127cm) to 4'10" (147cm) height
Sizing is approximate.
Please consult with your local bike shop to assist with fit.
Specifications
Frame: 1020 Steel with 1-1/8” Integrated Head Tube
Fork: 1020 Steel 1-1/8” Steerer tube
Handlebar: Fairdale Macaroni, 1020 Steel
Stem: Sunday Freeze, Front Load
Headset: FSA, Sealed Integrated

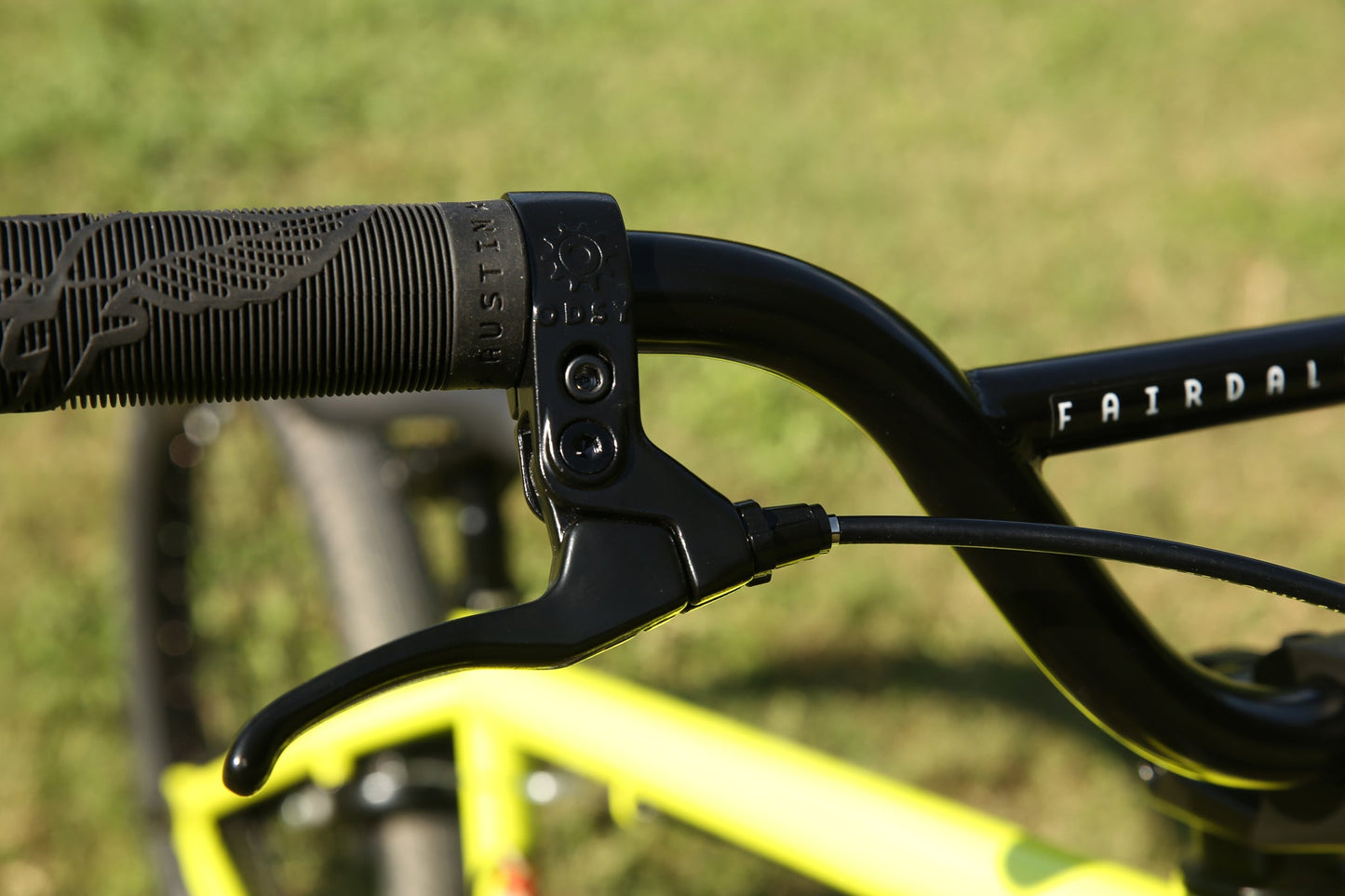

Brake Lever: Aluminum, U-brake Compatible, Junior Specific Size
Brake: Odyssey Springfield U-brake
Grips: Junior

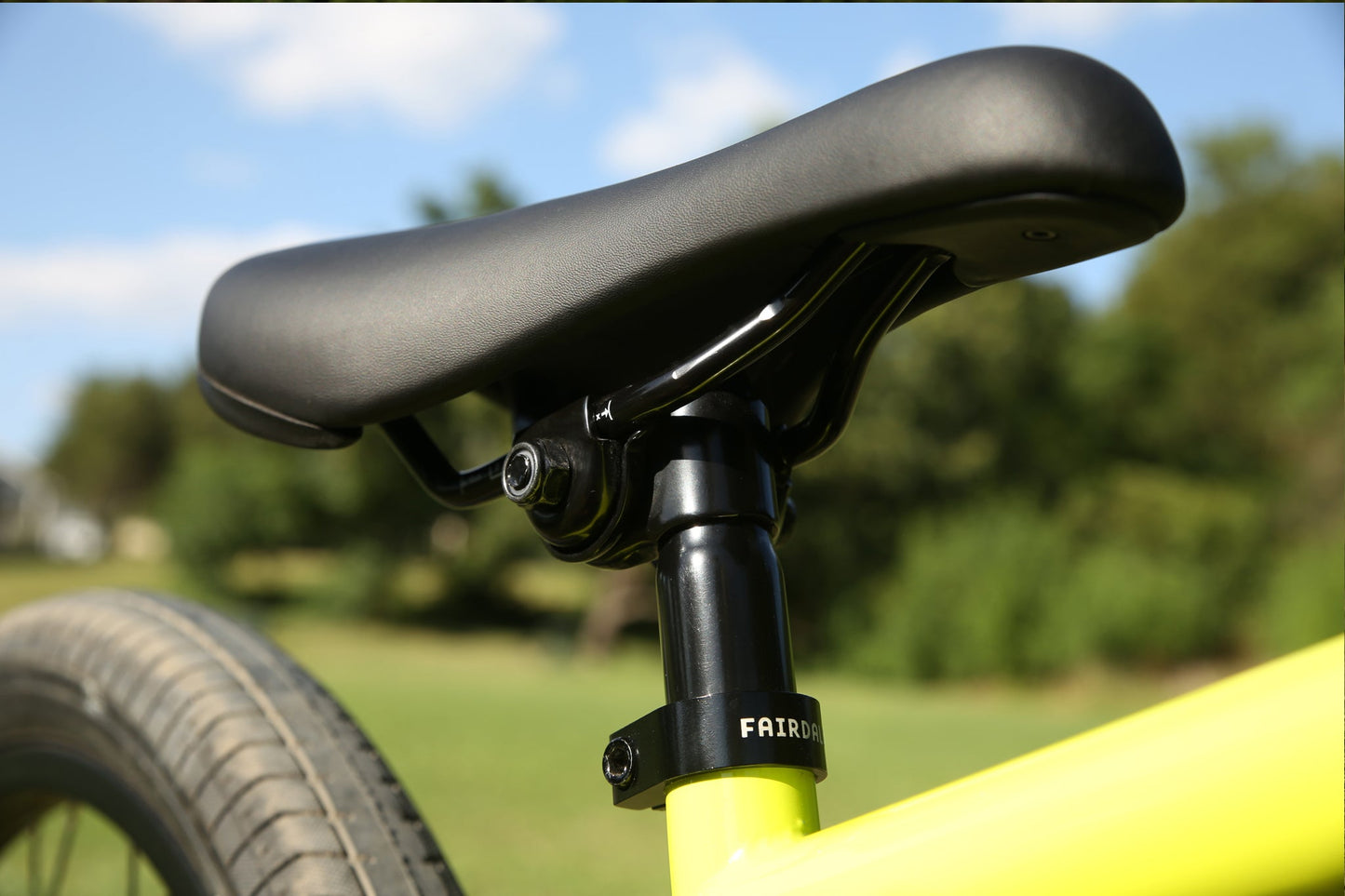

Saddle: Junior, Adjustable
Seat Post: Steel, 25.4mm
Seat Clamp: Fairdale 28.6mm
Cranks: 1-Piece, 115mm
Chainwheel: 25t Steel
BB Parts: Looseball, American
Pedals: Wellgo, Junior

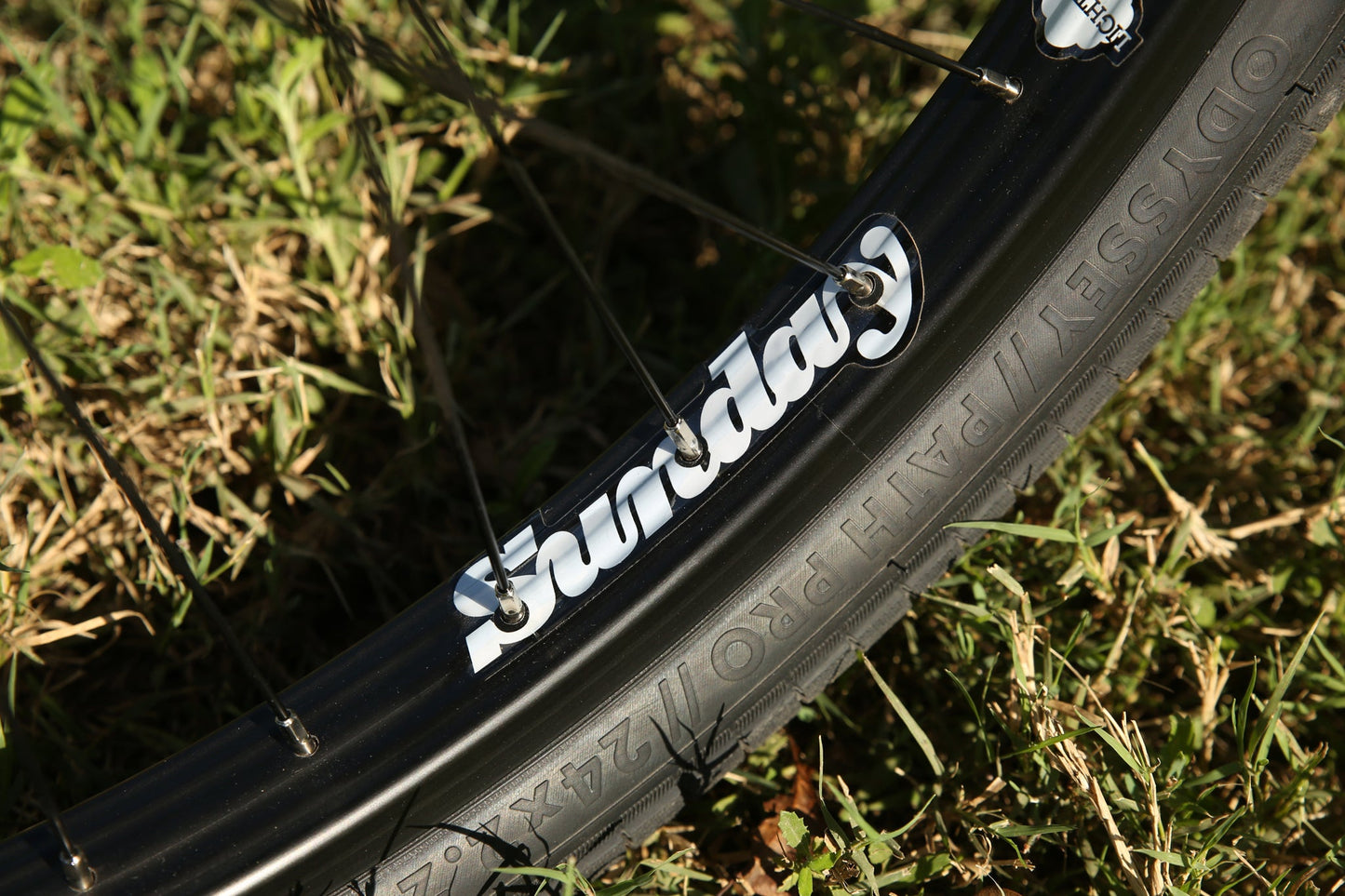

Rims: P-7X, 36-H, Aluminum, Single Wall, Pinned Joint
Front Hub: 36H, 3/8” Axle , Aluminum Shell, Looseball
Rear Hub: 36H, 14mm Axle, Aluminum Shell, Looseball Cassette
Tires: Sunday Current, 20 x 2.40"
Chain: KMC S1
Driver: 10t Cassette Driver
Geometry
| Size | 20" (44cm) | 24" (53cm) |
| Top Tube (Effective) | 440mm | 529mm |
| Top Tube (Actual) | 425mm | 530mm |
| Seat Tube (BB Center to TT Top) | 259mm | 375mm |
| Seat Tube (BB Center to TT Center) |
213mm | 330mm |
| Seat Tube Angle | 72° | 72° |
| Head Tube Length | 130mm | 140mm |
| Head Tube Angle | 69° | 70° |
| Chain Stay Length | 357mm | 418mm |
| Wheelbase | 850mm | 978mm |
| Standover | 556mm | 676mm |
| Stack | 429mm | 525mm |
| Reach | 299mm | 359mm |
| Fork Length | 315mm | 366mm |
| Fork Offset | 36mm | 34mm |
| BB Drop | 25mm | 60mm |
| Dropout Spacing | 110mm | 110mm |
| BB Type | American Press Fit | American Press Fit |
| Seat Post | 25.4mm | 25.4mm |
| Seat Clamp | 28.6mm |
28.6mm |
| Approx. Max Tire Width | 61mm | 61mm |
| Wheel Size | 20" | 24" |
