Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.
Introducing the Specialized Turbo Como 4.0 Active Electric Bike – your ticket to a high-octane joyride through the city streets! But wait, it's not just about getting from A to B; it's about doing it with a grin from ear to ear. Specialized cooked up a masterpiece that's part laid-back elegance and part lightning on wheels.
The City's Coolest Companion: Meet Como, the two-wheeled embodiment of comfort and style. With an effortlessly clean design and a stance that screams "let's cruise," this e-bike is the answer to your urban travel dreams. Whether it's a mundane commute or an impromptu spin around town, Como's got your back.
Power Play with Panache: Dial up the turbocharged FUN factor! The Turbo Como doesn't just assist your pedal strokes; it morphs them into four times the power, so those pesky hills are mere speed bumps. Your effort + Turbo Como's magic = Zooming around town like a superhero on a mission. And guess what? No sweat stains to show for it – literally!
Style Meets Substance: Comfort doesn't take a back seat here. With an upright riding position and buttery smooth handling, this bike is your VIP ticket to an all-day joy ride. Bumpy roads? Pfft, not a problem – the nifty suspension fork and cushiony seatpost have got your back (and your backside).
Turbo Tech Unleashed: Beneath the sleek exterior lies the heart of a beast – Turbo technology. It's not just about power; it's a symphony of connectivity, theft-proof wizardry, and even a personal trainer for your pedal strokes. Worried about sticky fingers? Flick a switch, and the motor goes into hiding. Plus, that battery? It either stays locked in place or hops off with you – your call.
Whisper-Quiet Speedster: Silent as a ninja, swift as a cheetah. The Turbo Full Power Motor takes you places without making a peep. So whether you're sneaking through side streets or conquering the boulevard, you're the star of the show without the roar.
Rules of the Ride: Keep in mind, the party doesn't last forever. Different regions, different speeds – it's all about local flavor. The speed limit at which the Turbo Como gives you a high-five might vary. But remember, the more you zoom, the shorter the journey. Choices, choices!
So there you have it – the Specialized Turbo Como 4.0 Active Electric Bike. It's not just a ride; it's a lifestyle upgrade, a statement, and a one-way ticket to grinning like a kid again. Get ready to redefine your daily journey – Como style!
Features:
- Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
- MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
- Long-Range - With true ride-anywhere range, go up to 90 miles (145 km) or 6.5 hours of range (eco mode).
Specifications
Frame |
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
Fork |
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
Seat Binder |
Specialized bolt-type, alloy, 42.9mm |
Handlebars |
Specialized Como handlebar/stem combo |
Grips |
Specialized Body Geometry Contour, lock-on |
Saddle |
Body Geometry Comfort Gel, 200mm w/ SWAT™ Mount |
SeatPost |
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve |
Stem |
PLW COMFORT INTEGRATED EXTRUSION STEM, INCLUDED W/HANDLEBAR |
Front Brake |
SRAM Level, 2-piston caliper, hydraulic disc, 180mm |
Rear Brake |
SRAM Level, 2-piston caliper, hydraulic disc, 180mm |
Rear Derailleur |
SRAM NX, 11-speed |
Shift Levers |
SRAM NX, 11-speed |
Cassette |
SRAM PG-1130, 11-speed, 11-42t |
Chain |
KMC e11S, 11-speed w/ Missing Link™ |
Crankset |
Custom alloy forged crankarms |
Chainrings |
Praxis, 48T, 104BCD |
Chaincase |
Integrated Chaincover |
Pedals |
Specialized Commuter w/ grip tape & reflectors |
Headlight |
Lezyne Ebike Hecto E65, 210 Lumen, 12V |
Taillight |
Spanninga Commuter Glow XE, 12V |
Kickstand |
Specialized kickstand, 40mm mount |
Rack |
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load |
Fenders |
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
Bell |
Simple bell |
Bike Lock |
Turbo System Lock |
Rims |
650b disc, double-wall alloy, pinned, 32h |
Front Hub |
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
Spokes |
DT Swiss Industry |
Front Tire |
Pathfinder Sport Reflect, 650Bx2.3 |
Rear Tire |
Pathfinder Sport Reflect, 650Bx2.3 |
Inner Tubes |
Schrader, 40mm valve |

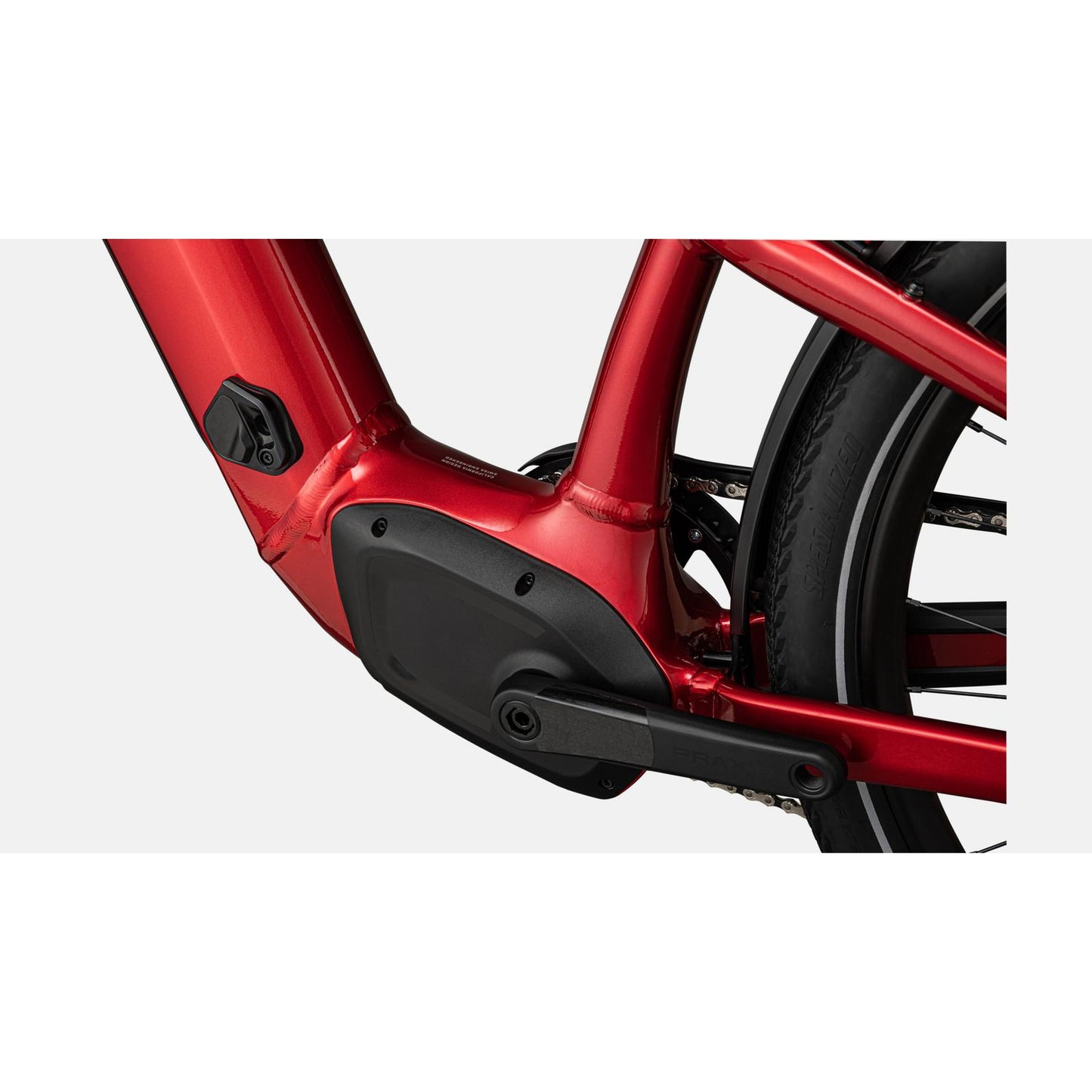

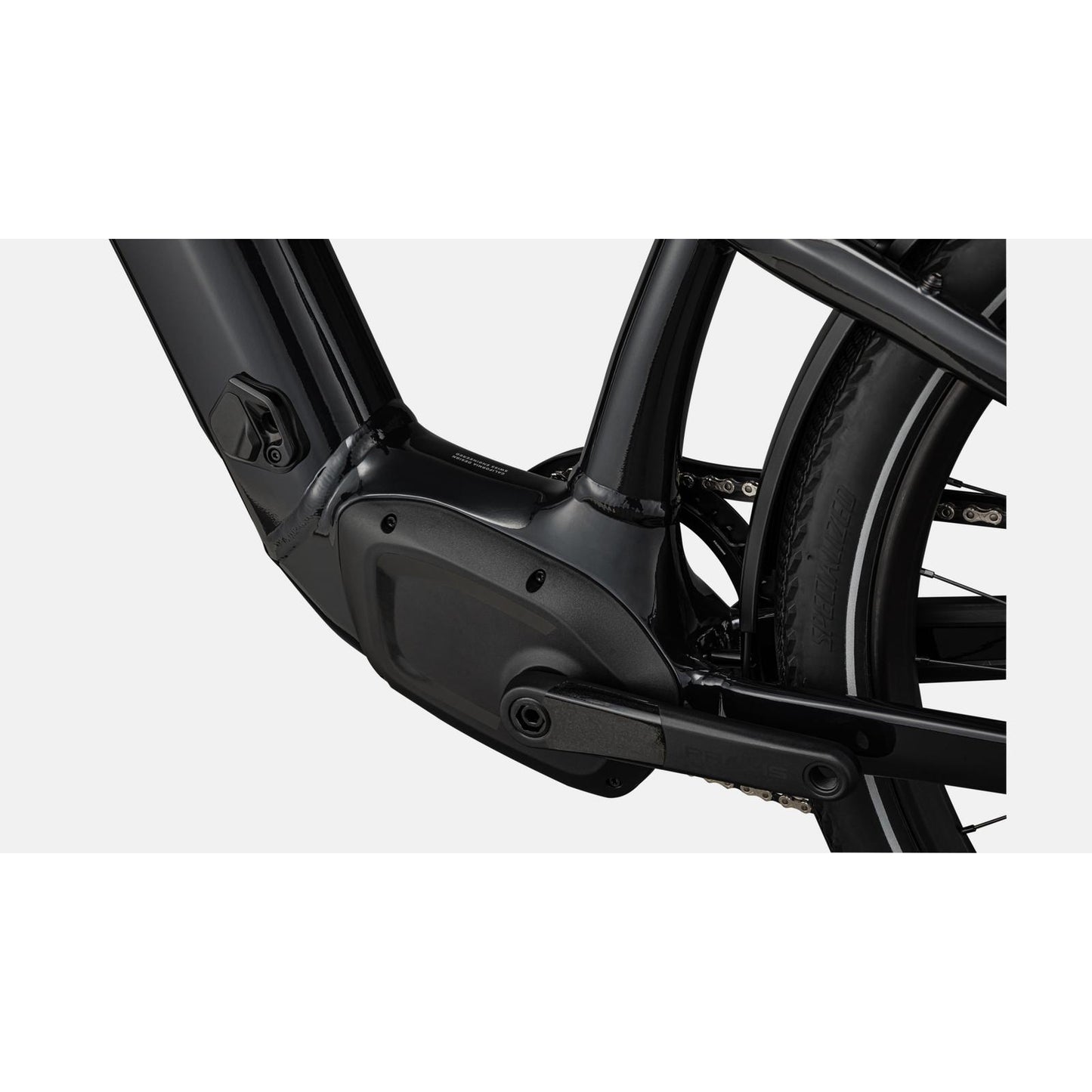

Motor |
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
UI/Remote |
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
Battery |
Specialized U2-710, alloy casing, state of charge display, 710Wh |
Charger |
Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
Wiring Harness |
Custom wire harness |
Geometry
S | M | L | |
---|---|---|---|
Crank Length | 170mm | 170mm | 170mm |
Handlebar Width | 680mm | 680mm | 680mm |
Saddle Width | 200mm | 200mm | 200mm |
Seatpost Length | 350mm | 400mm | 400mm |
Stack | 650mm | 671mm | 682mm |
Reach | 441mm | 465mm | 486mm |
Headtube Length | 150mm | 170mm | 180mm |
Headtube Angle | 67° | 67.5° | 68° |
BB Height | 275mm | 275mm | 275mm |
BB Drop | 80mm | 80mm | 80mm |
Trail | 103mm | 99mm | 96mm |
Fork Length (full) | 487mm | 487mm | 487mm |
Fork Rake/Offset | 44mm | 44mm | 44mm |
Front Center | 735mm | 762mm | 781mm |
Chainstay Length | 470.4mm | 470.4mm | 470.4mm |
Wheelbase | 1194mm | 1221mm | 1241mm |
Toptube Length (horizontal) | 630mm | 666mm | 695mm |
Bike Standover Height | 355mm | 355mm | 355mm |
Seat Tube Length | 450mm | 450mm | 460mm |
Seat Tube Angle (Virtual) | 73.8° | 73.3° | 73° |
