Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

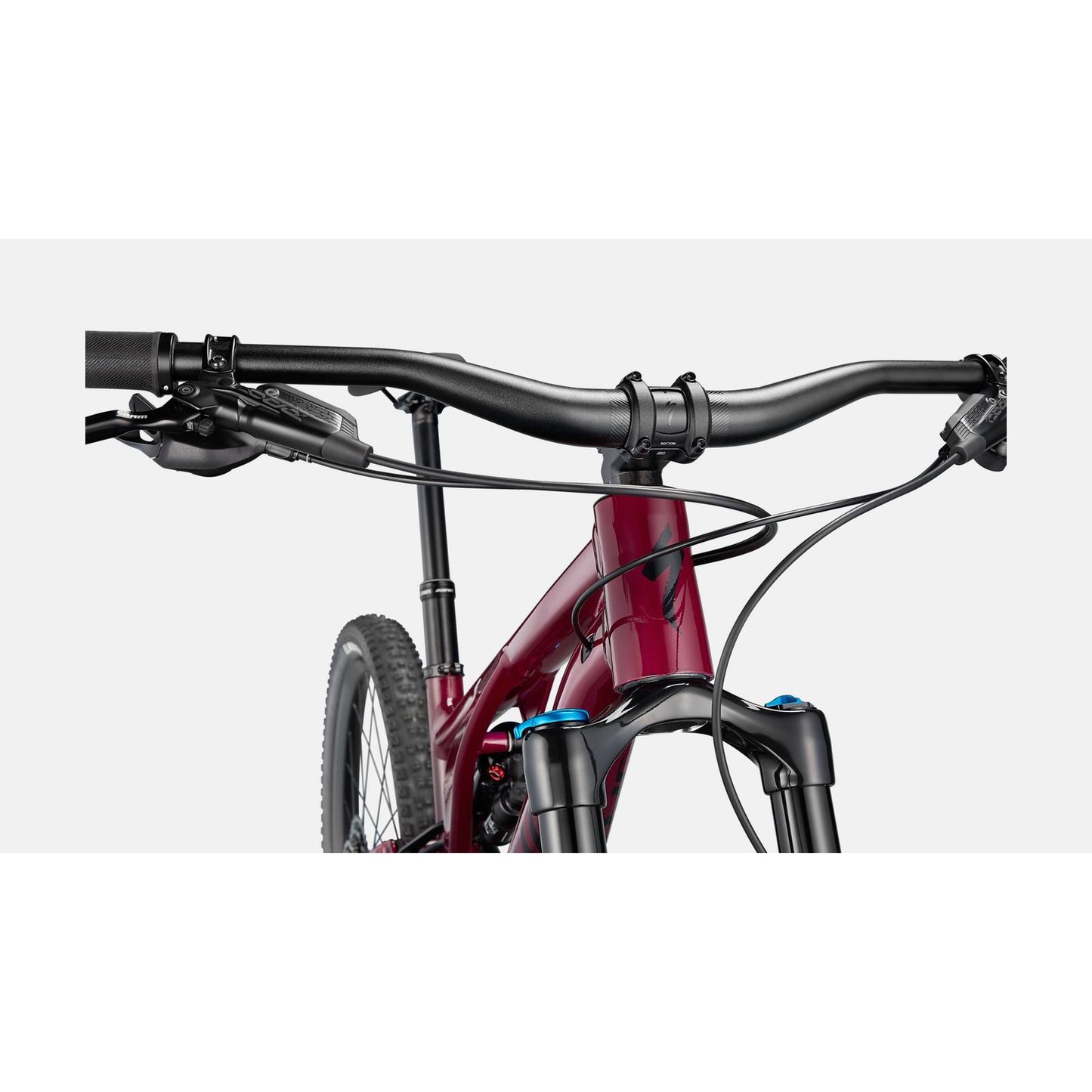

The Specialized StumpJumper Evo Comp Alloy Full Suspension 29" Mountain Bike, where "gnarly" is the name of the game. This ain't your typical trail bike, folks! It's designed to get wild and adventurous, no holds barred. Picture yourself tearing down trails that you once thought were reserved for hardcore DH rigs, but this bad boy is up for the challenge!
So, buckle up and get ready to hit the trails with the Specialized StumpJumper Evo Comp Alloy. It's not just a bike; it's a ticket to an unforgettable adventure – and oh, the stories you'll have to tell!
Features:
- All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
- The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
- Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.
- Specialized introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
Stem Length | 40mm | 40mm | 50mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 190mm |
Stack | 614mm | 617mm | 626mm | 635mm | 644mm | 654mm |
Reach | 410mm | 428mm | 448mm | 475mm | 498mm | 528mm |
Headtube Length | 95mm | 95mm | 105mm | 115mm | 125mm | 135mm |
Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
BB Height | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
BB Drop | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
Trail | 131mm | 131mm | 131mm | 131mm | 131mm | 131mm |
Fork Length (full) | 561mm | 571mm | 571mm | 571mm | 571mm | 571mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 734mm | 756mm | 780mm | 809mm | 838mm | 873mm |
Chainstay Length | 441mm | 441mm | 441mm | 441mm | 451mm | 451mm |
Wheelbase | 1172mm | 1195mm | 1219mm | 1249mm | 1288mm | 1322mm |
Top-tube Length (horizontal) | 541mm | 564mm | 590mm | 623mm | 647mm | 679mm |
Bike Standover Height | 746mm | 749mm | 757mm | 760mm | 784mm | 792mm |
Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle | 78° | 77.6° | 77.2° | 76.9° | 77° | 77° |
Max Seatpost Insertion | 190mm | 190mm | 210mm | 230mm | 250mm | 270mm |
Min Seatpost Insertion | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
